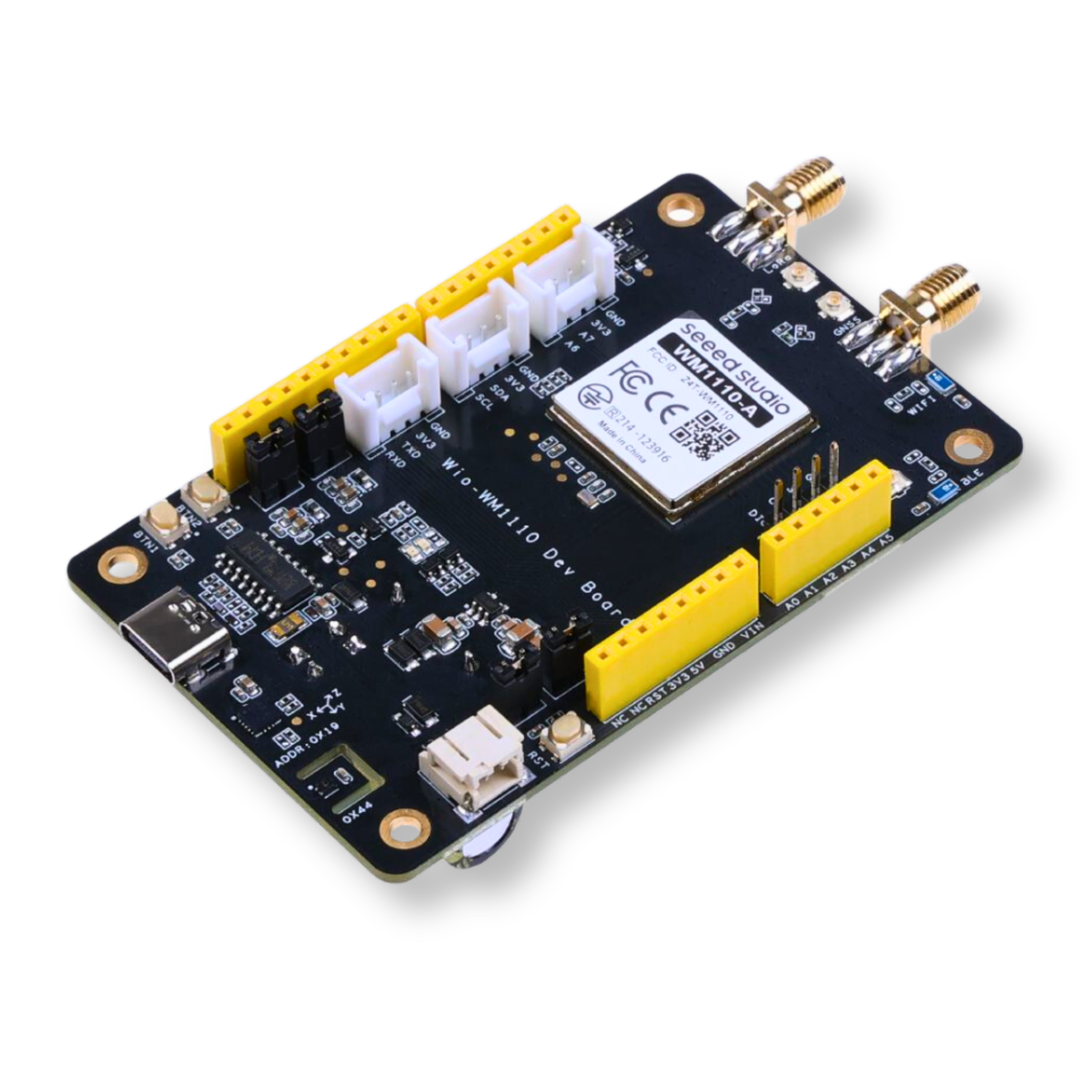

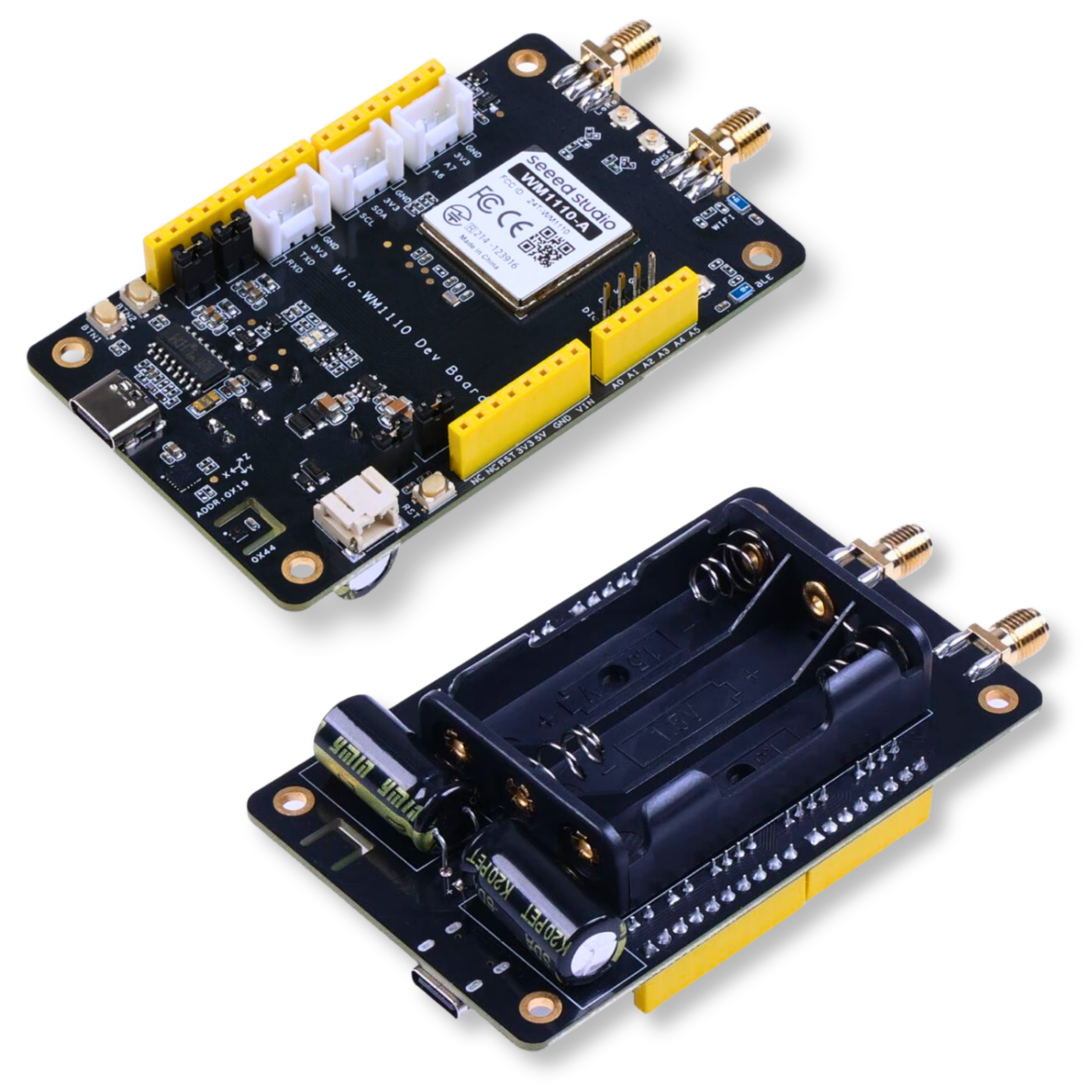

Wio-WM1110 Dev Kit development board Seeedstudio LR1110 Nordic nRF52840
0
Description
The Wio-WM1110 Dev Kit from Seeedstudio is an advanced development board, based on the Semtech LR1110 and Nordic nRF52840 modules, designed for versatile IoT and geo-location projects. The module enables long-range LoRaWAN communication, precise GNSS positioning(GPS/BeiDou), as well as WiFi and Bluetooth Low Energy (BLE) connectivity. With support for NFC, Thread and Zigbee technologies, the device allows for expansion of functionality with additional sensors and interfaces. The board is compatible with the Grove system and Arduino, allowing easy integration with other modules and accessories. Built-in connectors, such as USB Type C, photovoltaic connectors and a AAA battery connector, provide a variety of power and configuration options. LoRa and GNSS antennas and a photovoltaic panel are included.
Key features:
- LoRaWAN communication with up to 10 km range
- Precise positioning with GNSS (GPS/BeiDou) and WiFi
- Bluetooth 5.3 support (BLE, Mesh, Thread, Zigbee)
- Low power consumption - 7.6 μA in sleep mode
- Built-in sensors: 3-axis accelerometer and temperature and humidity sensor
- Compatible with Arduino and Grove modules

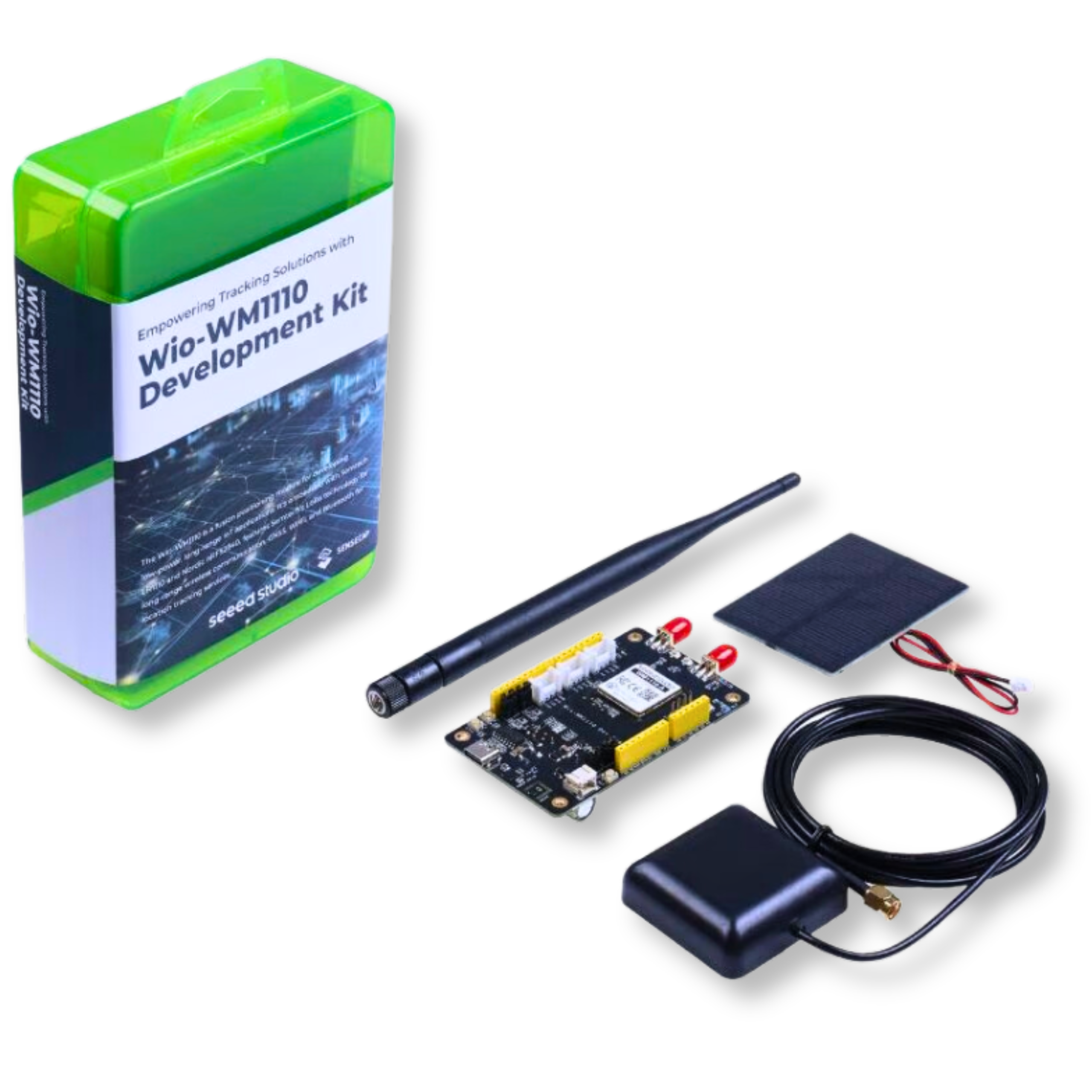

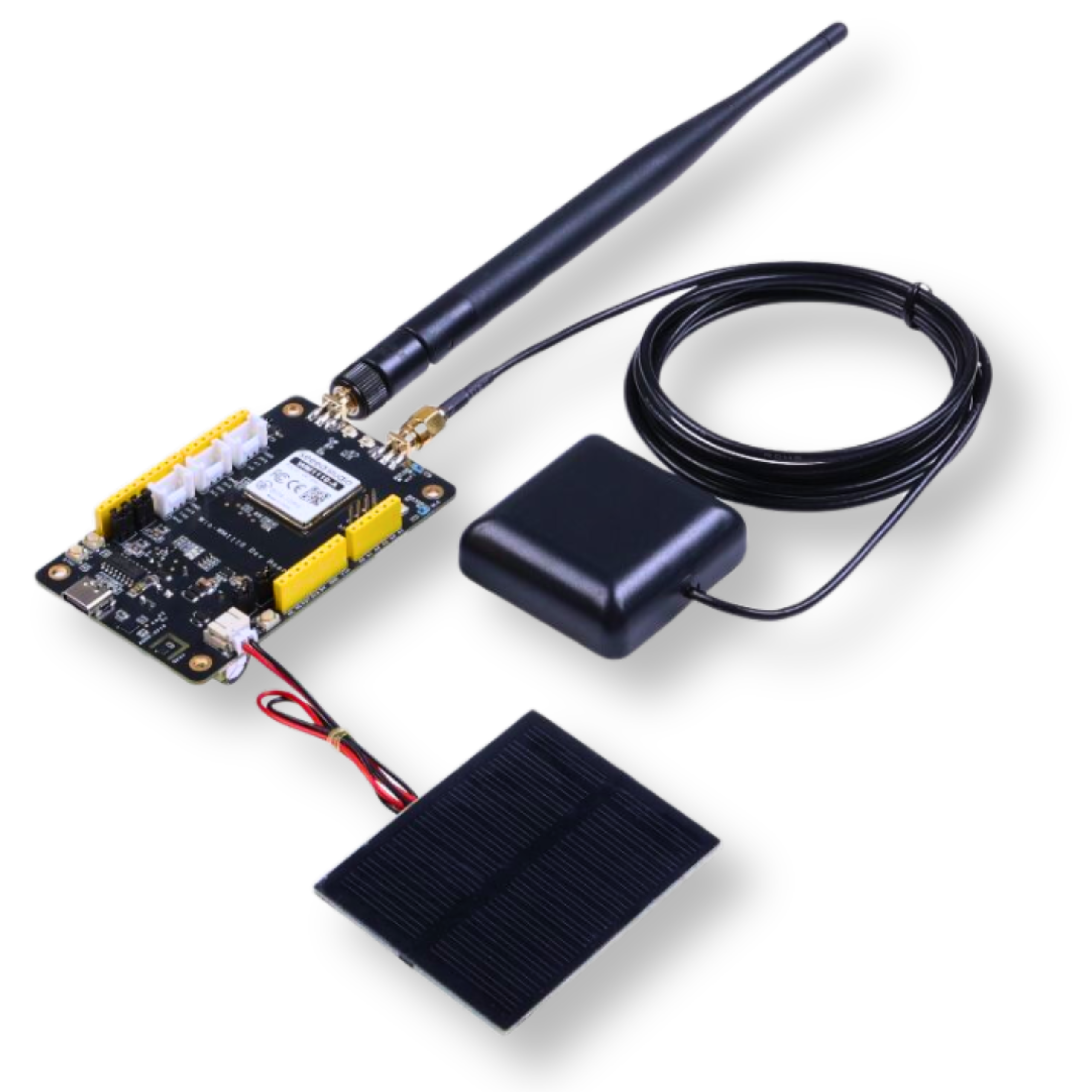

Kit contents:
- Wio-WM1110 Dev Kit
- LoRa antenna
- GNSS antenna
- Photovoltaic panel 0.5 W
