Mikrokontroler ESP32 D1 Mini USB-C WiFi Bluetooth BLE 4MB do Arduino IoT

ESP32 D1 Mini USB-C WiFi + Bluetooth Module for Arduino

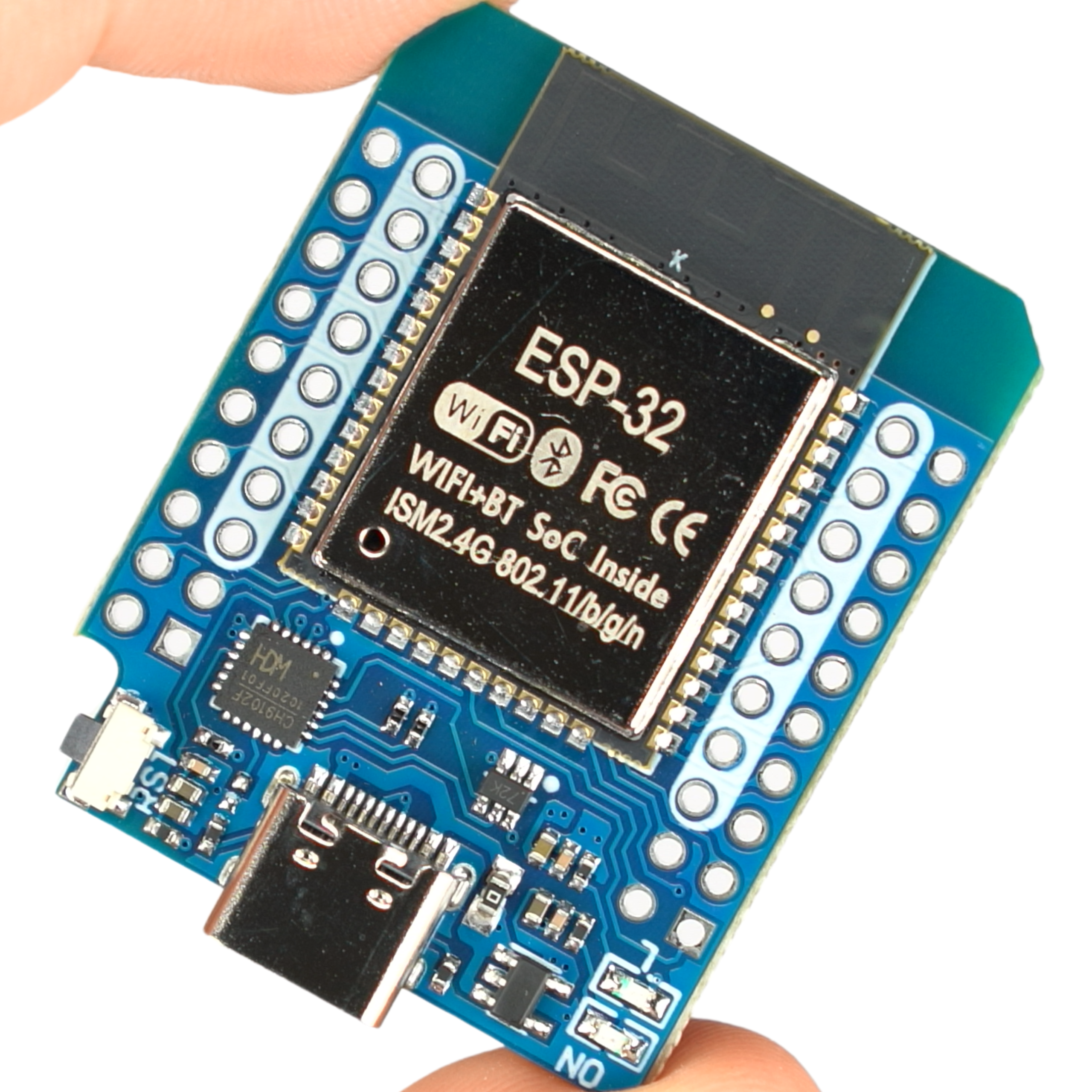

ESP32 D1 Mini is a compact development board and a more powerful successor to the popular ESP8266 D1 Mini module. Equipped with a dual-core processor and built-in WiFi and Bluetooth support, it offers broad capabilities for Internet of Things (IoT) projects. The board features more GPIO pins and additional hardware functions such as ADC and DAC converters.

Key Technical Specifications

• Microcontroller: ESP32 (dual-core Tensilica Xtensa LX6 processor clocked at up to 240 MHz)
• Wireless communication: WiFi 802.11 b/g/n and Bluetooth 4.2 BLE
• Supply voltage: 5 V (via USB-C connector) or 3.3 V (via pins)
• Flash memory: 4 MB
• SRAM memory: 520 KB
• Interfaces: UART, SPI, I2C, PWM, 12-bit ADC, DAC
• Connector: USB-C
• Compatibility: Works with most shields designed for the ESP8266 D1 Mini

Example Applications

• Building automation systems (Smart Home) and remote device control.
• Weather stations and wireless environmental sensors.
• Internet of Things (IoT) projects requiring WiFi or Bluetooth communication.
• Communication gateways between different data transmission standards.
• Hobby robotics and motor control systems.
• Data loggers with cloud storage.

Benefits of Choosing the ESP32 D1 Mini

• High performance: The dual-core processor enables more complex tasks and smooth real-time data processing.
• Versatile connectivity: Integrated WiFi and Bluetooth (including BLE) modules eliminate the need for additional communication chips.
• Compact dimensions: The small board size makes integration easy in space-constrained projects.
• Rich peripherals: A large number of GPIO pins with hardware interface support (I2C, SPI, UART, ADC, DAC) allows connection of many sensors and actuator modules.
• Energy efficiency: Optimized sleep modes (Deep Sleep) make the module ideal for battery-powered applications.
• Easy programming: Full compatibility with the Arduino IDE enables rapid software development using popular libraries.

Differences Compared to the ESP8266 D1 Mini

The ESP32 D1 Mini module offers a significant performance leap compared to its predecessor. It uses a dual-core processor clocked at up to 240 MHz, while the ESP8266 has a single-core chip (up to 160 MHz). SRAM memory has also been increased from 160 KB to 520 KB.

A key advantage of the newer version is built-in Bluetooth 4.2 BLE support, which the ESP8266 lacks. The ESP32 board also provides more GPIO pins and more advanced peripherals, including hardware DAC converters. Despite these improvements, compatibility with most expansion boards designed for the older module version has been retained.

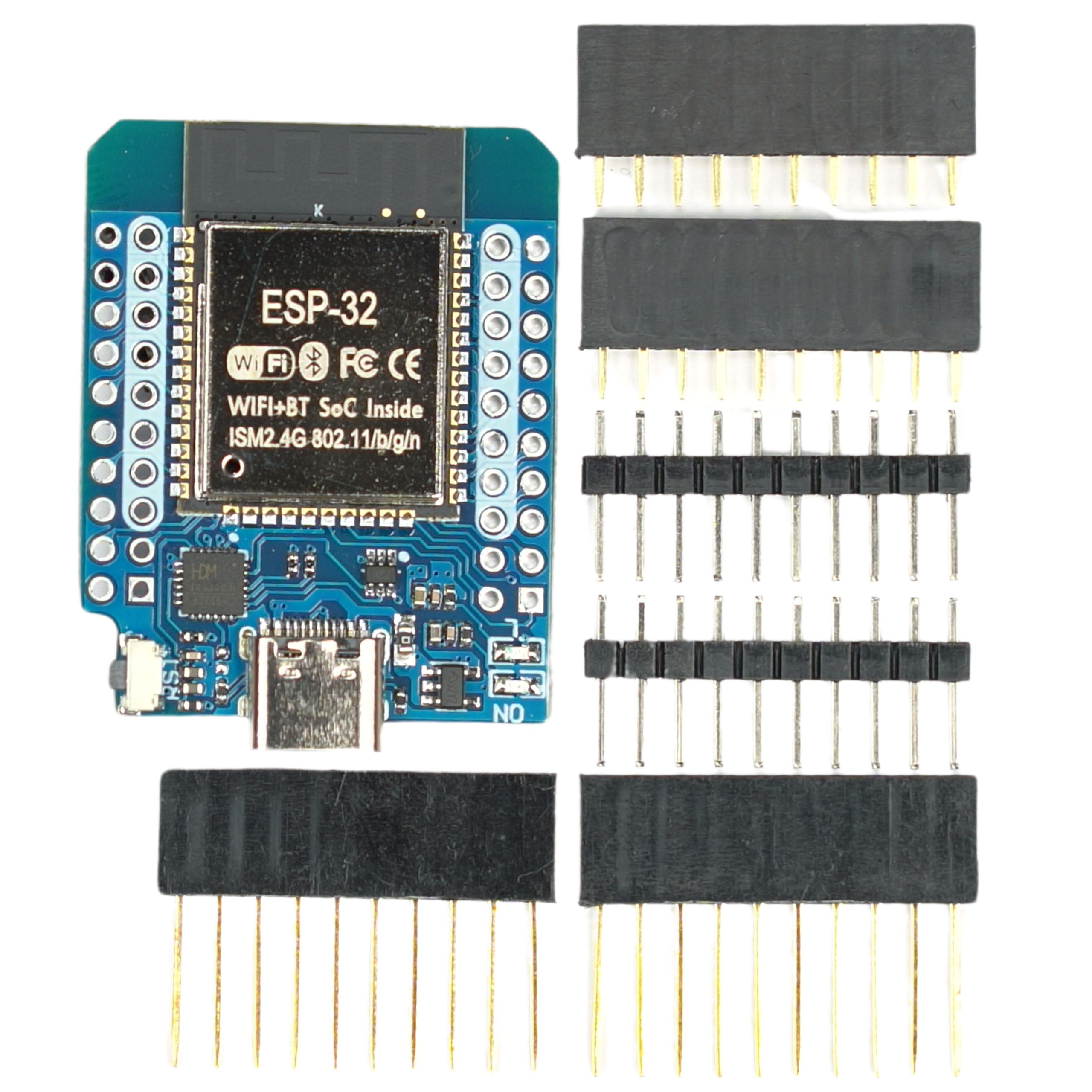

Package Contents

• LIVE MINI KIT ESP32 module
• 10-pin pin-pin header 25mm - 2 pcs.
• 10-pin pin-socket header 26mm (short) - 2 pcs.
• 10-pin pin-socket header 26mm (long) - 2 pcs.
