Płytka ESP32 NodeMCU ESP-WROOM-32 38-pin USB-C WiFi Bluetooth do Arduino

ESP32 NodeMCU Development Board with ESP-WROOM-32 38-pin USB-C

Advanced NodeMCU development module based on the popular ESP-WROOM-32 chip. The board is equipped with a modern USB-C connector and a reliable CP2102 USB-UART converter, making programming and communication easy. The module is built on a powerful 32-bit dual-core architecture, offering high computing power for demanding IoT applications. Thanks to the optimal pin row spacing (22.5 mm), when mounted on a breadboard, one row of sockets remains free on both sides of the module, providing convenient access to all pins. The product is fully compatible with the Arduino IDE environment for ESP32, for Arduino, and other popular development platforms.

Key Technical Specifications

• Microcontroller: NodeMCU (ESP-WROOM-32, 32-bit, dual-core)
• Number and spacing of pins: 38 pins, 22.5 mm spacing between rows
• RAM: 520 kB
• Flash memory: 4 MB
• Wireless connectivity: WiFi 2.4 GHz (B/G/N standard) and Bluetooth Classic + Low Energy v4.2
• Communication connector: USB-C
• USB-UART converter: CP2102
• GPIO pins: up to 33 available GPIO lines (including 3x UART, 3x SPI, 2x I2C, 2x I2S)
• ADC: 12-bit, up to 18 channels
• DAC: 2-channel (2x 8-bit)
• Additional interfaces: SD card and touch interface support
• Built-in sensors: Hall sensor
• Antenna: Integrated PCB antenna
• Pin pitch: 2.54 mm (soldered goldpin headers)
• Module weight: 9 g

Benefits

• High computing performance - the dual-core processor ensures stable operation of complex algorithms.
• Versatile communication - integrated WiFi and Bluetooth modules allow easy integration with wireless systems.
• User convenience - USB-C port and proven CP2102 chip guarantee hassle-free connection to a computer.

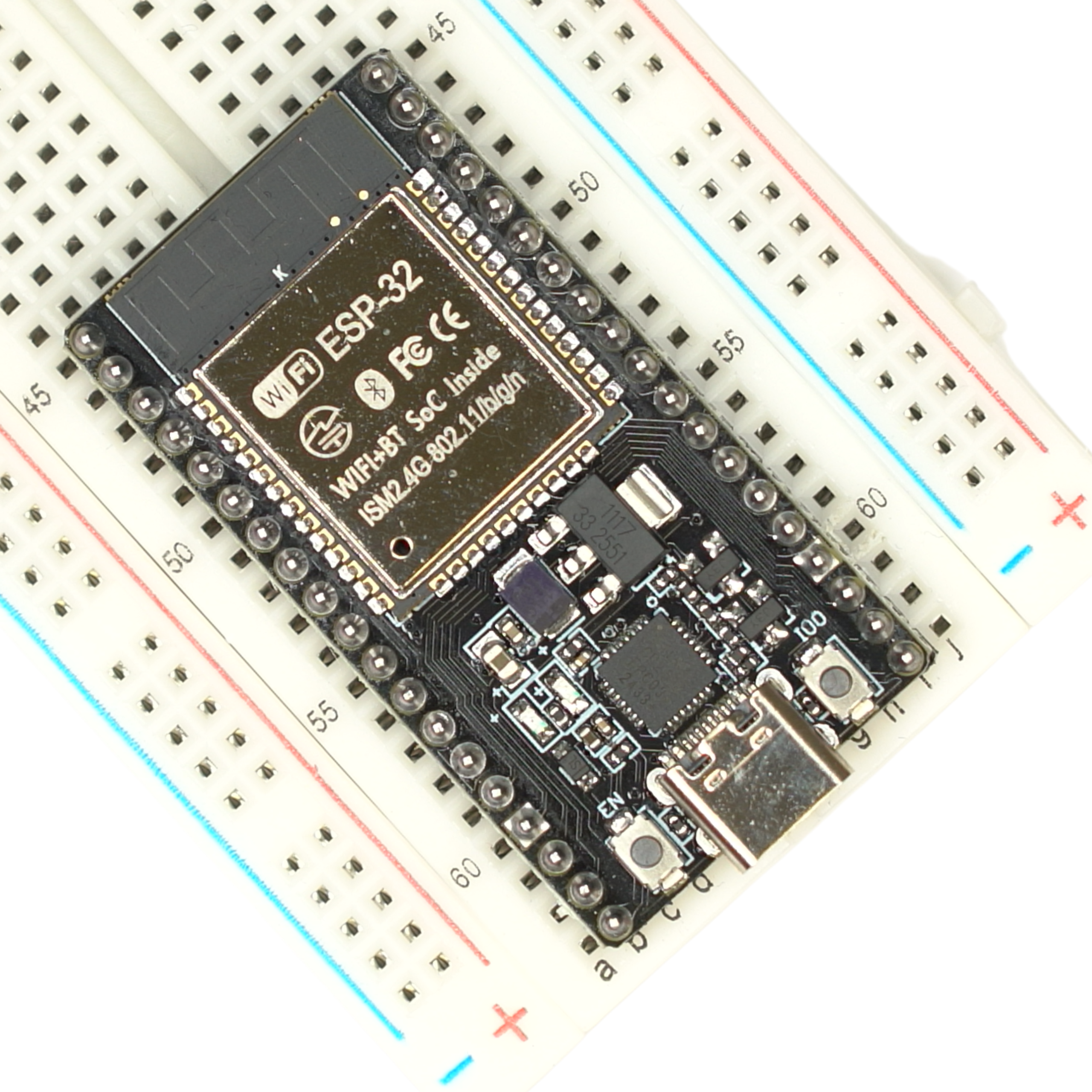

• Perfect fit for breadboards - 22.5 mm row spacing leaves one free row of sockets on both sides of the module on a breadboard, providing convenient access to all pins without disconnecting the circuit.
• Rich peripherals - a large number of GPIO pins and built-in ADC/DAC converters enable connection of many sensors and actuators.
• Ready to use - factory-soldered goldpin headers allow immediate placement of the module on a standard breadboard.

Example Applications

• Smart Home systems - control of lighting, blinds, and heating.
• Weather stations - reading and wireless transmission of data from environmental sensors.
• Web servers and IoT gateways - local data collection and sharing on the local network.
• Robotics - motor control and real-time sensor data reading.
• Alarm and monitoring systems - motion detection and notifications sent over WiFi.
• Educational projects - learning microcontroller programming in popular development environments.
