Power and signal adapter for ESP32-S3

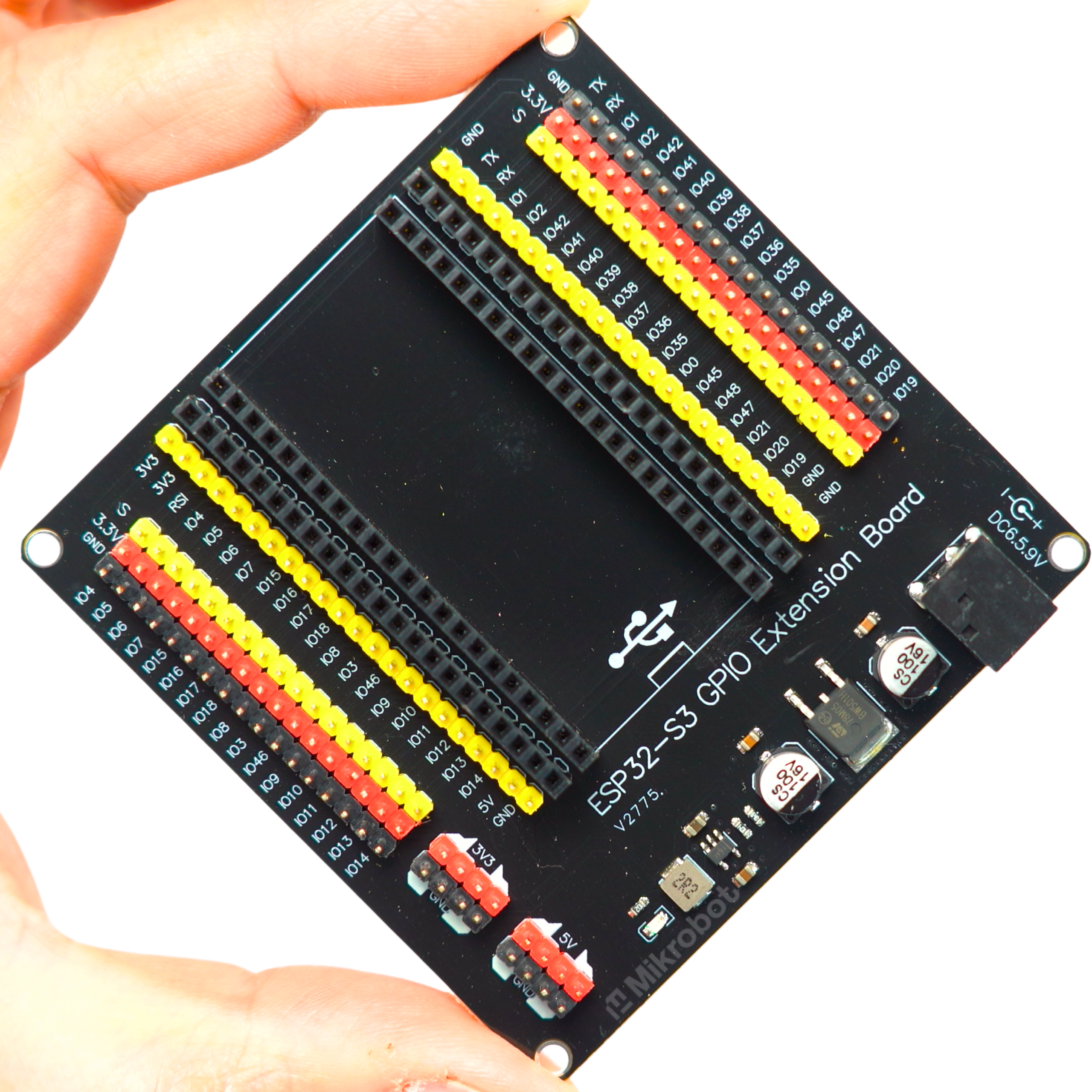

Goldpin adapter designed for ESP32, and in particular for ESP32-S3 modules in the DevKit version equipped with a 44-pin connector. The board allows mounting the microcontroller and provides direct access to all pins via goldpin connectors. The built-in LM78M05 voltage regulator and standard DC 2.1/5.5 mm socket allow powering the circuit with a voltage in the range of 6-9V. The module provides additional 3.3V and 5V power pins, making it easy to connect external sensors and peripheral circuits.

Key technical features

• Compatibility: ESP32-S3 DevKit 44-pin
• Input voltage: 6-9V DC
• Power connector: DC 2.1/5.5 mm socket
• Built-in regulator: LM78M05 (5V output)
• Available output voltages: 5V and 3.3V on goldpin connectors
• Signal connectors: complete set of goldpin headers for all module pins

Example applications

• Rapid prototyping of microcontroller-based circuits
• Testing new modules, displays, and sensors
• Organizing 5V and 3.3V power rails in expanded circuits
• Educational and laboratory projects in embedded systems
• Building custom peripheral circuits without soldering
• Building IoT systems requiring external power

Benefits

• Direct access to all microcontroller pins via goldpin headers
• Ability to power the circuit from an external power supply through a standard DC 2.1/5.5 mm socket
• Integrated LM78M05 regulator providing stable 5V voltage
• Additional 3.3V and 5V power pins for powering extra components
• Secure mounting of the DevKit board in dedicated sockets, simplifying assembly work
