ESP32-C6-Touch-AMOLED-2.16 Development Board with 2.16" Touch AMOLED Display

Compact development board with a 2.16-inch AMOLED display, designed for embedded systems projects, HMI interfaces, and IoT and voice interaction applications. At the heart of the design is the ESP32-C6 microcontroller based on the RISC-V architecture, providing support for Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 communication.

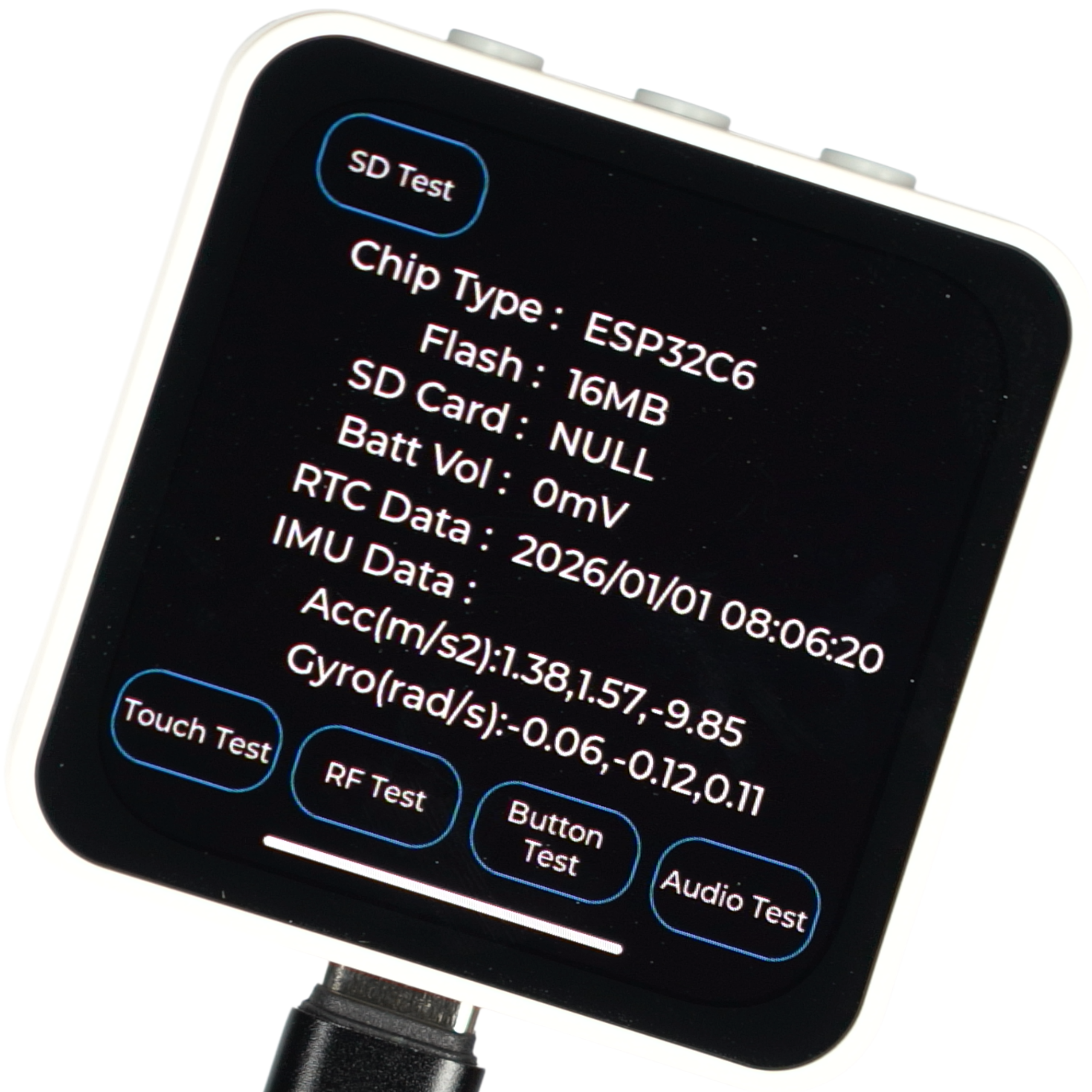

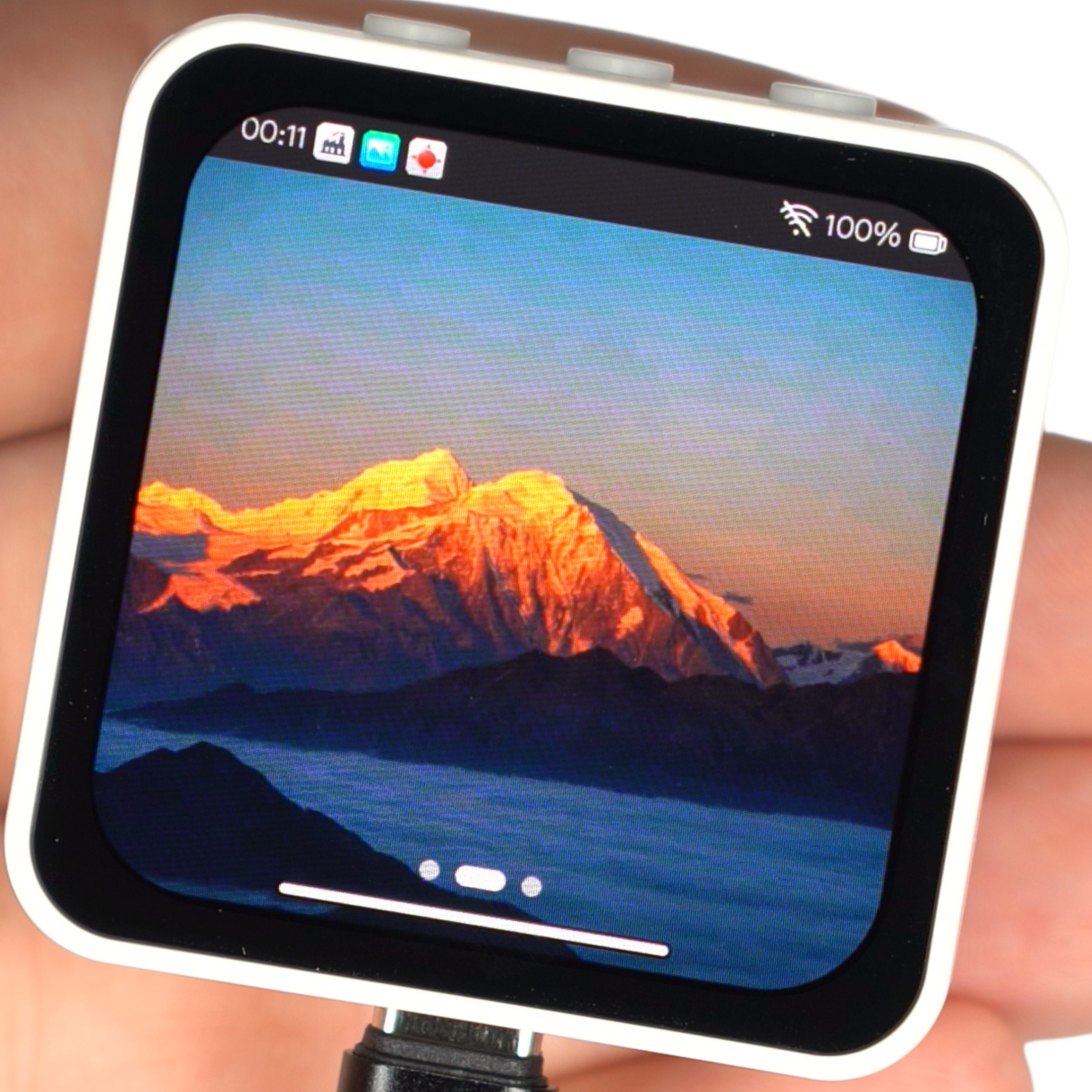

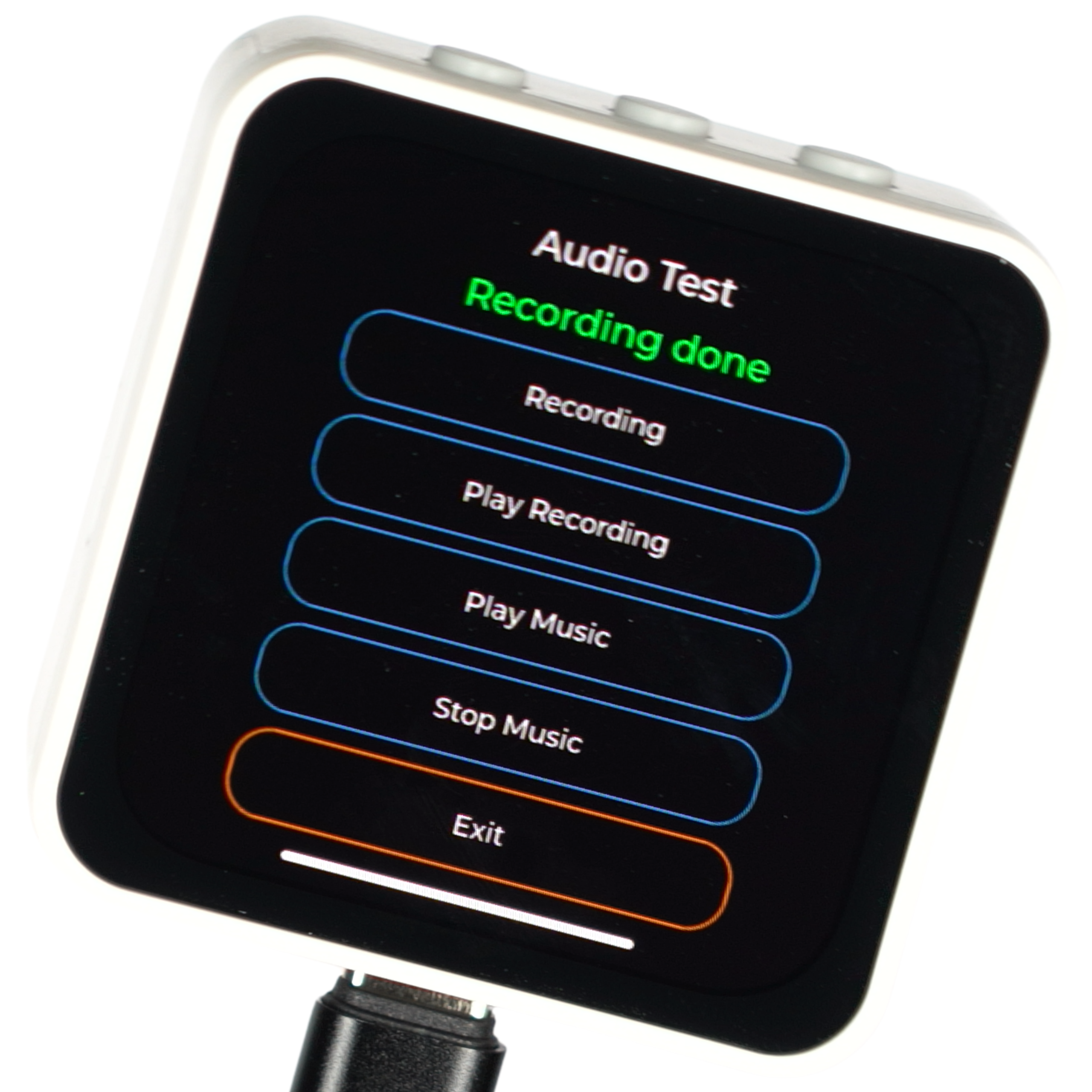

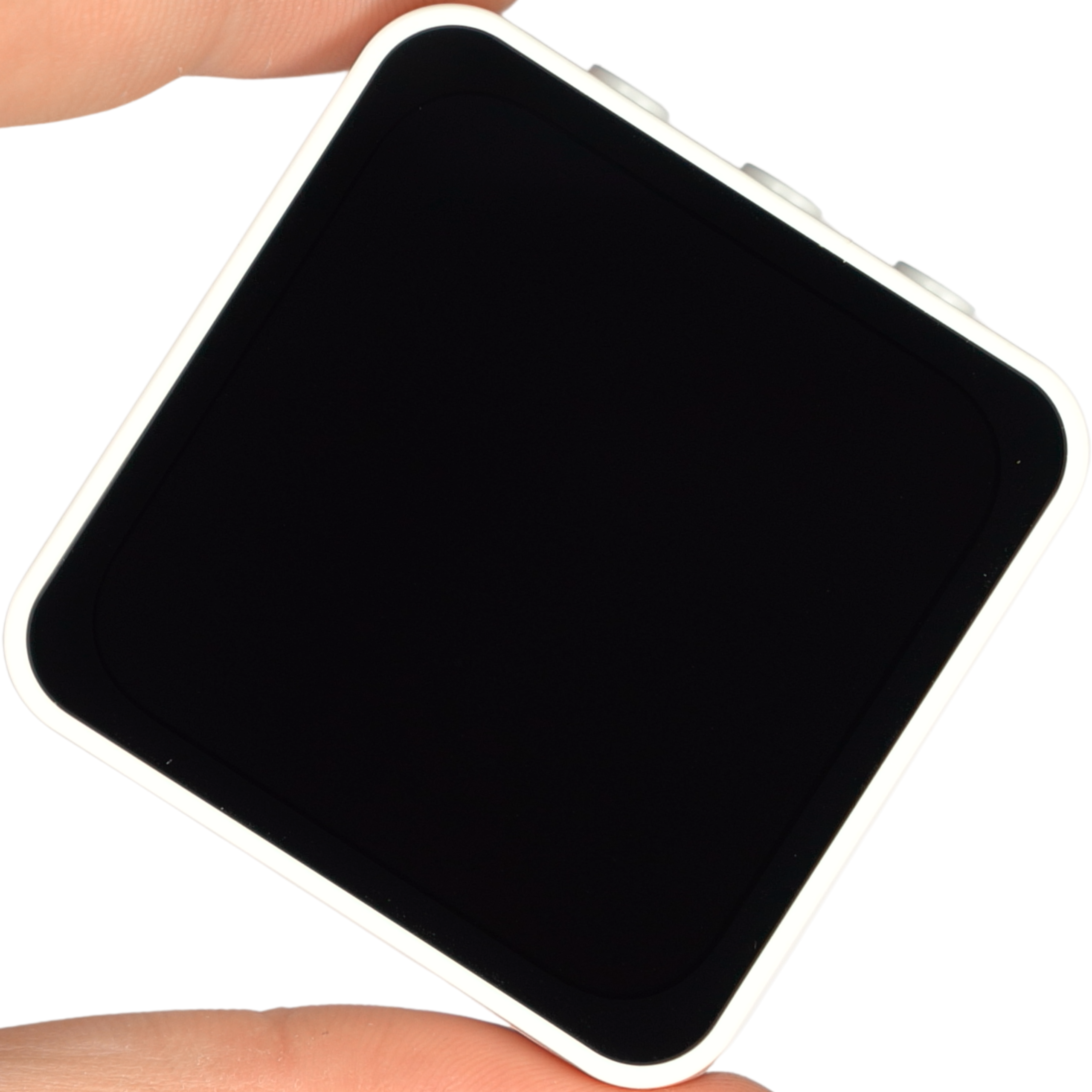

The integrated 480 x 480 pixel AMOLED display offers high contrast, wide viewing angles, and 16.7 million colors. The built-in capacitive touch panel enables control functions and the creation of interactive user interfaces. The use of AMOLED technology delivers high image quality with low power consumption.

The board is equipped with a 6-axis IMU sensor, an RTC chip, and microphones, enabling motion analysis applications and voice control systems. The integrated audio codec and echo cancellation circuit allow real-time audio signal processing.

The power management system based on the AXP2101 provides efficient energy management and operation with a 3.7 V Li-ion battery. The board also features a USB Type-C port, communication connectors, and a TF card slot, allowing for expanded functionality and integration with external systems.

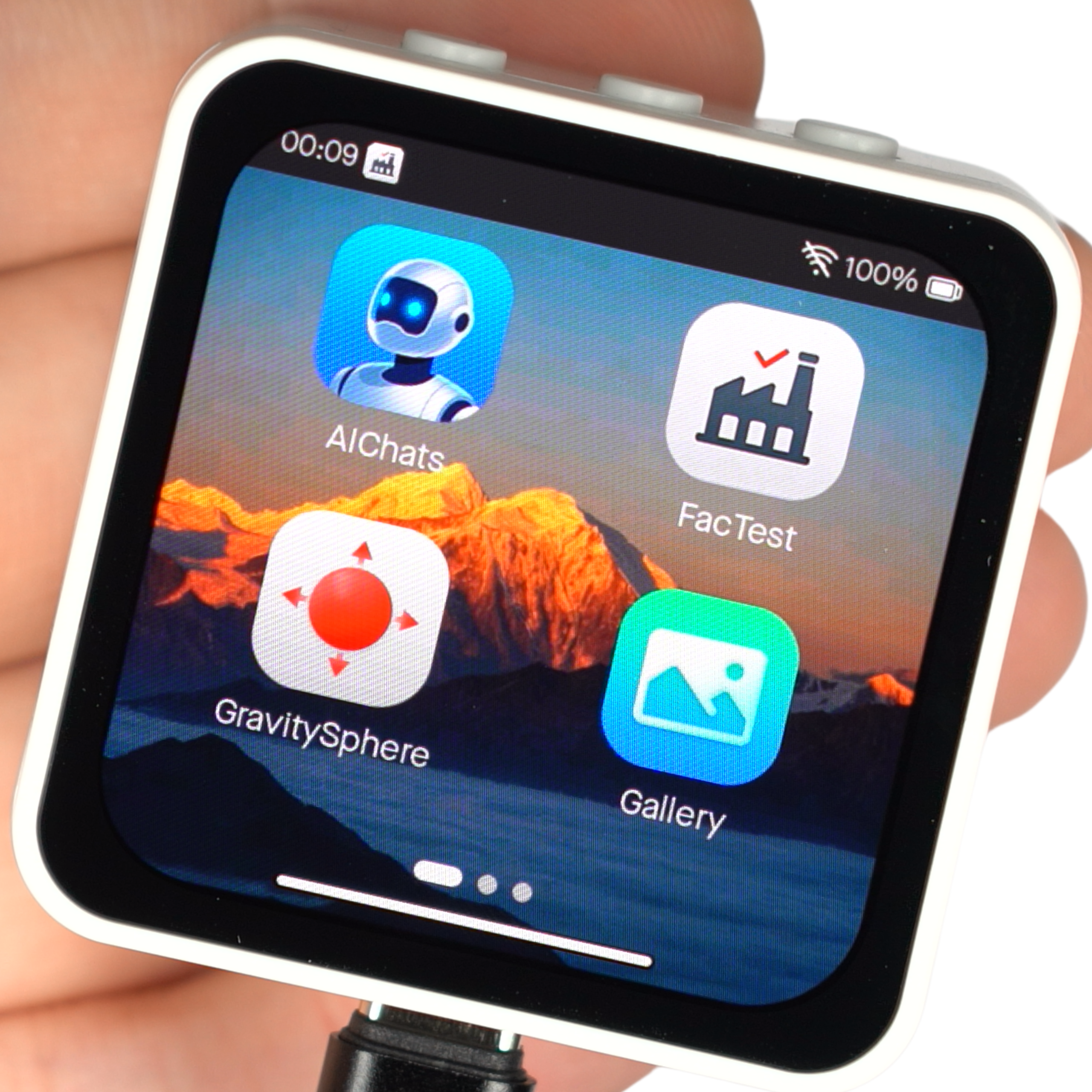

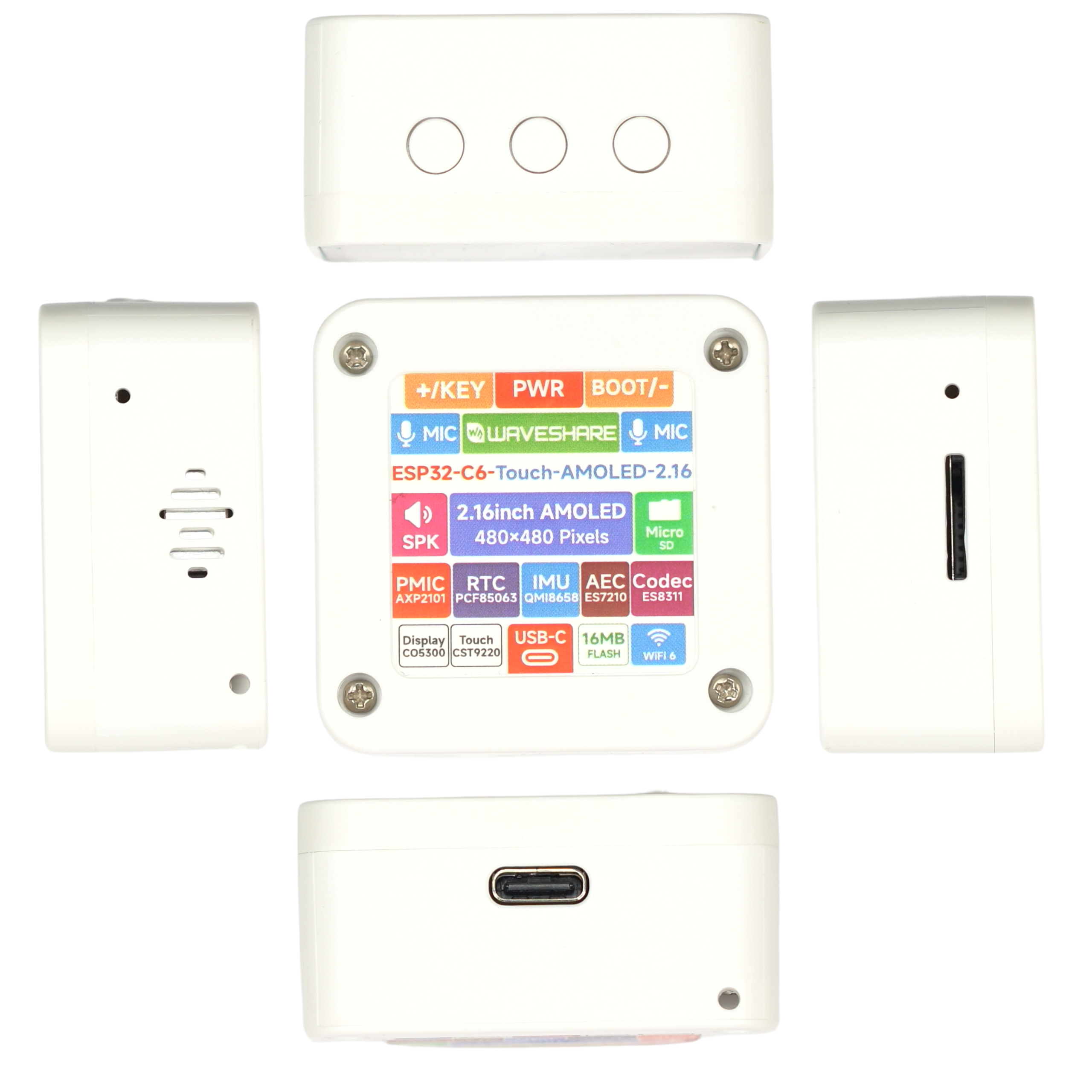

Board Components

1. ESP32-C6 - integrated single-core RISC-V processor running at up to 160 MHz, Wi-Fi 6 2.4 GHz and Bluetooth 5 LE support
2. AXP2101 - integrated power management IC
3. 16 MB NOR Flash memory - for data storage
4. QMI8658 - 6-axis IMU sensor (3-axis accelerometer and 3-axis gyroscope)
5. ES8311 - low-power audio codec
6. ES7210 - ADC chip for echo cancellation

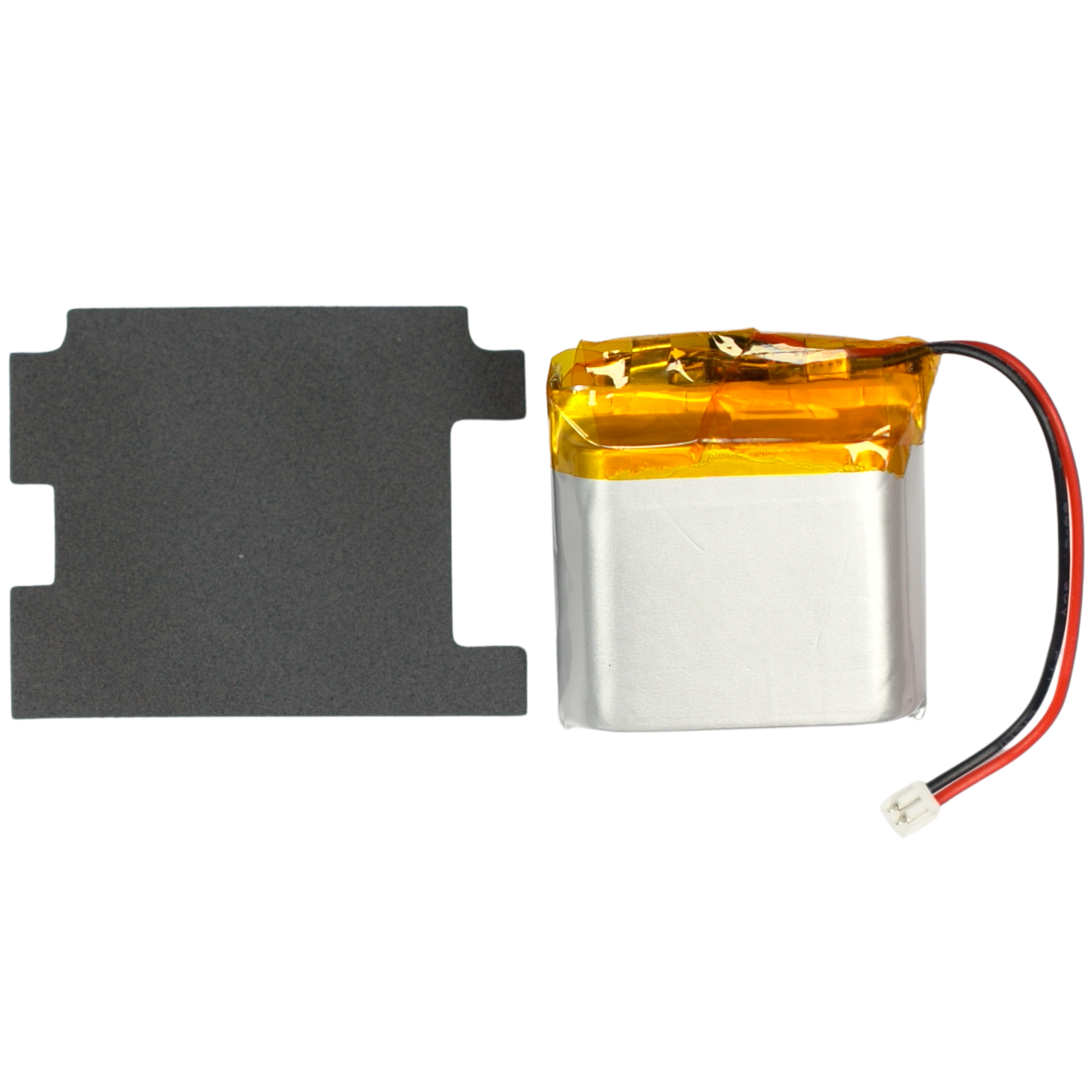

7. Li-ion battery connector MX1.25 - 2-pin connector for a 3.7 V battery with charge and discharge support
8. Built-in antenna - Wi-Fi 2.4 GHz (802.11 b/g/n) and Bluetooth 5 LE support
9. IPEX 1 connector - activated by soldering a resistor on the board
10. BOOT button - used during startup to enter programming mode
11. PWR button - long press turns off power, short press turns on the device
12. KEY button - user-defined function support
13. Dual microphone array - support for advanced voice processing features
14. 2PIN speaker pads - audio signal output for connecting an external speaker
15. TF card slot - FAT32 card support for memory expansion
16. PCF85063 - RTC chip for timekeeping
17. USB Type-C port - programming and communication with ESP32-C6
18. 2.16" display connector - dedicated interface for connecting the display panel
19. Audio amplifier - power amplifier circuit providing clear audio output

Key Technical Specifications

• Microcontroller: ESP32-C6 (32-bit RISC-V, up to 160 MHz)
• Flash memory: 16 MB
• SRAM: 512 KB + 16 KB
• Display: 2.16" AMOLED
• Resolution: 480 x 480 pixels
• Color depth: 16.7 million
• Brightness: 600 cd/m²
• Contrast: 100000:1
• Viewing angle: 178°
• Touch panel: Yes (capacitive)
• Display driver: CO5300
• Touch controller: CST9220
• IMU sensor: QMI8658 (6-axis)
• RTC: PCF85063
• Audio: ES8311, ES7210, dual microphones
• Connectivity: Wi-Fi 6 2.4 GHz, Bluetooth 5 LE, IEEE 802.15.4
• Power supply: USB Type-C, 3.7 V Li-ion battery
• Power management IC: AXP2101
• Interfaces: I2C, UART, USB
• Card slot: TF
• Weight: 0.062 kg

Example Applications

• Building advanced touch user interfaces (HMI) in embedded systems
• Voice interaction and voice control systems thanks to the dual microphone and echo cancellation
• IoT projects using Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 (Thread/Zigbee) connectivity
• Motion and orientation analysis applications thanks to the built-in 6-axis IMU sensor
• Interactive control panels for home automation systems
• Compact audio devices with the ability to connect an external speaker

Benefits

• Modern ESP32-C6 processor (RISC-V) with Wi-Fi 6 and IEEE 802.15.4 support
• High-quality AMOLED display with high brightness (600 cd/m²) and high contrast (100000:1)
• Built-in touch panel enabling intuitive interaction with the device
• Rich set of audio peripherals (codec, echo cancellation, amplifier, microphones) ready for voice applications
• Included battery and power management via AXP2101 enabling mobile operation
• Expansion capability thanks to the TF card slot and available I2C and UART interfaces
