Końcówka pomiarowa SMD 1mm igły na przewody gniazdo 2mm 10A 600V 2 sztuki

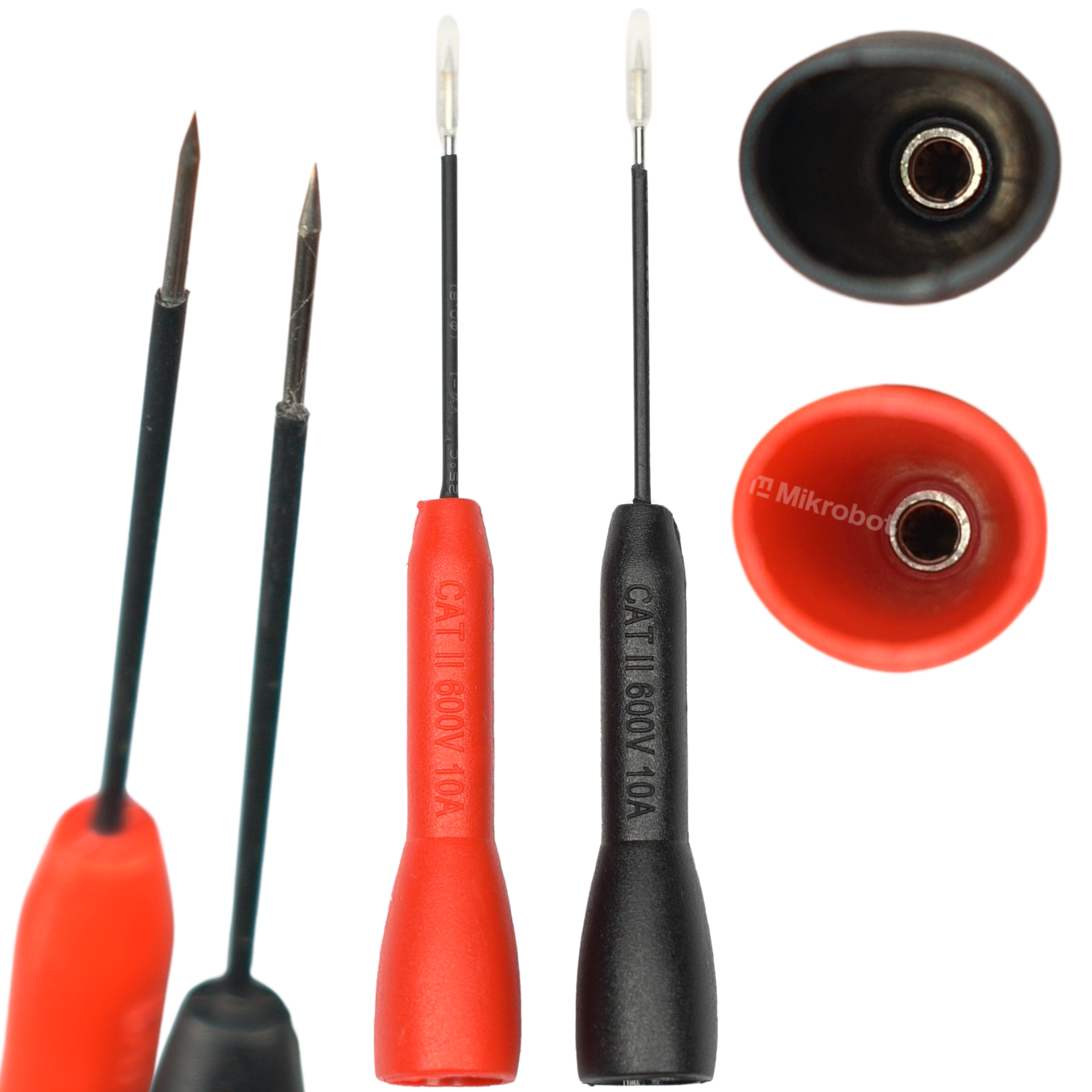

Precision 1mm SMD Test Probes

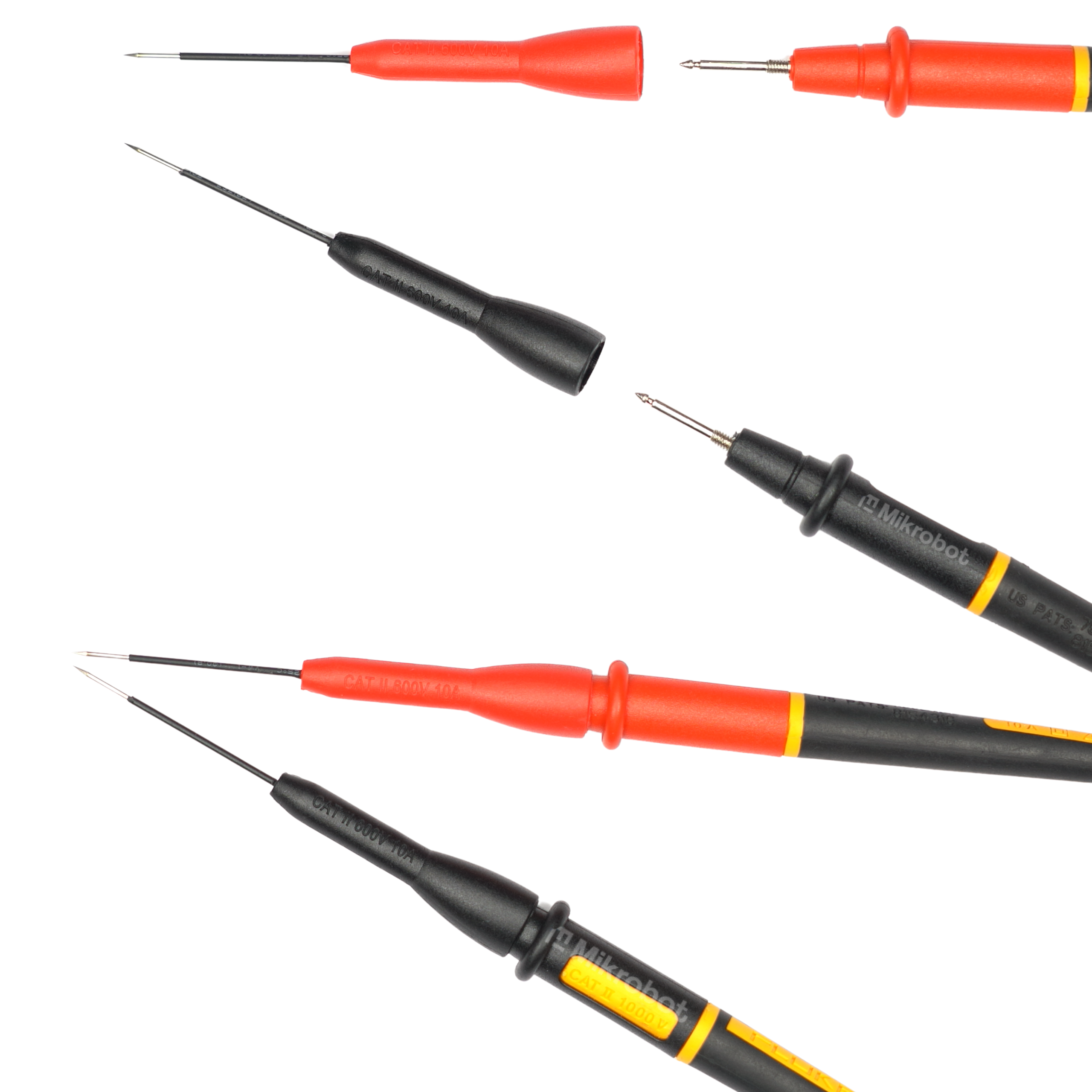

A set of two very sharp and thin test probes designed for precise measurements of SMD components. They feature a 2mm socket that fits most standard multimeter leads. The 1mm-thick probes allow for measurements in tight connectors and hard-to-reach sockets.

Key Technical Features

The needles’ specifications allow for safe operation with voltages up to 600V and currents up to 10A. The set includes two pieces in colors that make it easy to identify polarity.

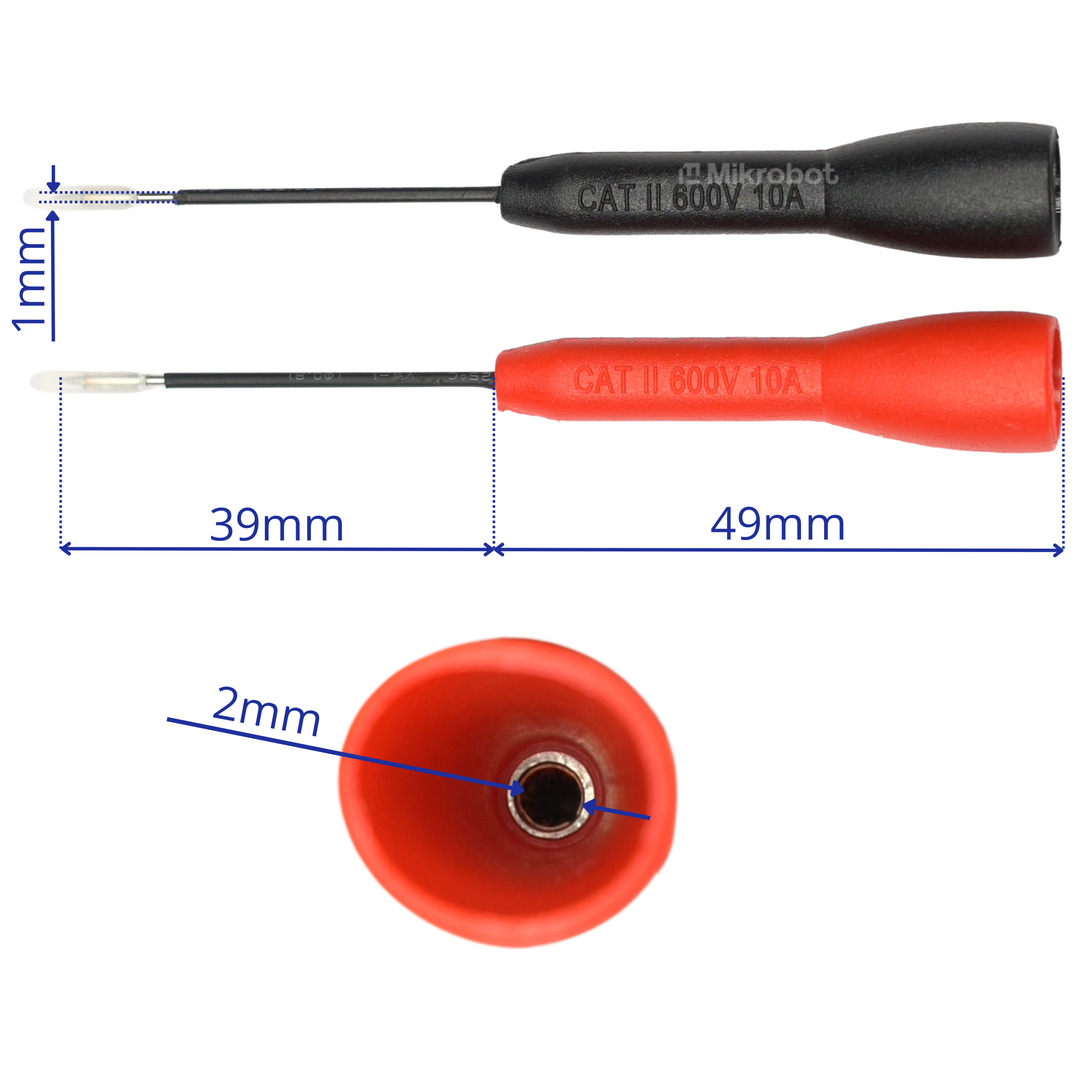

• Type: Test probe
• Needle thickness: 1 mm
• Needle length: 39 mm
• Total length: 88 mm
• Connector: 2 mm socket
• Maximum voltage: 600 V
• Maximum current: 10 A
• Set contents: 2 pieces (red and black)

Example applications

Test probes are essential equipment for electronics workshops and auto repair shops, enabling diagnostics in tight spaces.

• Precise measurements of SMD components on printed circuit boards
• Testing tight plugs and connectors
• Diagnosing hard-to-reach sockets in electronic systems
• Measurements in automotive installations and repair shops
• Testing vehicle sensors
• Servicing miniature devices

Benefits of use

The use of thin test probes significantly simplifies the process of diagnosing faults and prevents accidental short circuits when working with miniature components.

• Ability to safely and accurately measure the smallest components
• Compatibility with multimeter leads thanks to a standard 2mm socket
• High current rating—up to 10 A and 600 V
• Easy polarity identification thanks to two-color probes
• Reduced risk of damaging delicate connectors during testing
