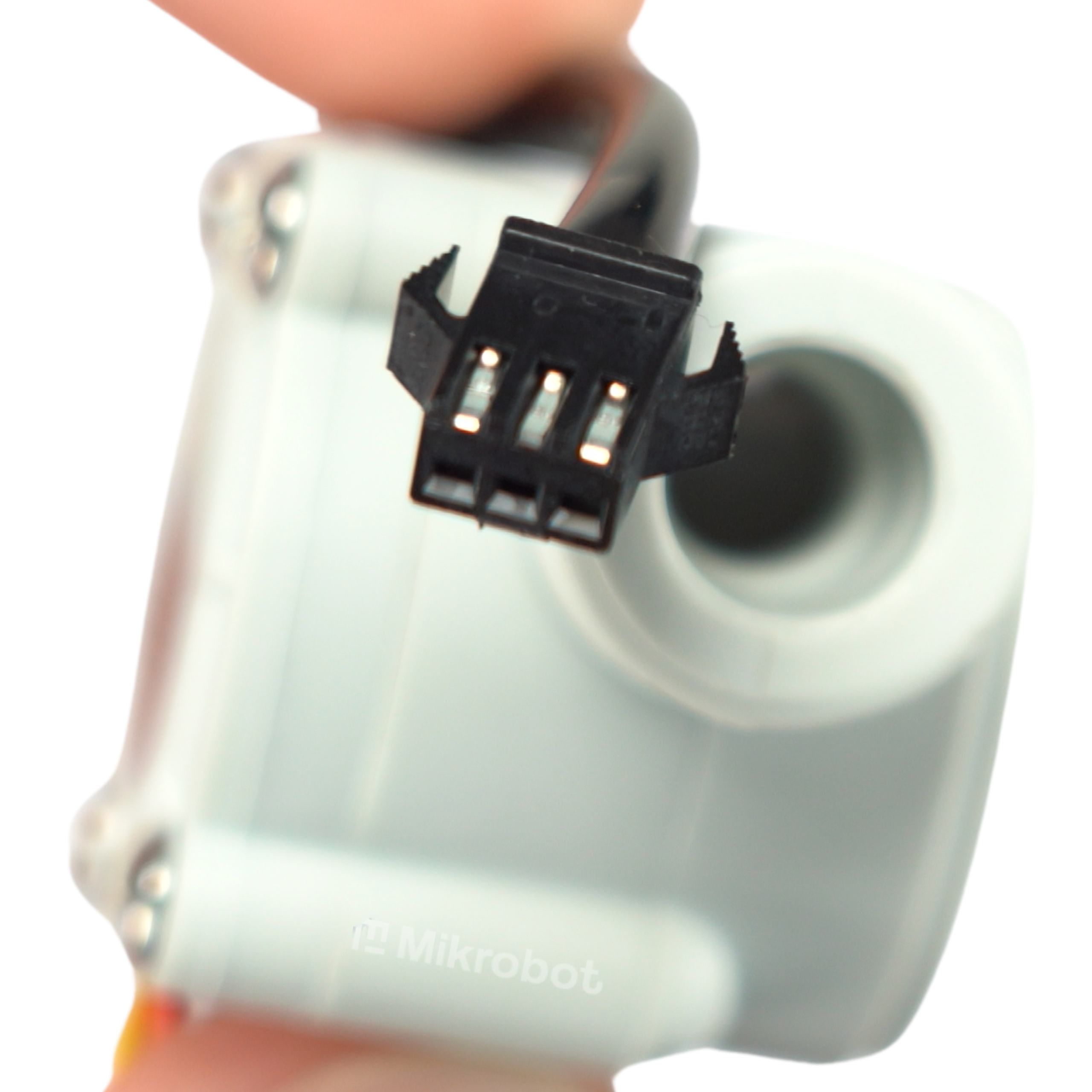

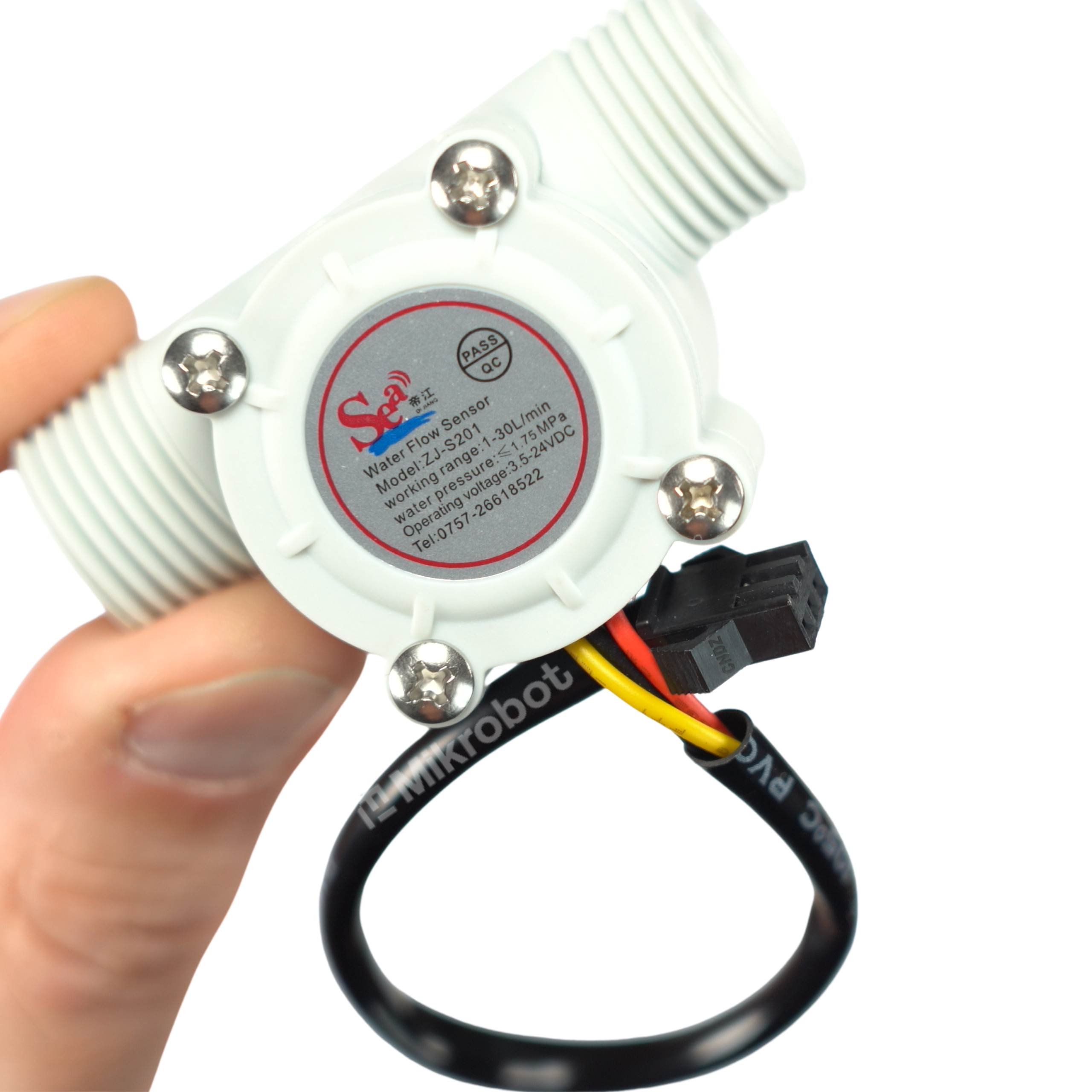

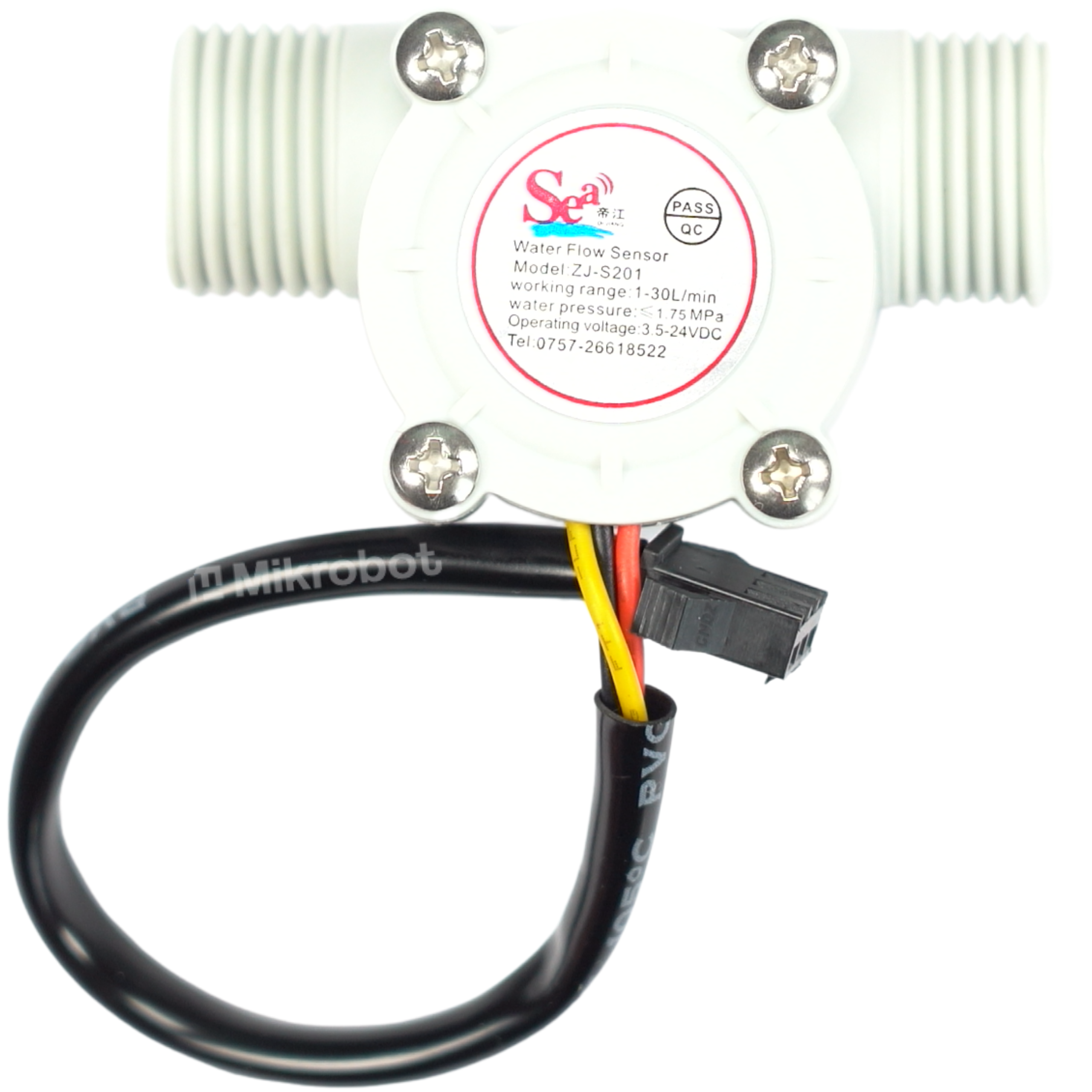

ZJ-S201 Liquid Flow Sensor

The ZJ-S201 liquid flow sensor enables measurement of low-viscosity fluid flow in the range of 1 to 30 l/min. The sensor output is a pulse signal whose frequency is proportional to the flow rate. The device is based on a rotating turbine with a magnet and a reliable Hall sensor. The product works great in automation systems - it is suitable for ESP8266, for ESP32, for Arduino, and for Raspberry Pi.

Key Technical Specifications

• Measurement range: 1 - 30 liters / minute
• Supply voltage: 3.5 - 24V
• Maximum current consumption: 15 mA
• Output type: pulse signal
• Measurement accuracy: approximately 450 pulses per liter
• Construction material: plastic
• Connection thread: 1/2 inch
• Maximum operating pressure: 1.75 MPa
• Maximum operating temperature: 80°C
• Permissible ambient humidity: 35 - 90% RH

Benefits

• Easy integration with popular hardware platforms thanks to a simple pulse signal.
• Precise water flow measurement thanks to the Hall sensor and rotating turbine.
• Wide supply voltage range from 3.5V to 24V provides flexibility in choosing a power source.
• Durable housing ensuring stable operation at pressures up to 1.75 MPa.
• Standard 1/2 inch thread ensures quick installation in typical pipes and water systems.

Example Applications

• Smart irrigation systems in agriculture and automated greenhouses.
• Liquid dosing devices in home automation, aquaristics, and industry.
• Water consumption monitoring and metering systems in smart buildings.
• Custom liquid cooling and fluid circulation control projects.
