Moduł przekaźnika 2 kanały WiFi ESP8266 230V 10A + ESP-01S Tasmota MQTT

Product Description: WiFi ESP8266 2-Channel Relay Module for ESP-01S

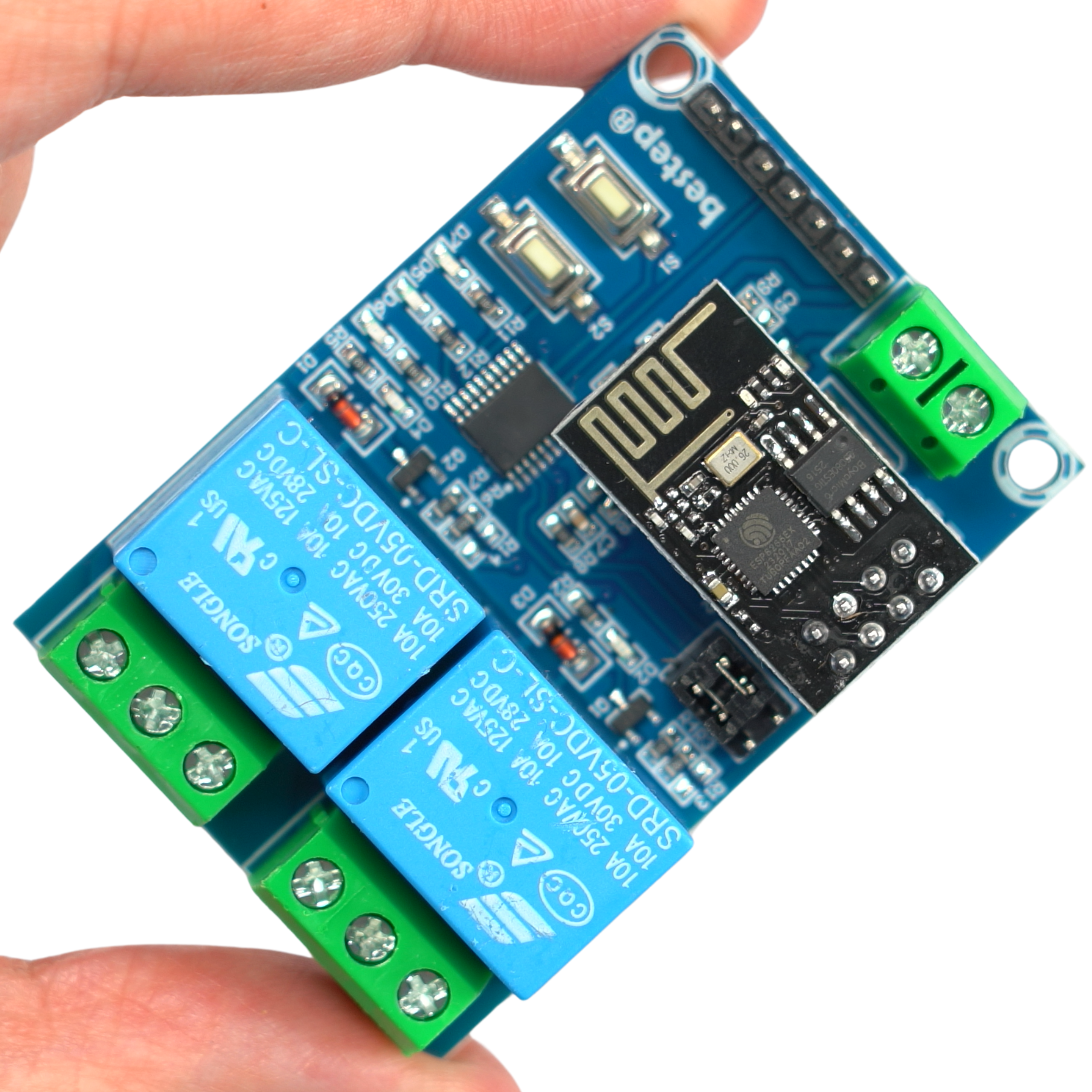

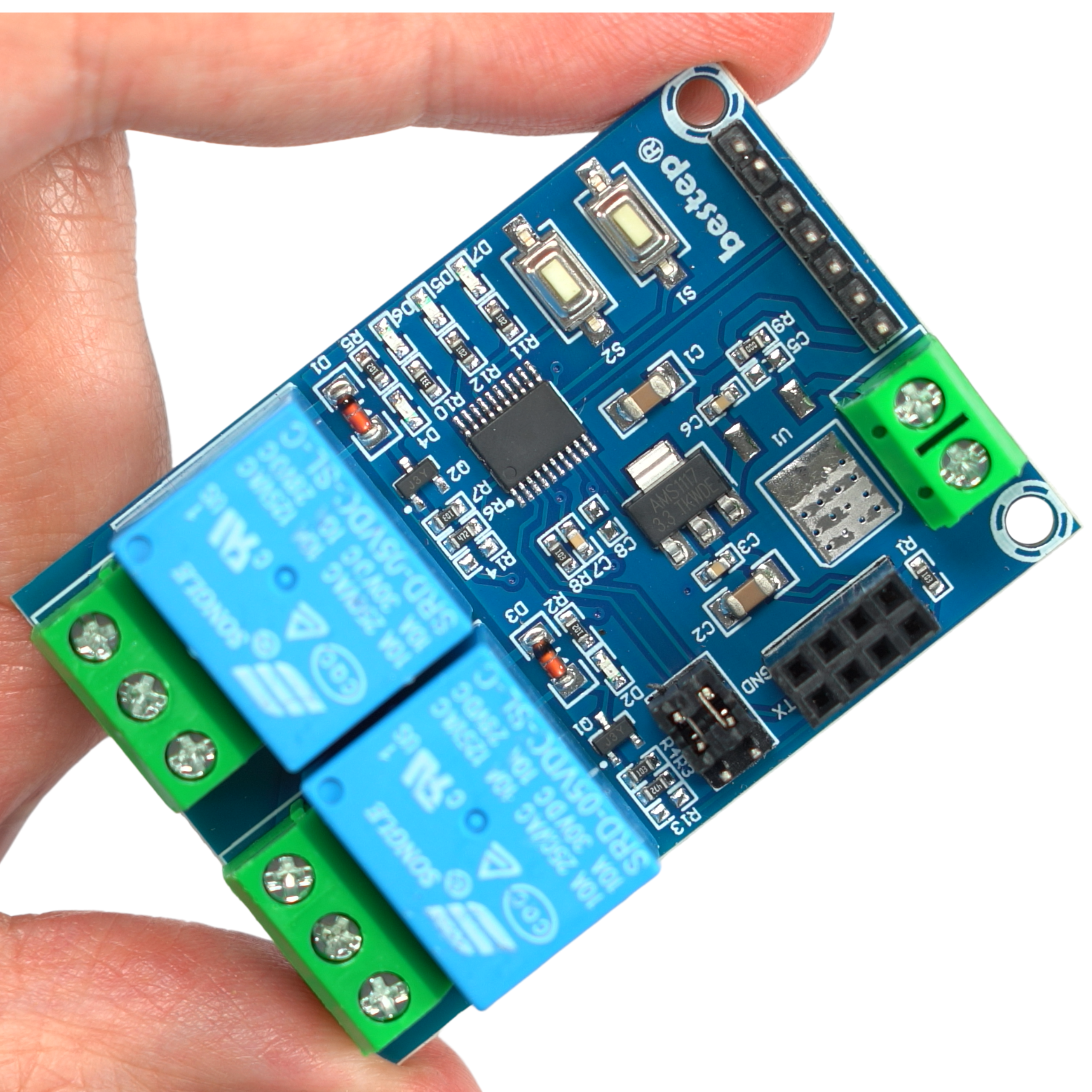

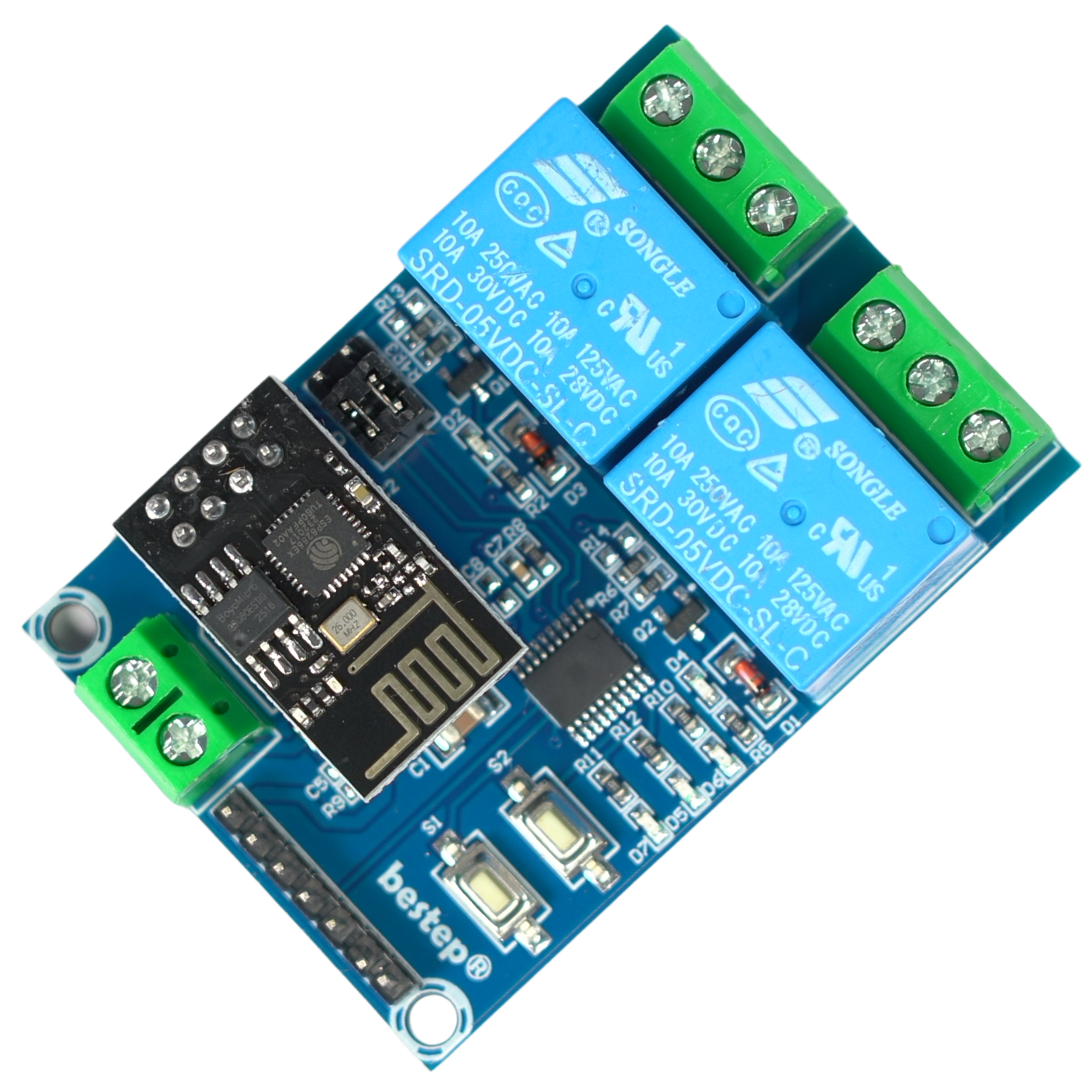

A compact 2-channel relay module designed specifically for ESP8266, and more precisely for ESP-01 and ESP-01S boards. It is an extended version of the standard 1-channel controller, offering the ability to control two independent circuits. The module is equipped with a dedicated mounting socket, which makes integration easier without the need for an additional microcontroller on the board. It has additional S1 and S2 inputs and GPIO and UART pins, allowing connection of external sensors or buttons.

This device is a ready hardware base for automation systems. Please note that the communication module plugged into the socket is not included in the set.

Key Technical Features

• Number of channels: 2 independent relays
• Control microcontroller: dedicated socket for ESP8266 (ESP-01 and ESP-01S boards)
• Maximum relay load: 10A at 250V AC or 10A at 30V DC
• Logic supply voltage: 5V DC
• Relay section power supply: dedicated screw terminal
• Output configuration: NC and COM (normally closed circuit only, the module does not have NO contacts)

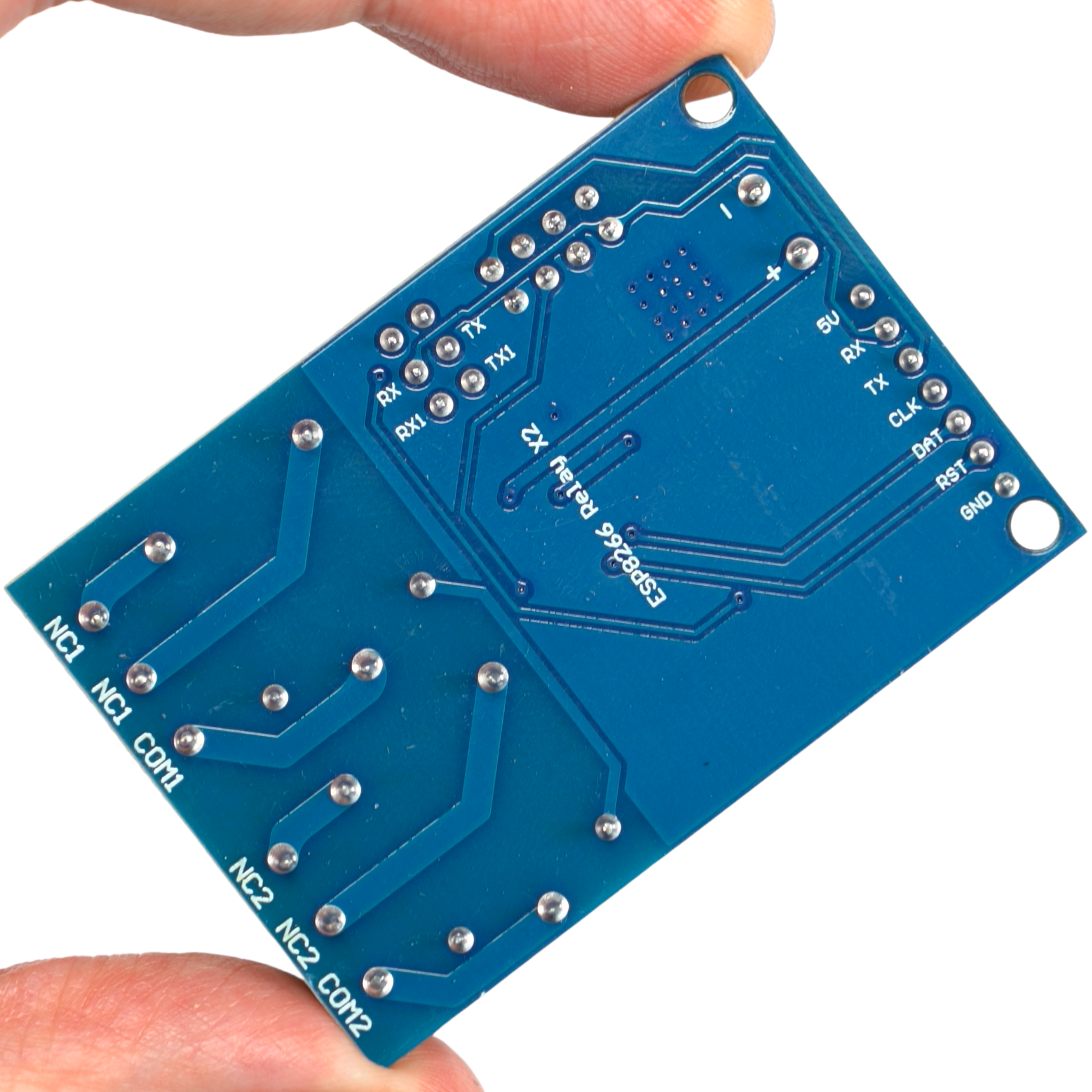

• Available expansion connectors: S1, S2, RX, TX, RX1, TX1, CLK, DAT, RST
• Physical dimensions: 55 x 45 mm

Example Applications

• Automation of lighting systems in buildings and outdoors
• Remote control of solenoid valves and pump systems in irrigation systems
• Power management for household appliances and electronics
• Integration of physical wall switches and detectors with a wireless network
• Building custom actuator nodes in ESP8266 IoT projects
• Creating advanced timing circuits and device operation schedules

Benefits

• High compatibility with open-source firmware such as ESPHome and Tasmota
• Seamless integration with Home Assistant via the MQTT protocol
• Exposed UART communication pins, making it easier to flash the ESP-01S module
• Simplified automation project builds - no need to solder actuator circuits
• Compact PCB dimensions suitable for installation in dedicated enclosures

Compatibility

• Hardware platforms: for ESP8266 (ESP-01 and ESP-01S format boards)
• Development environments: ESPHome, Tasmota, Arduino IDE
• Smart home systems: Home Assistant, openHAB, Domoticz
