Zasilacz impulsowy wtyczkowy 24V 2A 48W wtyk DC 5,5x2,5mm LED CCTV

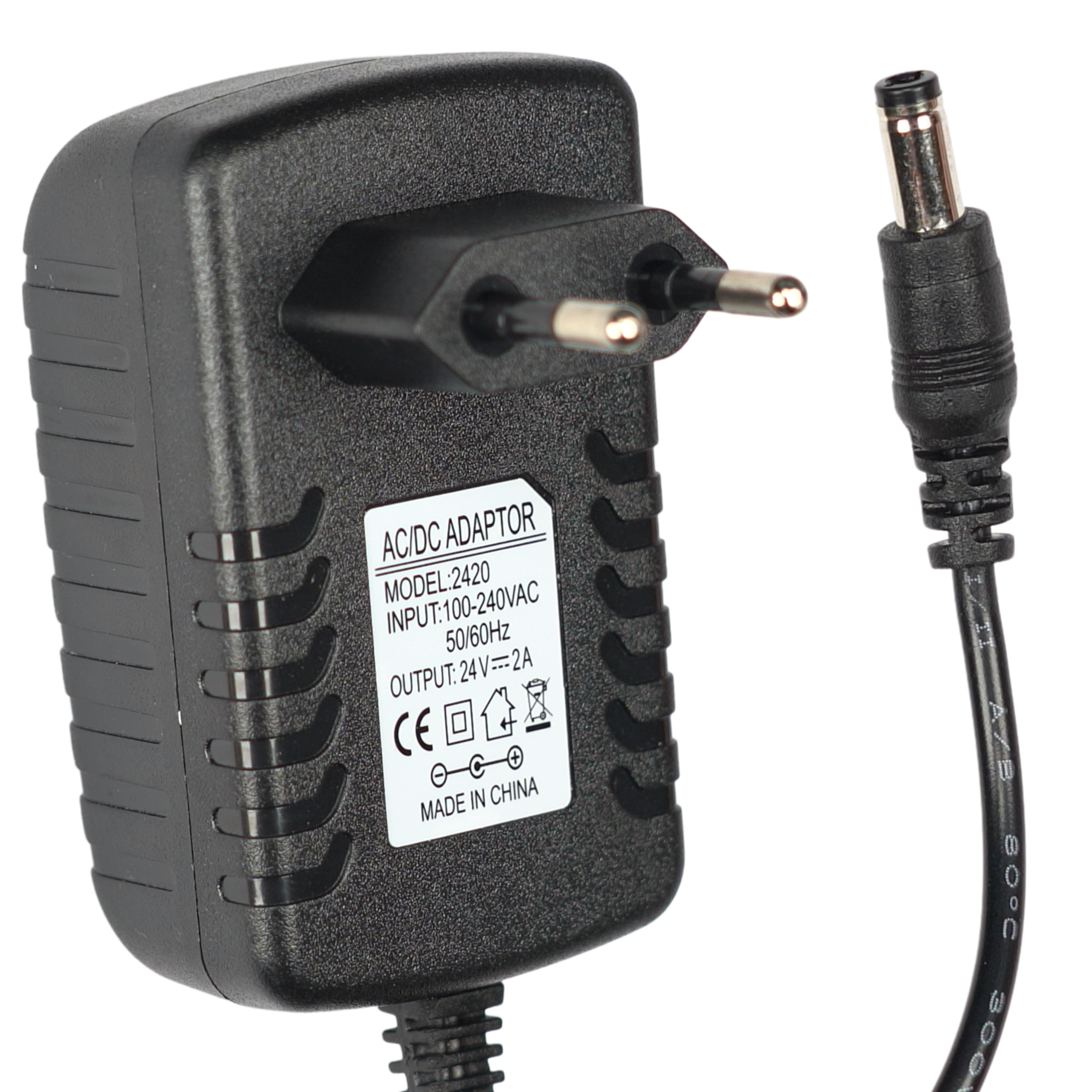

Plug-in Switching Power Supply 24V 2A 48W

Compact and efficient plug-in power supply designed to power devices requiring stabilized 24V DC voltage and current up to 2A. Total output power is 48W. The device is equipped with a standard barrel plug DC 5.5 x 2.5 mm, which is also fully compatible with 5.5 x 2.1 mm sockets. It features center-positive polarity with the positive on the inside and negative on the outside of the plug.

Key Technical Specifications

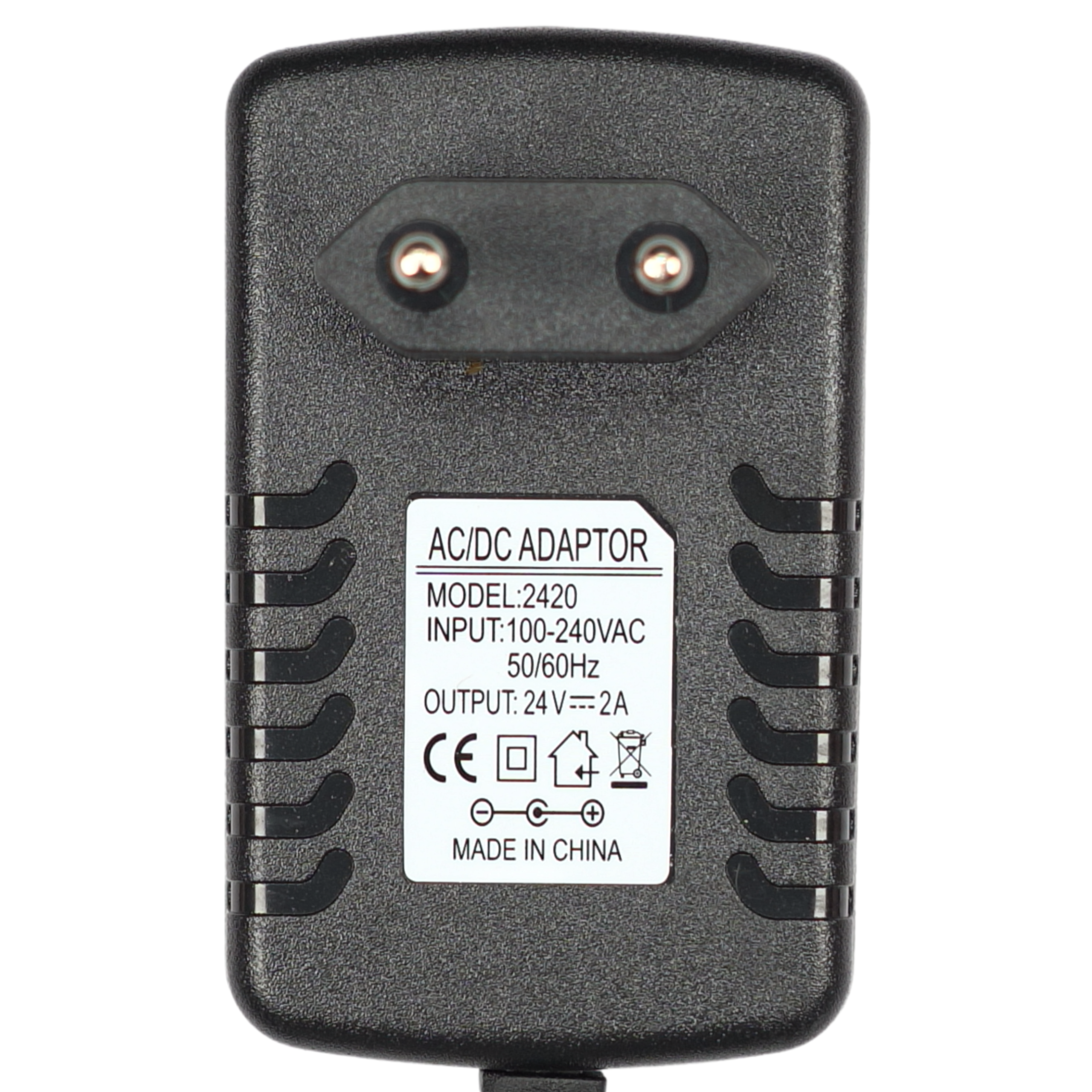

• Input voltage: 100V - 240V AC (automatic adjustment)
• Output voltage: 24V DC (regulated)
• Maximum current rating: 2A
• Maximum power: 48W

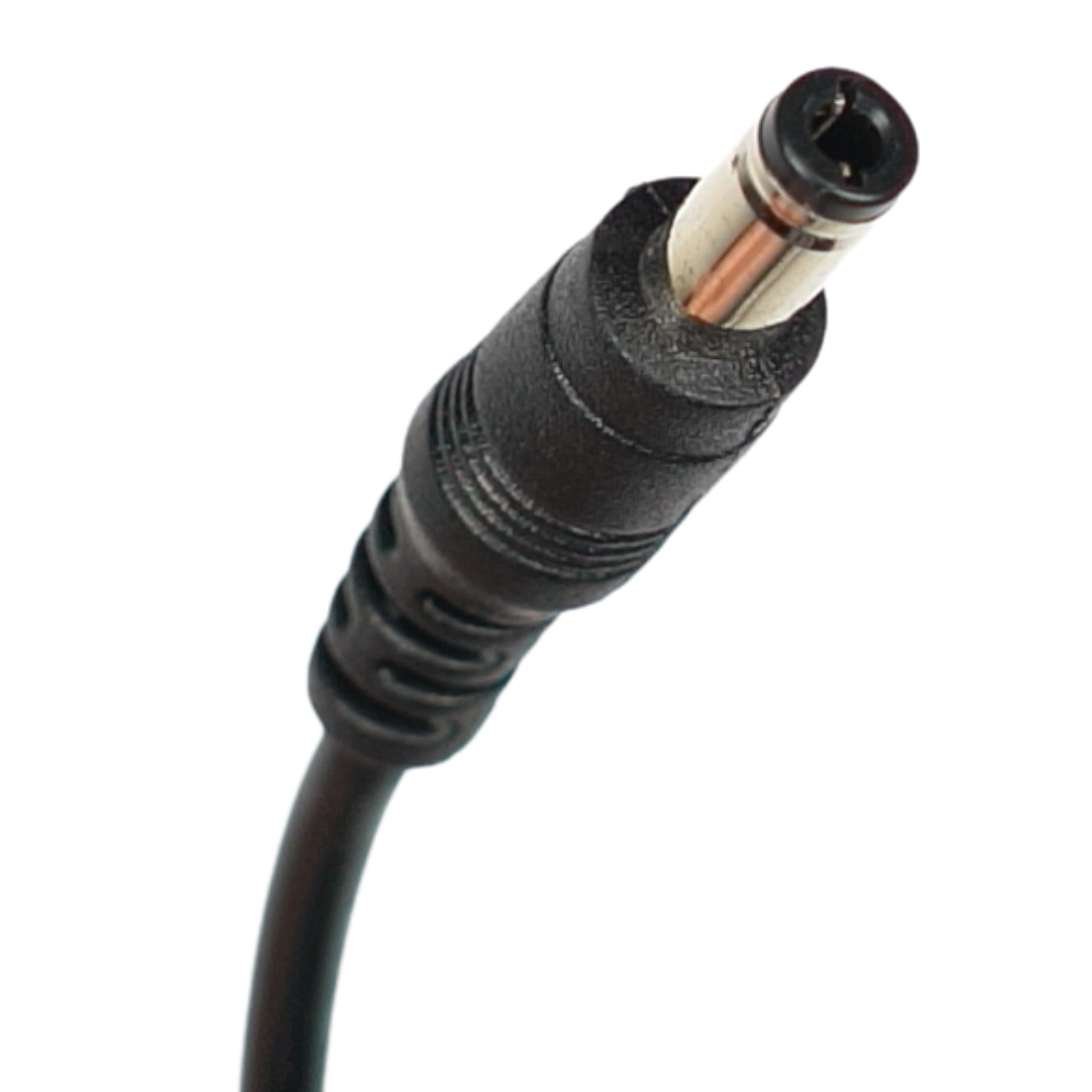

• Power plug: DC 5.5 x 2.5 mm (compatible with 5.5 x 2.1 mm)

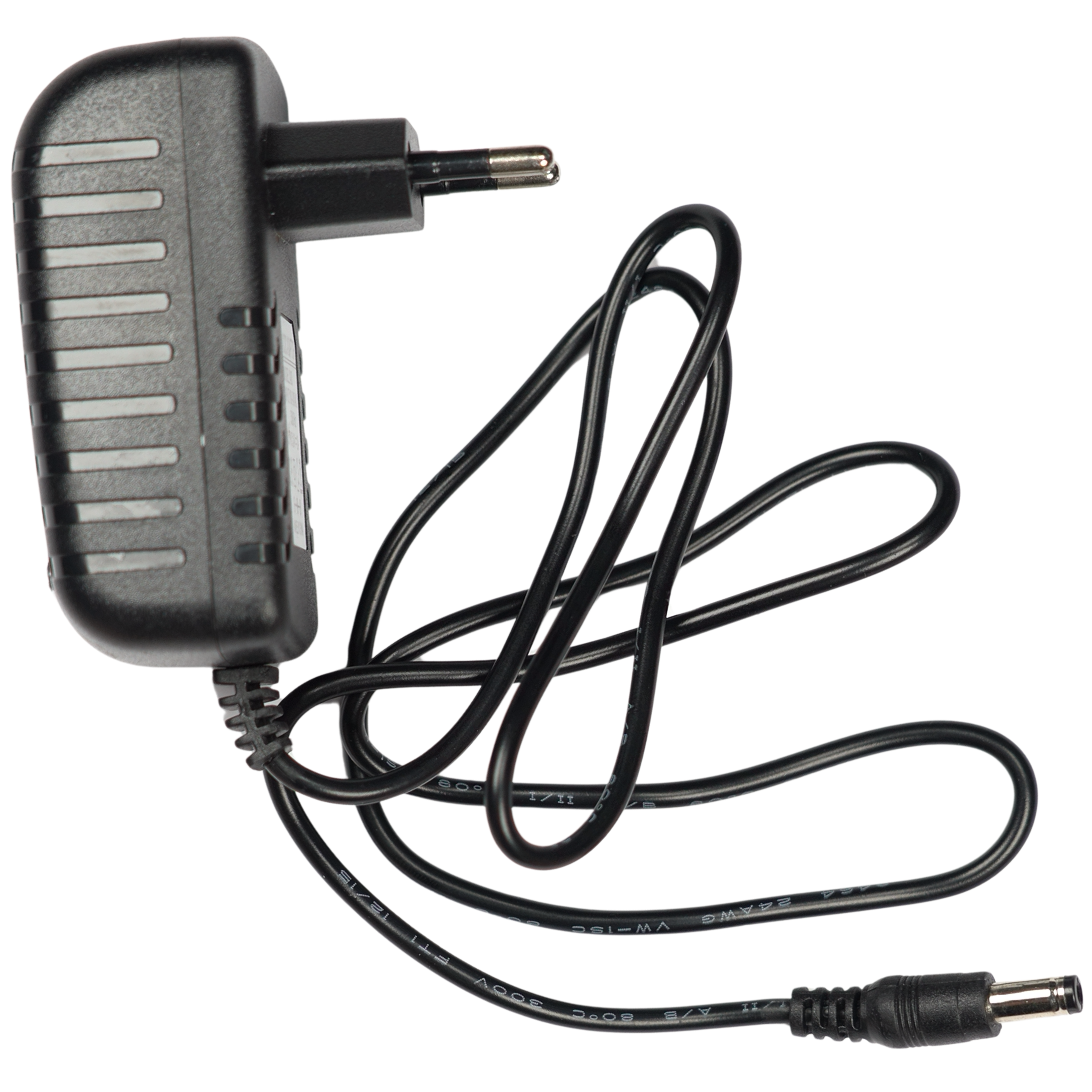

• Cable length: approximately 90 cm
• Polarity: Positive on the inside, negative on the outside
• Dimensions (without mains plug): 80 mm x 50 mm x 33 mm

Load Testing and Protection

The power supply successfully passed electronic load testing, demonstrating high voltage stability at various current draws. Measurements show 23.5V at 1.2A, 23.2V at 2A, and 23V at 2.5A. Additionally, this model features built-in overcurrent protection that automatically activates when exceeding 2.6A, protecting powered components from damage.

Example Applications

• Powering LED lighting requiring 24V voltage
• Powering industrial automation systems and PLC controllers
• Powering DC motors operating at 24V
• Surveillance systems and CCTV camera power supply
• Network devices, routers, and industrial switches
• 3D printers and heating elements powered from 24V

Benefits

• Universal input voltage 100V - 240V AC allows operation on different power grids
• Compatibility with the two most popular barrel plug standards: 5.5 x 2.1 mm and 5.5 x 2.5 mm
• High operating stability confirmed by measurements at various load levels
• Effective overcurrent protection increasing the safety of connected equipment
• Compact housing dimensions making it easy to install the power supply in limited space
