Moduł przetwornica DC Step-Up XL6019 5-40V 5A - podwyższająca napięcie

DC Voltage Converter STEP UP 5-40V 5A XL6019 Boost

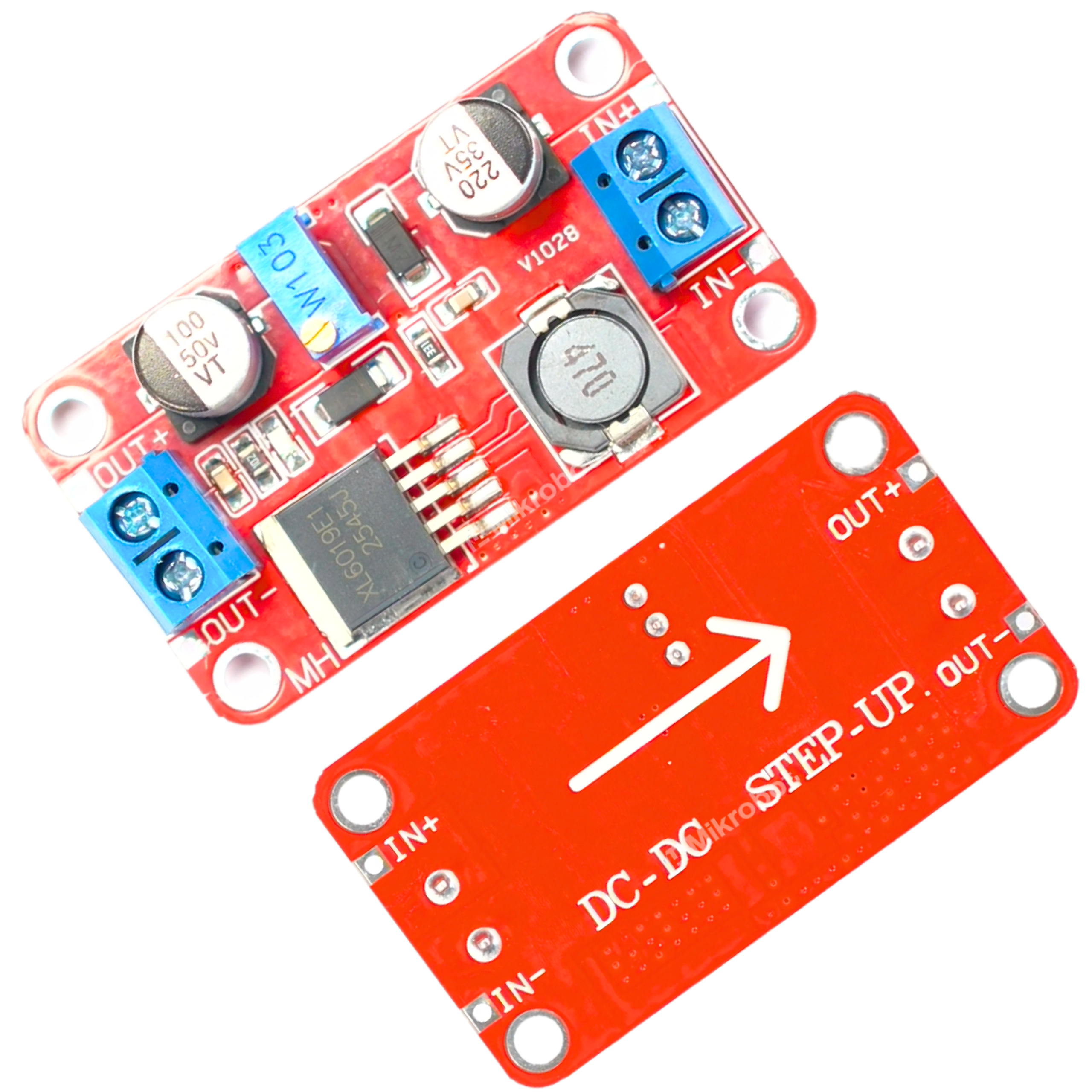

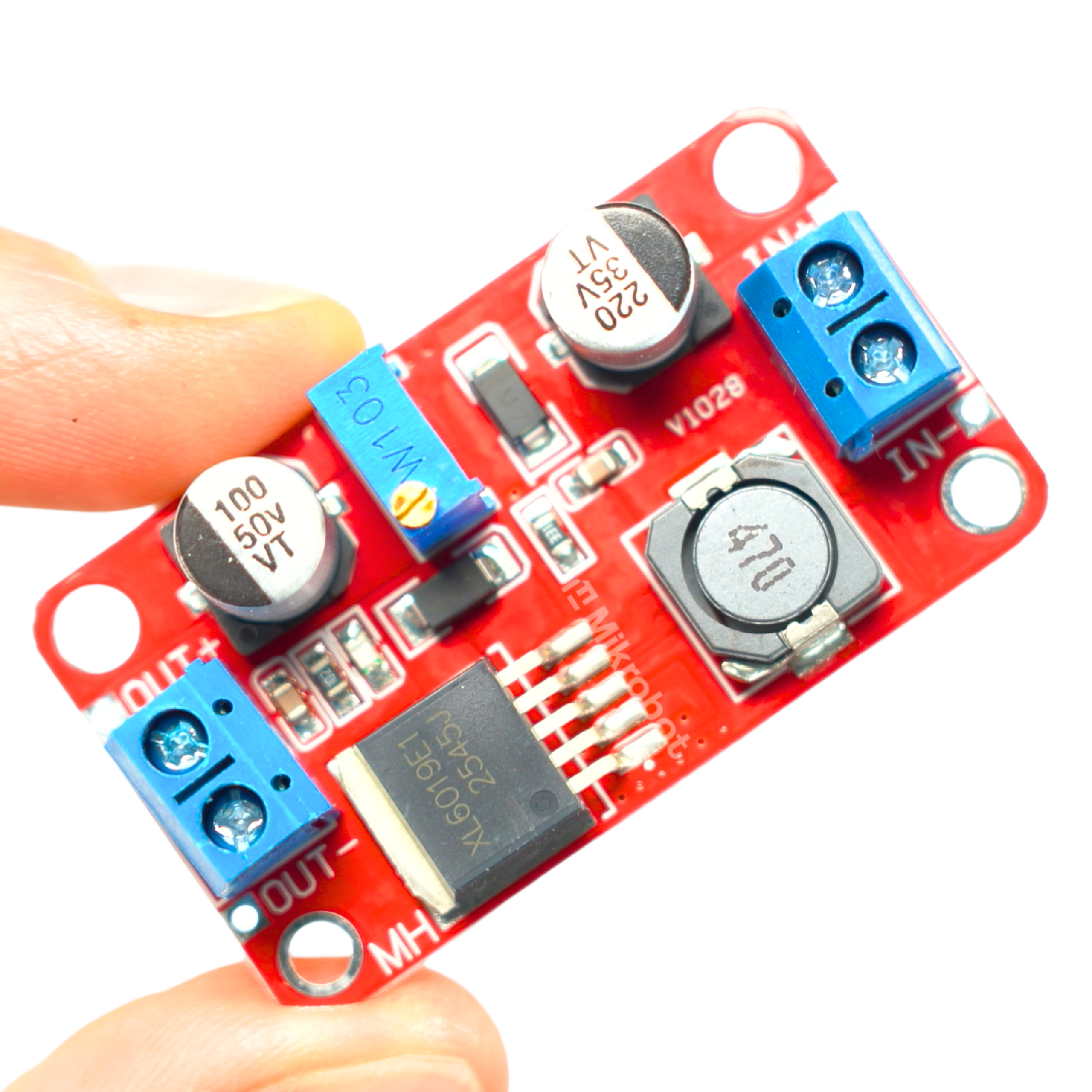

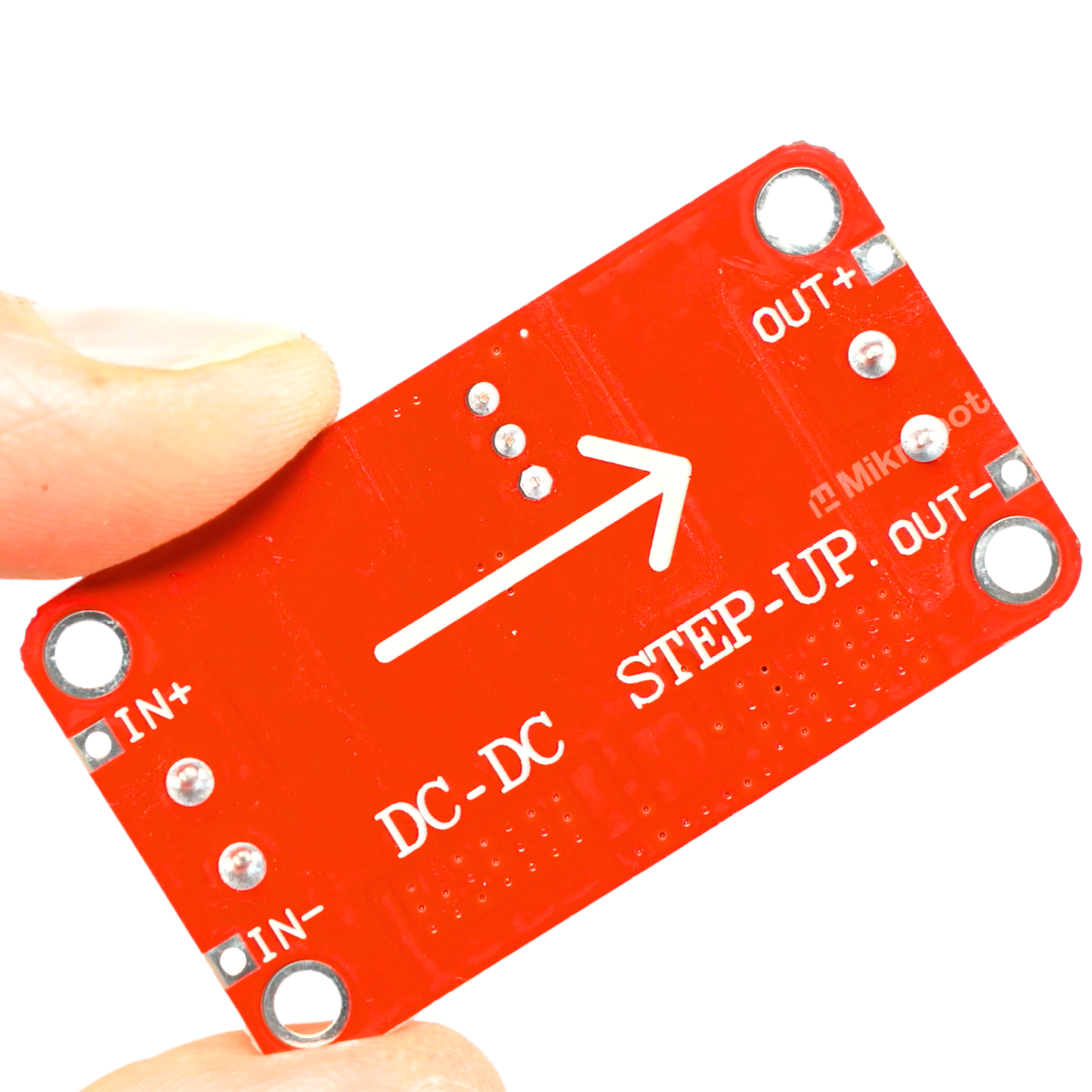

A universal step-up (STEP-UP) voltage converter module based on the high-performance XL6019 IC. The device lets you power electronic circuits at a higher voltage than your supply source provides-for example from batteries or lower-voltage power supplies. A multi-turn potentiometer allows smooth, precise adjustment of the output voltage, which remains stable regardless of input voltage variations. The module is well suited to projects using microcontrollers, including Arduino, ESP8266, ESP32, and Raspberry Pi.

Example applications

• Powering microcontroller-based projects (Arduino, ESP8266, ESP32, Raspberry Pi) from single Li-Ion cells.
• Boosting voltage in emergency and buffer power systems.
• Powering circuits that need higher voltage from a USB port (5V).
• Powering DC motors and stepper motor drivers.
• Building portable lab and workshop power supplies.
• Powering high-power LED lighting from lower-voltage installations.

Key technical specifications

• Supply voltage (input): 5V - 30V DC
• Output voltage: 5V - 40V DC (smoothly adjustable)
• Maximum output current: 5A
• Control IC: XL6019
• Switching frequency: 180 kHz
• Efficiency: up to 94%
• Module dimensions: 50 x 28 x 12 mm

Benefits

• High current capability up to 5A for demanding loads.
• Stable output voltage independent of supply voltage changes.
• High efficiency up to 94%, minimizing losses as heat.
• Precise voltage adjustment thanks to a multi-turn potentiometer.
• Compact size for easy integration in small enclosures and projects.
