Adapter BNC Male Plug to SMA Female Jack RF 50 Ohm Pigtail

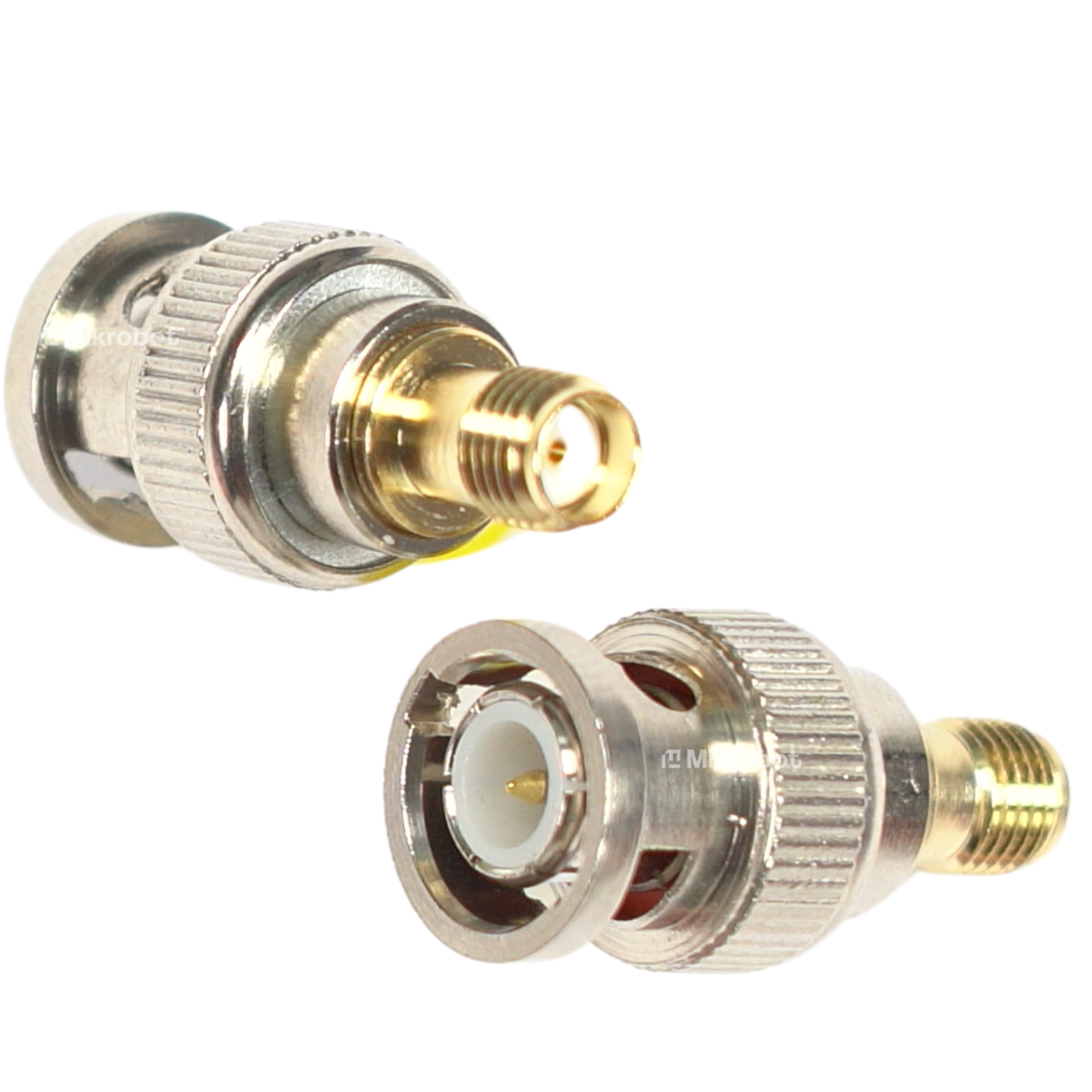

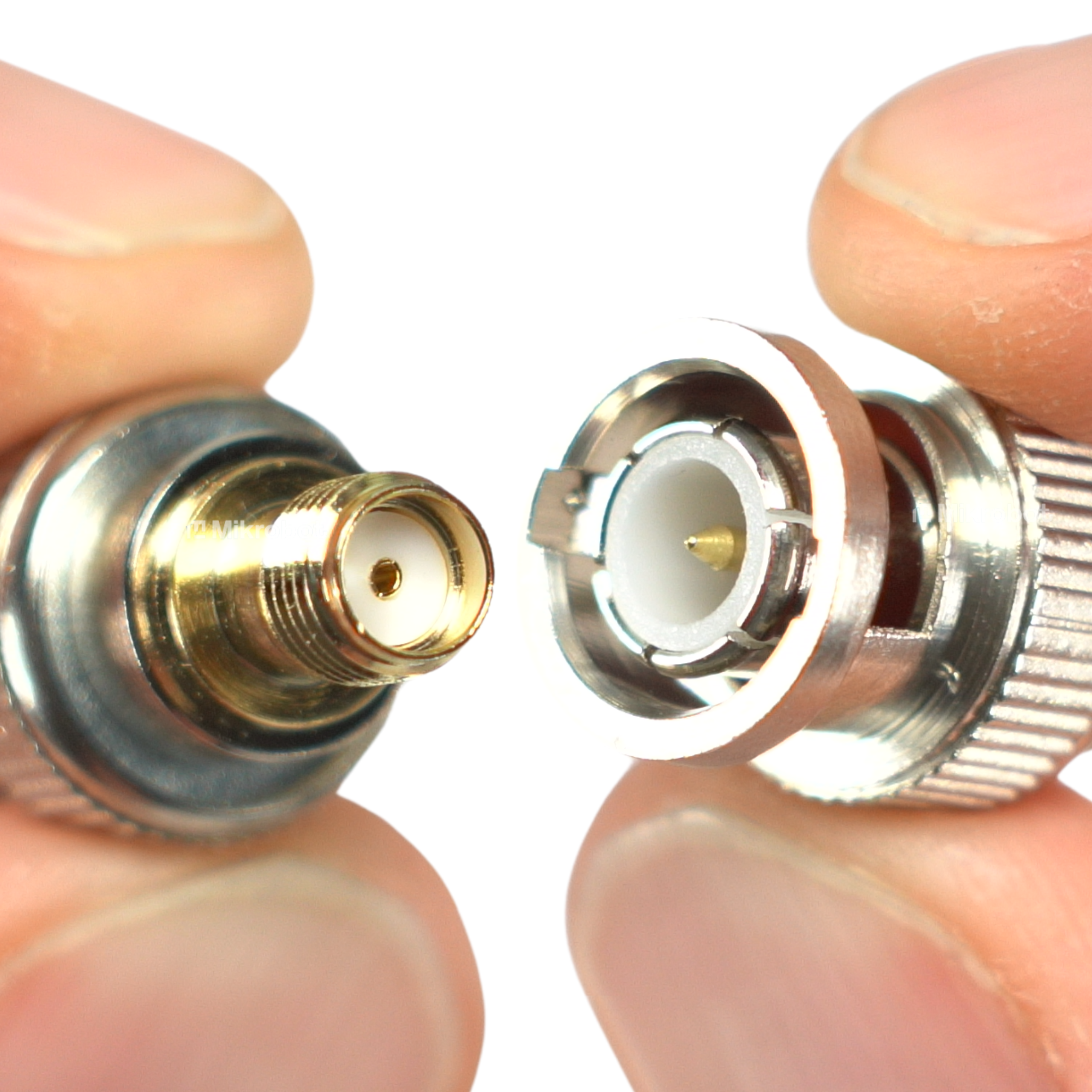

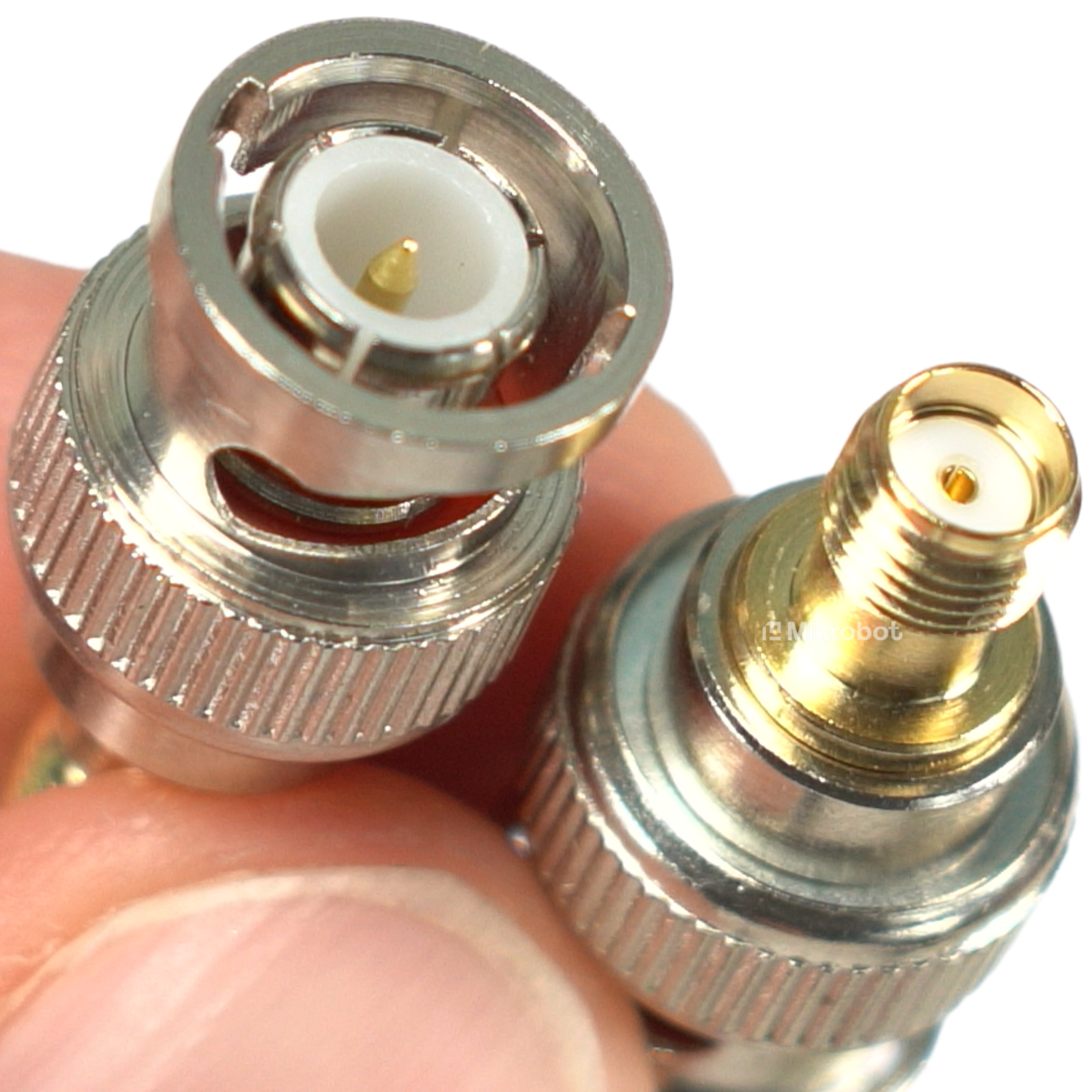

Adapter BNC Male Plug to SMA Female Jack

High-quality RF antenna connector (RF pigtail adapter) for changing connector types between radiocommunications equipment and cables. It provides a seamless transition from a BNC male plug to an SMA female jack while maintaining the standard 50 Ω impedance required in RF systems.

Key Technical Specifications

• First connector: Male BNC plug
• Second connector: Female SMA jack
• Characteristic impedance: 50 Ohm
• Application: RF radio installations

Typical Applications

This adapter is an essential accessory when working with high-frequency circuitry. It makes it easier to bridge different connector standards across many design and field scenarios.

• Connecting test and measurement gear to standard antenna cabling
• Integrating amateur radio equipment with modern antennas
• Reworking or extending RF paths in communication systems
• Mating external antennas to radio modules
• Testing and diagnosing RF installations

Benefits

Choosing the right adapter helps ensure dependable, convenient assembly of antenna systems. A dedicated transition avoids modifying original wiring.

• Provides a stable, secure connection in high-frequency systems
• Lets you change connector standards quickly without soldering
• Reduces signal loss through proper 50 Ohm impedance matching
• Highly versatile across professional radiocommunications hardware
