Adapter konektor antenowy wtyk SMA gniazdo SMA-RP 50 ohm złocone LoRa FPV

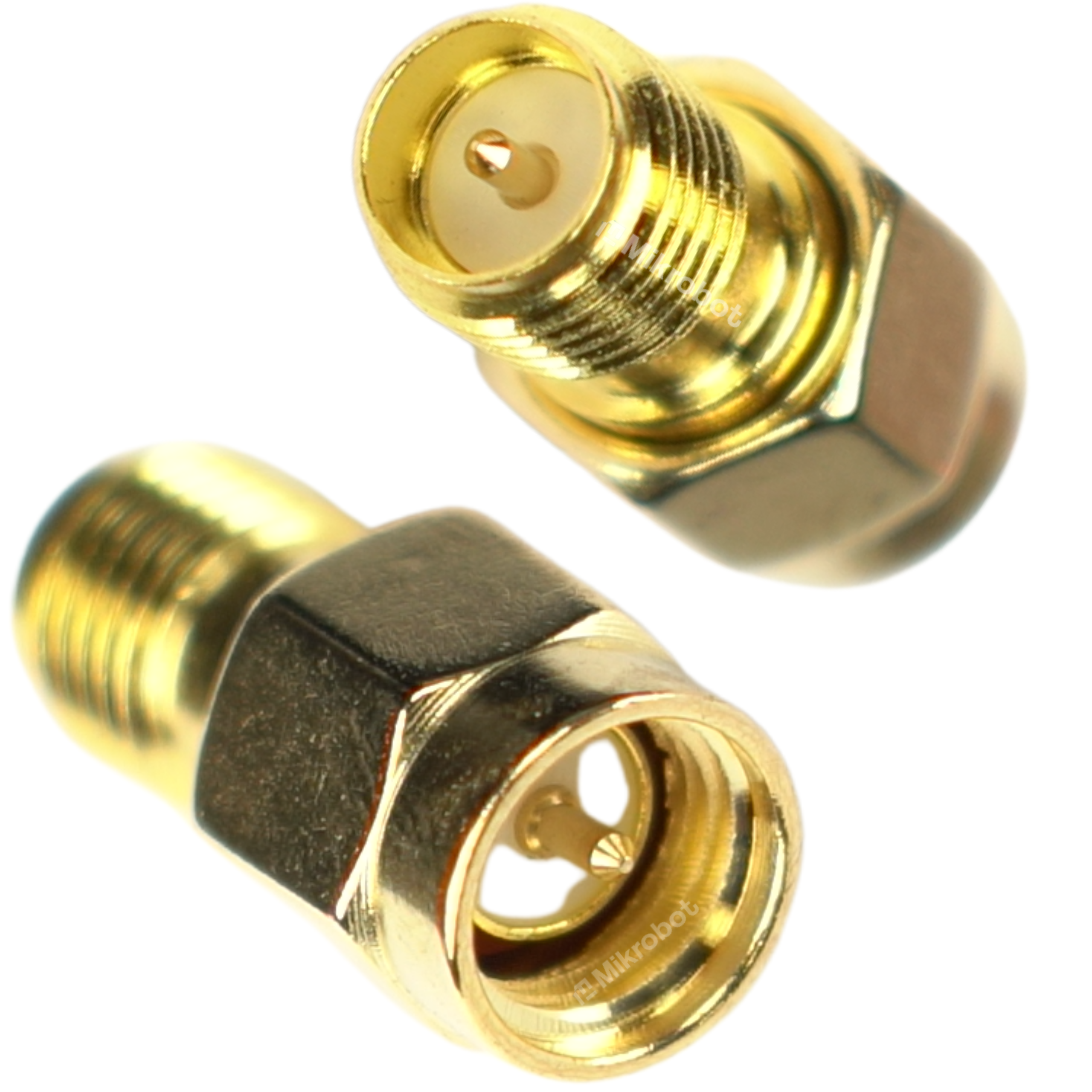

Antenna adapter SMA male to SMA-RP female

Antenna connector designed for changing the connector type between communication devices and cables. It is a specialized radio frequency adapter that enables quick connection of radio path components equipped with different termination standards.

Key technical features

The presented component ensures stable electrical parameters and minimizes losses in the transmission path. The construction is based on standard coaxial connector threads, which guarantees reliable mechanical mounting and resistance to vibration.

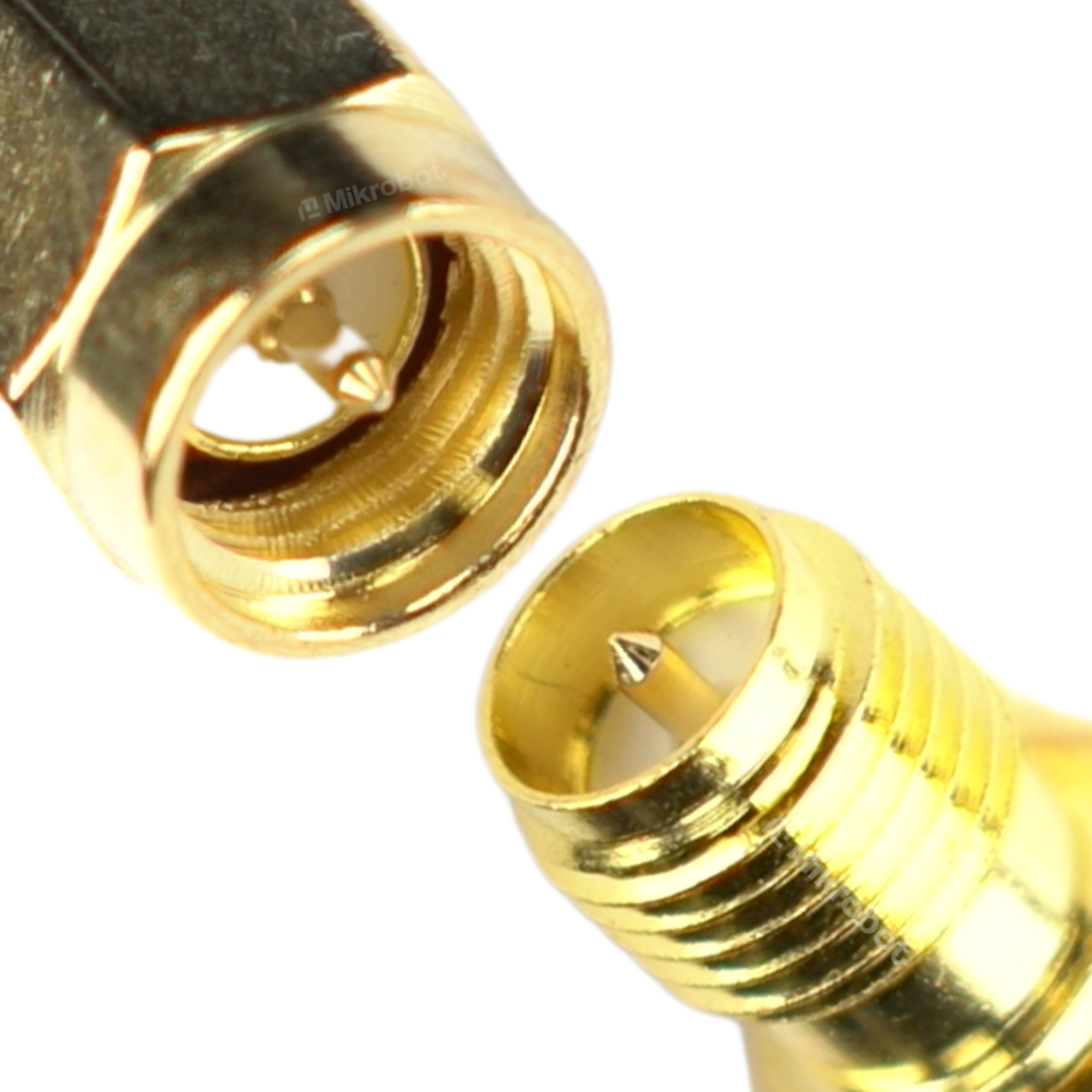

• First connector: SMA male plug
• Second connector: SMA-RP female socket (Reverse Polarity)
• Characteristic impedance: 50 ohm
• Component category: Radio adapter

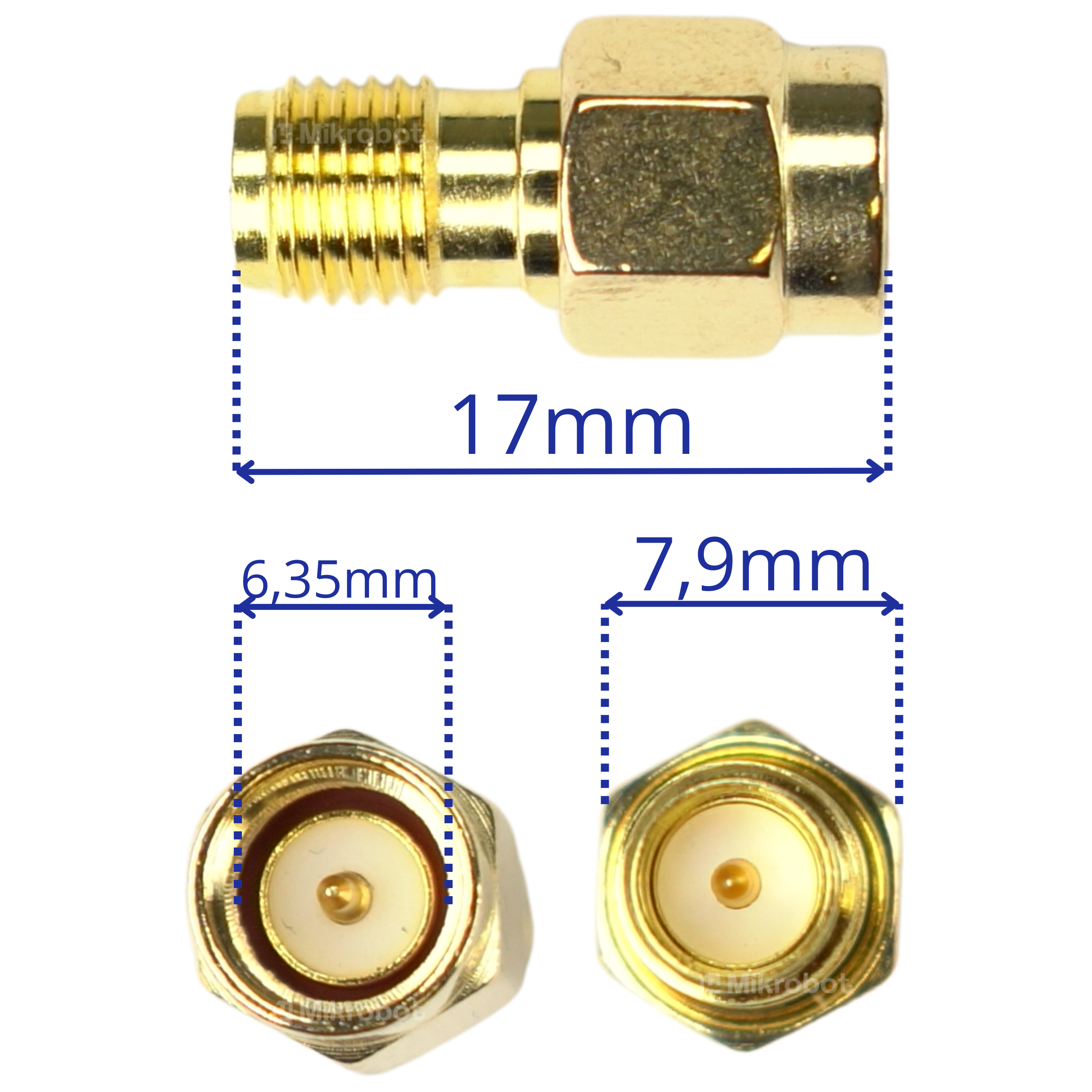

• Length: 17mm
• Nut width: 7.9mm
• Internal thread diameter: 6.35mm
• Insulator: teflon
• Finish: gold-plated

Example applications

The adapter is widely used in communication electronics where radio line matching is required. Due to its parameters, this component works well in many fields of radio communication and data transmission.

• Matching external antenna systems in Wi-Fi routers and access points.
• Connecting antennas to long-range LoRa and LoRaWAN modules and gateways in IoT applications.
• Integration with measuring equipment and SDR (Software Defined Radio) receivers.
• Connecting telemetry modules with antenna kits in industrial solutions.
• Building and modifying image transmission systems in FPV equipment and advanced modeling.
• Radio communication systems requiring 50 ohm impedance signal routing outside the enclosure.

Benefits of using the adapter

Using a ready-made adapter significantly facilitates the assembly, modification and repair of radio circuits, eliminating time-consuming and precision-intensive service operations on coaxial cables.

• Quick adaptation of incompatible connectors without cutting cables, stripping insulation and difficult soldering of new plugs.
• Maintaining proper signal propagation parameters and avoiding standing waves thanks to 50 ohm impedance matching.
• High connection reliability ensured by the standard SMA threaded mounting.
• Wide compatibility with professional and amateur radio equipment available on the market.
