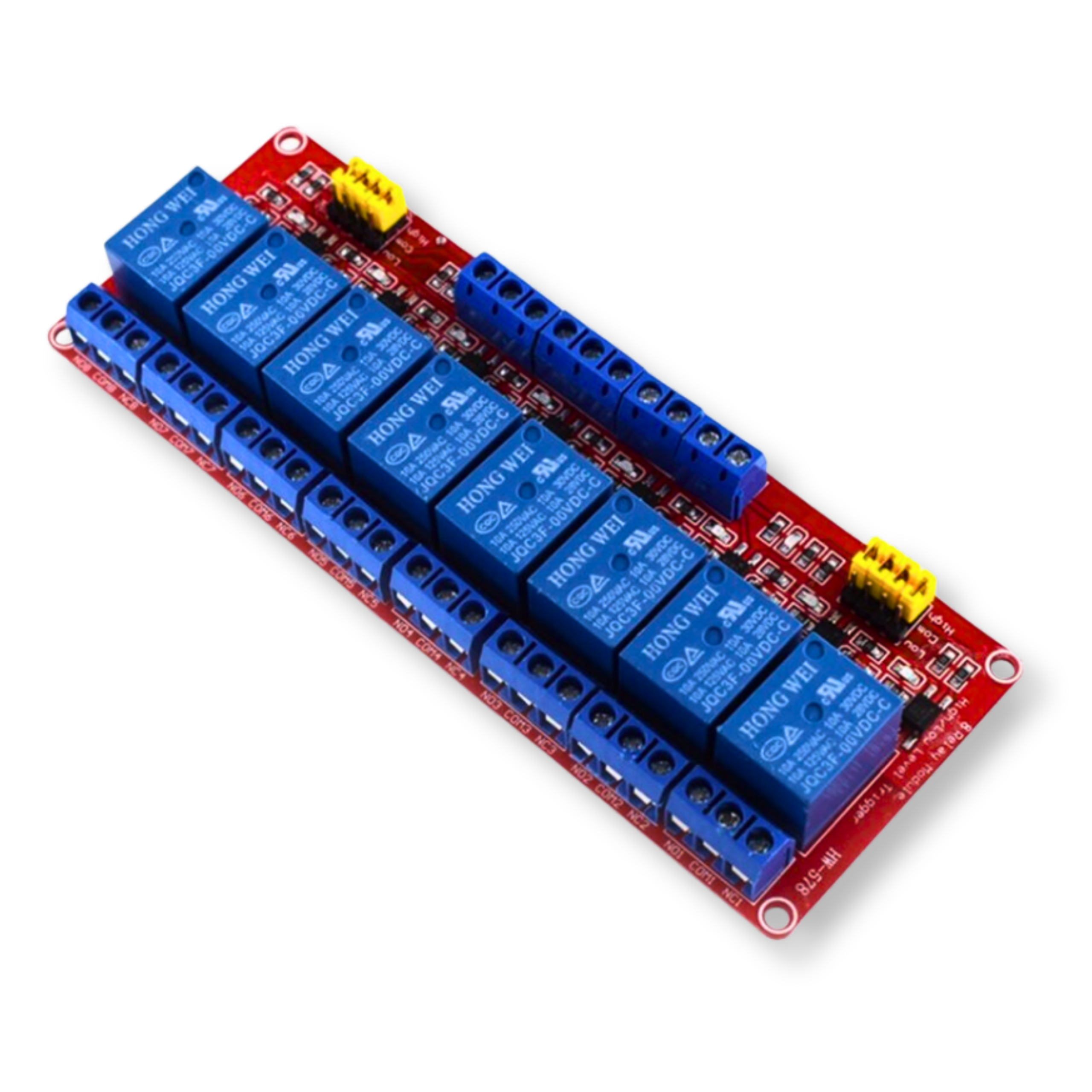

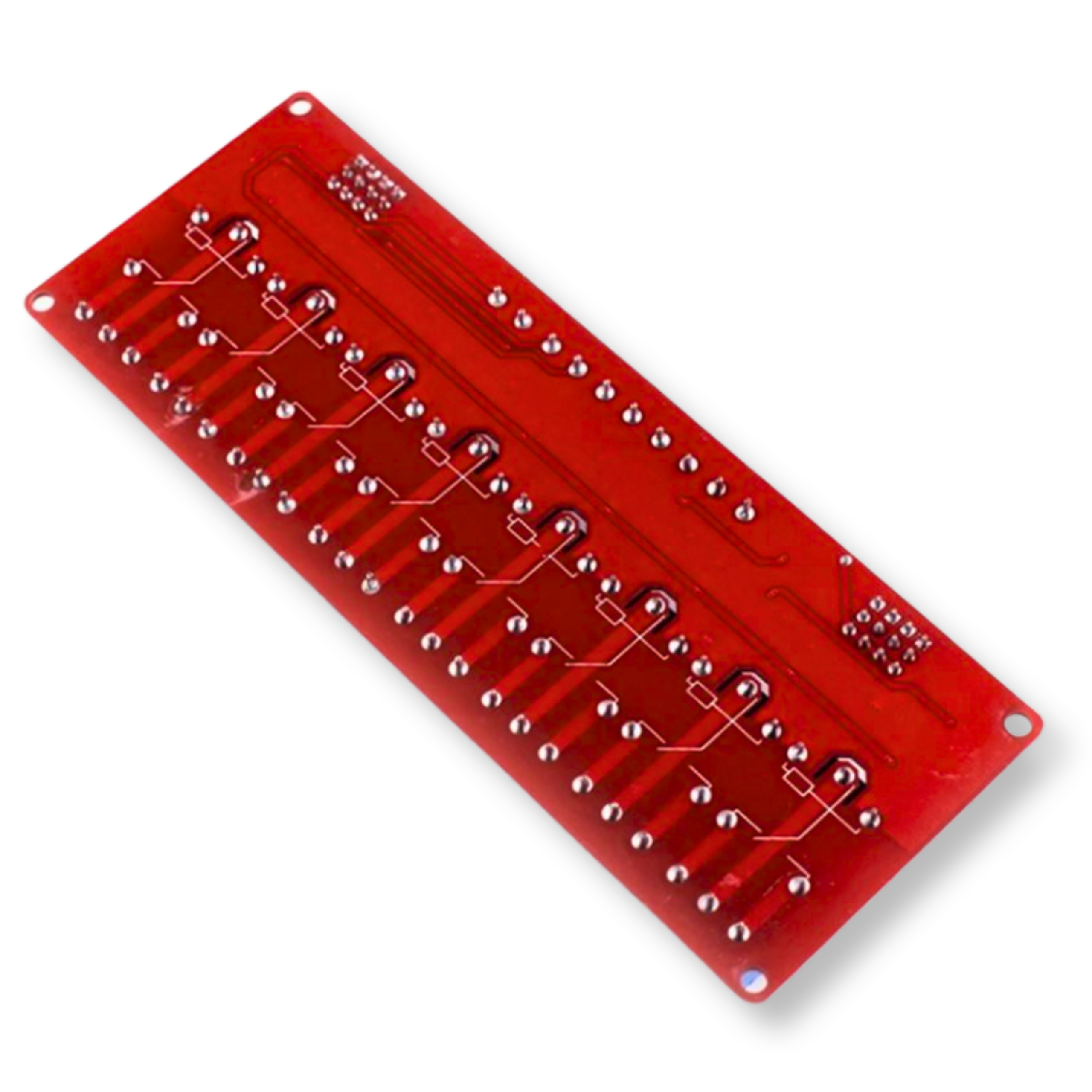

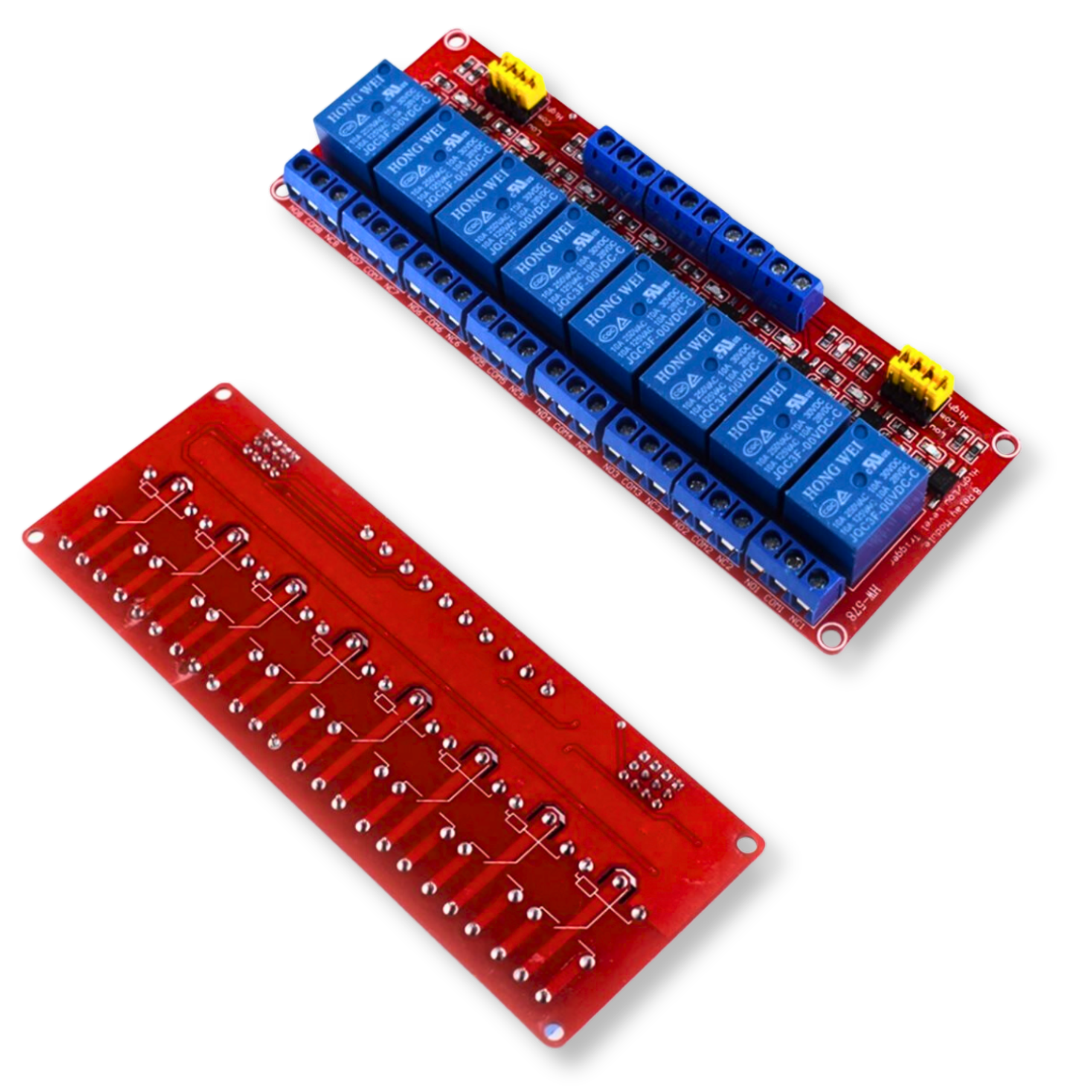

8-channel 5V 10A relay module controlled by LL/HL low/high state

An 8-channel relay module with opto-isolation, ideal for use in Arduino and other electronics projects. With a 5V power supply, the module is compatible with most microcontroller systems. The relays on the module can withstand up to 10A at 250V AC, allowing the control of high-power devices.

Technical specifications:

• Condition: New
• Supply voltage: 5V
• Control voltage: 5V (3.3V is sufficient for state change)
• Type: HL/LL (high or low state control can be set for each channel separately)
• Load: 10A 250V AC and 10A 30V DC
• Number of relays: 8 relays per module
• Indicators: LEDs indicating relay status
• Dimensions: 138mm x 50mm x 20mm

Features and benefits:

• Opto-isolation: Protects control circuits from damage due to overvoltage.
• Terminal block connector: Enables fast and convenient cable attachment.
• High or low state control: Each channel can be set individually, increasing application flexibility.
• LEDs: Indicate the status of each relay, making it easy to diagnose and monitor module operation.
• High load capacity: The relays can withstand up to 10A at 250V AC and 30V DC, allowing the control of devices with high power consumption.

Applications:

• Arduino projects
• Home automation
• Lighting control systems
• Household appliance control
• Security systems

Additional information:

The 8-channel relay module is an indispensable component in any advanced electronics project. Its versatility and reliability make it the ideal choice for professionals and hobbyists alike.
