ESP-WROOM-32 ESP-32 WiFi Bluetooth MicroUSB ESP32

ESP-WROOM-32 ESP-32 WiFi Bluetooth MicroUSB ESP32 (1)
Availability: duża ilość
Dispatched within: 1 day
Delivery: The price does not include any possible payment costs check the delivery methods
Price: €5.32
incl. 23.00% TAX, excl. shipping costs
5.32
quantity pcs

product unavailable

add to wish list
Rating: 5
Vendor: Mikrobot

Description

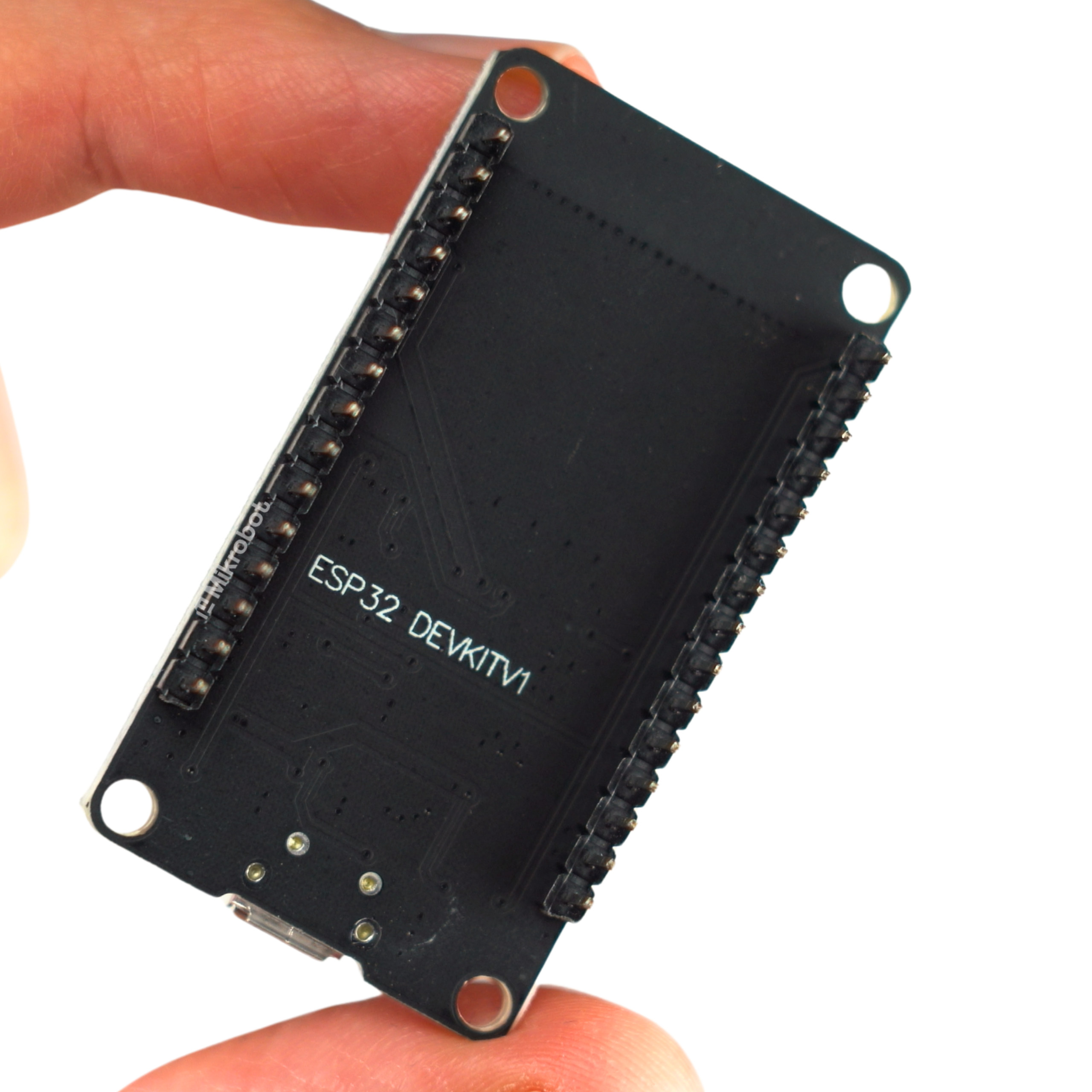

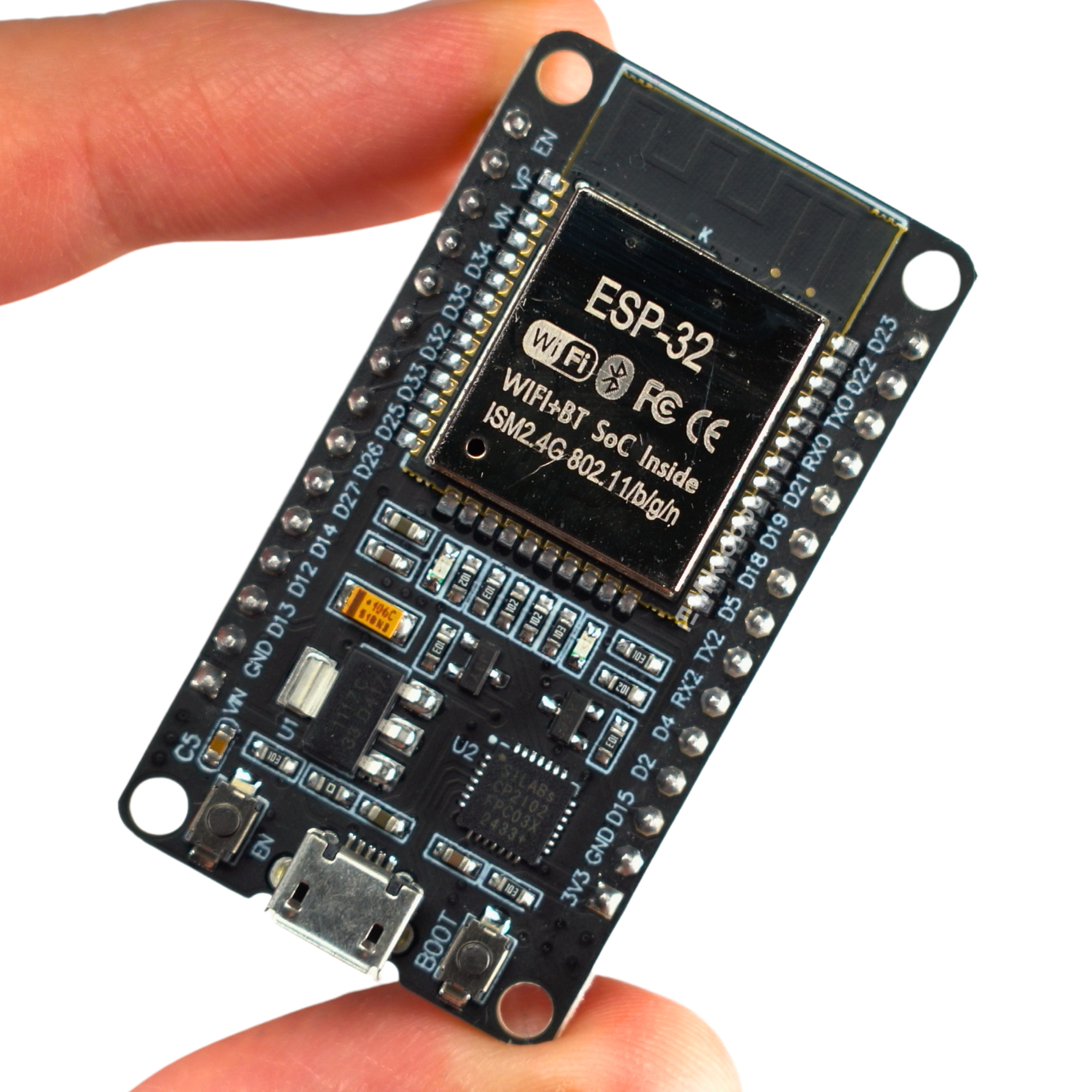

ESP32 is a board with ESP-WROOM-32 module. It has 30 leads goldpin with 2.54 mm raster with interfaces such as UART, SPI, I2C. It enables WiFi 2.4 GHz and Bluetooth BLE/v4.2 communication and is powered by 5 V.

ESP-32S microcontroller with integrated ESP-WROOM-32 module.

The ESP32 chip can communicate via WiFi in the 2.4 GHz band and Bluetooth v4.2.

The chip has 30 leads, including: UART, SPI, I2C.

Specification:

  • Power supply voltage: 5 V
  • Microcontroller: Dual Core Tensilica LX6 240 MHz
  • Maximum voltage on pins: 3.3V
  • SRAM: 520 KB
  • Flash memory: 4 MB
  • Built-in chip: WiFi 802.11 b/g/n
  • Supports protocols: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
  • Built-in module: Bluetooth BLE
  • 30 GPIO leads including: 3x UART, 3x SPI, 2x I2C (2x I2S)
  • 12-channel ADC
  • 2-channel DAC
  • PWM outputs
  • Built-in USB-UART converter CP2102 allows programming of the module without additional programmers
  • Dimensions: 52mmx28.5mm
