LED module, 16 WS2812 5050 LEDs, luminous ring RING - 5 V, 68 mm, for Arduino

LED module 16 WS2812 5050 Glowing ring RING

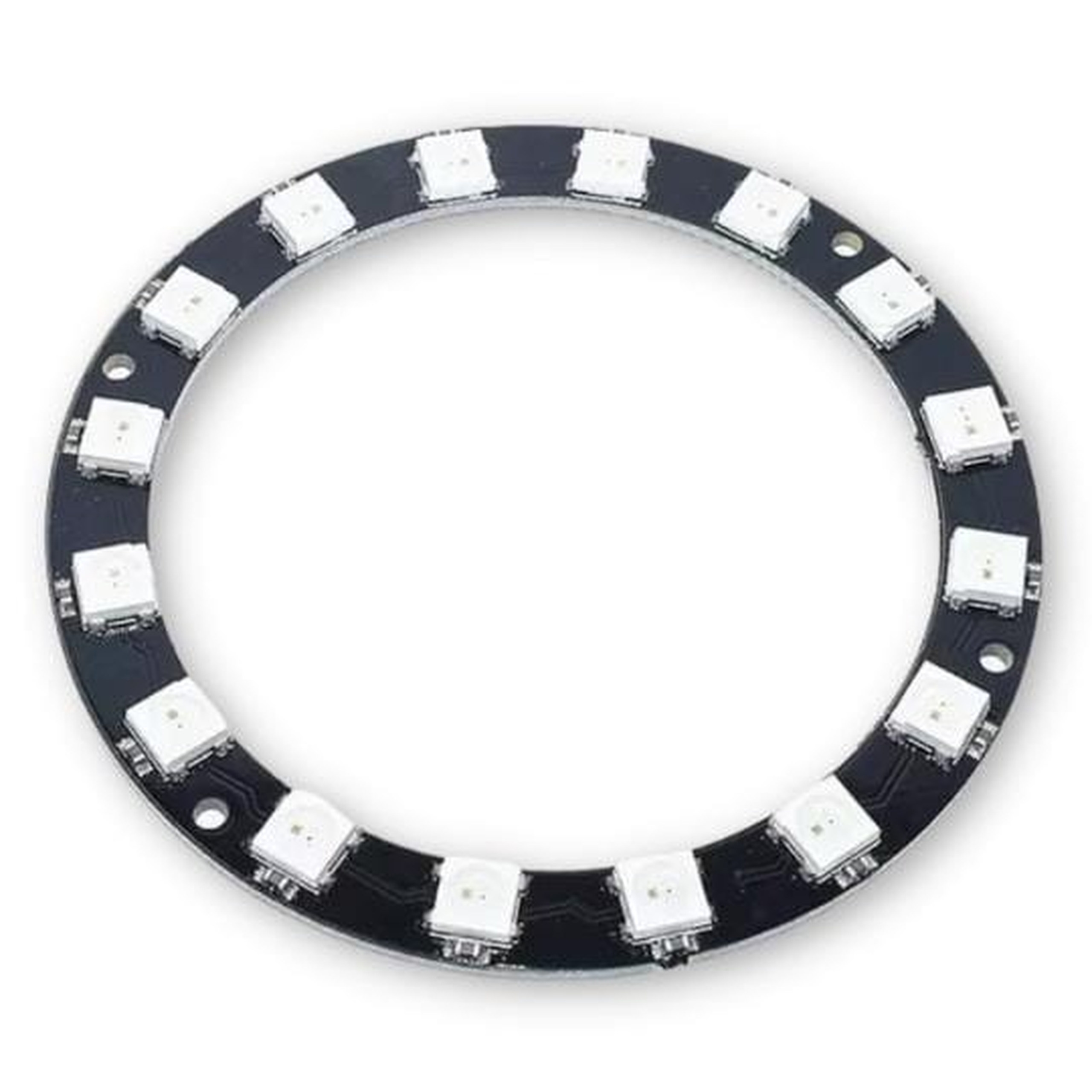

16 LED RING is a module with LEDs arranged in a circle with a diameter of 68mm. Each of the 16 RGB LEDs in a 5050 (PLLC-4) package is driven by a built-in WS2812 driver. The module is fully compatible and intended for use with popular platforms such as: for Arduino, for ESP8266, for ESP32, and for Raspberry Pi.

The circuit operates from a supply voltage of 4V to 7V and draws up to 60mA per LED. Each color (R, G, B) offers 256 brightness levels. The ring PCB is black, with built-in solder pads. Dimensions are 68mm diameter, 6mm board width, and 3.1mm thickness, making it ideal for a wide range of lighting projects.

Key technical specifications

• Supply voltage: 4V to 7V
• Current draw: up to 60mA per LED
• Number and type of LEDs: 16 WS2812 RGB LEDs
• Package: 5050 (PLLC-4)
• Brightness levels: 256 for each primary color (R, G, B)
• PCB color: black

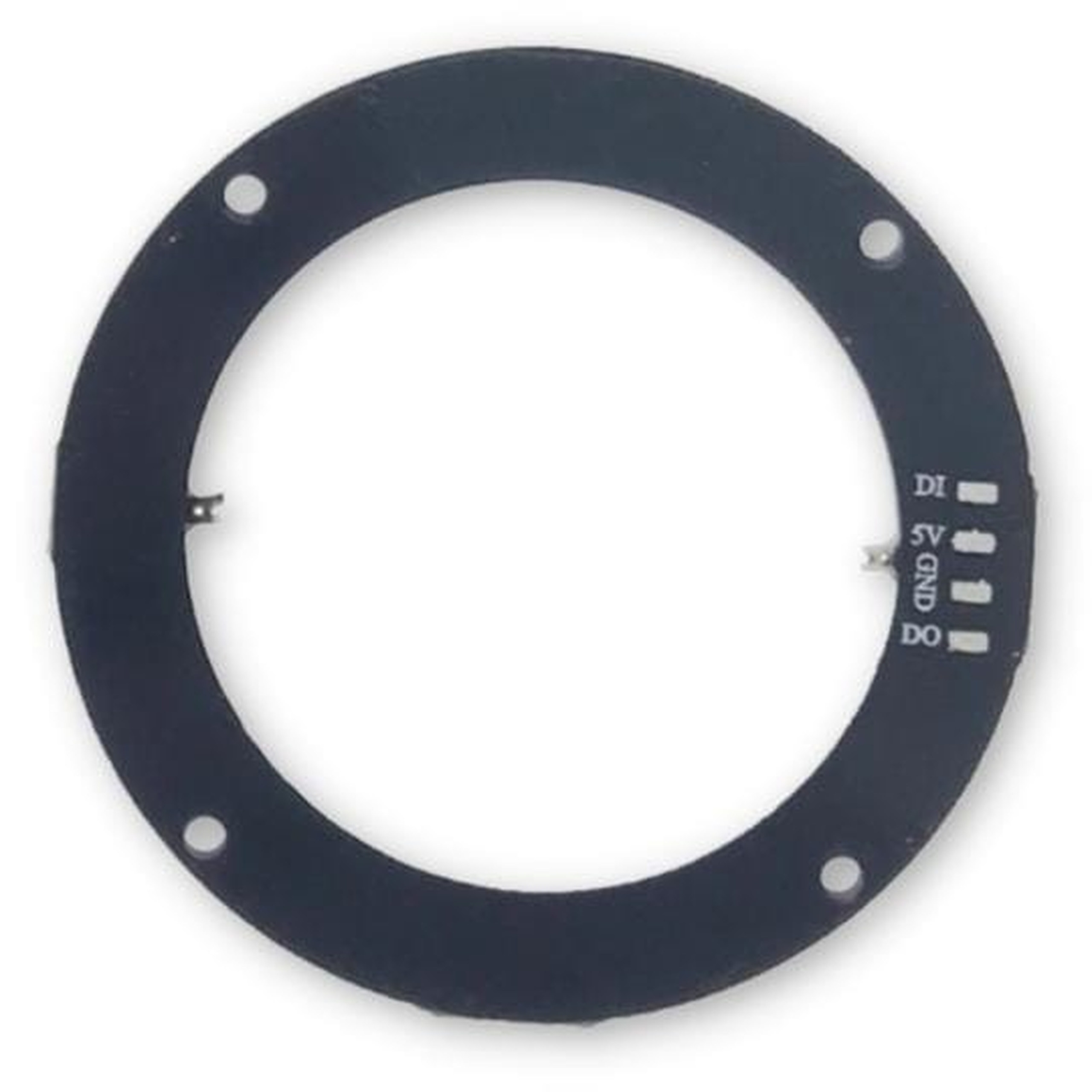

• Connectors: built-in solder pads
• Dimensions: 68mm (diameter), 6mm (board width), 3.1mm (thickness)

Example applications

• Creating striking lighting and decorative installations
• Building spectrum clocks and visual indicators
• Lighting in robotics and modelling projects
• Status indication for electronic devices
• Illuminated elements in wearable and cosplay projects

Benefits

• Convenient control of all LEDs using only one digital pin
• Broad compatibility with popular microcontrollers and libraries
• Ability to cascade multiple modules into longer chains
• High brightness and smooth color transitions thanks to a 24-bit color palette
• Compact dimensions that simplify mounting in tight spaces
