Large XXL R3 Programming Learning Kit for Arduino - Beginner KIT

Large XXL R3 Programming Learning Kit

This XXL Arduino starter kit for beginners is a complete package containing the essential components that enable fast and effective creation of your own projects-from basic circuits to more advanced applications. The kit is ideal for people with no prior experience programming microcontrollers, as well as users looking to expand their skills. It is suitable for education, prototyping, and electronics experiments.

The set includes an Arduino UNO R3-compatible module, a 2x16 LCD display, various sensors, an IR remote, an RFID module, a servo motor, a stepper motor, an 8x8 LED matrix, and many other items for learning electronics and programming basics. With the included jumper wires and breadboard, circuits can be assembled without soldering, which makes work easier for beginners.

All components are stored in a practical organizer. The product works great as a gift for electronics enthusiasts.

Key technical features

• Component compatibility: for Arduino, for ESP8266, for ESP32, for Raspberry Pi
• Main board: module compatible with Arduino UNO R3 (CH340 communication chip)
• Assembly method: solderless, using an 830-point breadboard and jumper wires
• Displays: 2x16 LCD with I2C converter, 8x8 LED matrix, 7-segment displays
• Sensors in the kit: temperature, humidity, water level, sound, vibration, fire, photoresistors
• Actuators: 28BYJ-48 stepper motor with driver, SG90 servo motor, relay module

Benefits

• Quick start in electronics: a ready-made set of parts lets you begin learning immediately without sourcing individual components.
• Safety and convenience: using a breadboard removes the need for soldering, which is ideal for beginners and educational settings.
• Design versatility: a wide selection of sensors and actuators lets you build varied circuits, from simple indicators to complex automation systems.
• Hands-on programming learning: the kit makes it easier to understand microcontroller programming by physically observing the effects of your code.
• Easy storage: the included organizer helps keep small electronic parts tidy.

Example applications

• Weather station: using the DHT11 module and 2x16 LCD display to monitor and show current temperature and humidity.
• Access control system: building an electronic lock with an RFID reader, proximity cards, and an SG90 servo motor.
• Remotely controlled lighting: building a circuit that receives signals from an IR remote to switch and change colors on an RGB LED.
• Simple alarm system: using an SW-520D vibration sensor and a buzzer to signal unwanted motion or shock.
• Automatic liquid level measurement: using an analog water level sensor to monitor tanks, with status shown on an 8x8 LED matrix.

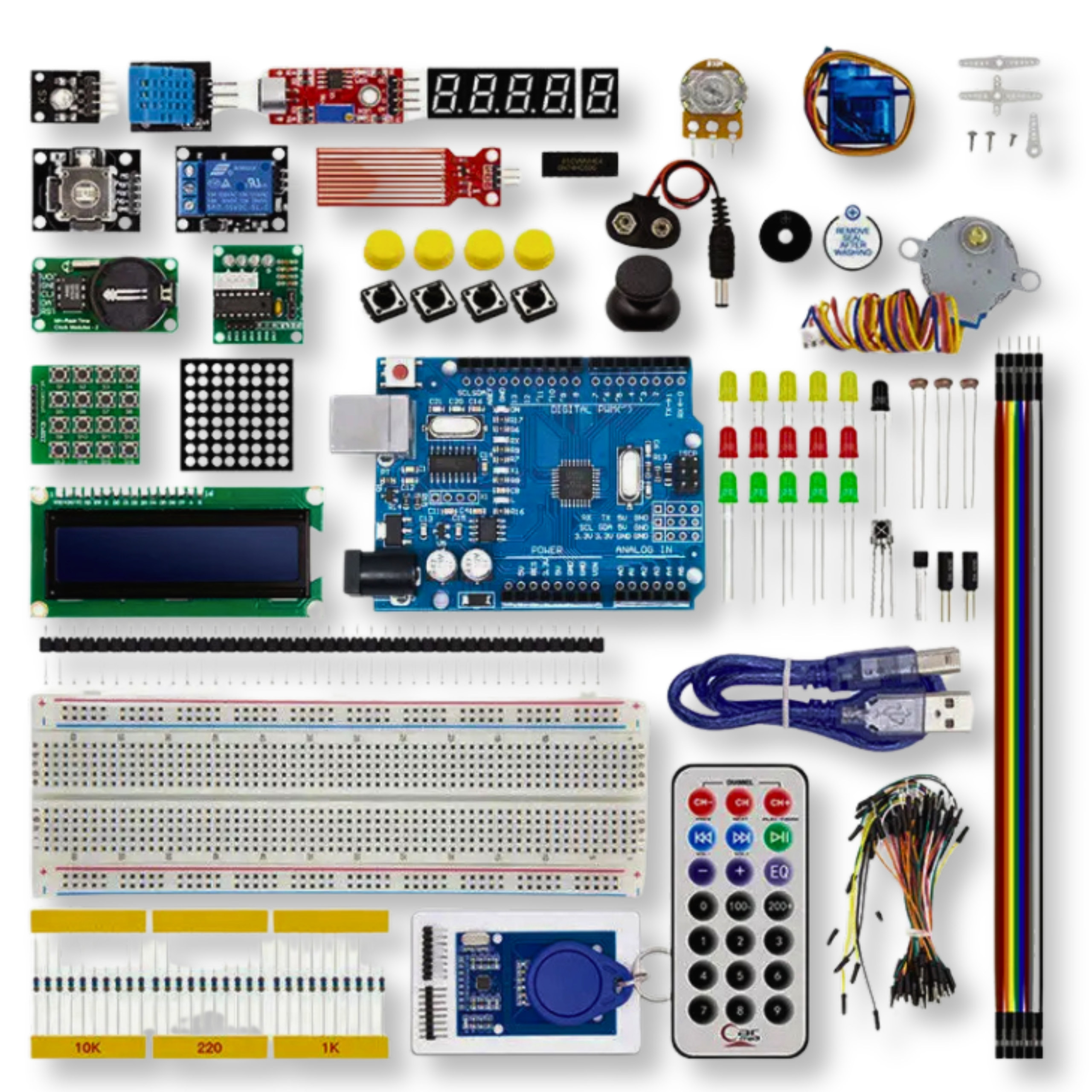

Kit contents

• R3 module compatible with Arduino
• USB A-B cable
• Prototyping breadboard, 830 points
• Set of 65 male-male jumper wires for the breadboard
• Set of 10 female-male jumper wires
• 2x16 LCD display with HD44780 converter
• 1x 4-digit display
• 4x 7-segment display
• 8x8 LED matrix
• IR remote for wireless control and an infrared receiver
• LM35DZ temperature sensor
• DHT11 temperature and humidity sensor module
• Joystick module
• Analog water level sensor
• Buzzer - 2 pcs.
• Tact switch buttons with caps - 5 pcs.
• LED diodes (green, yellow, red) - 5 pcs. each
• 10k Ohm potentiometer
• 74HC595N shift register
• RGB LED diode
• RFID reader, RFID card, and RFID key fob
• 16-key matrix keypad
• Flame sensor
• Real-time clock module
• Module with 5V 10A relay
• GL5528 10k-20k photoresistor - 3 pcs.
• 28BYJ-48 stepper motor with ULN2003 V2 driver
• Sound sensor (noise detector)
• Tower Pro SG90 9G 180° servo motor
• Vibration sensor SW-520D - 2 pcs.
• 9V battery clip with DC plug
• Resistor set: 220 Ohm - 10 pcs., 1k Ohm - 10 pcs., 10k Ohm - 10 pcs.

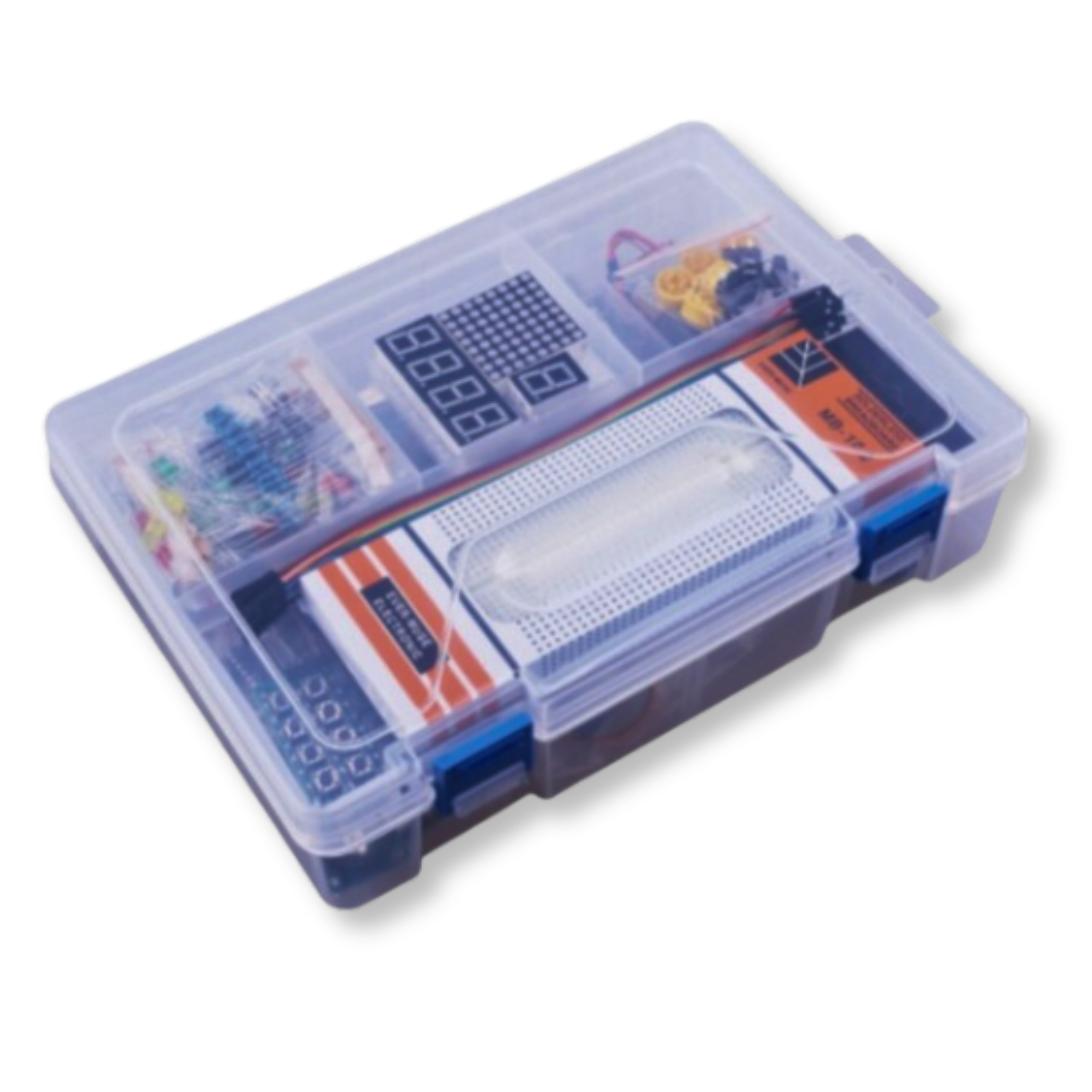

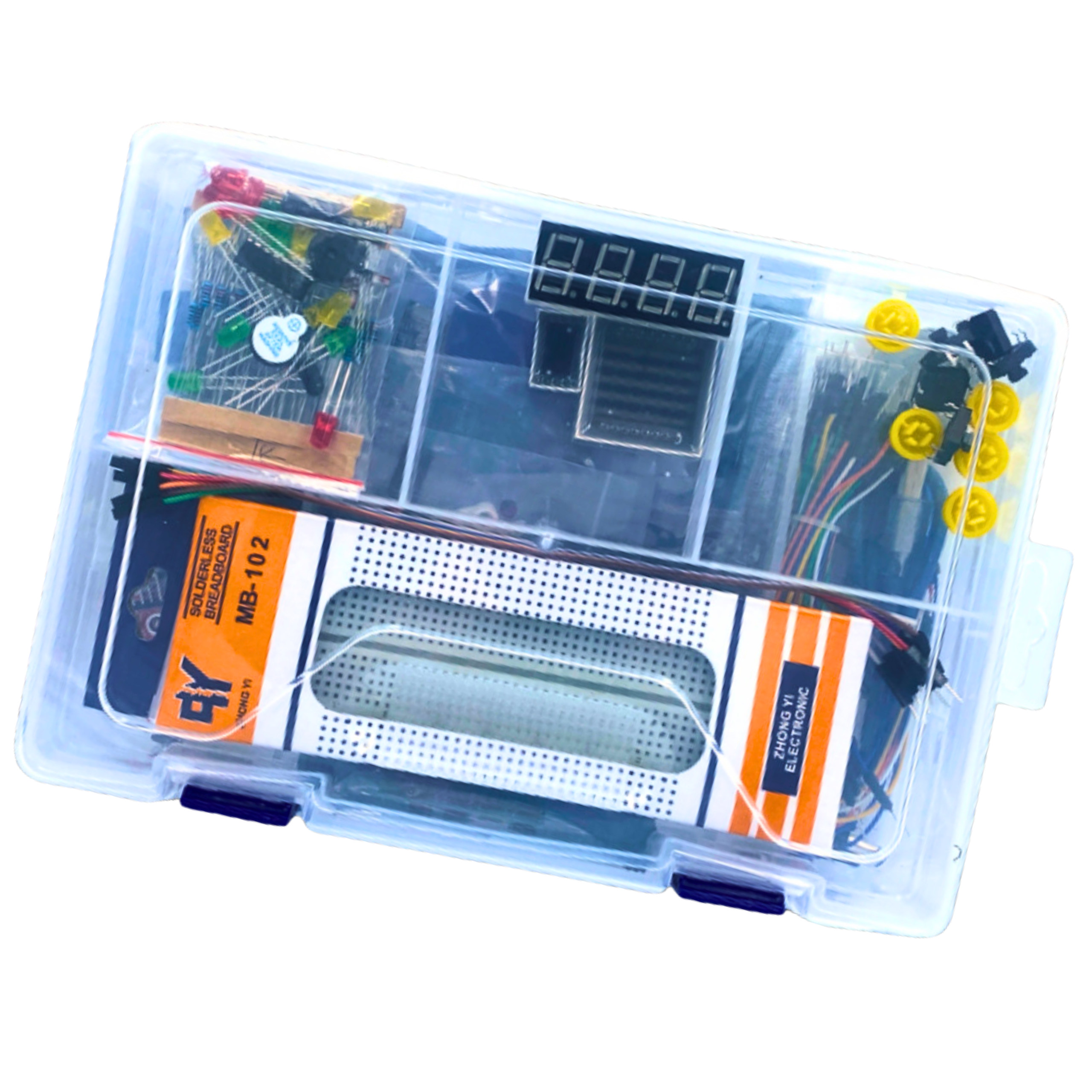

• Sturdy organizer

Learning and growth

Projects built in a programming environment develop analytical and engineering skills. Finding solutions independently, experimenting with code and hardware are key parts of the learning process. The kit provides the necessary tools; how you use them is up to your creativity.

CH340 drivers can be downloaded from: https://sparks.gogo.co.nz/ch340.html
