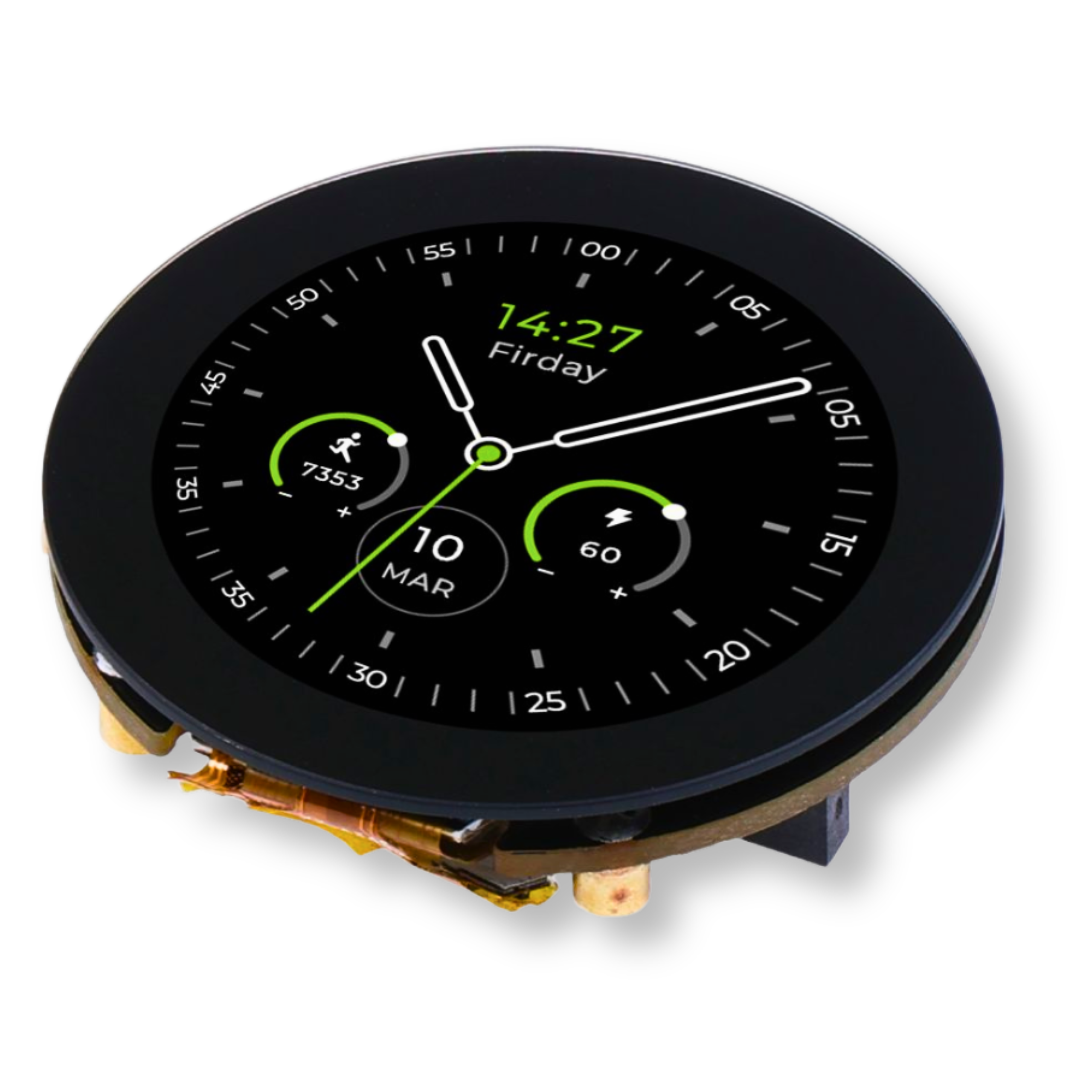

Round LCD touchscreen display 1.28'' 240x240px for Seeed Xiao + microSD
Availability:
na wyczerpaniu
Dispatched within:
1 day
Rating:
0
0
Vendor:
Description

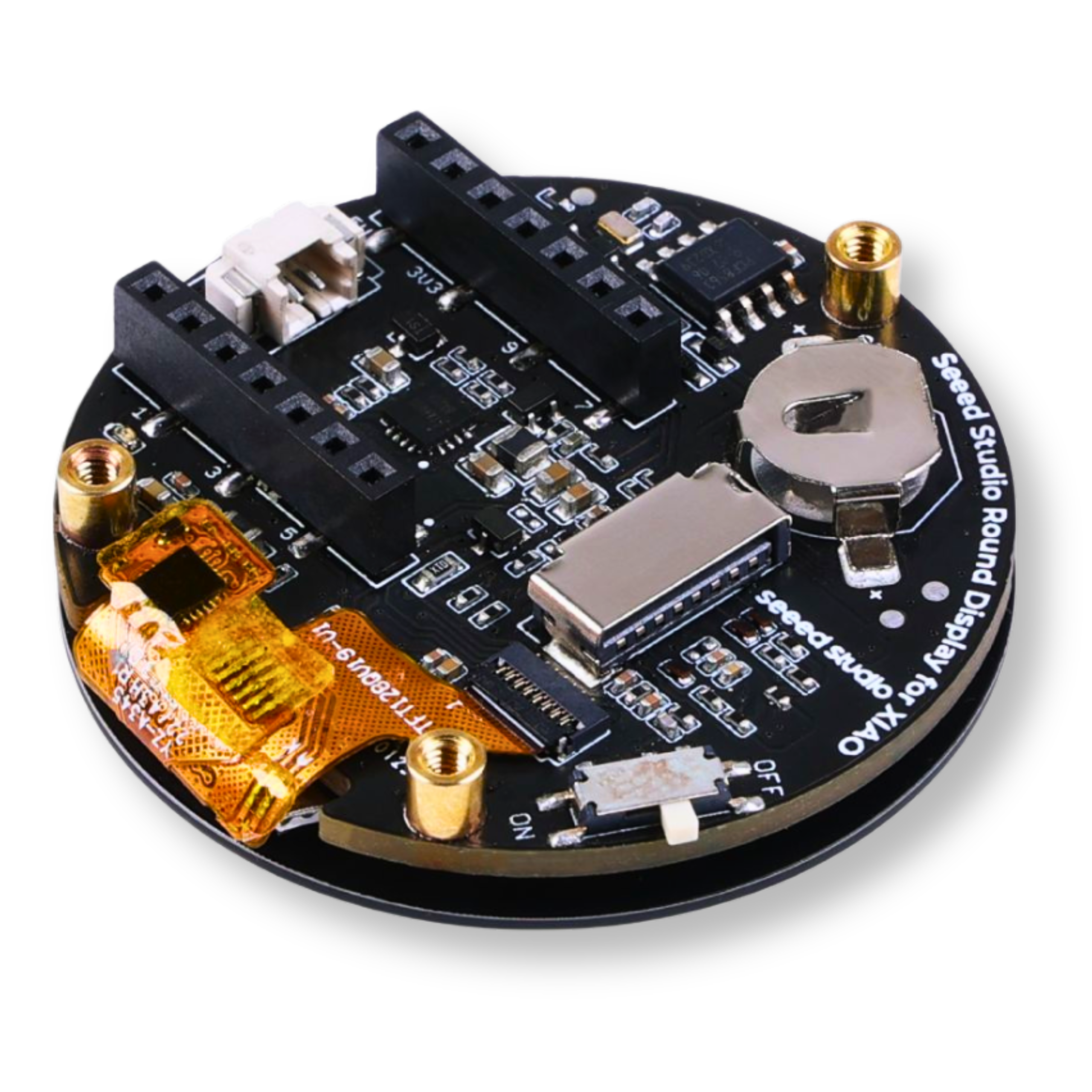

The screen for the Xiao is a capacitive touchscreen display with a diagonal of 1.28", a resolution of 240 x 240 px and 65,000 colours, offering clear and colourful images. Compatible with all products in the Xiao series, the screen features a RTC chip, lithium battery charger, microSD card slot and JST 1.25 connector. With a diameter of 39 mm, it is ideal for wearable projects and limited space. All pins are routed out, eliminating the need for soldering, allowing for easy connection. Ideal for use as a programmable touch watch, handy pointer, control centre, gaming device or interactive display.
Specification:
- Power supply: USB type C 5 V / 45 mA, Li-Pol charger 3.7 V / 37 mA
- Battery connector: JST 1.25 mm 3.7 V battery pack
- Charging current: approx. 485 mA
- RTC battery: CR927
- RTC chip: PCF8563
- MicroSD card: up to 32 GB FAT
- Display: LCD THT
- Diagonal: 1.28"
- Resolution: 240 x 240 px
- Number of colours: 65,000
- Frequency: 100 Hz
- Module dimensions: 43 x 43 mm
