Seeed Xiao RP2040 - ARM Cortex M0+ Micro controler - Seeedstudio 102010428
Availability:
średnia ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
Description

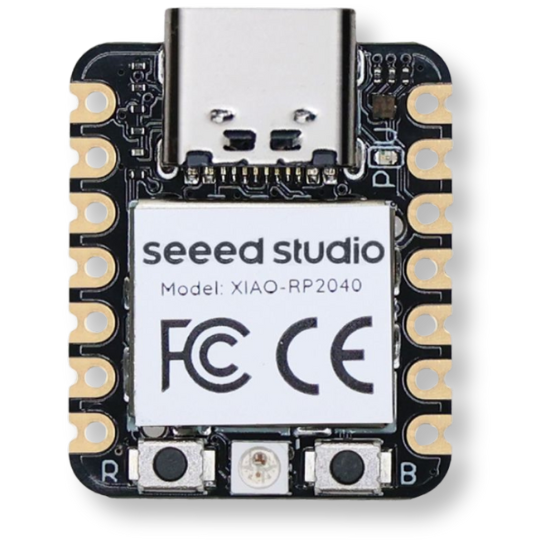

Small but powerful Seeed Xiao RP2040 board with Raspberry Pi RP2040 microcontroller from Seeedstudio.
Its dual-core ARM Cortex M0+ with a clock frequency of up to 133 MHz is programmable in Arduino, MicroPython, CircuitPython and C/C++ environments. The Xiao RP2040, being part of the Xiao series, like the Xiao Seeeduino, features a compact size and a wealth of interfaces. It shares the same chip as the Raspberry Pi Pico and Arduino RP2040, with 264 kB of SRAM and 2 MB of built-in flash memory. It has 11 digital pins, four analogue pins, 11 PWM pins, I2C, UART, SPI and is programmed via USB Type C. The board features a Reset and Boot button, a programmable RGB LED, a power LED, two status LEDs and an additional LED.
Main features of the Seeed Xiao RP2040 module:
- Performance Microcontroller: Dual-core ARM Cortex M0+ clocked at 133 MHz
- Vast Memory Resources: 264 kB SRAM and 2 MB flash memory
- Wide Compatibility: Supports MicroPython, Arduino, CircuitPython
- Easy to Design: Ideally suited for 2.54mm prototyping boards, SMD design, no components on the back of the board
- Compact Dimensions: About the size of a thumb, 20 x 17.5 mm
- Multiple Interfaces: 11 digital pins, 4 analog pins, 11 PWM pins, I2C, UART, SPI, SWD pad
- Board Compatibility: All pins compatible with Seeeduino Xiao and Seeeduino Xiao Expansion Board
Examples of application of the Seeed Xiao RP2040 module:
- Fast Prototyping: Direct attachment to the extended PCB as a minimum system.
- Ideal for Projects Requiring a Mini Arduino: Perfect for small, agile applications.
- USB development: Support for multi-channel TTL/USB host mode, etc.
- DIY Keyboard: Ability to create your own personalised keyboard.
Specification:
- Microcontroller: Raspberry Pi RP2040 Dual-Core ARM Cortex M0+ 133 MHz
- Memory: 256 kB SRAM, 2 MB Flash
- I/O pins: 11 digital, 4 analog, 11 PWM
- Interfaces: 1x I2C, 1x UART, 1x SPI, 1x SWD
- Powering and Programming: USB Type C
- LEDs: 1 general purpose, 1 power, 2 serial port, 1 RGB
- Buttons: Reset, Boot
- Power supply pads: For battery power
- Programming compatibility: MicroPython, Arduino, CircuitPython
- Dimensions: 20 x 17.5 x 3.5 mm
