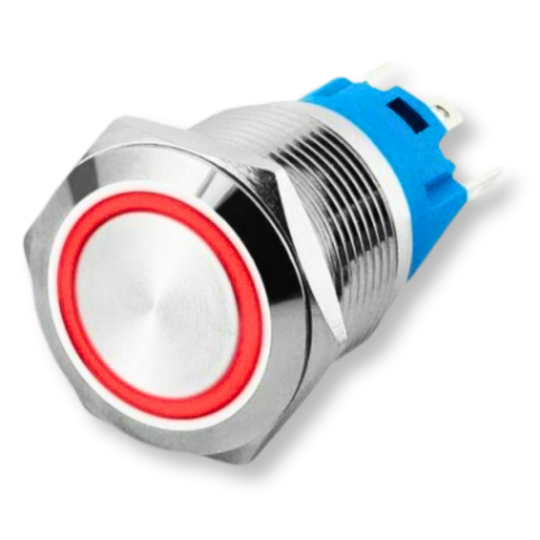

Self Reset Ring 16mm metal 12V-24V red LED backlit switch

The switch has a fi16mm mounting thread diameter for easy installation in a variety of devices. The red LED backlight adds elegance and makes it easy to locate the button in the dark. The monostable ON OFF switch with 12V-24V voltage and five pins (2.8mm x 7mm) provides seamless integration into a variety of electrical systems.

A rubber gasket is included to further protect the switch from moisture and dirt. The product features high electrical (50,000 cycles) and mechanical (500,000 cycles) life, making it an ideal choice for industrial and consumer applications.

Self Reset Metal Switch 12V-24V LED Illuminated Ring Red is a combination of functionality, durability and modern design, providing reliability and convenience in all conditions.

Product Specifications:

• Condition: New
• Switch type: Self Reset (ON OFF), monostable
• Voltage: 12V-24V
• Number of pins: 5 pins (2.8mm x 7mm)
• Electrical life: 50,000 cycles
• Mechanical life: 500,000 cycles
• Backlight color: Red (the rim of the button illuminated in red)
• Material of construction: High quality stainless steel brushed metal, corrosion resistant
• Mounting thread diameter: 16 mm (fi16mm)
• Key diameter: 13 mm
• Dimensions: 18 mm x 35 mm
• Rubber gasket: included
• Operating temperature: -20ºC to +55ºC
