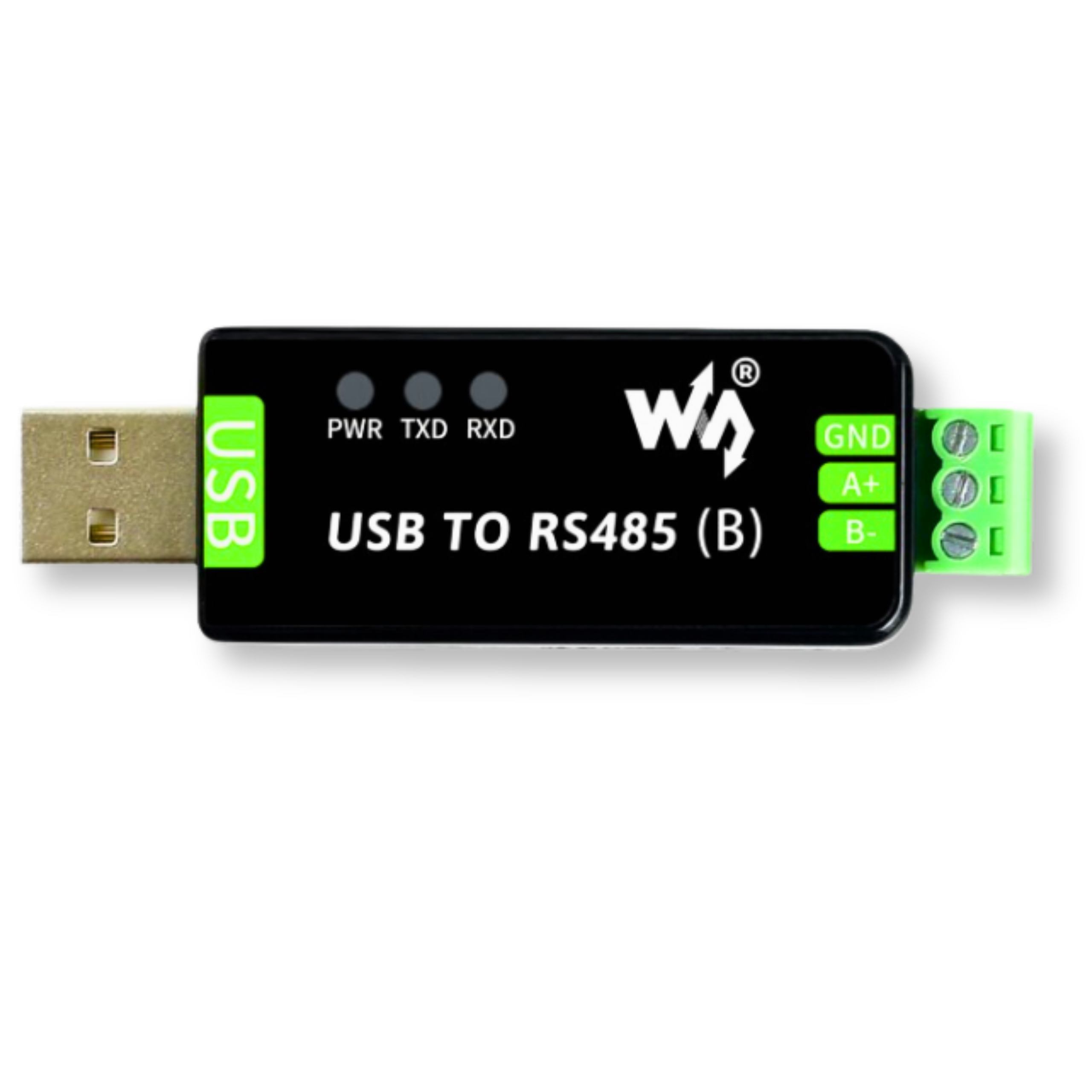

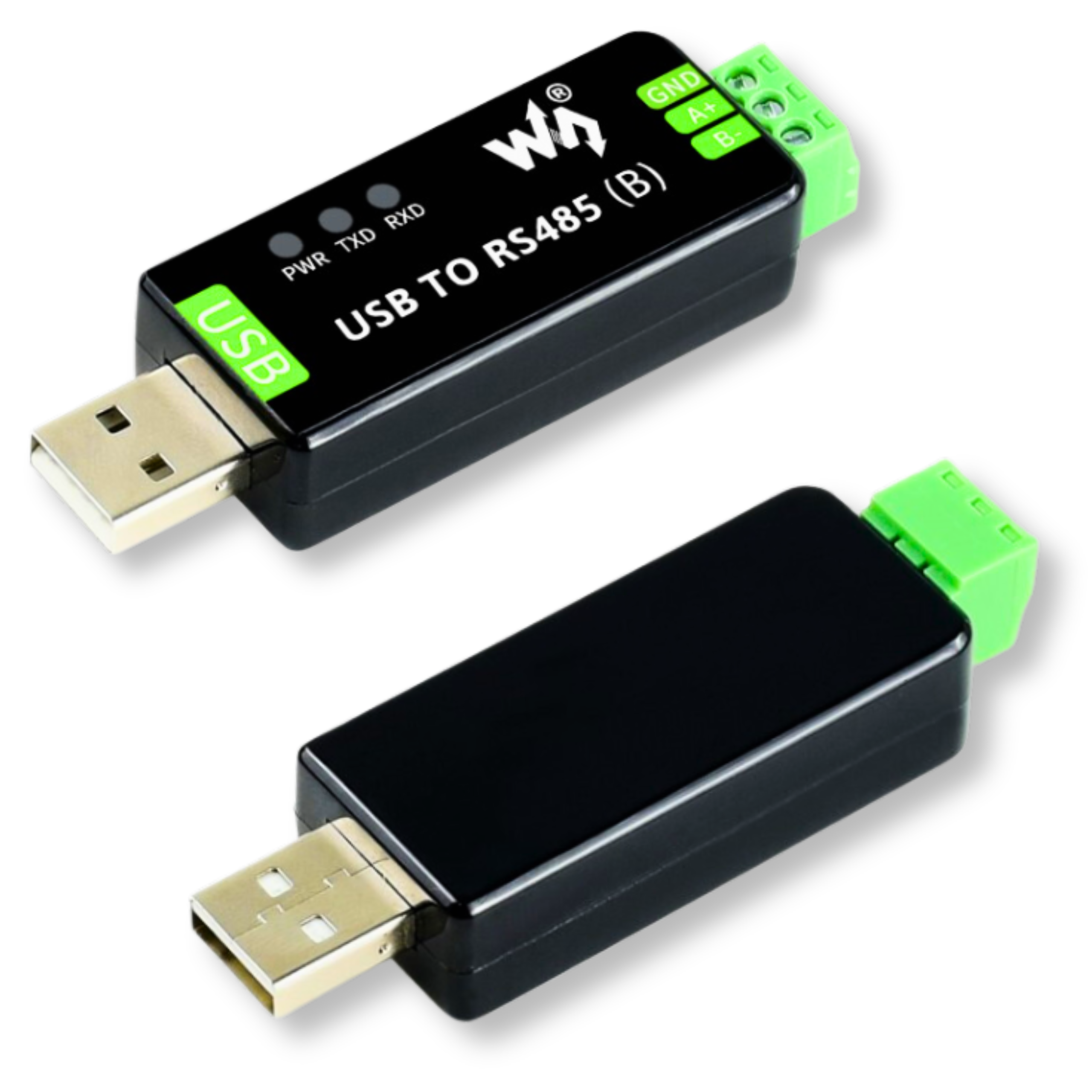

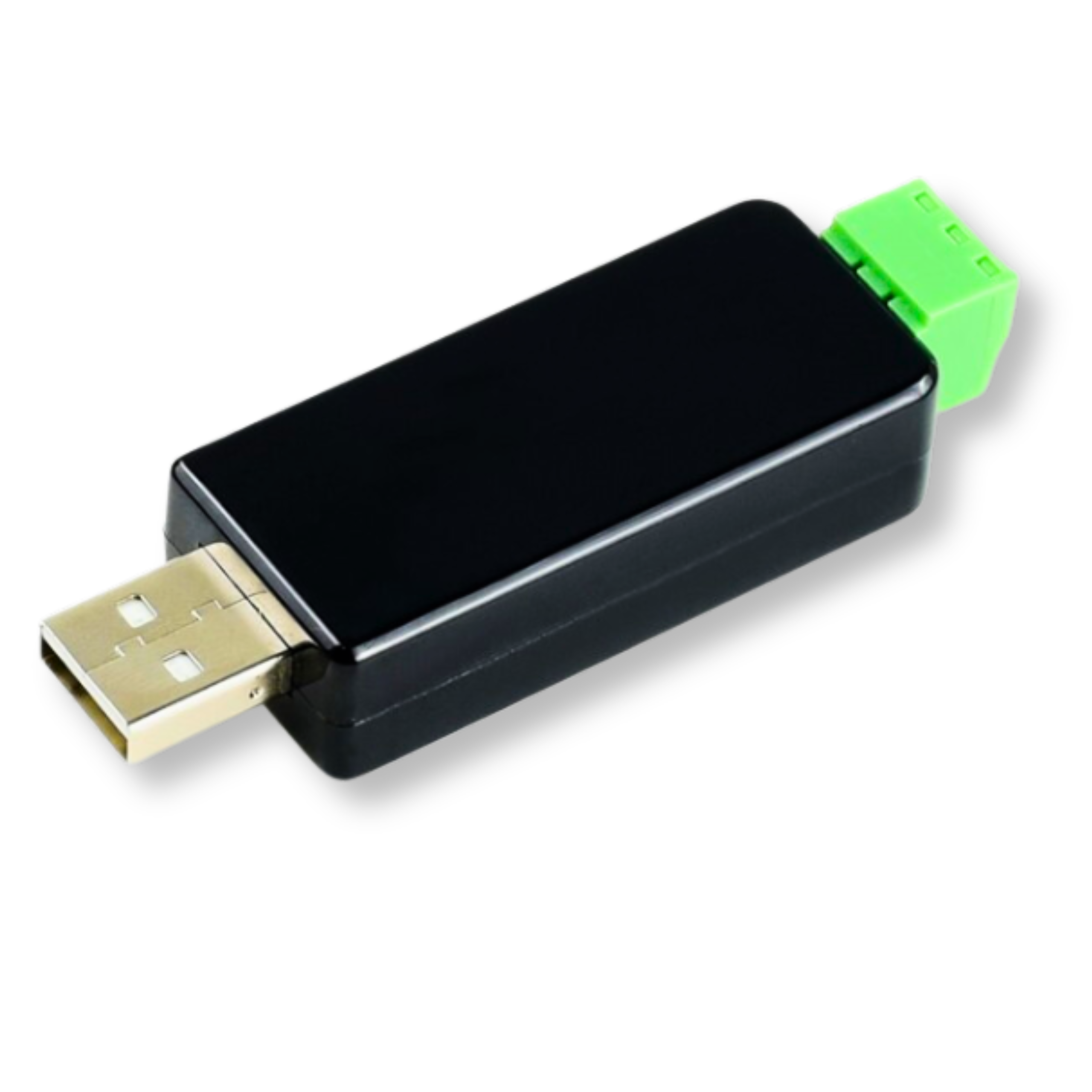

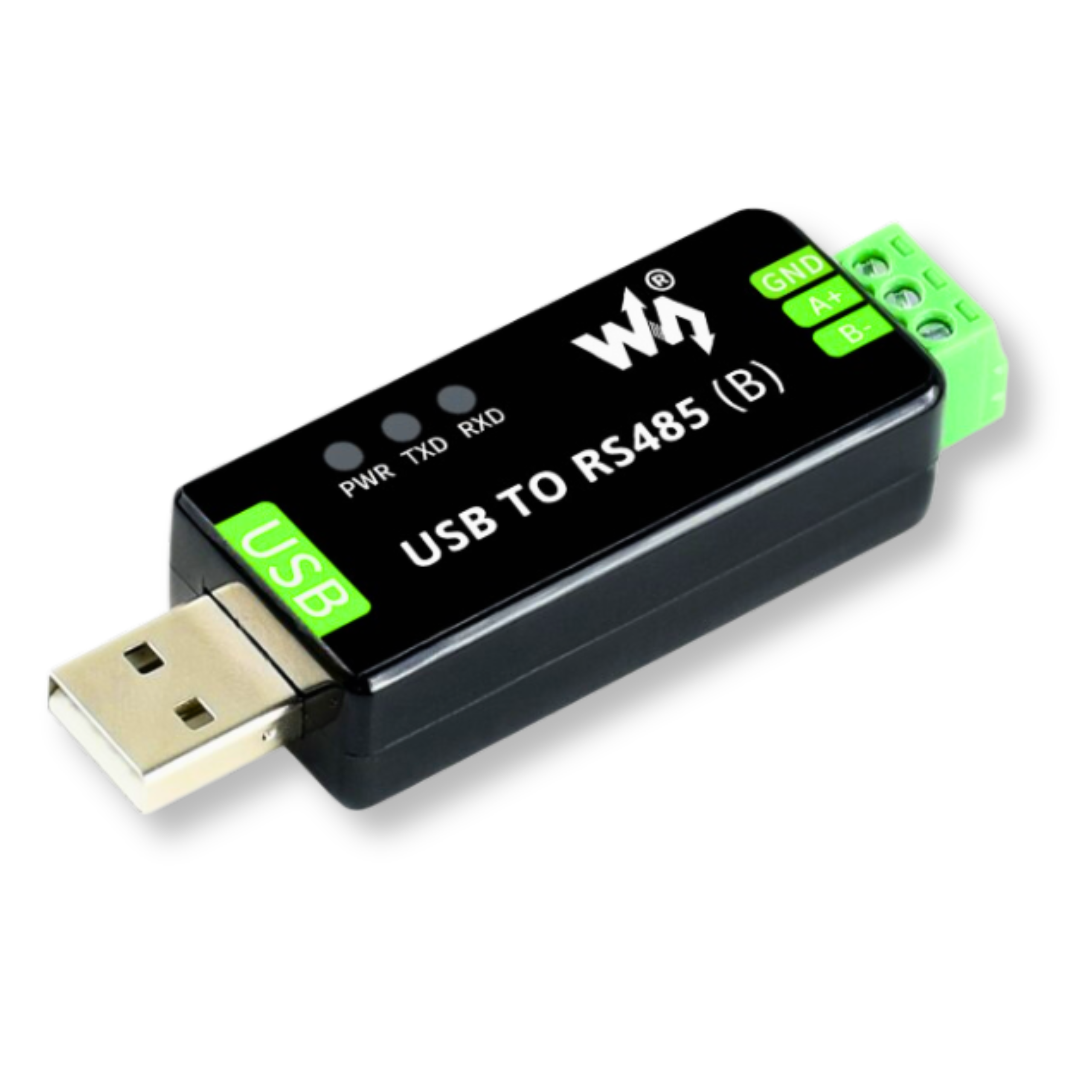

USB - RS485 (B) industrial converter CH343G from Waveshare + USB extension cable
Availability:
brak towaru
Rating:
0
0
Vendor:
Waveshare
Description
The industrial USB to RS485 converter is a reliable solution for bi-directional signal conversion between USB and RS485. It provides stable and fast data transmission rates from 300bps to 3Mbps, making it the ideal choice for demanding industrial applications. Built-in protections such as TVS, ESD protection, and a resettable fuse guarantee safe and reliable operation of the device, even in harsh environments. With a transmission distance of up to 1.2km and support for up to 32 nodes, this converter is ideal for systems with multiple devices.
Features at a glance:
- Supports bi-directional USB to RS485 conversion
- Fast communication, stable and reliable, improved compatibility

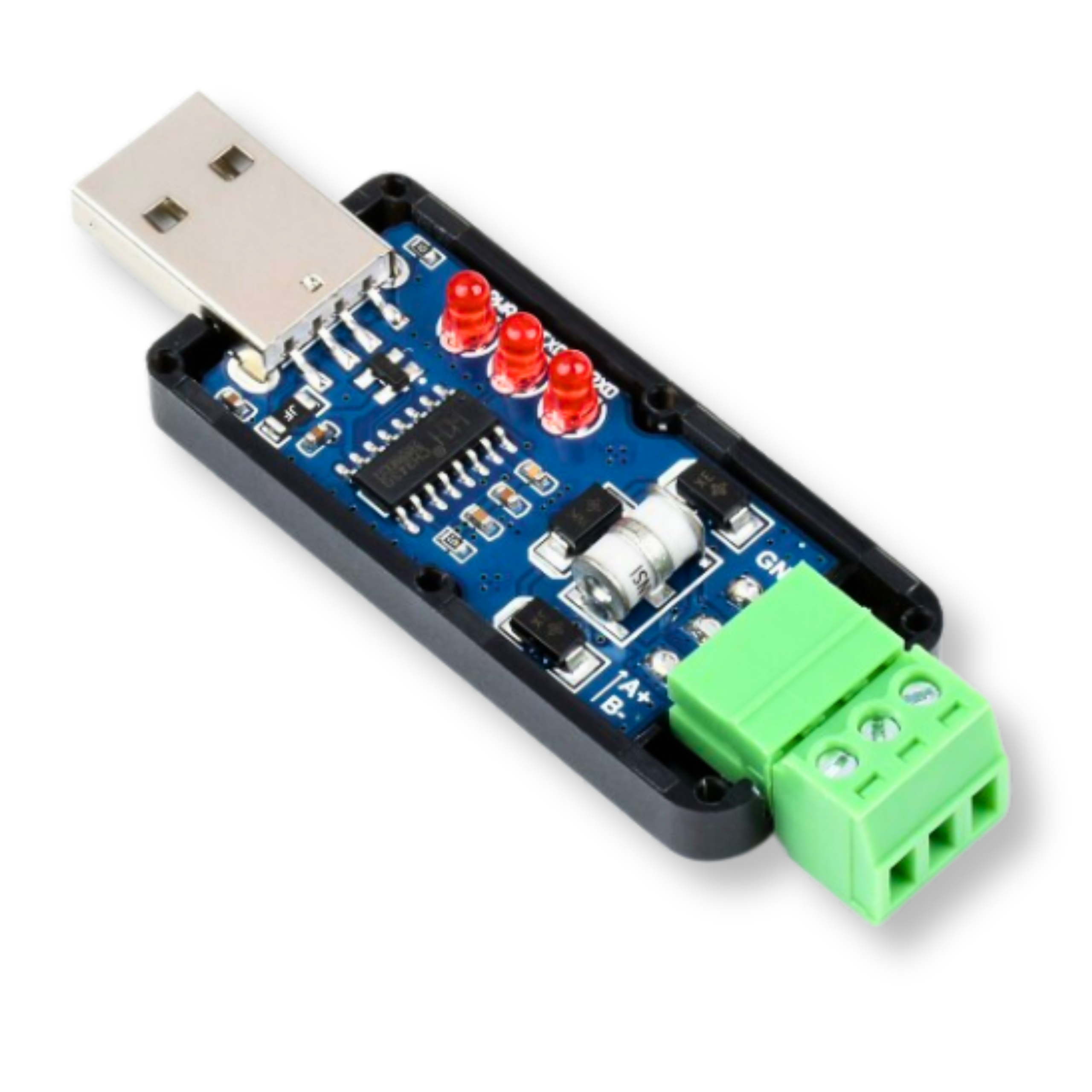

- Built-in TVS (Transient Voltage Suppressor), effectively suppresses overvoltage and voltage spikes in the circuit, lightning and electrostatic protection
- Built-in reset fuse and protection diodes ensure stable current/voltage outputs, provide current/voltage overload protection, improve shock resistance
- 3 LEDs to indicate power and transmission status
Specification:
- PRODUCT TYPE: Industrial USB to RS485 converter.
- Host port: USB
- Device port: RS485
- Transmission speed: 300bps ~ 3Mbps
- USB Operating voltage: 5V
- Connector: USB-A
- Protection: Self-healing fuse 200mA, ESD protection
- Transmission distance: Approximately 5m
- RS485 connector: Screw terminals
- Pins: A+, B-, GND
- Directional control: Automatic hardware control
- Protection: 600W lightning and surge protection, 15KV ESD protection (built-in 120R equalisation resistor)
- Transmission distance: Approximately 1.2km (low speed)
- Transmission mode: Point-to-multipoint (up to 32 nodes, use of repeaters for 16 or more nodes is recommended)
- LED indicators: PWR - red power LED, lights up when USB connection and voltage is detected, TXD - red TX LED, lights up when USB port is sending data, RXD - red RX LED, lights up when device ports are sending data back
- Operating environment: Temperature: -15℃ ~ 70℃
- Humidity: 5%RH ~ 95%RH
- Operating system: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7

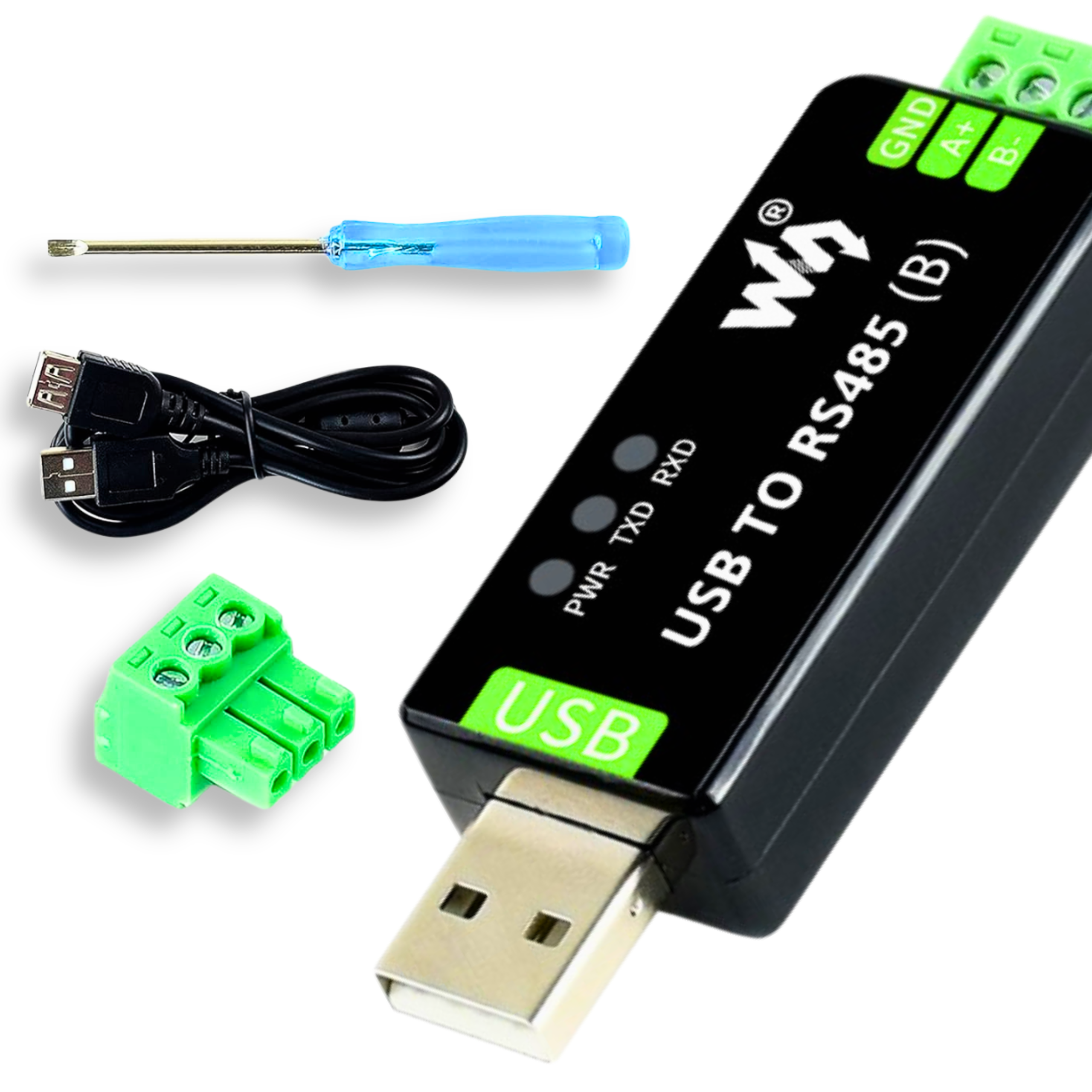

- Kit includes:
