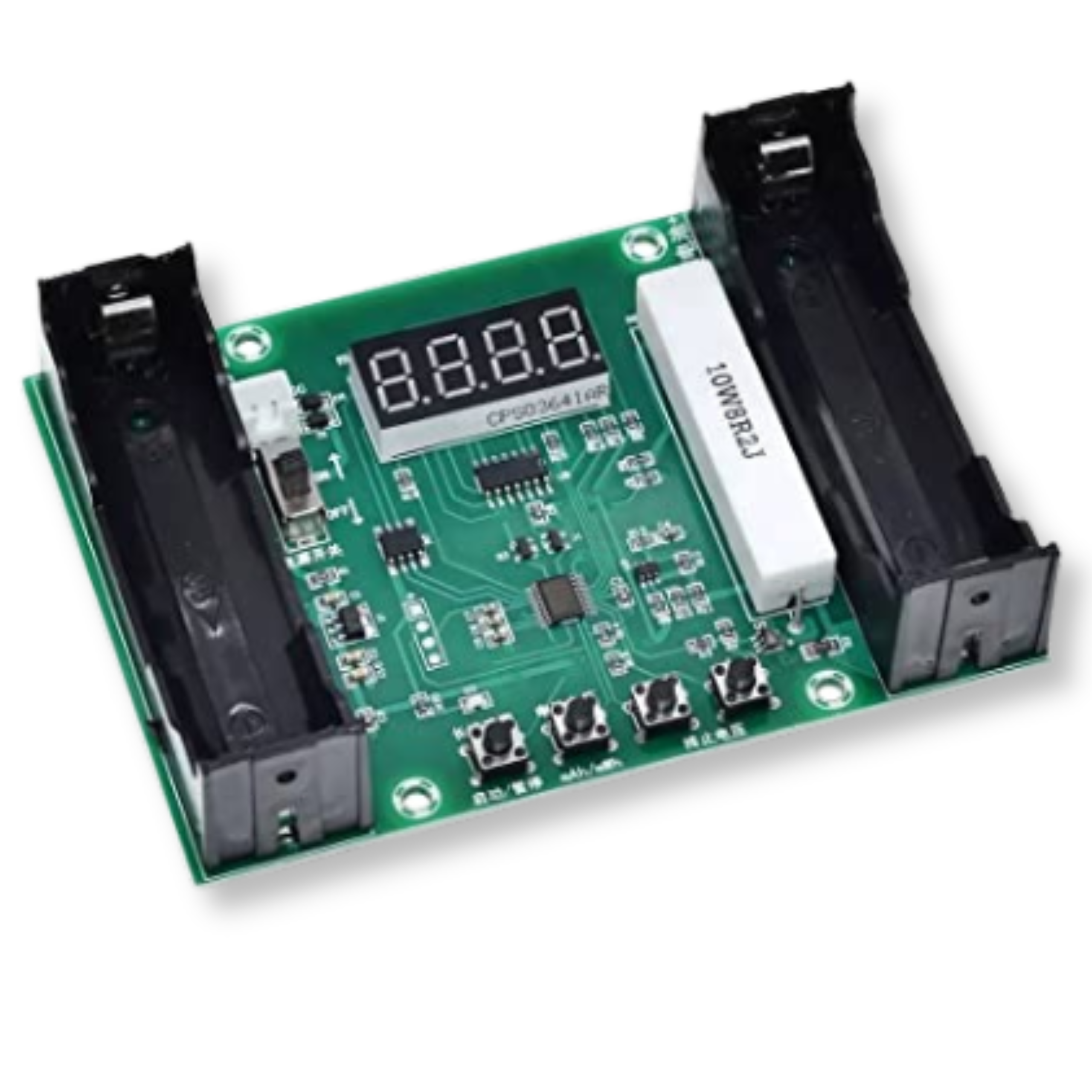

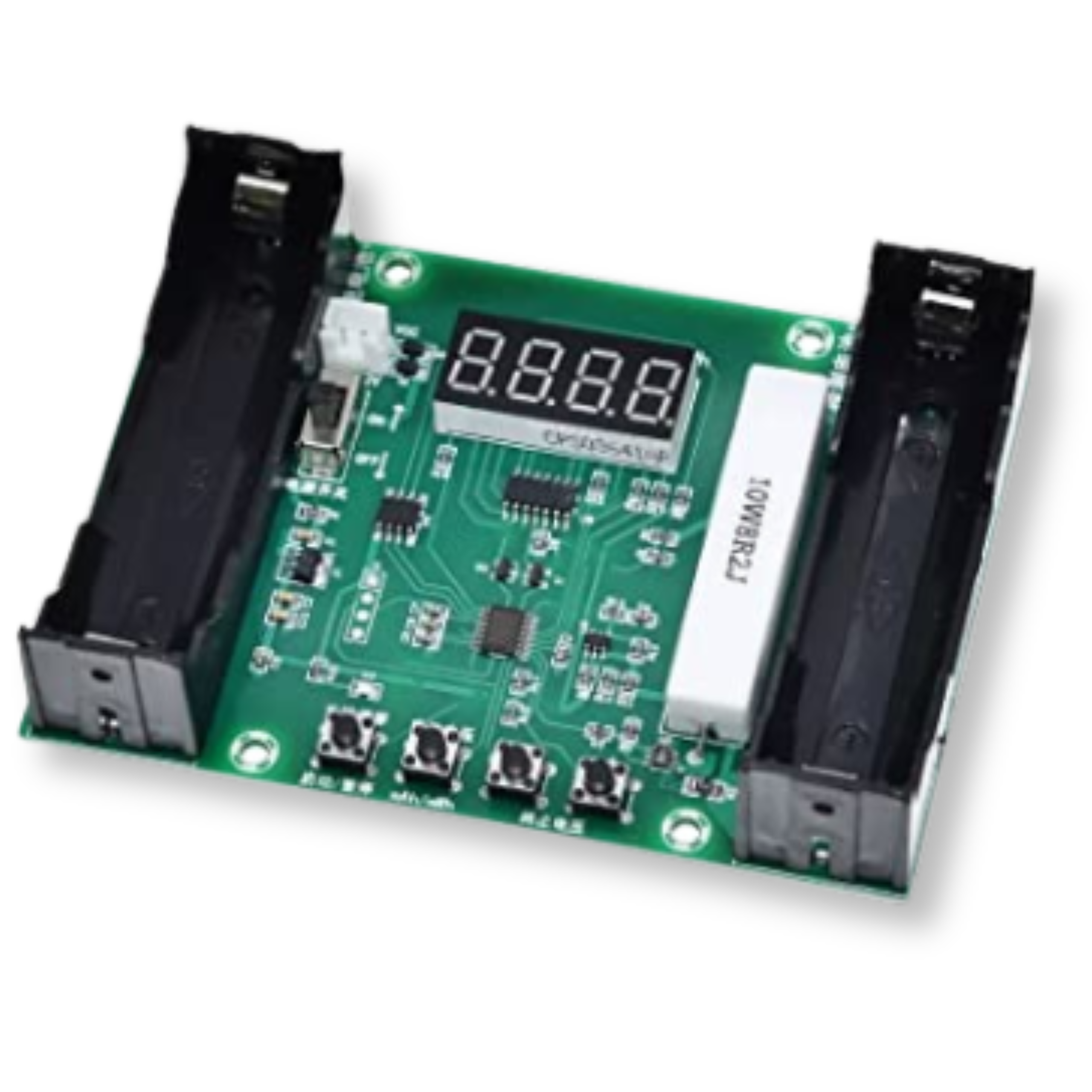

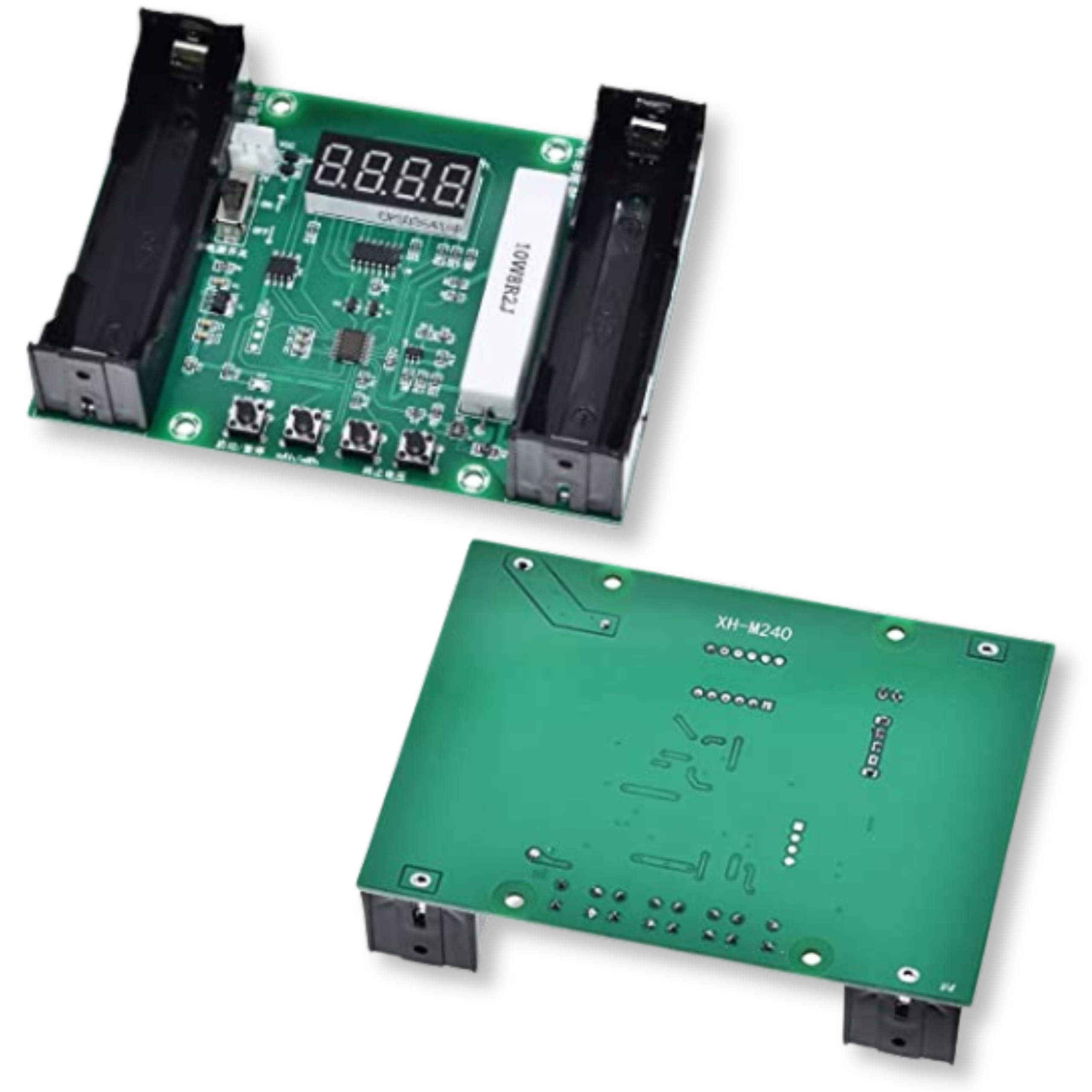

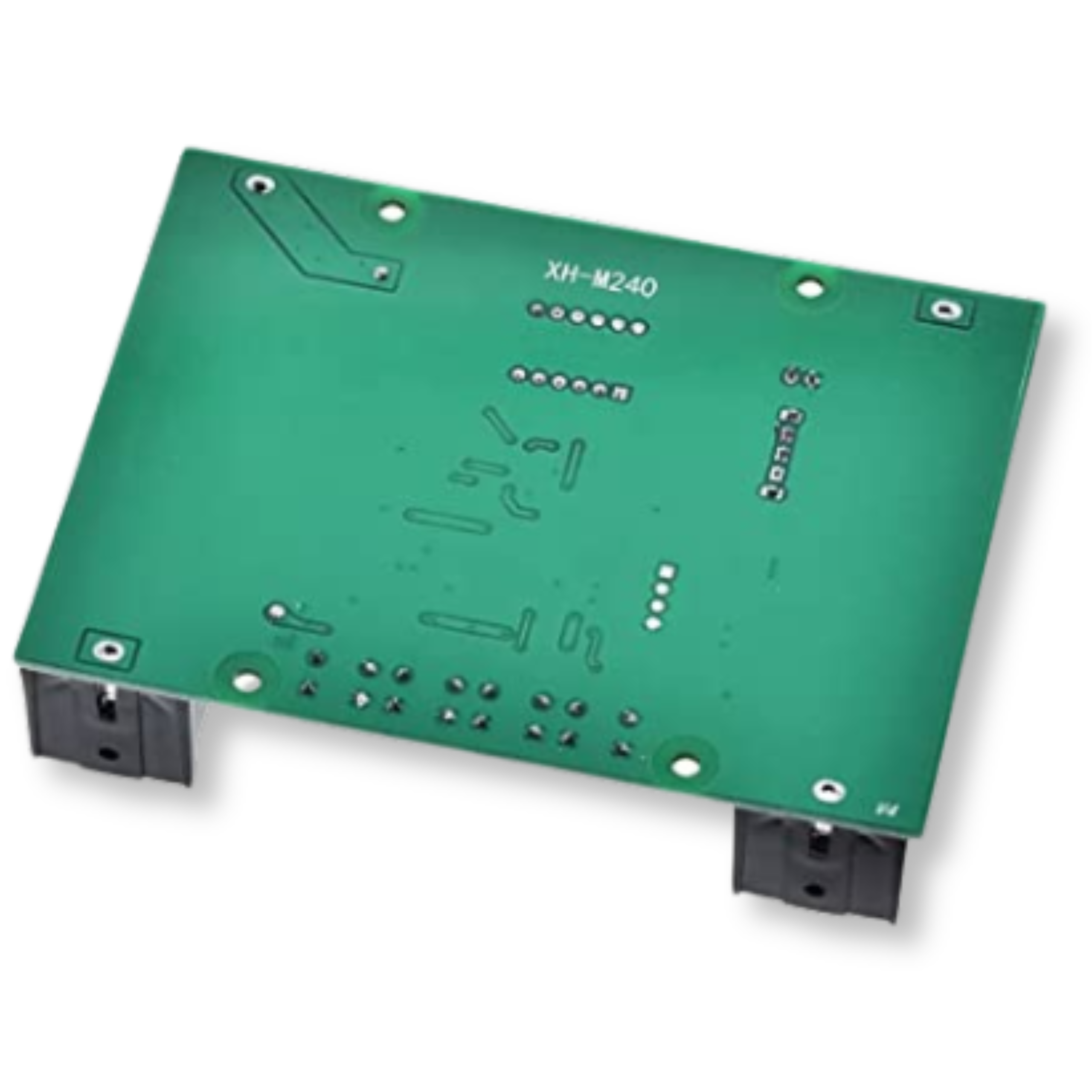

XH-M240 18650 Li-Ion cell capacity analyzer with display
Availability:
na wyczerpaniu
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description
The capacity tester for 18650 cells is characterised by its simplicity of use. This device can be powered from an external voltage source in the range from 5V to 12V or directly from the 18650 cell, which should be placed in the left basket of the module, while the battery under test is placed in the right basket. The tester displays the measurement results in mAh and mWh, as well as the current battery voltage. For ease of use, there are 4 buttons and an on/off switch on the board.
Specification:
- supply voltage 5V-12V (or 1 18650 cell)
- Supported cell type: 18650
- discharge current: 500mA
- load: 10W, 8Ω
- mAh/mWh test units;
- dimensions: 110mm x 80mm x 25mm
