Złącze wtyk SMA męski zaciskany złocony teflon na kabel H-155 RF-5 RF-240
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

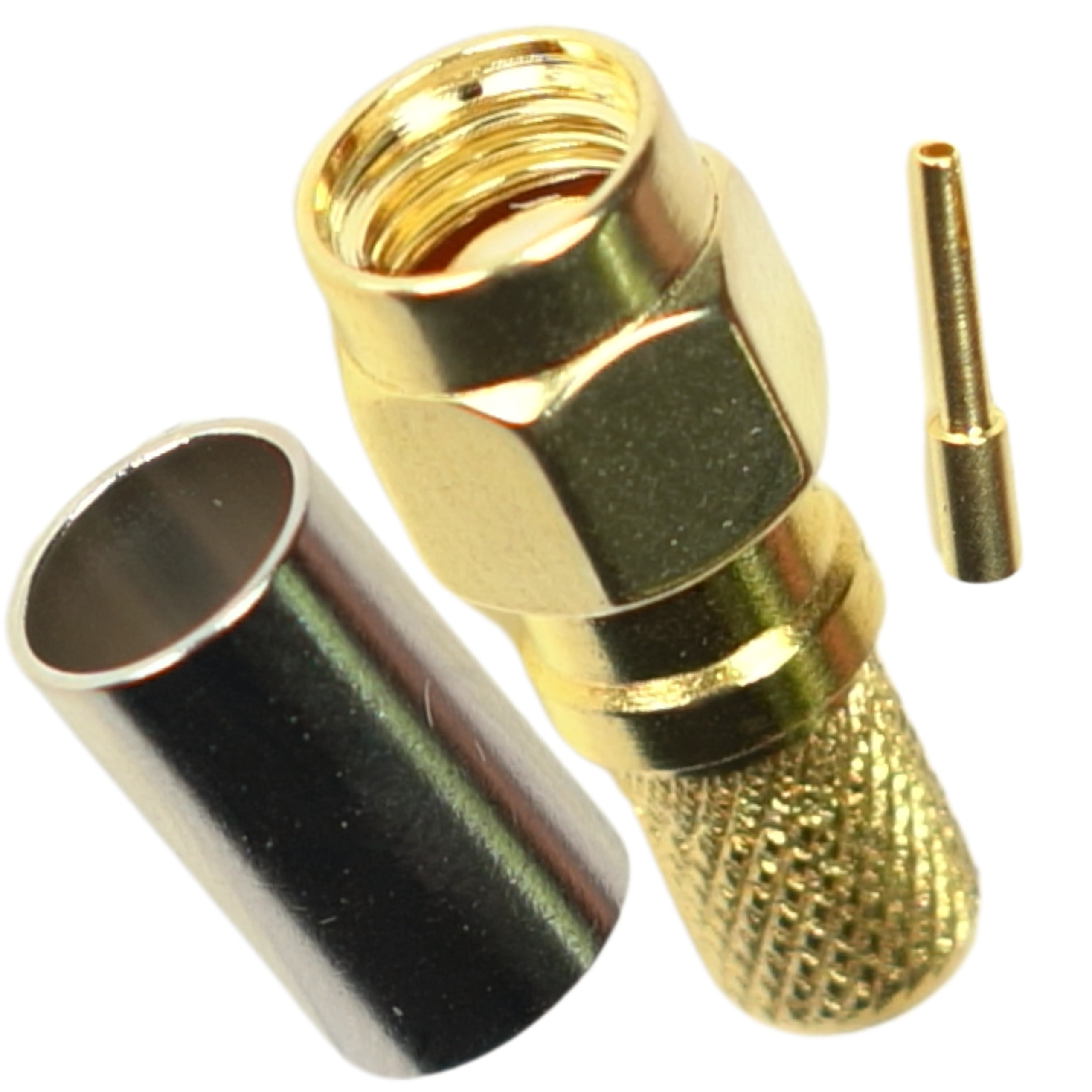

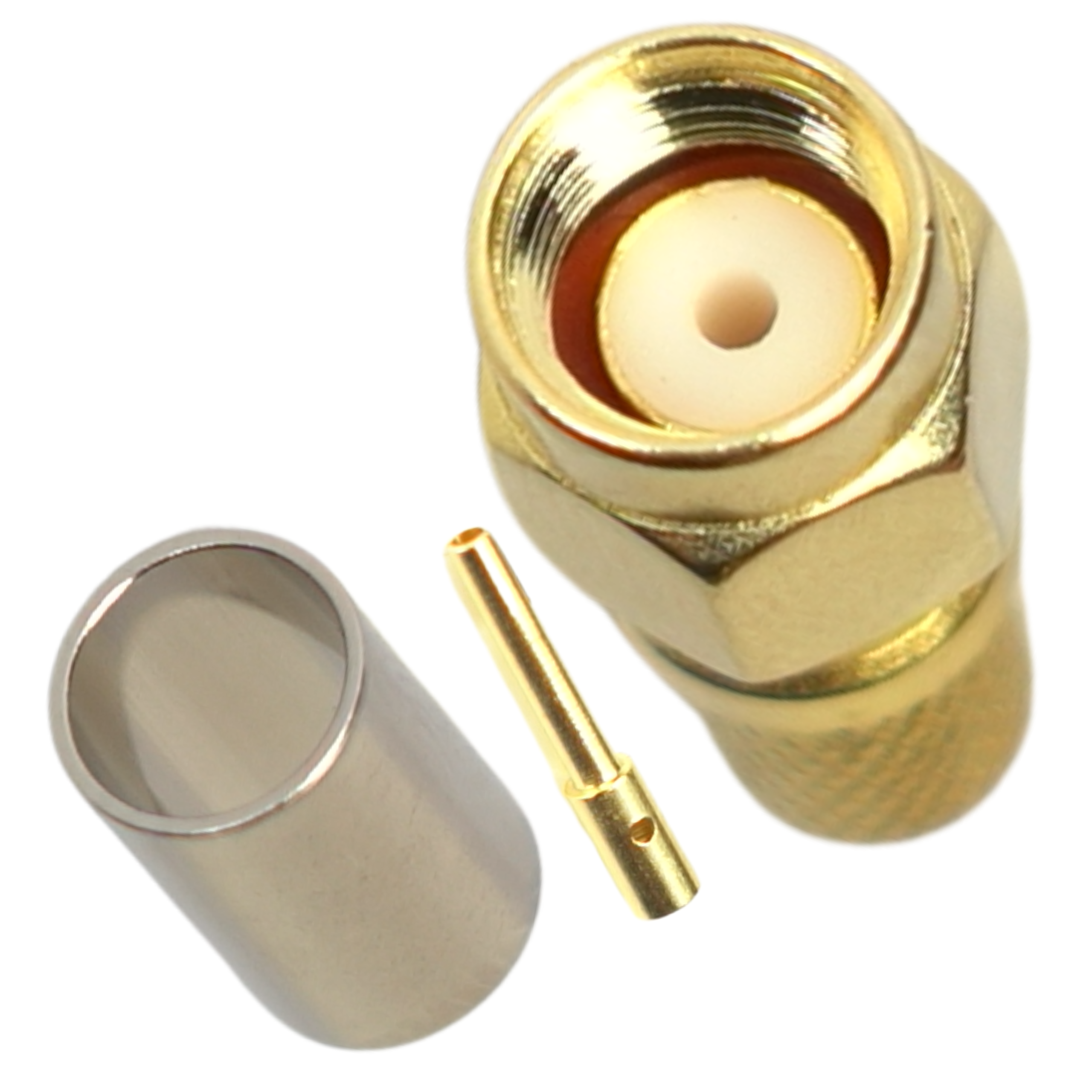

SMA Male Connector for H-155, RF-5, and RF-240 Cables
A high-quality male SMA connector designed for installation on common coaxial cables. The connector’s design ensures a reliable connection in radio communication systems and antenna installations. The connector is distinguished by its precision manufacturing, featuring gold-plated contacts and a Teflon insulator, which guarantees excellent transmission performance and minimal signal loss.
Key Technical Features
- Connector type: SMA
- Type: Male (plug)
- Compatible cables: H-155, RF-5, RF-240, and their equivalents
- Installation method: Crimped
- Contact pin finish: Gold-plated
- Body finish: Gold-plated
- Insulator material: Teflon

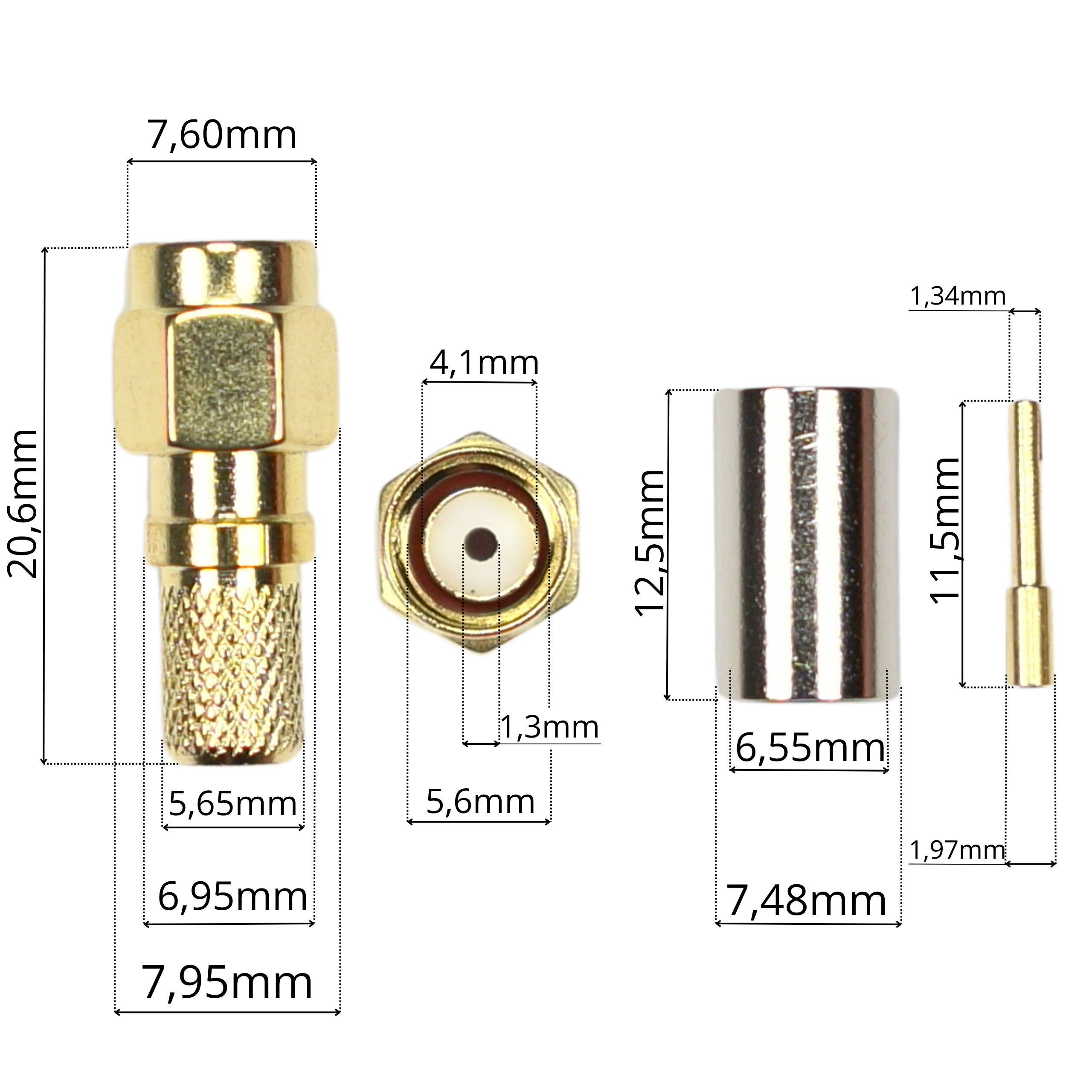

Dimensions
- Plug body:
- Total body length: approx. 20.6 mm
- Outer width of the cap/threaded section: approx. 7.60 mm
- Diameter of the knurled section: approx. 5.65 mm
- Wrench span (hex nut, flat-to-flat): approx. 7.95 mm
- PTFE insulator diameter: approx. 4.1 mm
- Center pin hole diameter: approx. 1.3 mm
- Inner diameter of the nut: approx. 5.6 mm
- Clamping sleeve:
- Total sleeve length: approx. 12.5 mm
- Outer diameter: approx. 7.48 mm
- Inner diameter: approx. 6.55 mm
- Center pin (contact):
- Total pin length: approx. 11.5 mm
- Diameter of the contact portion: approx. 1.34 mm
- Clamping section diameter: approx. 1.97 mm
Example applications
- Creating antenna extension cables and pigtails for routers and access points
- Construction of outdoor antenna installations for wireless modules
- Terminating coaxial cables in telecommunications systems
- Design of radio circuits in professional and amateur ham radio equipment
- Installation of telemetry, IoT, and smart building systems
Benefits of choosing this product
- Excellent conductivity and minimal radio signal attenuation thanks to gold-plated components
- High thermal resistance during pin soldering ensured by a Teflon insulator
- Durable and secure mechanical connection to the cable guaranteed by a clamp-on mounting system
- Wide compatibility with the most popular low-loss cables (H-155, RF-5, RF-240)
- Resistance to oxidation and corrosion, which significantly extends the service life of the radio installation
