Izolator antenowy wysokiego napięcia poliamid do dipoli odciągów 66mm 19g

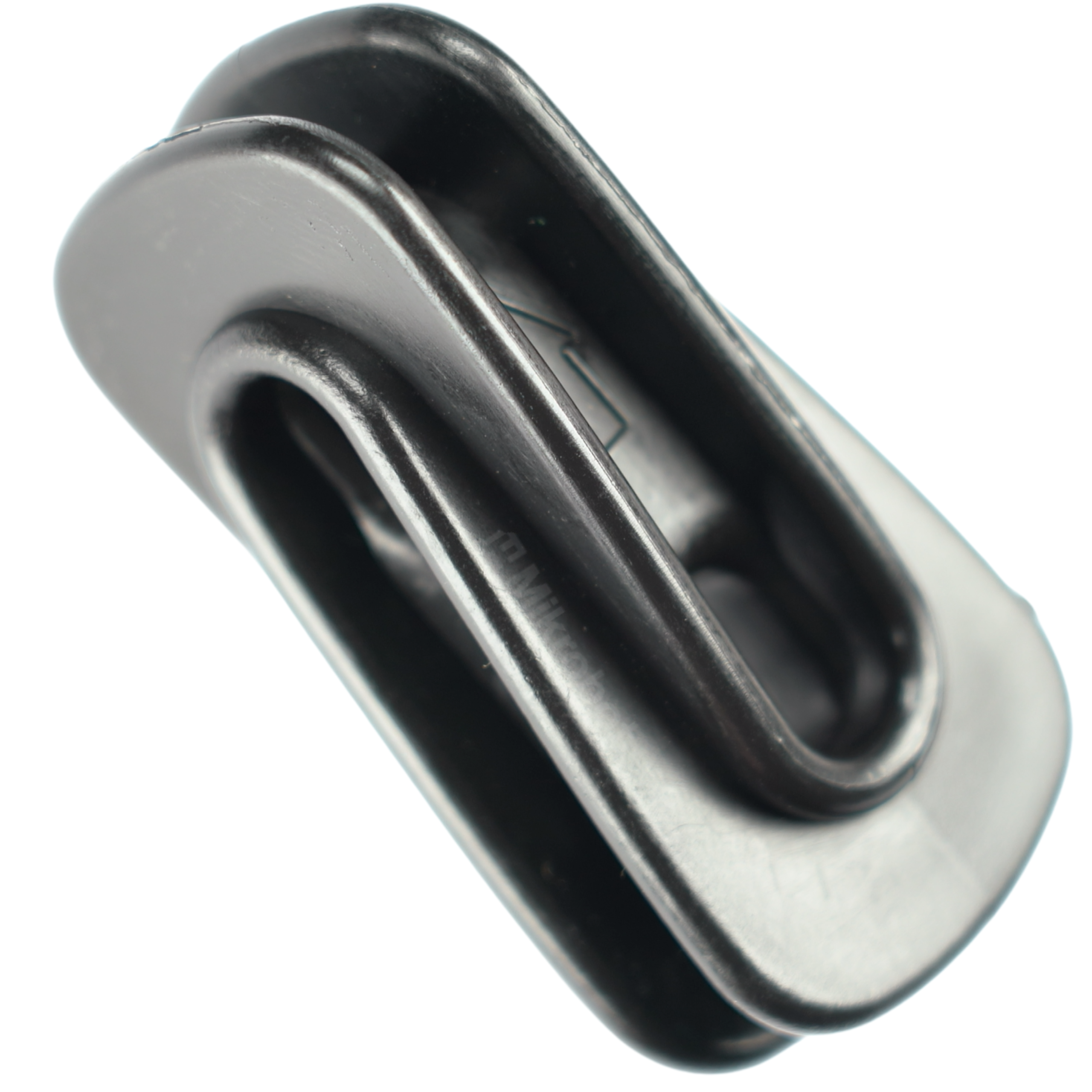

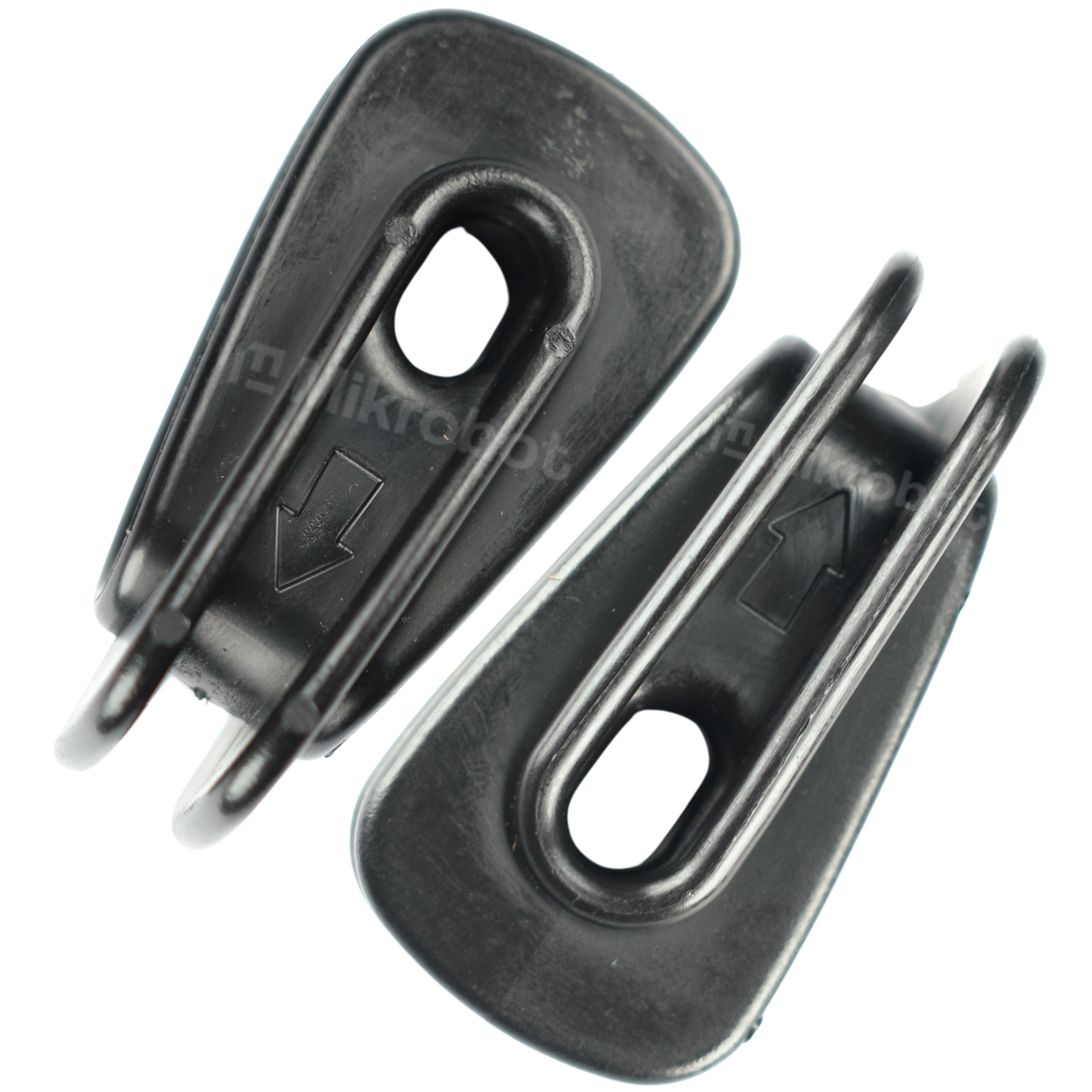

High-voltage antenna insulator

Lightweight insulator designed for mounting at the ends of antennas in amateur radio and radiocommunication equipment. The element is made of high-quality modified polyamide, providing effective insulation for tensioning systems and antenna suspensions.

Key technical features

• Material: modified polyamide
• Weight: approx. 19 grams (very light)
• Length: approx. 66 mm
• Width: maximum 3.5 cm
• Mounting holes: 7.5x12.5 mm, oval shape
• Package contents: 1 insulator piece

Example applications

• End terminations for amateur wire antennas and dipoles
• Construction of guy wires and support systems in radiocommunication
• Galvanic separation of antenna mast tension lines
• Modernization and ongoing repair of existing amateur radio installations
• Construction of impedance transformers and baluns

Benefits of using the product

The use of modified polyamide directly translates into high resistance to adverse environmental conditions and temperature changes. Optimally selected technical parameters make field installation work easier.

• No load on the installation: a mass of just 19 grams prevents excessive tensioning and sagging of the wires
• High mechanical strength: the material is highly resistant to impacts and cracking under tension
• Easy and convenient mounting: properly profiled oval-shaped holes make it easy to safely thread wire or support line
• Reliable operation: insulator parameters are suited for safe use in high-voltage systems
