IMZ 8-channel logic level converter 5V 3.3V TXS0108E YF08E

8-channel logic level converter TXS0108E

A module for bidirectional signal conversion between circuits operating at different voltages. Built on the reliable TXS0108E chip (marking YF08E), it enables safe communication between devices with logic levels from 1.2V - 3.6V and 1.8V - 5.5V. The product is ideal for ESP8266, ESP32, Arduino, Raspberry Pi, and STM32 systems.

Benefits

• Automatic direction detection - the IC adjusts signal flow direction on its own, with no need to configure extra pins manually.
• Multi-line support - up to 8 independent channels allow simultaneous conversion of multiple signals, greatly simplifying wiring.
• Broad compatibility - the converter works smoothly with the most common data interfaces, such as I2C, SPI, and UART.
• High throughput - the device handles fast data transfer at speeds up to 110 Mbps.
• Compact design - small size and very low power draw make it a good fit for energy-efficient IoT projects.

Key technical features

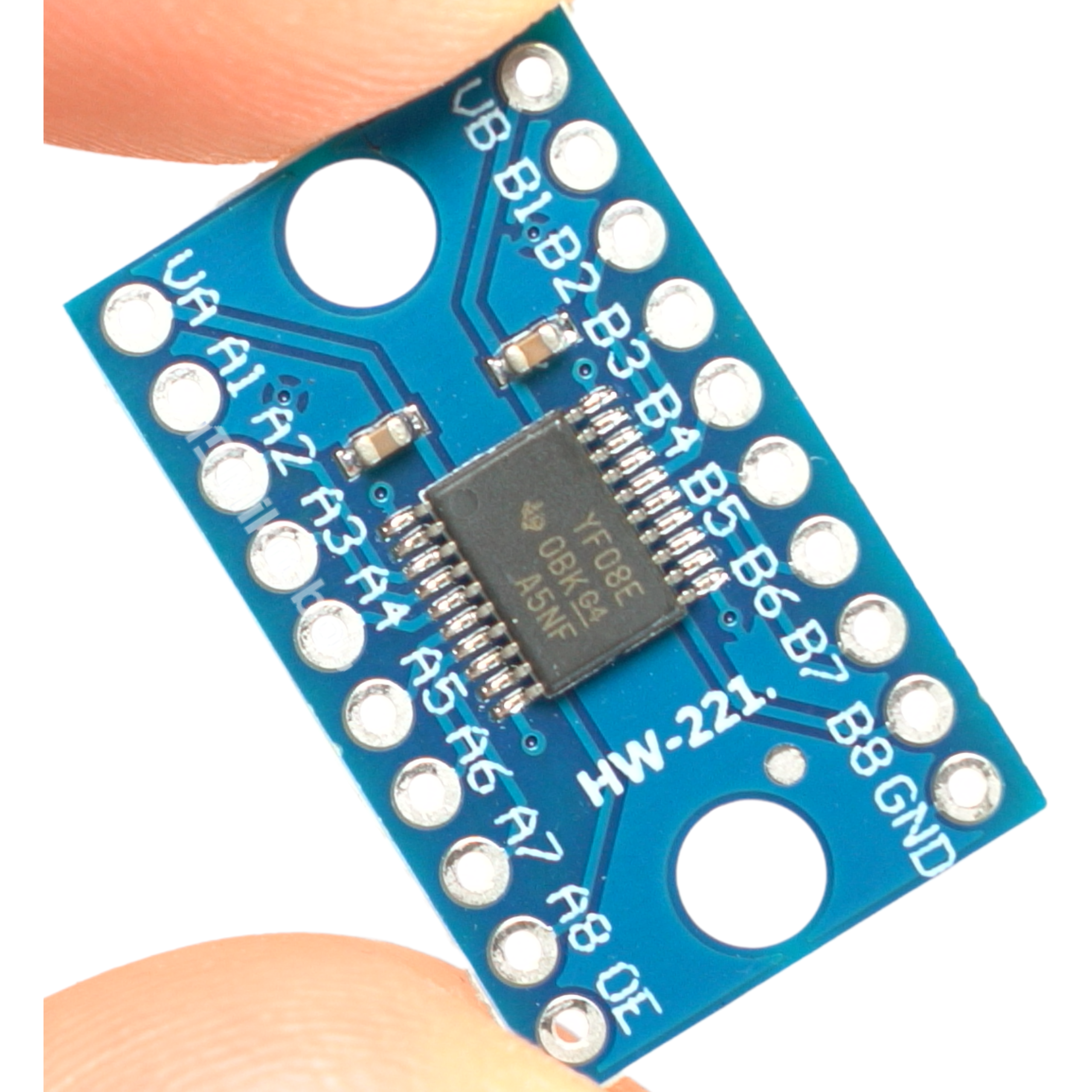

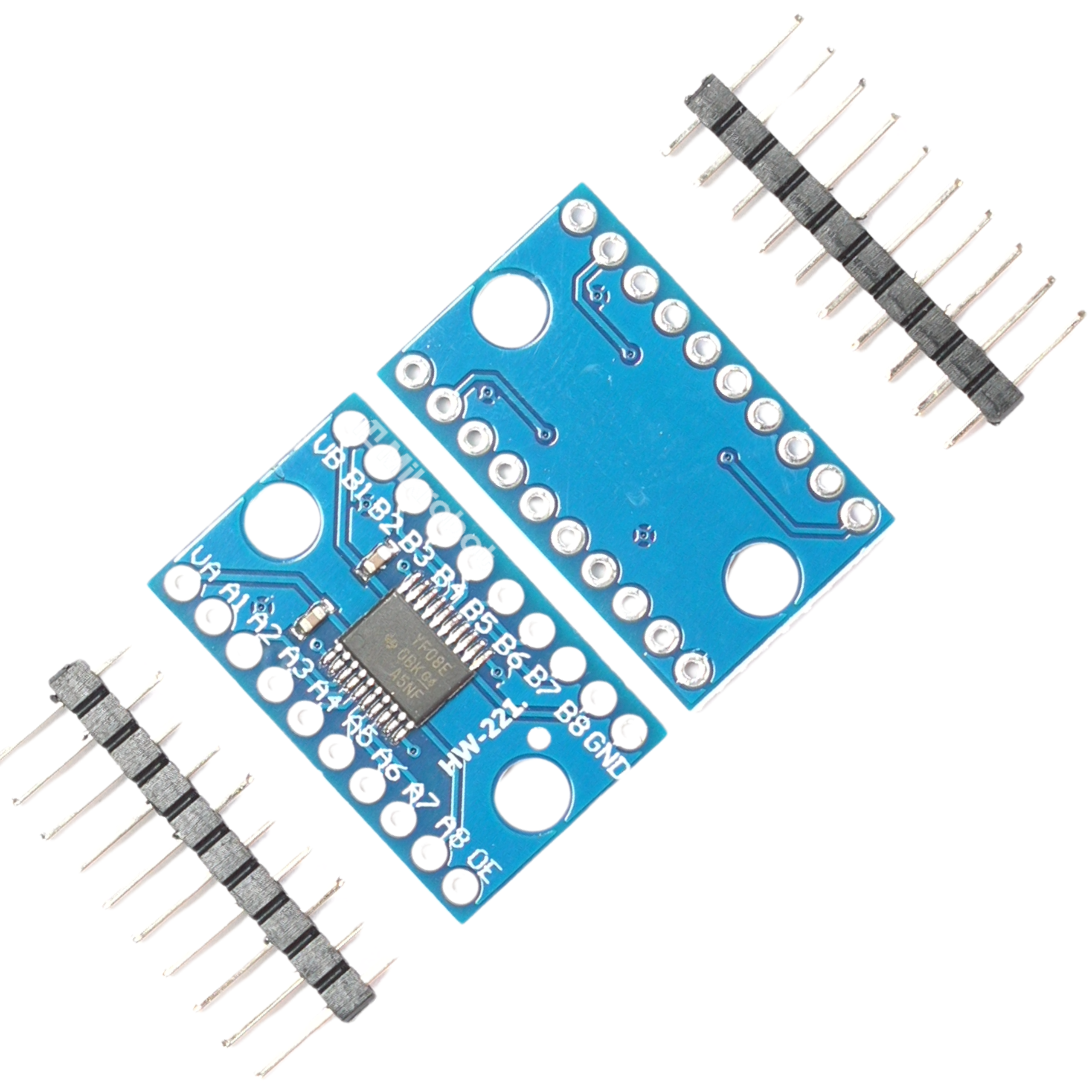

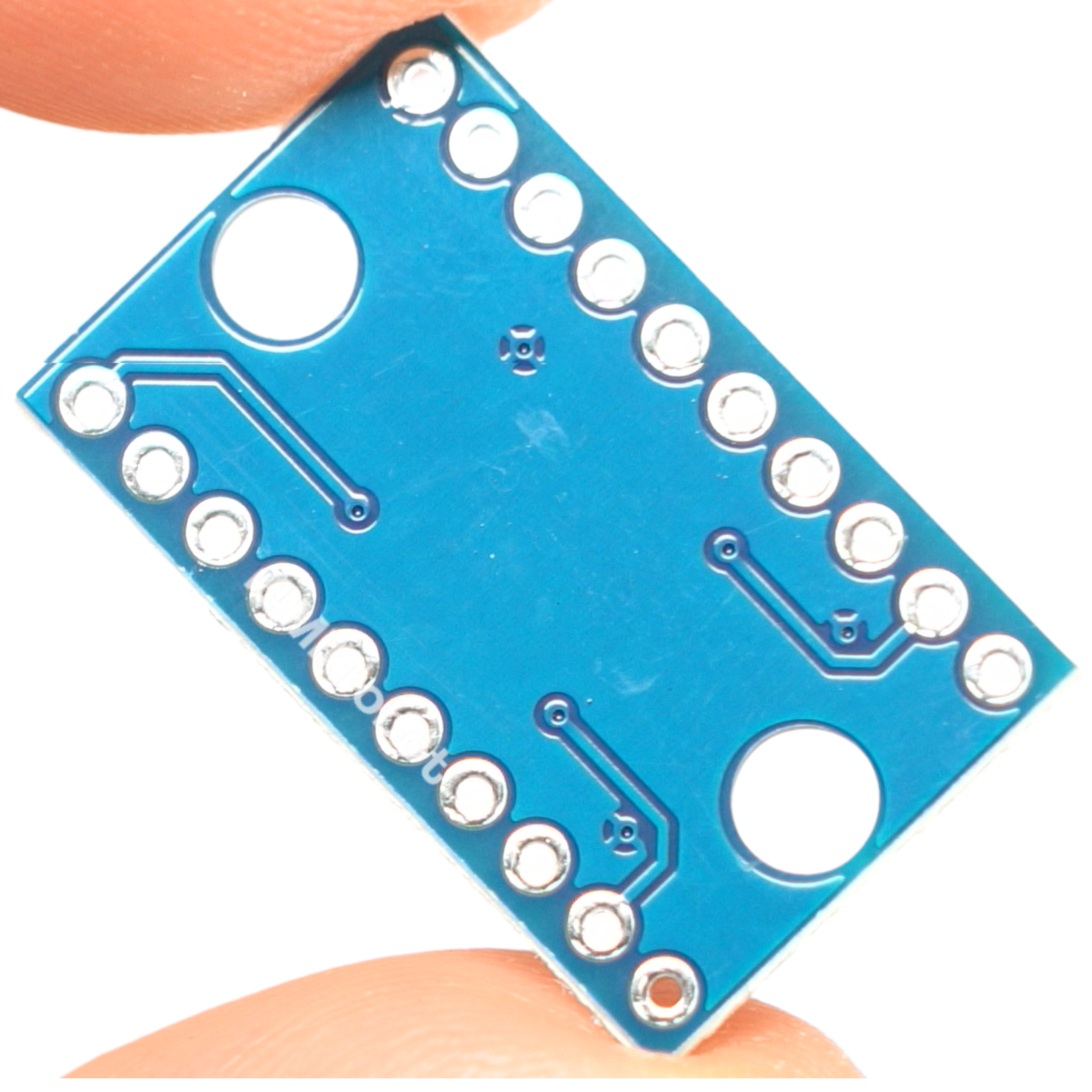

The converter board has pins for easy wire connection. The low-voltage side labeled LV must be powered in the 1.2V - 3.6V range, and the high-voltage side HV operates from 1.8V - 5.5V. Power-up and activation are done by driving the OE pin high. Connect a common ground between systems to the GND header.

• IC used: TXS0108E / YF08E
• Number of conversion channels: 8
• Low-side (LV) supply voltage: 1.2V - 3.6V
• High-side (HV) supply voltage: 1.8V - 5.5V
• Maximum data rate: up to 110 Mbps
• Compatible with: I2C, SPI, UART, GPIO
• Overall board dimensions: 26 x 16 mm

Example applications

This part is essential wherever electronic components with different signal-line supply standards must be connected together, effectively preventing damage.

• Safe interfacing of 5V microcontrollers with modern 3.3V sensors.
• Reliable operation of graphic OLED displays with host controllers using different logic levels.
• Smooth, error-free data exchange with wireless communication devices such as WiFi or Bluetooth modules.
• Efficient reading and processing of data from GPS positioning modules.
• Managing logic levels between actuator blocks in automation.
• Fast, safe prototyping on breadboards when building mixed-voltage systems.
