Wyświetlacz LCD TFT 1.28" 240x240 okrągły SPI 8-pin GC9A01 IPS do Arduino

Round LCD TFT IPS display module 1.28"

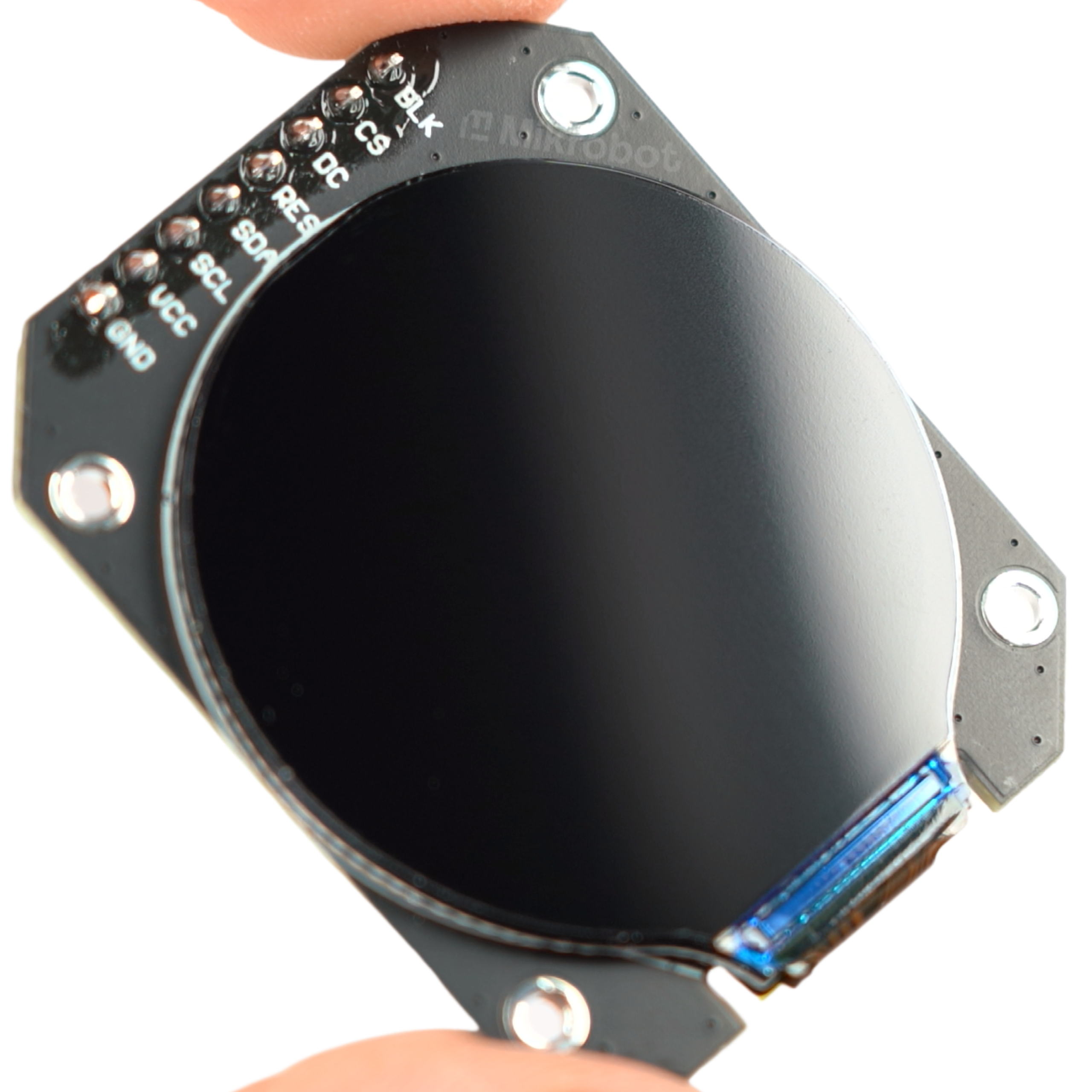

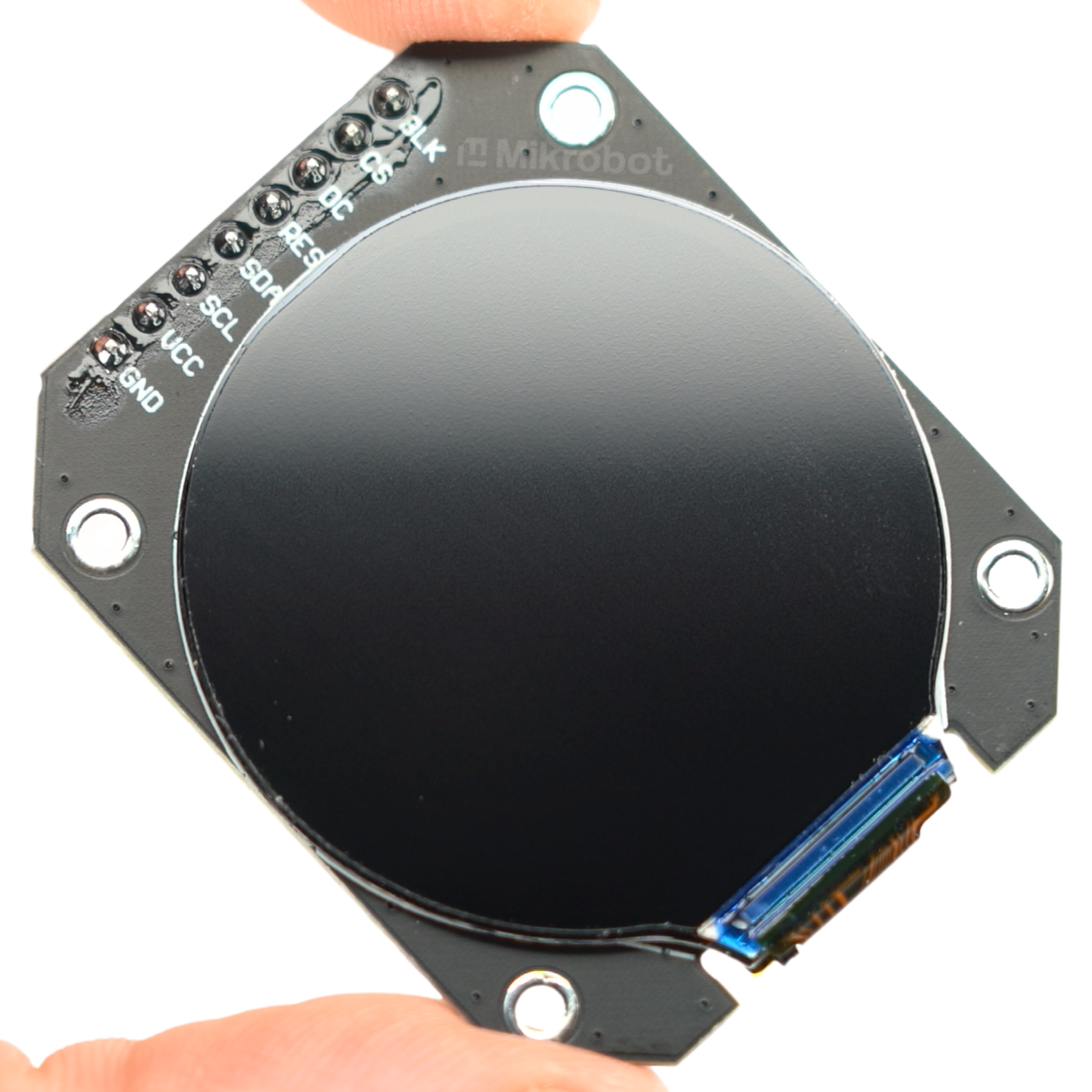

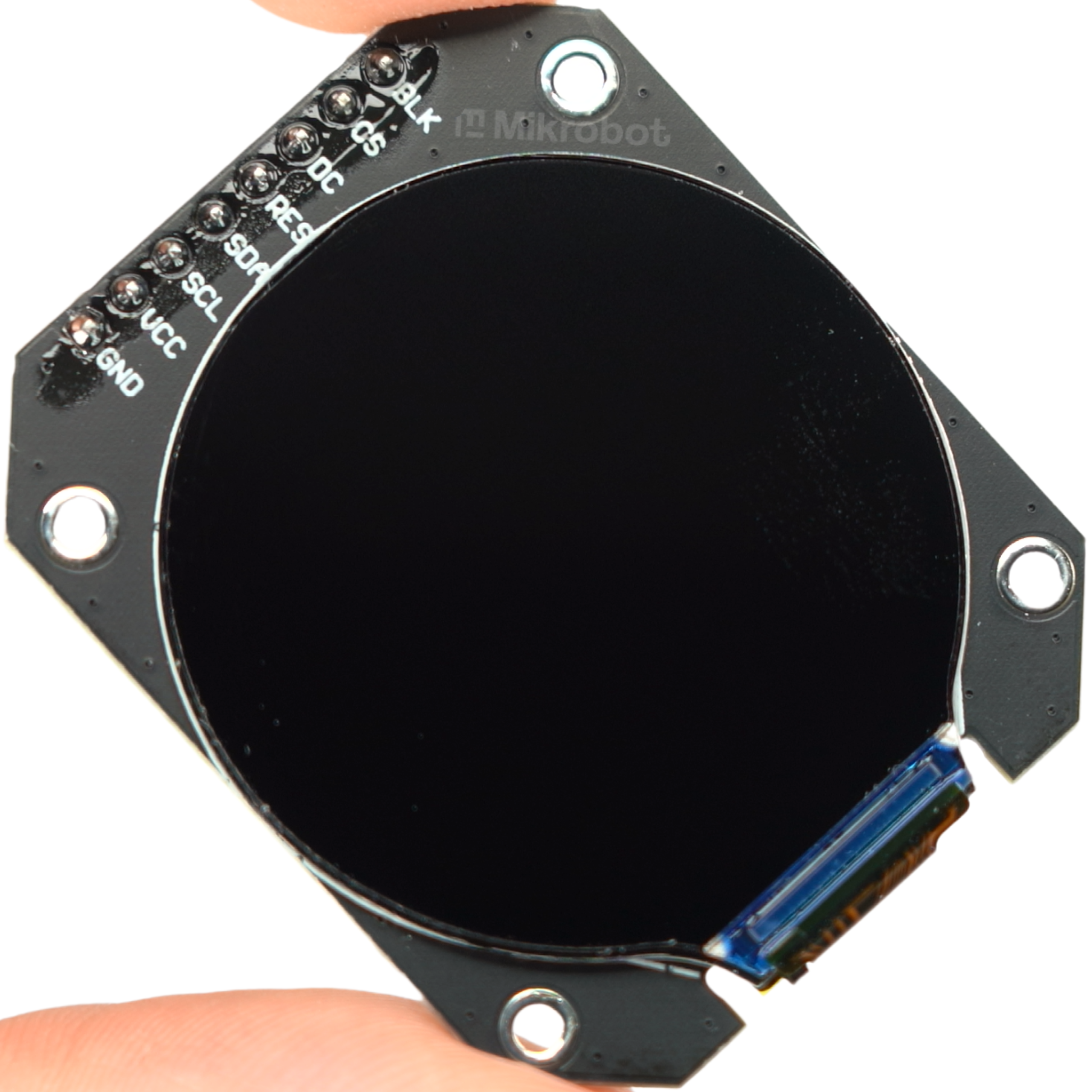

A compact colour round LCD module with a 1.28 inch diagonal and 240 × 240 pixel resolution. The screen uses the capable GC9A01 driver and IPS technology for wide viewing angles and accurate colour reproduction. The panel is mounted on a PCB fitted with four mounting holes for easy integration into your device. The module communicates via the SPI interface and suits microcontroller-based projects. It is compatible with popular platforms including Arduino, ESP8266, ESP32, and Raspberry Pi.

Key specifications

• Screen diagonal: 1.28 inch
• Resolution: 240 × 320 px (round matrix)

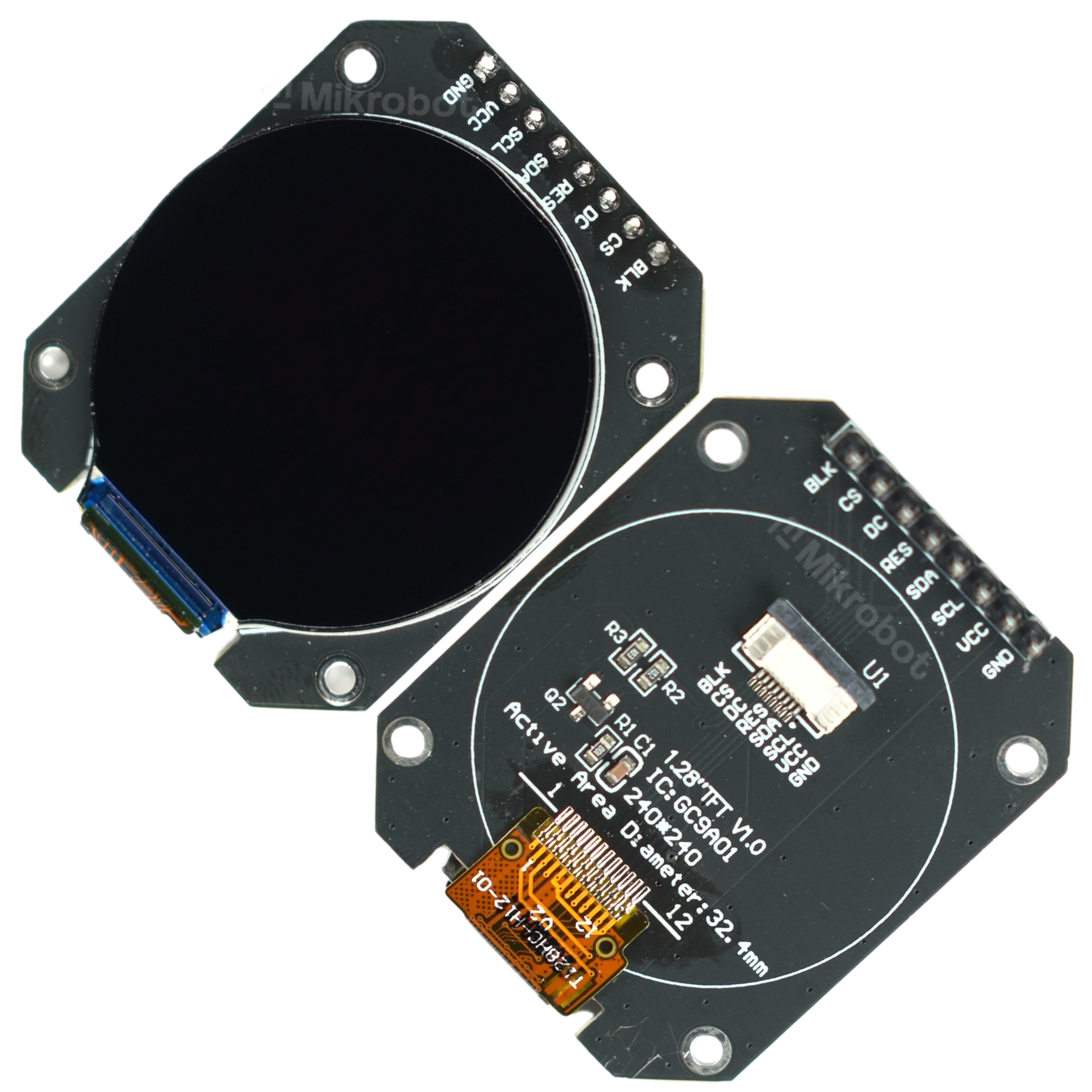

• Active area diameter: 32.4 mm
• Panel type: TFT LCD IPS
• Driver IC: GC9A01
• Interface: SPI (4-wire)
• Supply voltage: 3.3 V - 5 V DC
• Logic voltage: 3.3 V (level shifter required when interfacing with 5 V logic)
• PCB dimensions: approx. 44 mm × 36 mm

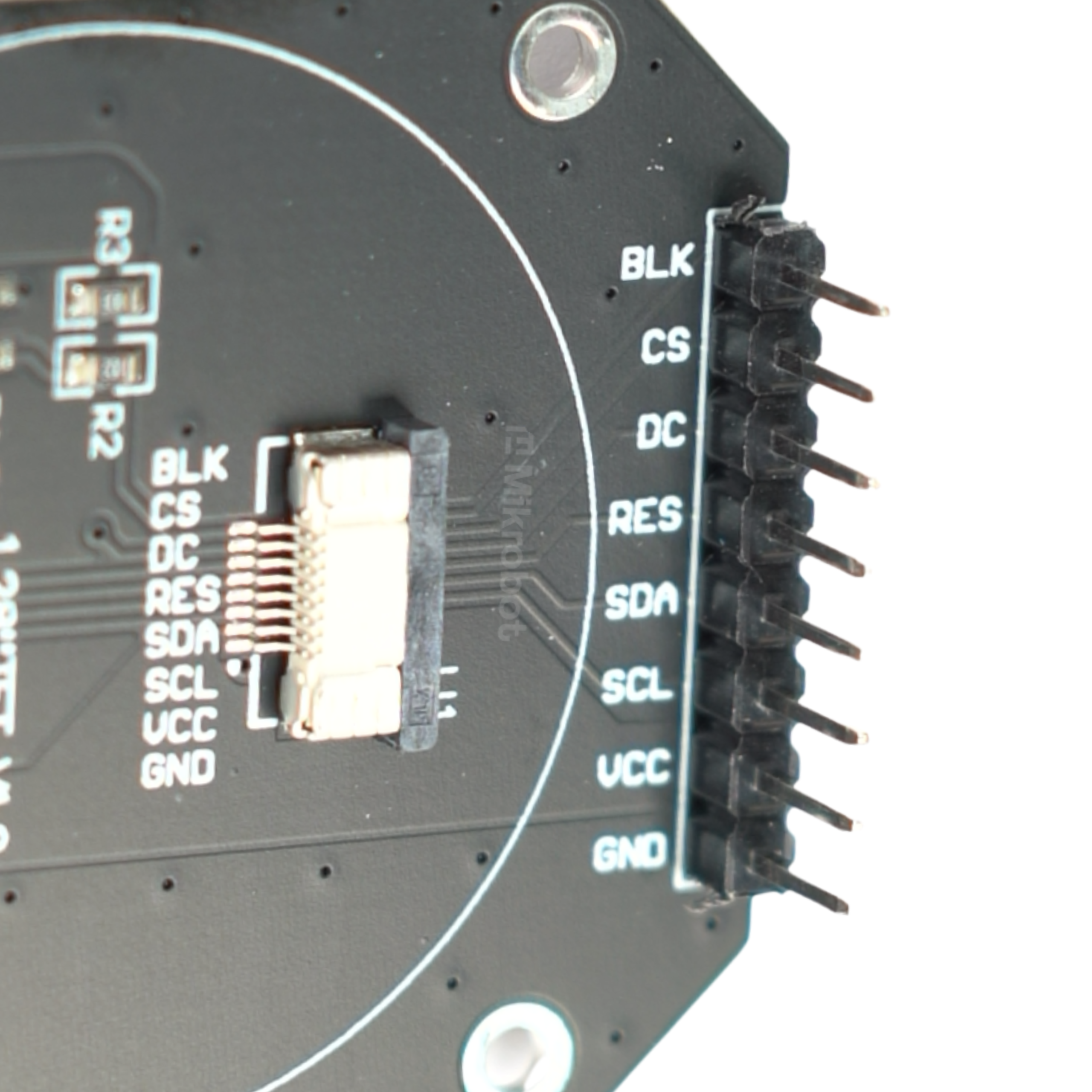

Pinout

The display has an 8-pin connector for straightforward microcontroller wiring:

• VCC: module power (3.3 V - 5 V)
• GND: ground
• SCL: SPI clock line (SCK)
• SDA: SPI data line (MOSI)
• RES: display reset
• DC: data / command select
• CS: SPI chip select
• BLK: backlight control (PWM dimming supported)

Example applications

• Smartwatches and fitness-tracker bands.
• Digital gauges and clocks for automotive builds or simulators.
• Control panels in smart-home systems.
• Graphical user interfaces in portable measurement devices.
• Round weather-station displays for environmental readings.

Benefits

• High image quality: IPS technology delivers vivid colours (65 k RGB tones) and readability from wide angles.
• Easy mounting: PCB with clipped corners and four mounting holes for secure fastening.
• Smooth graphics: Dedicated GC9A01 controller for fast refresh and broad library support.
• Flexible power: On-board regulator allows 3.3 V to 5 V supply.
• Backlight control: Dedicated BLK pin enables software brightness tuning and lower power draw.
