Dioda LED 5V 12V 24V kontrolka sygnalizacja wypalania DPF pomarańczowa 8mm

DPF Filter Regeneration Indicator Light 5/12/24 V

LED diode designed for use in automotive electrical systems with a voltage of 5 - 24V. The device is used to indicate an ongoing diesel particulate filter (DPF) regeneration process. The indicator emits orange light and features a dedicated DPF filter symbol on the lens, ensuring a factory-like appearance after installation.

Key Technical Features

• Operating voltage: 5 - 24V

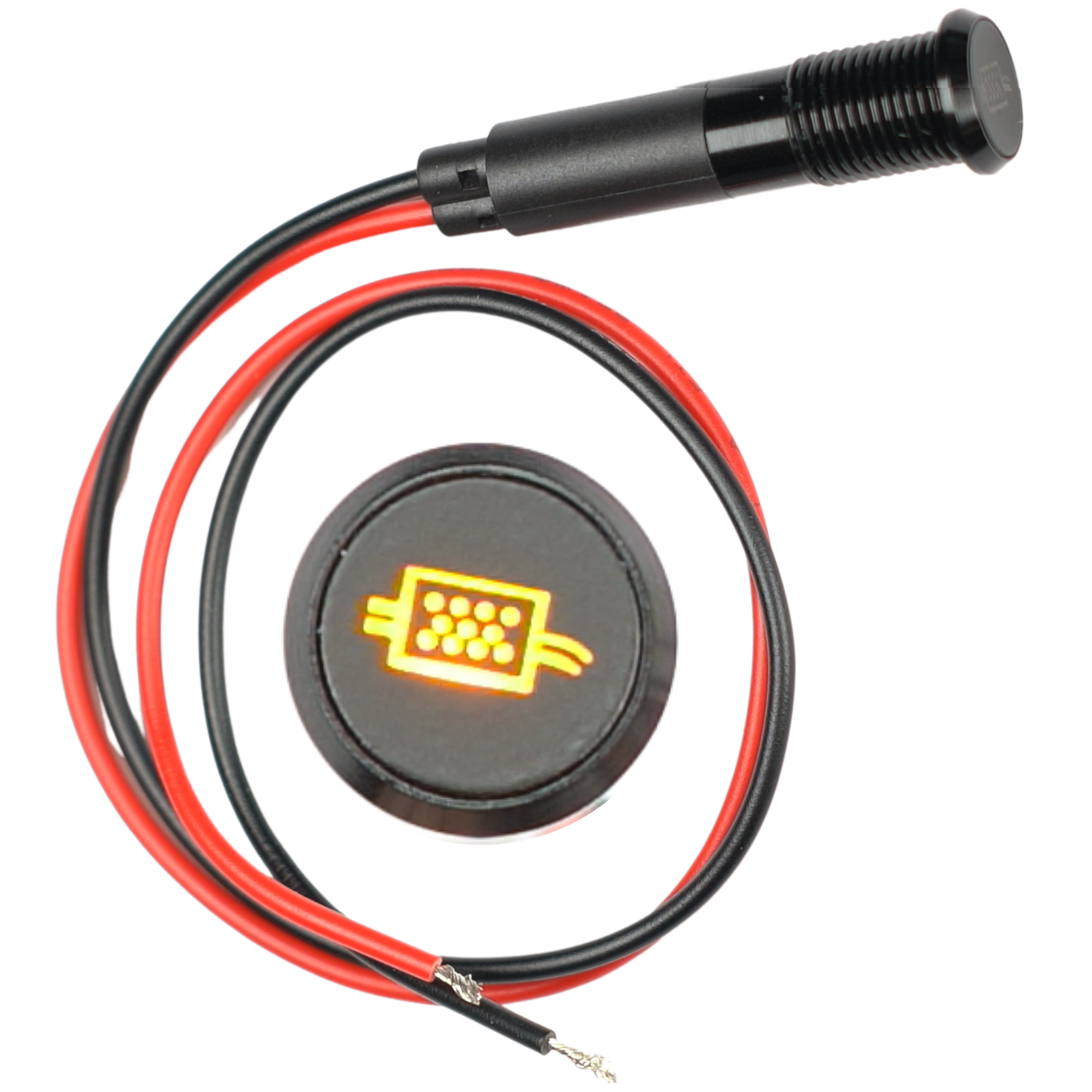

• Emitted light color: orange
• Required mounting hole: 8mm
• Integrated wire length: 20cm

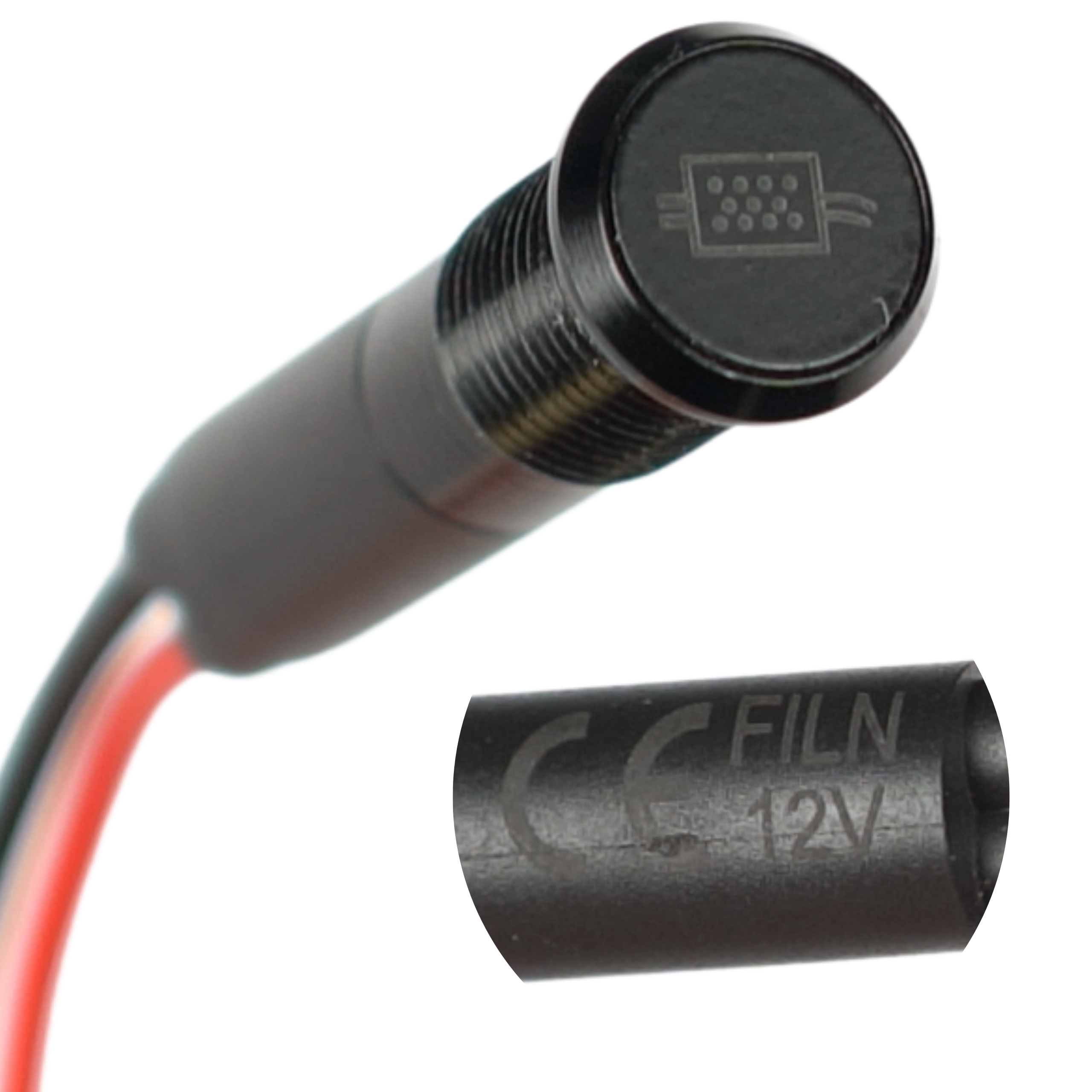

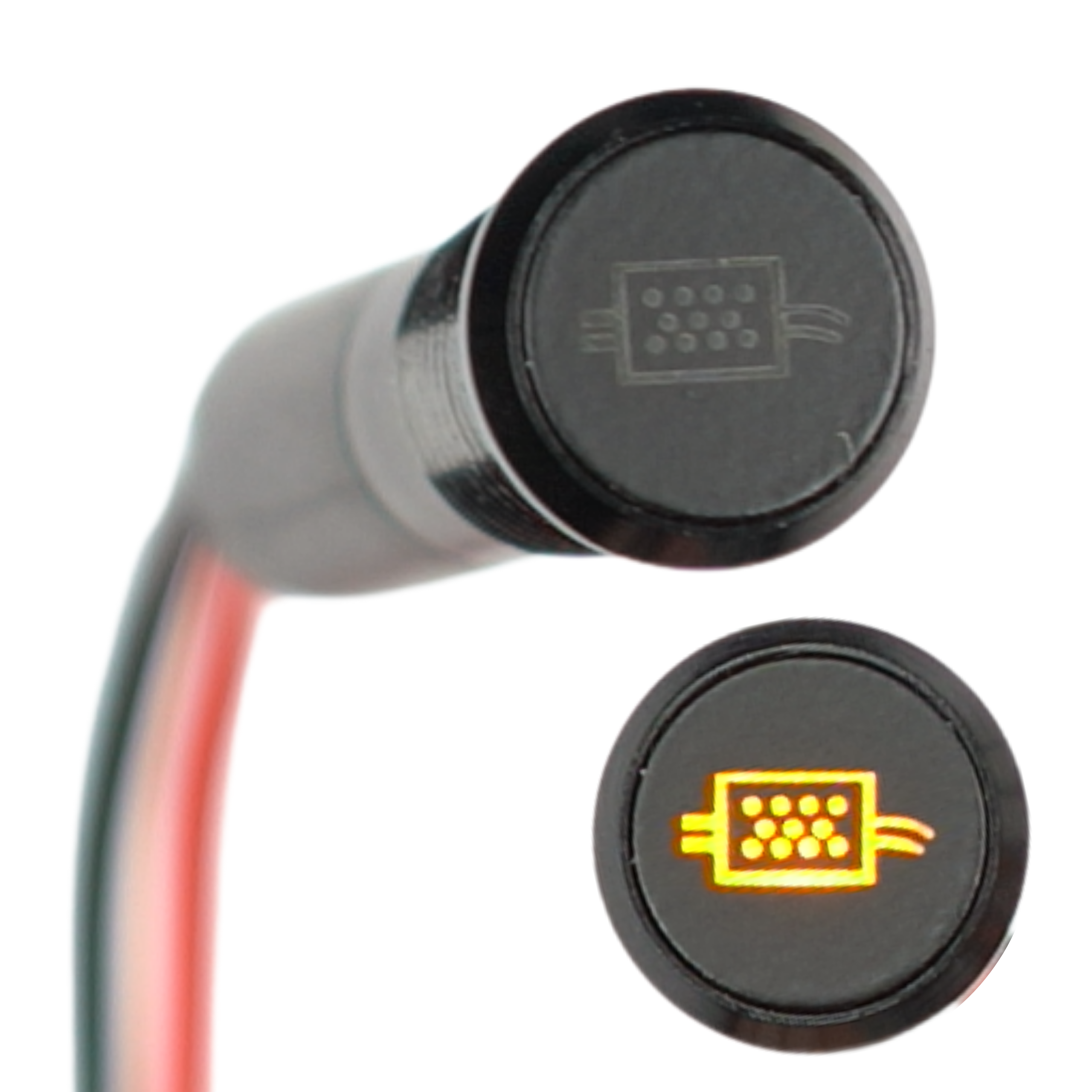

• Marking: DPF filter symbol on the lens

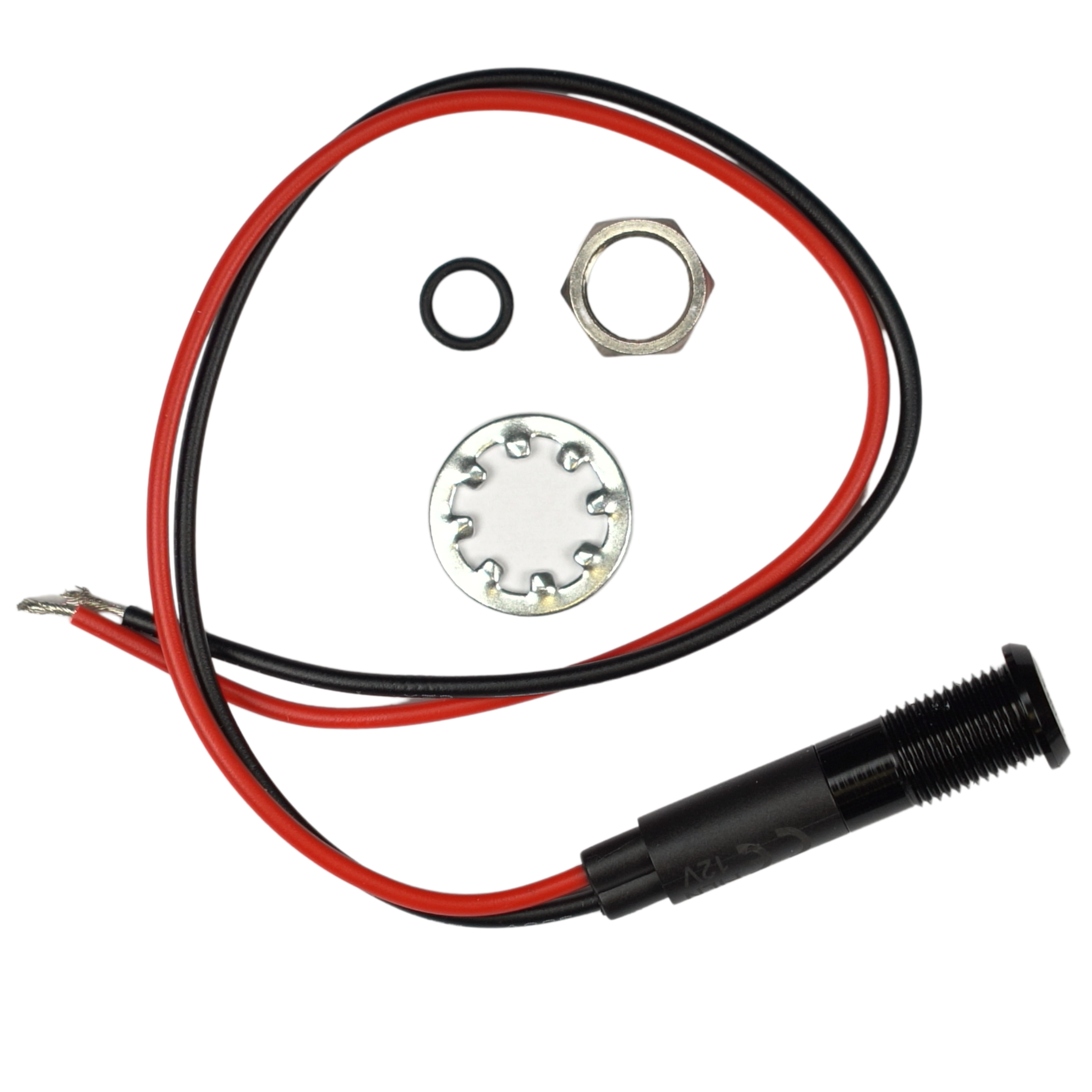

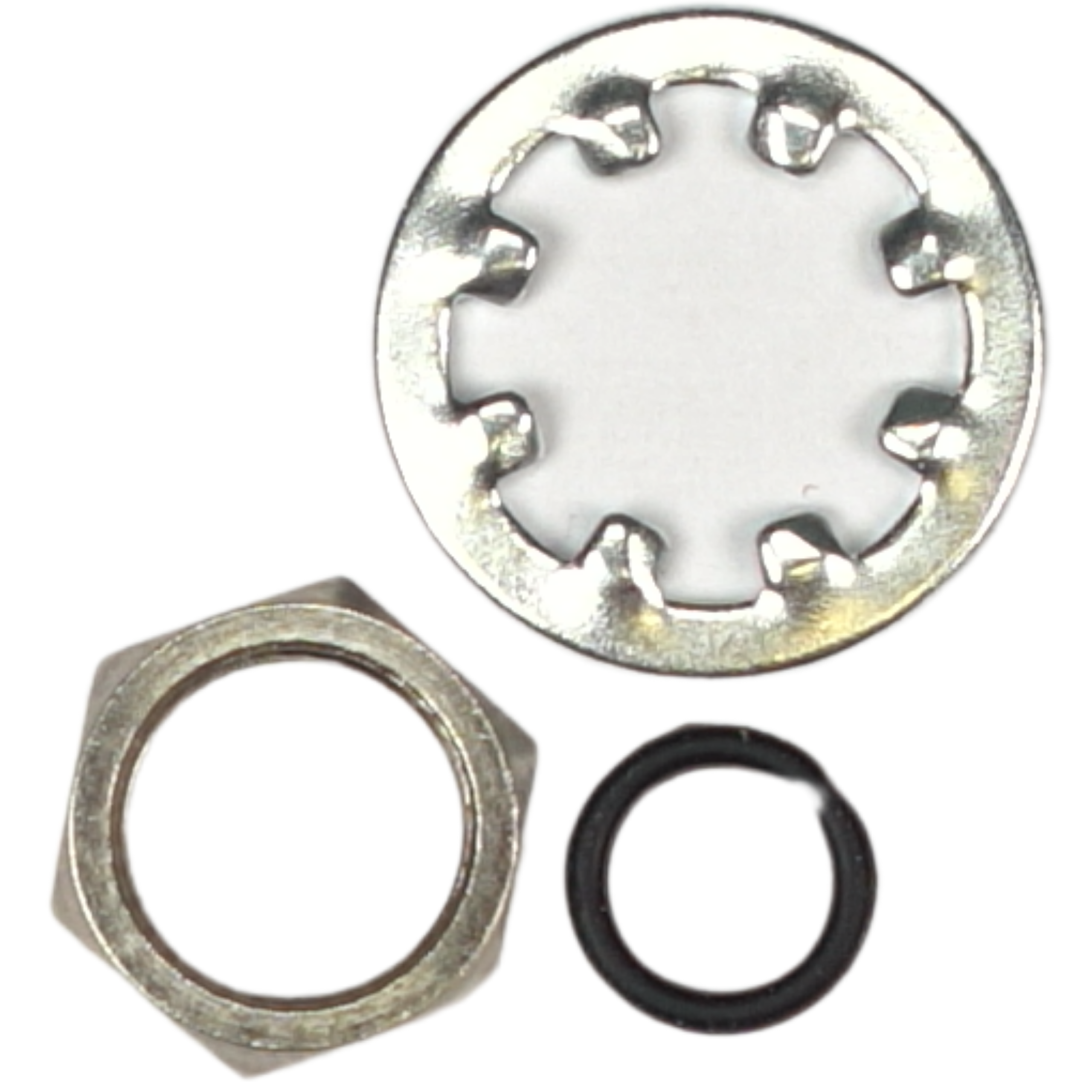

• Package contents: indicator with wire, sealing O-ring, nut, spring washer

Example Applications

• Ford Mondeo - installation in the mirror heating circuit
• Opel Insignia - signaling via the rear window or mirror heating system
• Citroen C5 - integration with the door electrical system
• Vehicles with automatic mirror heating activation during DPF regeneration
• Cars that activate window heating during filter cleaning
• Other car models that use additional alternator load during DPF burn-off

Benefits

• Real-time information about the ongoing diesel particulate filter regeneration process
• Engine and DPF filter protection by avoiding interruption of the regeneration procedure
• Simple installation requiring only drilling an 8mm hole and connecting two wires
• Attractive appearance matched to the factory interior of the vehicle
• High durability and secure mounting thanks to the included mounting hardware (nut, washer, O-ring)

Installation Instructions

1. Remove the mirror trim or door panel to gain access to the wiring.
2. Disconnect the mirror heating power connector.
3. Identify the power wires (positive and ground) using a multimeter - voltage should appear when heating is turned on.
4. Drill an 8mm hole in a chosen visible location (e.g. in the mirror trim).
5. Install the indicator using the included O-ring, washer, and nut.
6. Permanently connect the diode wires to the mirror heating circuit (soldering recommended).

After proper installation, the indicator will light up when mirror heating is manually turned on and automatically when the engine control unit initiates the DPF filter regeneration process.
