LoRaWAN antenna 433/470 MHz 5dBi SMA male magnetic base 3 m cable IP65 outdoor
0
Description

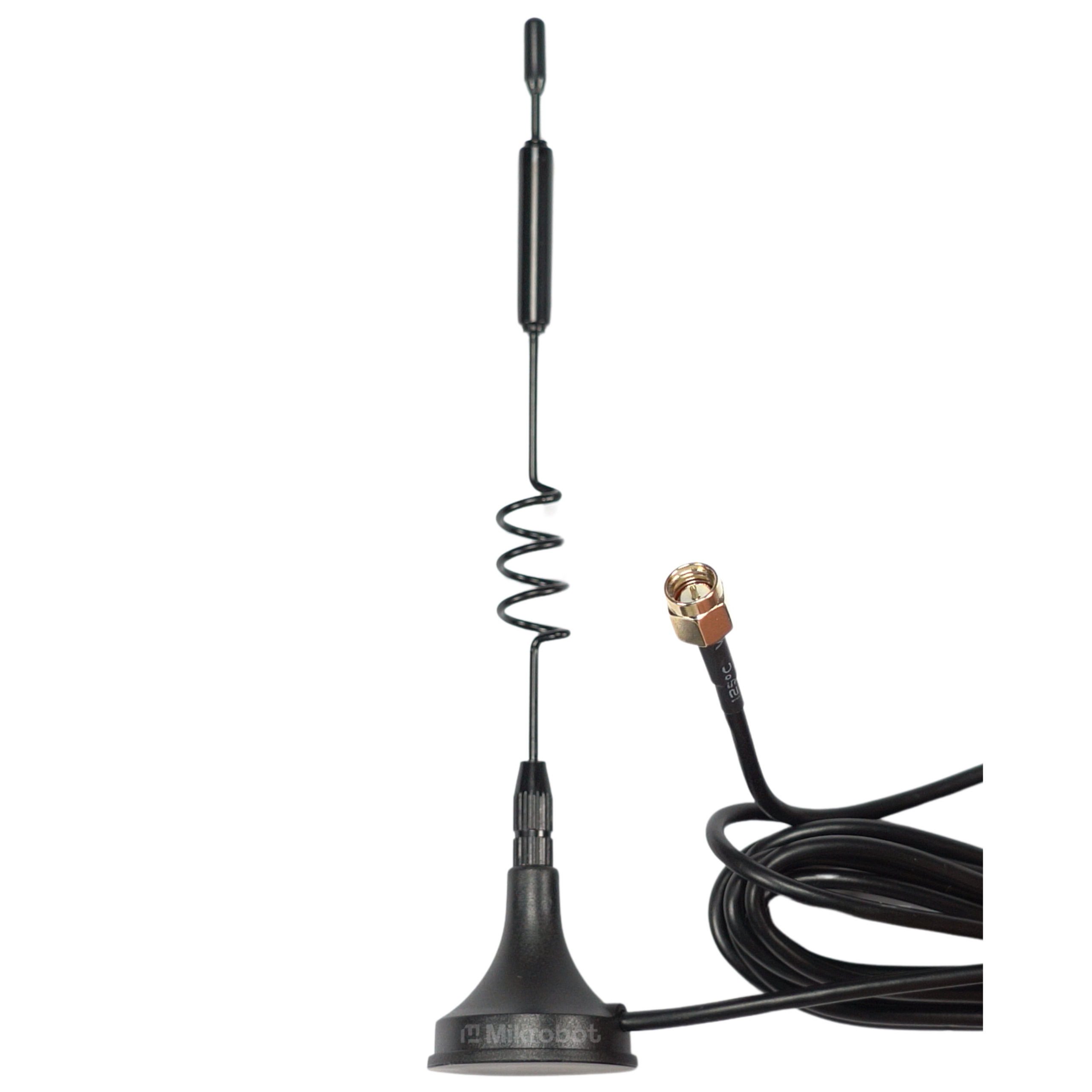

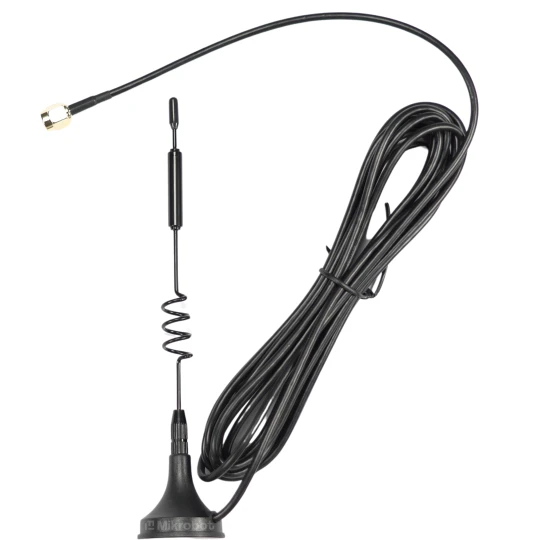

Product description: LoRaWAN antenna 433/470 MHz 5dBi SMA
An outdoor, waterproof antenna for wireless communication in the 433 MHz and 470 MHz bands. The device has been designed for LoRa and LPWA networks, as well as 4G, 3G, and 2G standards. The antenna offers a gain of 5 dBi, enabling a significant extension of data transmission range. The base with a built-in magnet and a 3 m cable simplifies mounting wherever convenient. The product is fully compatible with popular platforms, so it can be used as an external antenna for ESP8266, for ESP32, for Arduino, and for Raspberry Pi fitted with suitable radio modules.
Key technical specifications
- Operating frequency: 315-500 MHz
- Gain: 5 dBi
- Connector type: male SMA plug
- Maximum power: 100 W
- Polarisation: vertical
- Antenna type: omnidirectional
- Impedance: 50 Ω
- VSWR: below 2.0
- IP rating: IP65
- Antenna length: 150 mm
- Cable length: 3 m
- Mounting: magnetic base
Benefits of using this antenna
Choosing the right outdoor antenna is essential for reliable wireless systems. This model delivers strong transmission characteristics even in demanding environments.
- Significantly greater range and link stability in wireless systems.
- Full protection against weather thanks to IP65 sealing.
- Quick, non-invasive mounting on metal surfaces with a strong magnet.
- High installation flexibility thanks to the integrated 3 m cable.
- Broad compatibility with communication modules operating in the 433 MHz and 470 MHz bands.
Typical applications
The antenna excels in distributed telemetry setups and projects that need dependable long-distance radio communication.
- Smart home systems and advanced building automation.
- Extending range in LoRaWAN networks and telemetry systems.
- Outdoor weather stations and environmental sensors.
- Communication in Internet of Things (IoT) applications.
- Remote meter reading and monitoring of municipal and industrial infrastructure.
- Electronic projects using radio modules for Arduino and for Raspberry Pi.
