MAX3232 mini konwerter RS232 na TTL moduł 3.3V-5V do układów szeregowych
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description

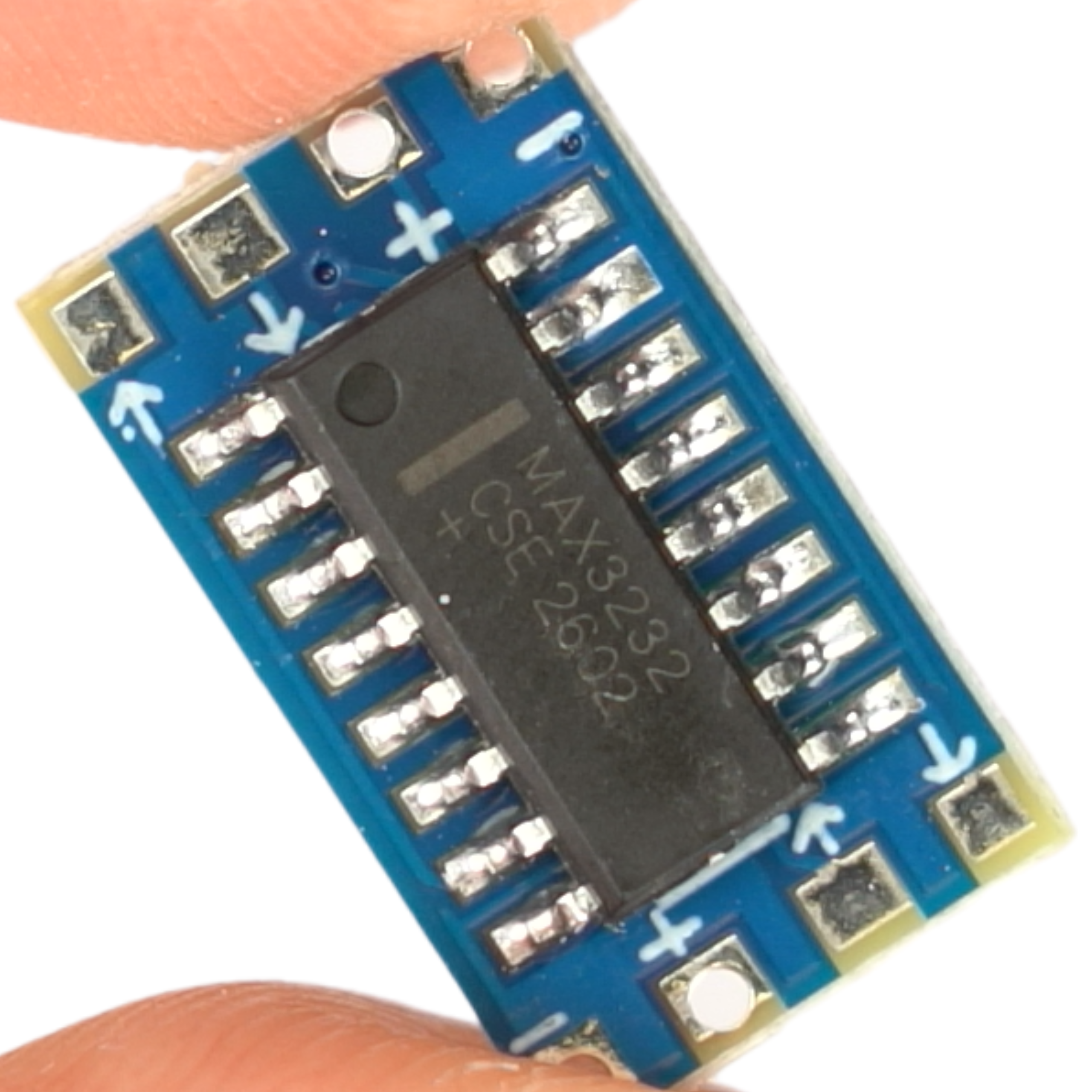

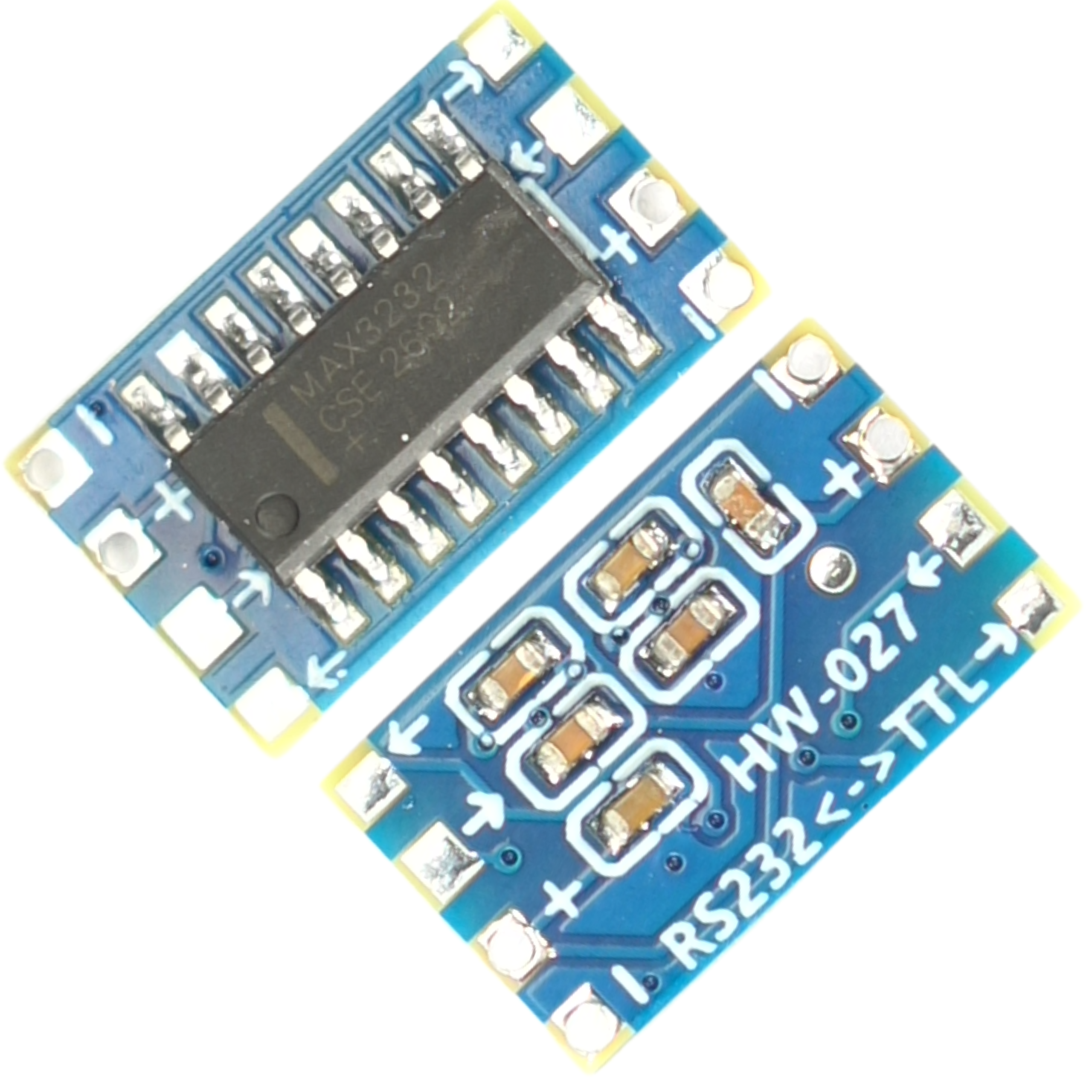

Product description: MAX3232 mini RS232 to TTL converter
Compact RS232 ↔ TTL logic level converter module based on the MAX3232 chip. It enables communication between devices equipped with an RS232 serial port and microprocessor systems operating at TTL levels. The module is designed for ESP8266, for ESP32, for Arduino, and for Raspberry Pi.
Key technical features
- Chip used: MAX3232
- Conversion type: bidirectional RS232 ↔ TTL
- Supply voltage: 3.3V - 5V
- Transmission speed: min. 120 kbps
- Dimensions: 16 mm × 9 mm
Example applications
- Communication between microcontrollers and industrial devices equipped with an RS232 port
- Programming and diagnostics of alarm control panels and PLC controllers
- Reading data from measuring devices and electronic scales
- Firmware updates on older AV equipment and set-top boxes
- Building communication interfaces in embedded systems
Benefits
- Wide supply voltage range from 3.3V to 5V enables compatibility with many microcontroller families
- High data transmission reliability thanks to the proven MAX3232 chip
- Simple implementation in projects without the need for additional external components
- Versatile applications thanks to support for speeds of min. 120 kbps
