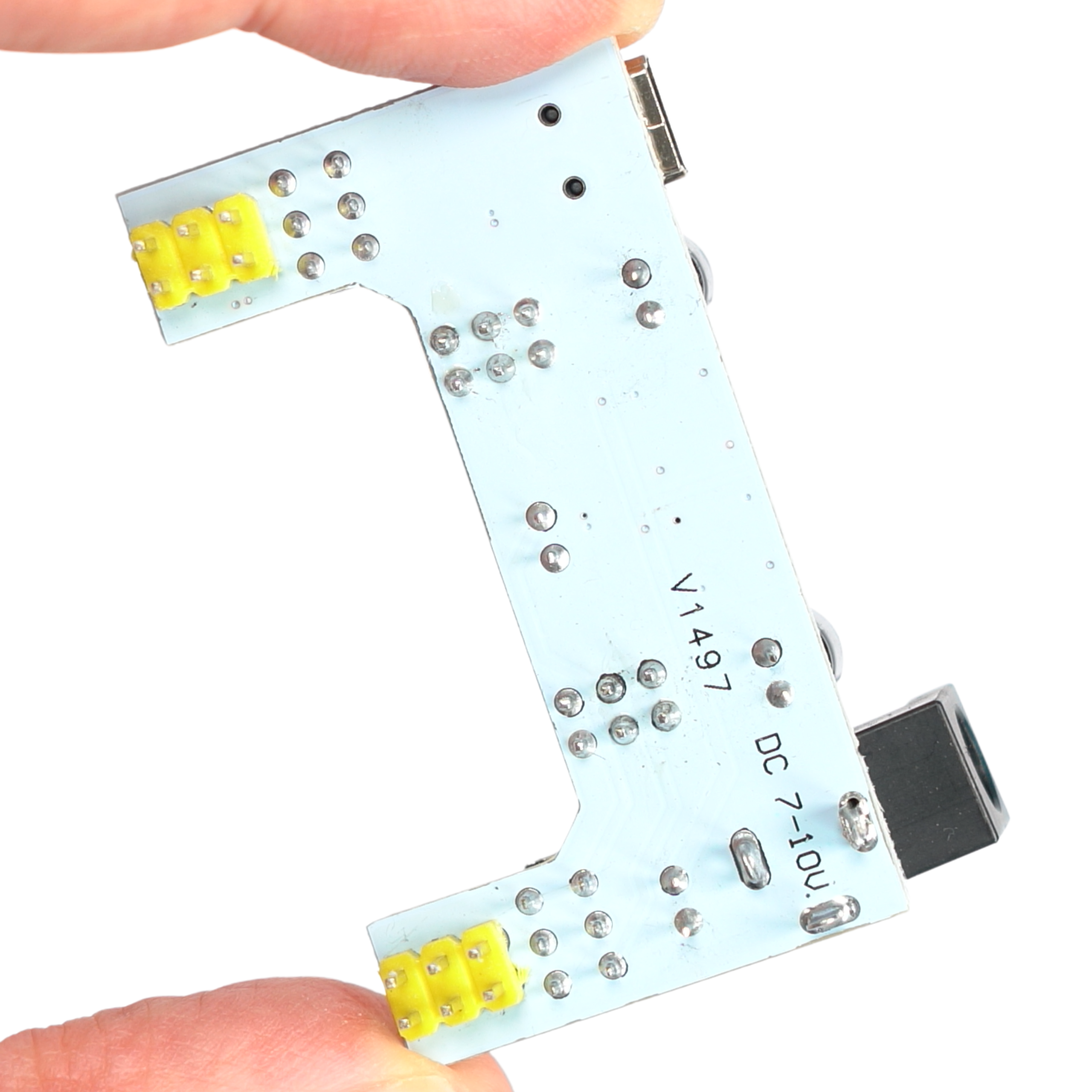

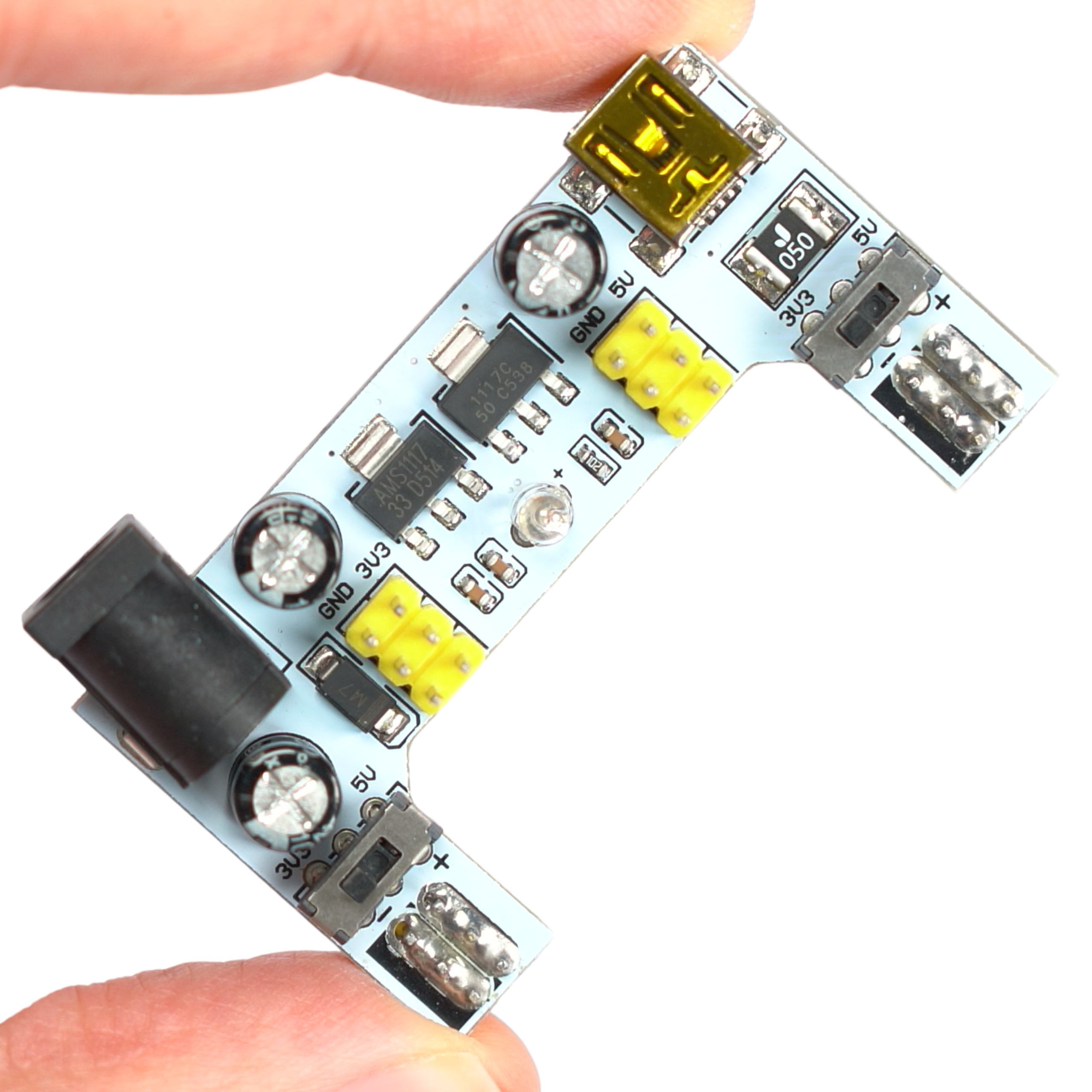

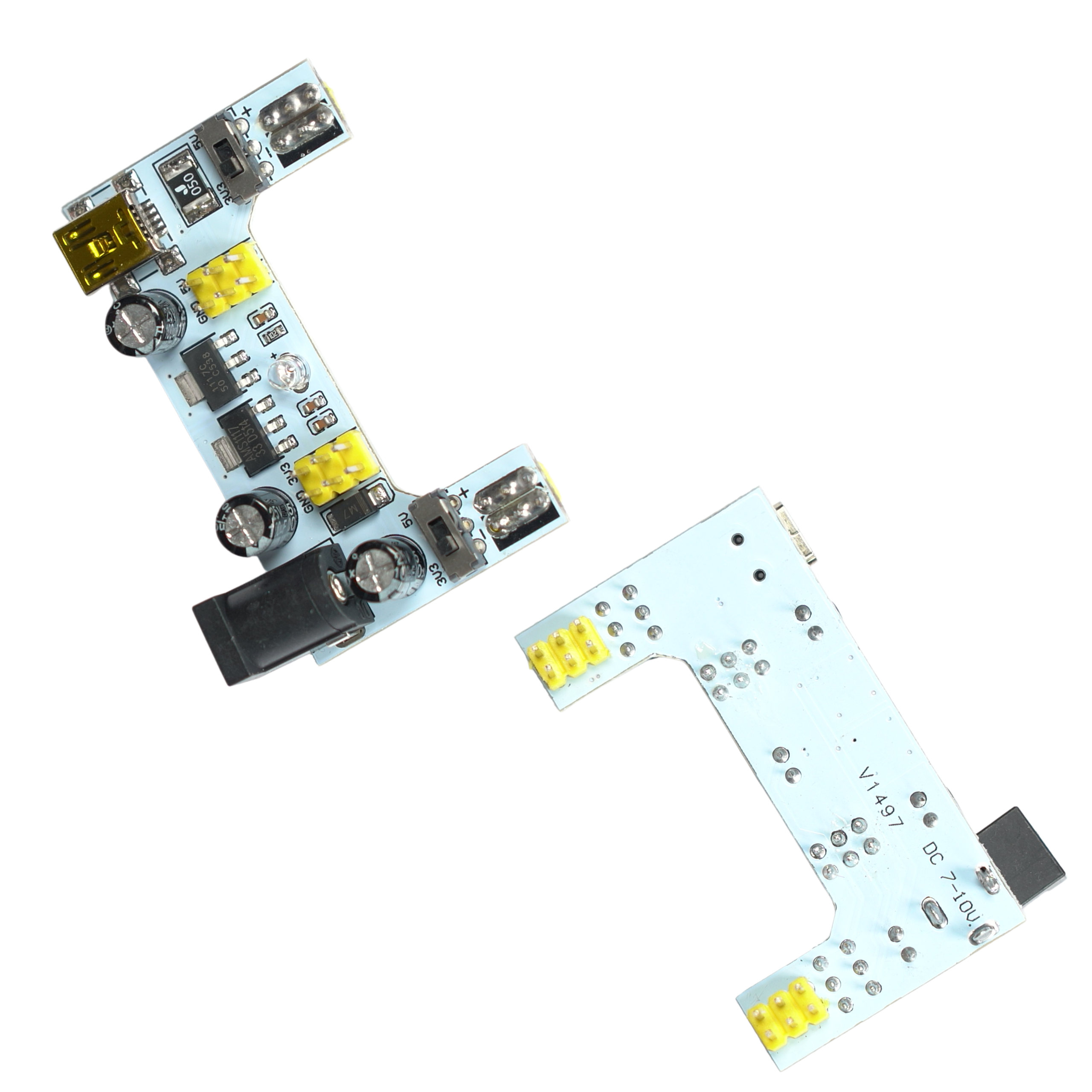

Moduł zasilania płytki stykowej 860 MB102 3.3V 5V Mini USB DC 7-12V

MB102 Breadboard Power Supply Module 3.3V / 5V for Arduino, ESP8266, ESP32, Raspberry Pi

Professional power supply module designed for standard MB102 breadboards. It provides convenient power delivery at 3.3 V or 5 V to prototyped electronic circuits. It features a standard DC 2.1 x 5.5 mm power jack and a Mini USB connector, offering flexibility in power source selection and the ability to power additional circuits.

Key Technical Features

• Input voltage (power supply): 7-12 V (via DC jack)
• Output voltage: 3.3 V or 5 V (selected independently for both channels)
• Input connector: DC 2.1 x 5.5 mm for plugging in a mains adapter
• Additional connector: Mini USB output enabling 5 V power delivery for other circuits
• Compatibility: standard MB102 breadboards
• Module dimensions: 53 mm x 35 mm

Example Applications

• Powering prototype circuits on breadboards
• Projects based on popular microcontrollers (for Arduino, ESP8266, ESP32, Raspberry Pi)
• Testing sensors and modules requiring 3.3 V or 5 V
• Building logic and digital circuits
• Rapid prototyping of IoT devices
• Educational electronics and robotics projects

Benefits of Using the Module

• Ability to independently set 3.3 V or 5 V for each of the two breadboard power rails
• Safe and stable power for prototyped circuits
• Eliminates the need for soldering when creating temporary projects
• Convenient connection of a standard mains adapter via the DC jack
• Compact dimensions that save space on the workbench
