Adapter N gniazdo N gniazdo do obudowy + uszczelka SEAL przejściówka 50 ohm

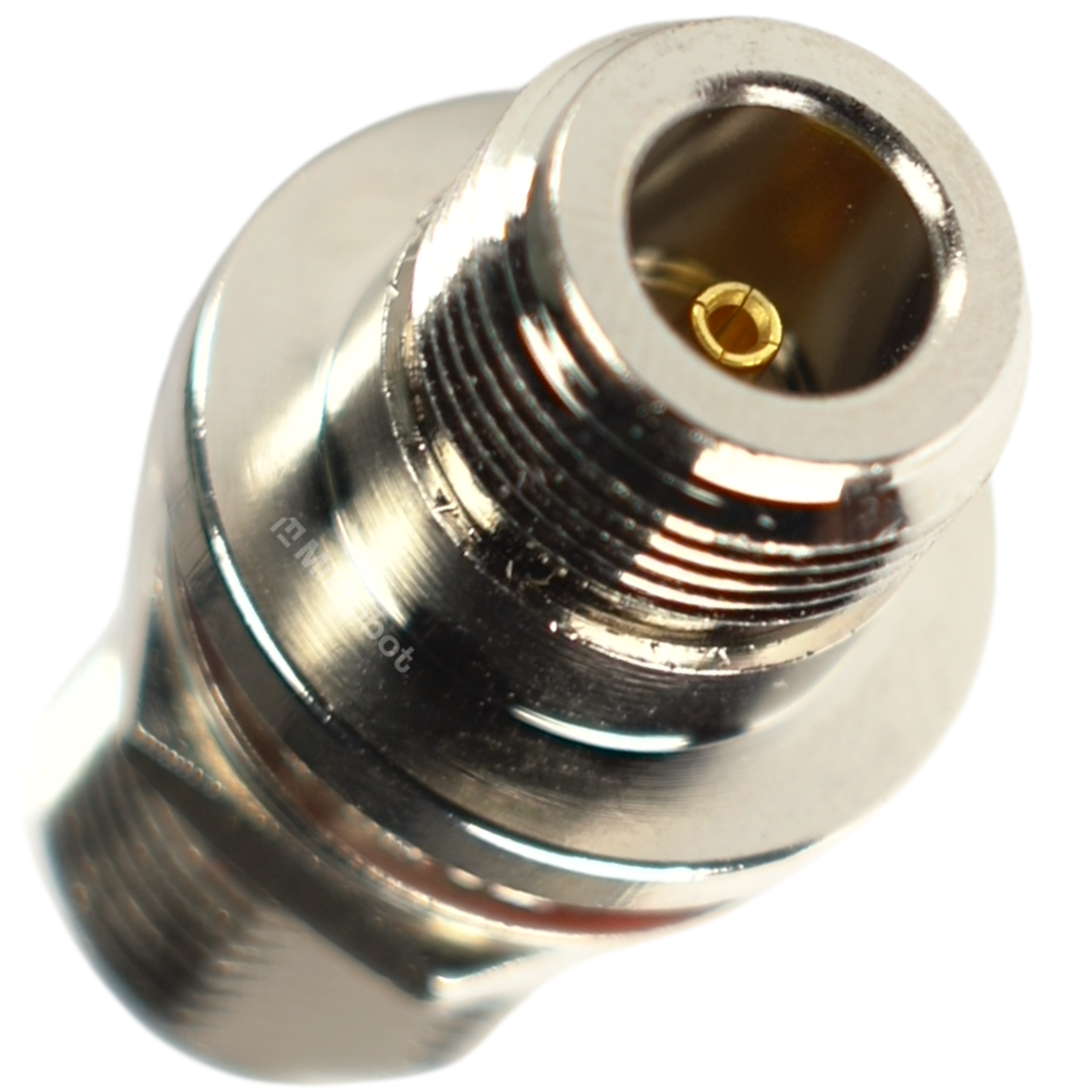

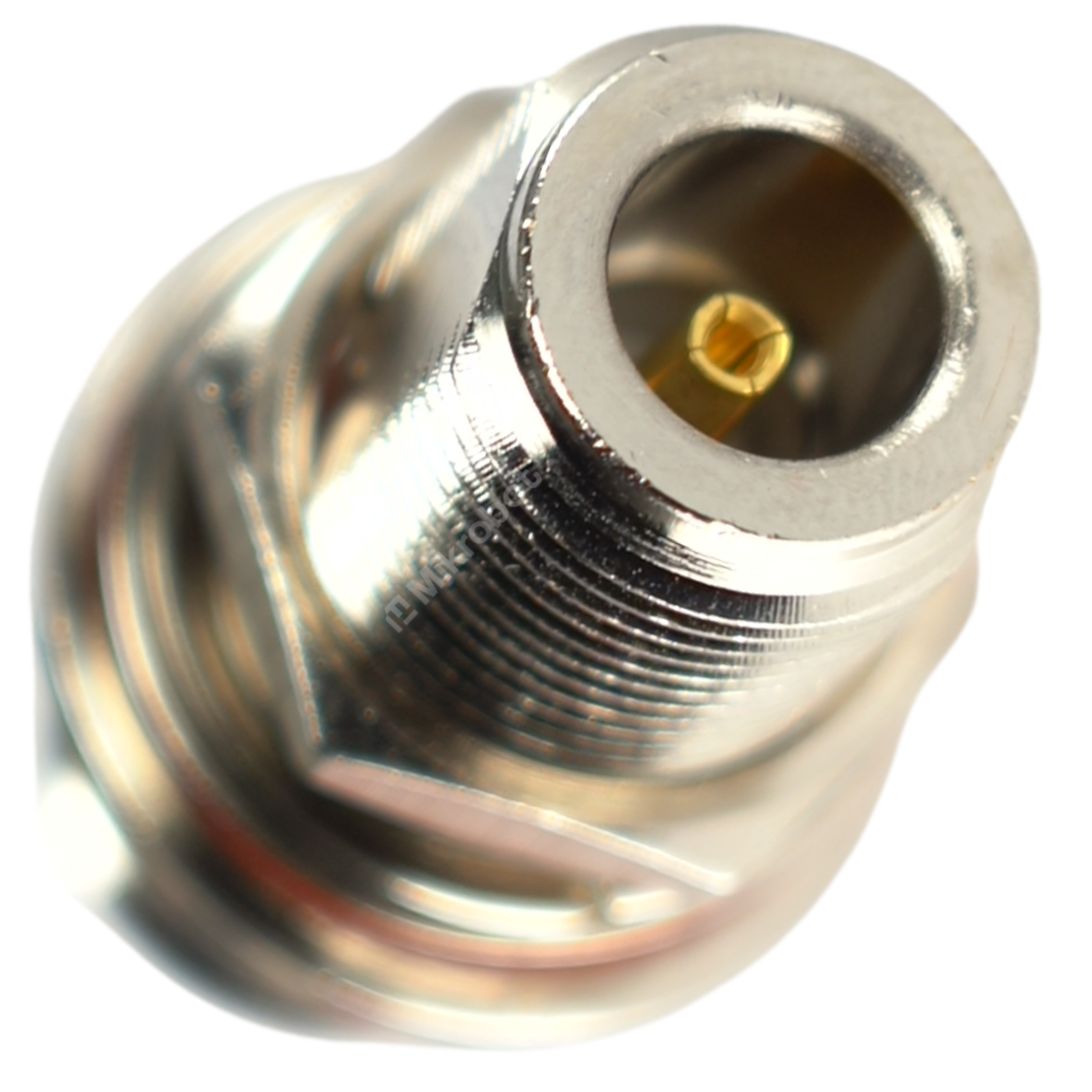

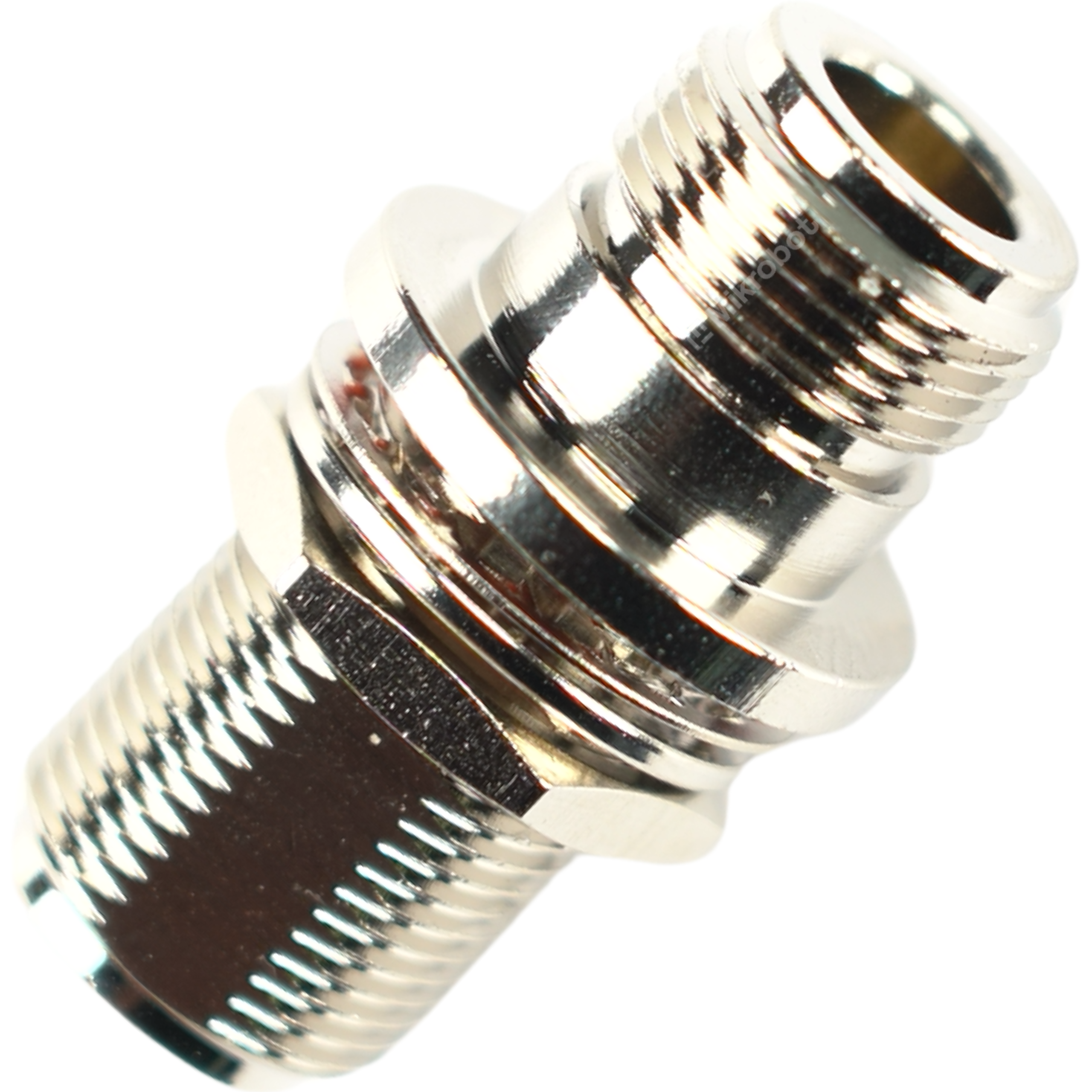

N-female to N-female adapter for SEAL enclosures

A high-quality N-female to N-female adapter designed for installation in SEAL-type enclosures. This product is intended for radio communication systems and amateur radio equipment that require reliable and stable connections. The component features precision manufacturing, which translates to excellent transmission performance.

Key Technical Features

• Brand: RF Connectors
• Connector Type 1: N-type female
• Connector Type 2: N female
• Impedance: 50 ohms
• Application: SEAL enclosures

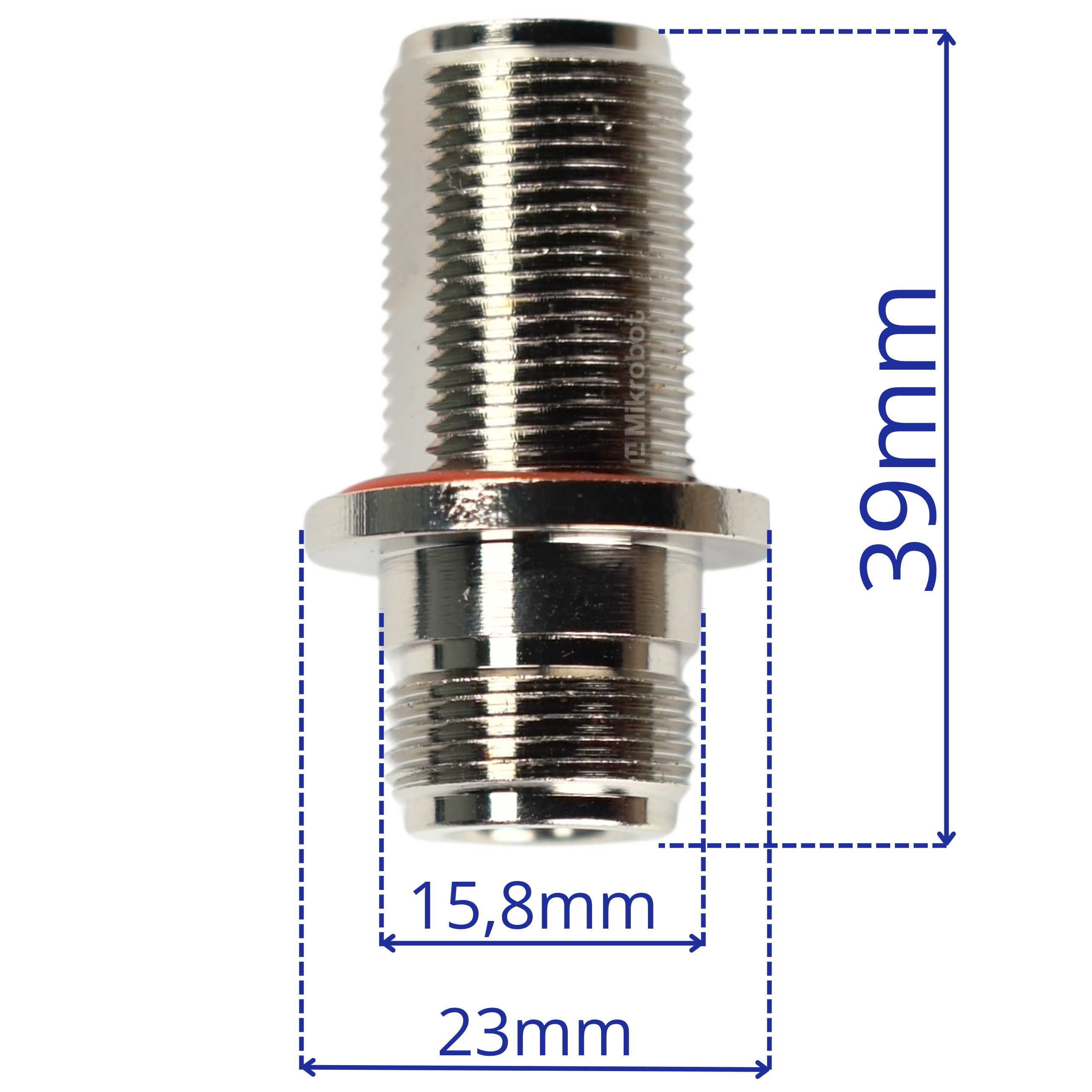

• Overall length: 39 mm
• Mounting thread diameter: approx. 15.8 mm
• Flange width: 23 mm

Example applications

This adapter is widely used in a variety of high-frequency installations.

• Professional radio communication systems and relay stations.
• Antenna connector feedthroughs in hermetically sealed SEAL enclosures.
• Advanced measurement equipment and radio spectrum analyzers.
• Cellular base stations and specialized wireless systems.
• Amateur radio systems requiring a 50-ohm impedance.

Benefits

Choosing an adapter designed for professional applications ensures reliable operation of the entire radio circuit.

• Minimized signal loss thanks to precise 50-ohm impedance matching.
• Trouble-free and stable installation in compatible SEAL-type enclosures.
• High mechanical durability ensuring a long service life even under harsh conditions.
• Fully compatible with standard N-type connectors available on the market.

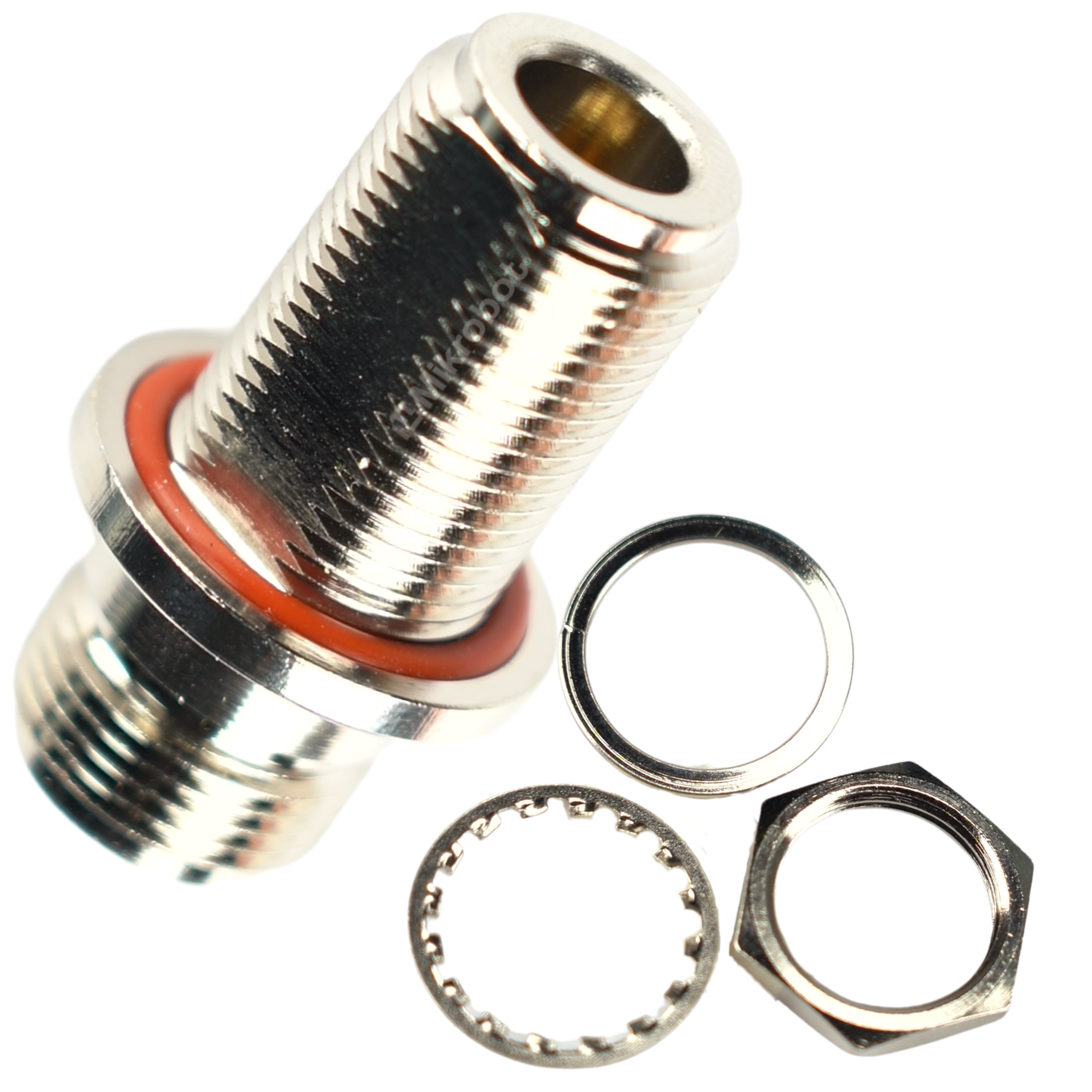

Included in the set

• Connector
• Nut
• Spring washer
• Toothed washer
• Sealing O-ring
