Pigtail RF U.FL IPX IPEX RP-SMA female jack RG178 15 cm for ESP32 WiFi

Pigtail RF U.FL IPX IPEX - RP-SMA female jack RG178 15 cm

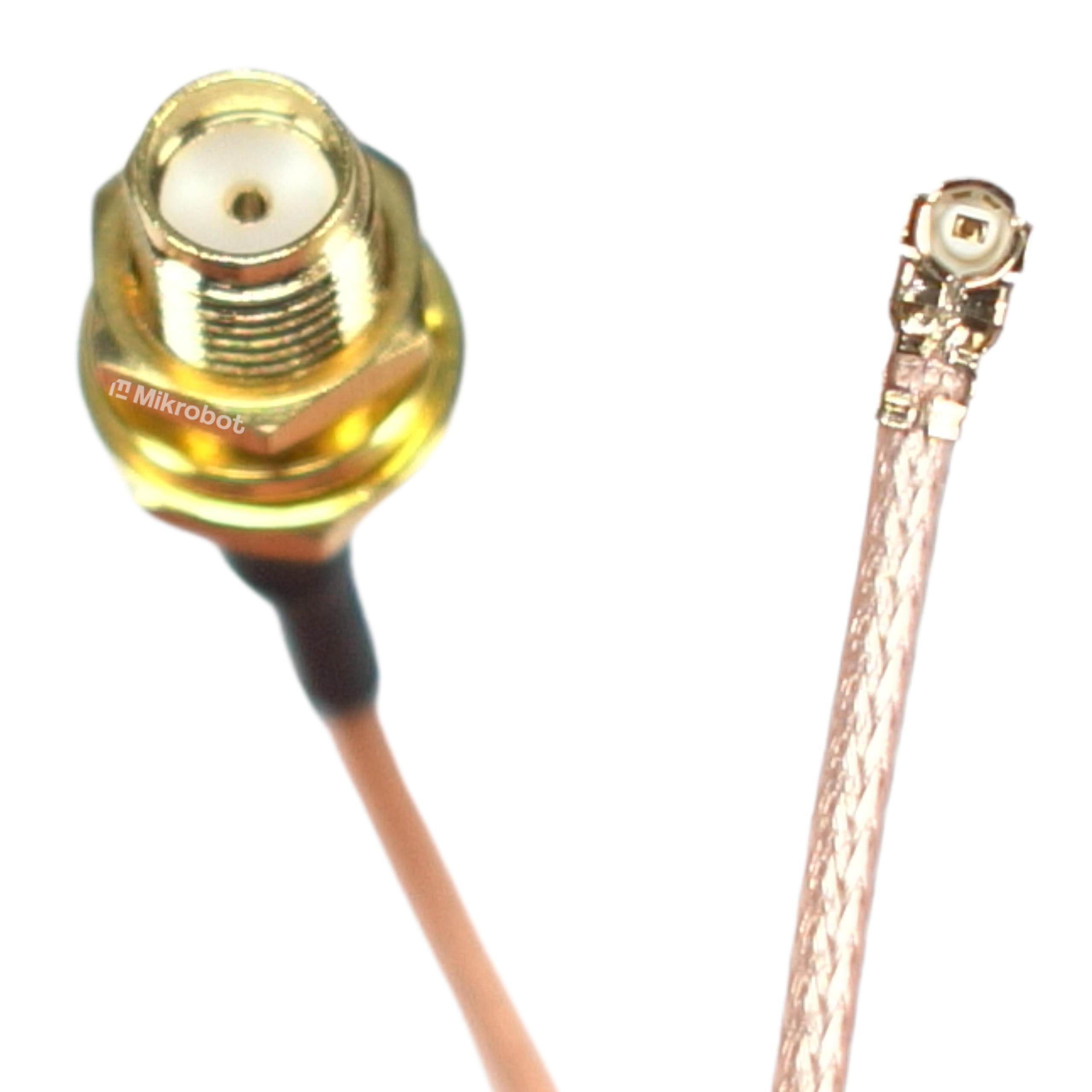

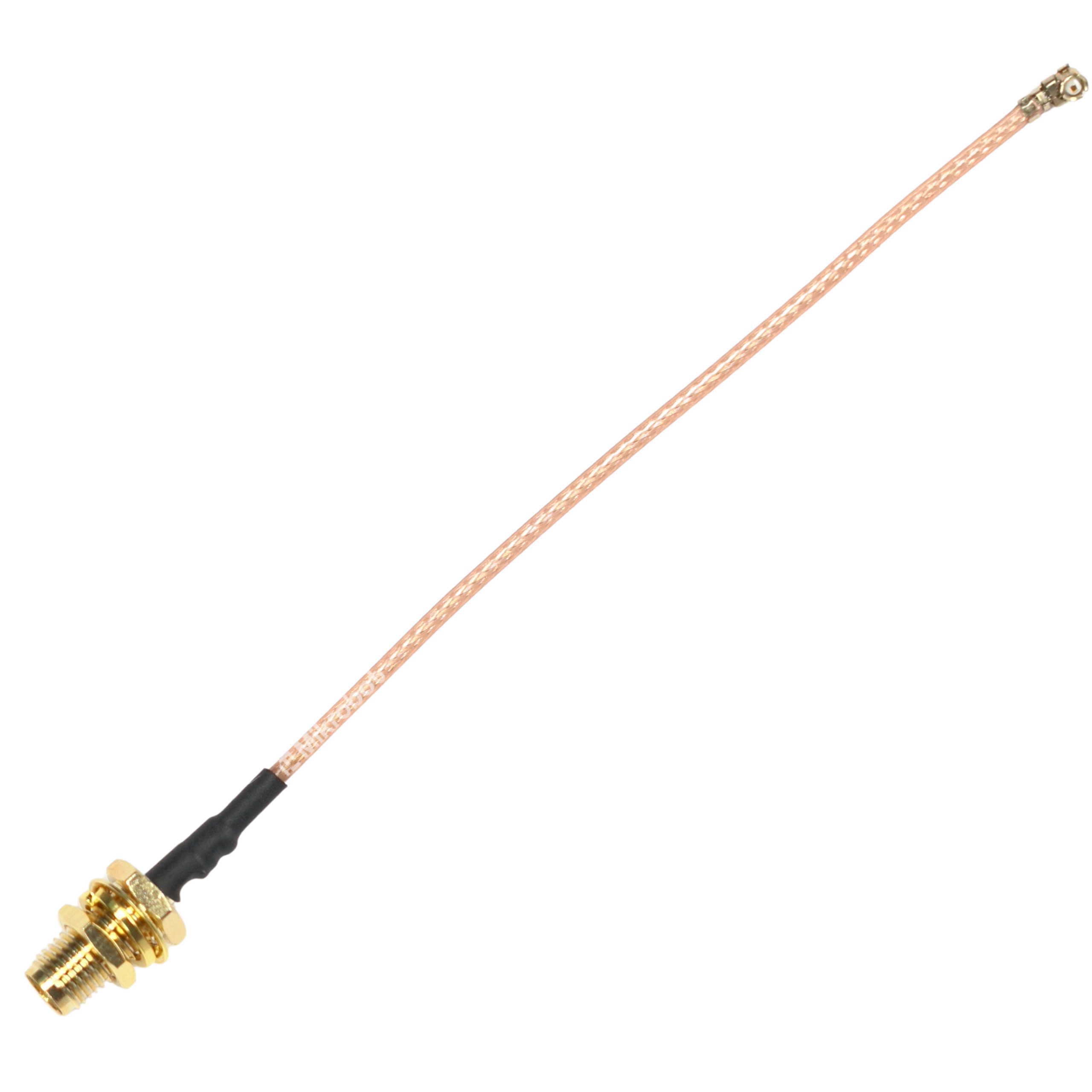

High-quality RF pigtail (RF connector) serving as a reliable antenna adapter. The cable is terminated on both sides with connectors: on one end is a U.FL (IPX / IPEX) plug, and on the other a RP-SMA female jack. The coaxial cable used is the proven RG178 type, 15 cm long. The product provides a stable connection in wireless communication systems, including WiFi and Bluetooth.

Key specifications

• Connector 1: U.FL / IPX / IPEX plug
• Connector 2: RP-SMA female jack
• Cable type: RG178
• Characteristic impedance: 50 ohm
• Overall length: 15 cm
• Compatibility: ESP32, ESP8266, Arduino, Raspberry Pi

Example applications

• Routing the antenna connector outside the device enclosure
• Connecting external WiFi antennas to microcontroller modules
• Expanding IoT systems based on wireless communication
• Repairing or modifying routers and access points
• Integrating radio modules in smart home systems
• Extending communication range in embedded systems

Benefits

• Versatility - standard connectors fit most popular radio modules
• Low signal loss - RG178 coaxial cable with 50 ohm impedance
• Compact size - 15 cm length allows convenient mounting inside small enclosures
• High build quality - precisely crimped connectors ensure repeatability and connection stability
• Broad compatibility - seamless operation with popular development platforms
