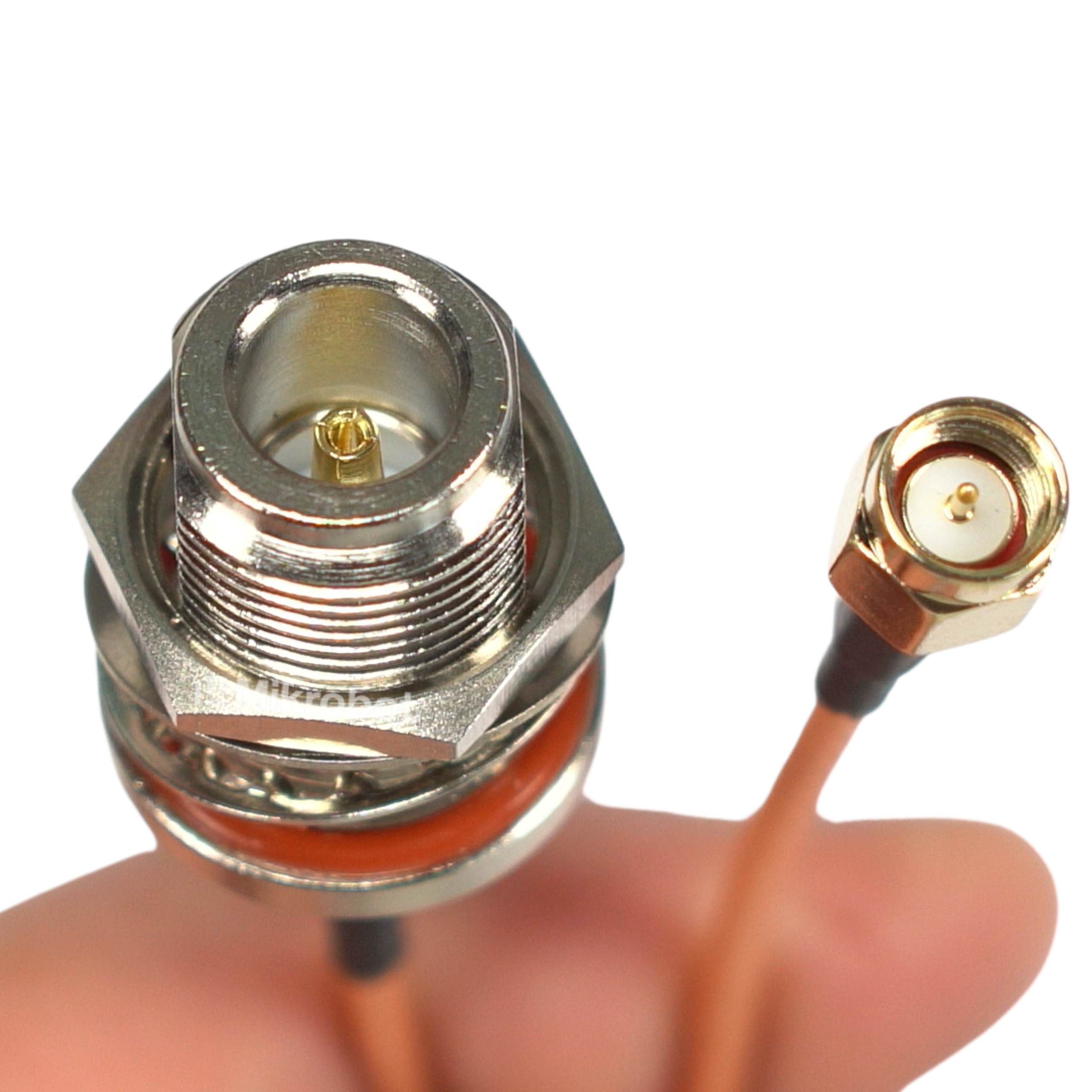

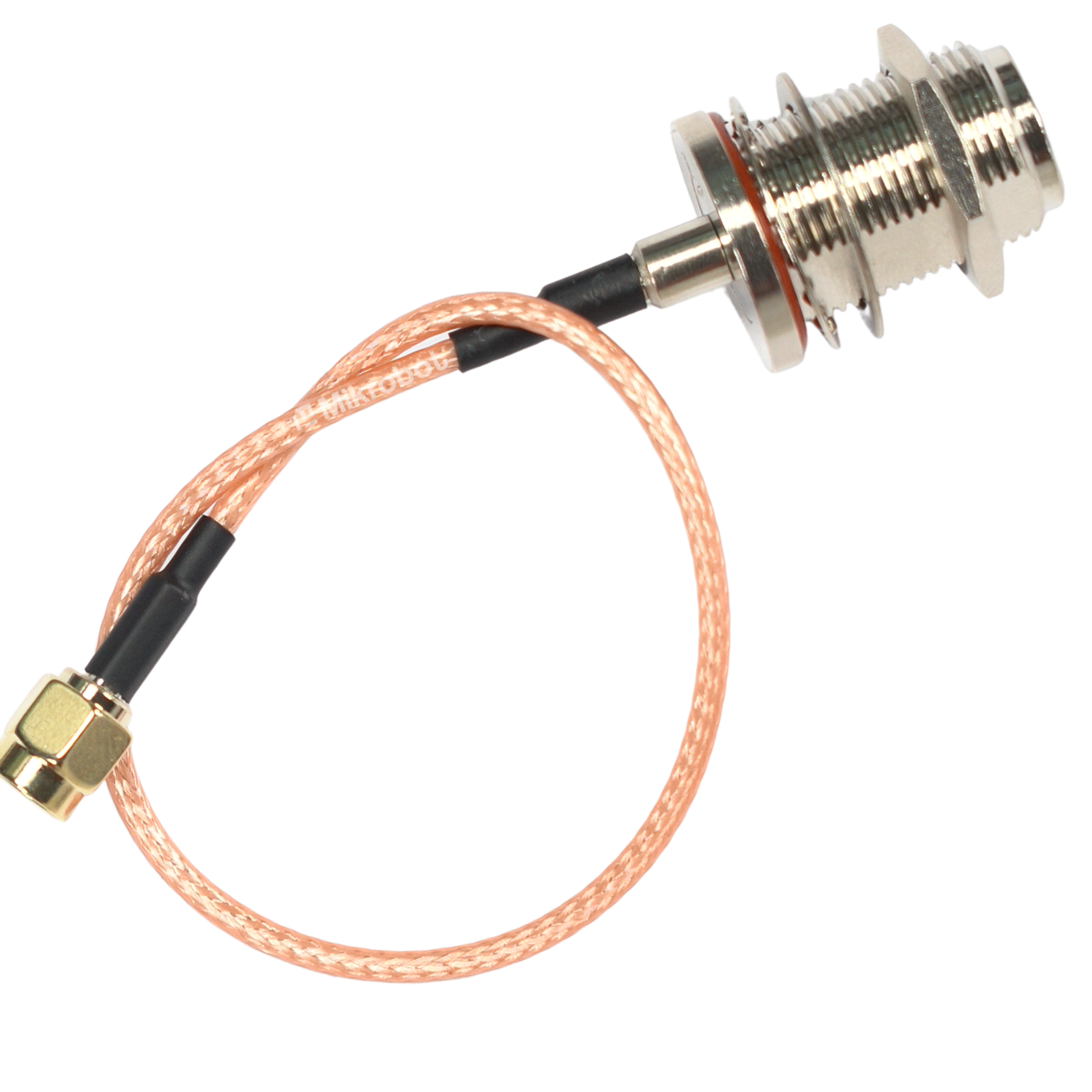

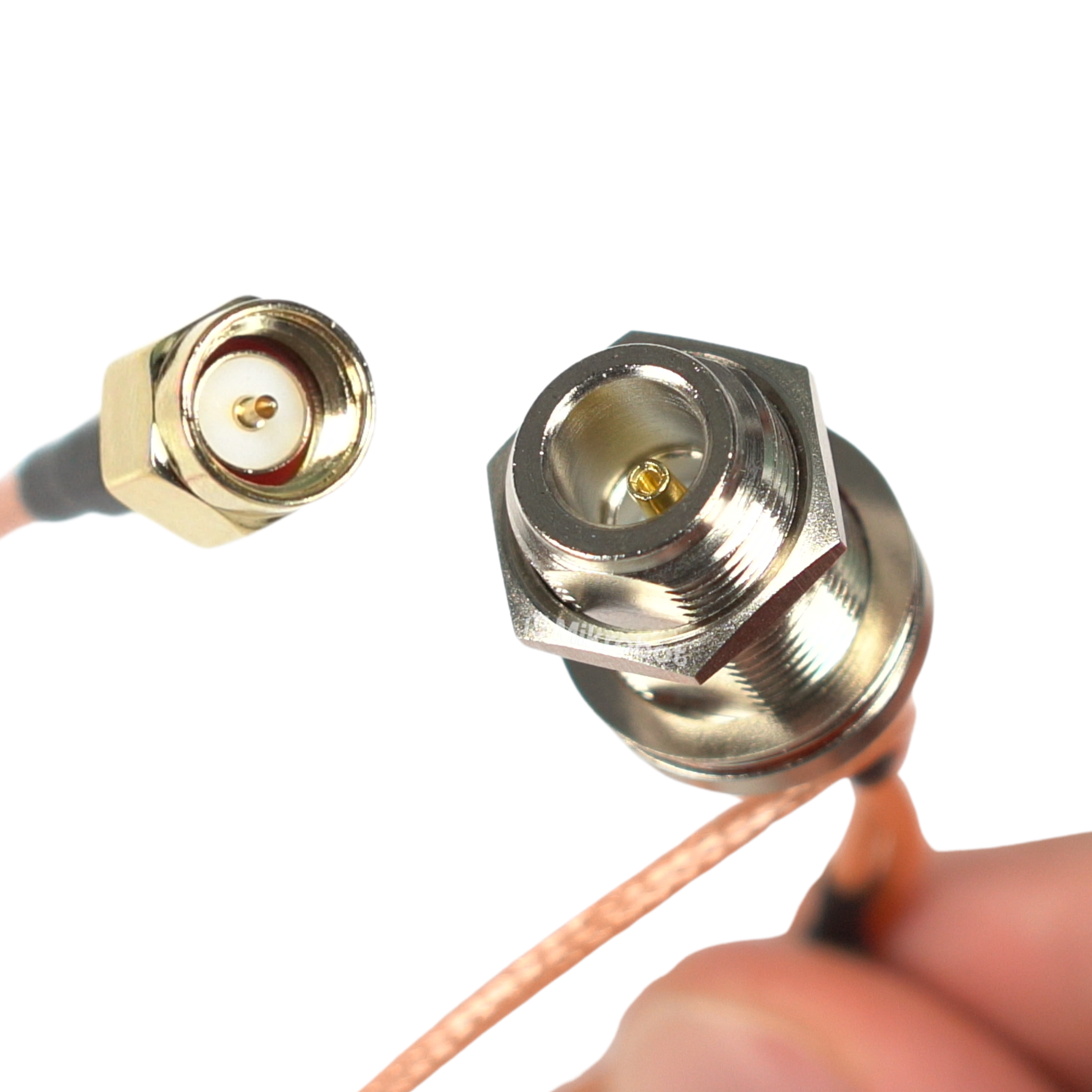

RF Pigtail Connector N female panel mount SMA male cable RG316 50 Ohm 20 cm

Key technical specifications

High-quality RF pigtail connector for high-frequency signal paths. The adapter provides a reliable transition between connector standards and allows the antenna signal to be routed outside the device enclosure.

• Product type: RF pigtail (RF connector)
• Connector 1: N female panel mount (nut-mounted assembly)
• Connector 2: SMA male
• Cable type: RG316
• Characteristic impedance: 50 Ohm
• Overall length: 20 cm

Example applications

This component is widely used in radio equipment and wireless transmission systems with 50 Ohm impedance.

• Routing antenna connectors to device enclosures and control cabinets.
• IoT projects using wireless connectivity-including ESP8266, ESP32, Arduino, and Raspberry Pi.
• Connecting communication modules to external antennas.
• Building wireless network infrastructure and access points.
• Measurement equipment and amateur radio hardware.

Benefits and features

The connector is designed for durability and optimal transmission performance in professional and hobby installations.

• The panel-mount N connector enables very stable mechanical mounting directly on the enclosure.
• RG316 cable is highly flexible, which makes routing much easier in tight spaces.
• A length of 20 cm allows convenient component connection without excessive signal loss.
• 50 Ohm compliance ensures proper impedance matching.
