RF pigtail N female to SMA-RP male RG316 50 Ohm 20 cm antenna adapter cable

RF pigtail N female - SMA-RP male RG316 20 cm

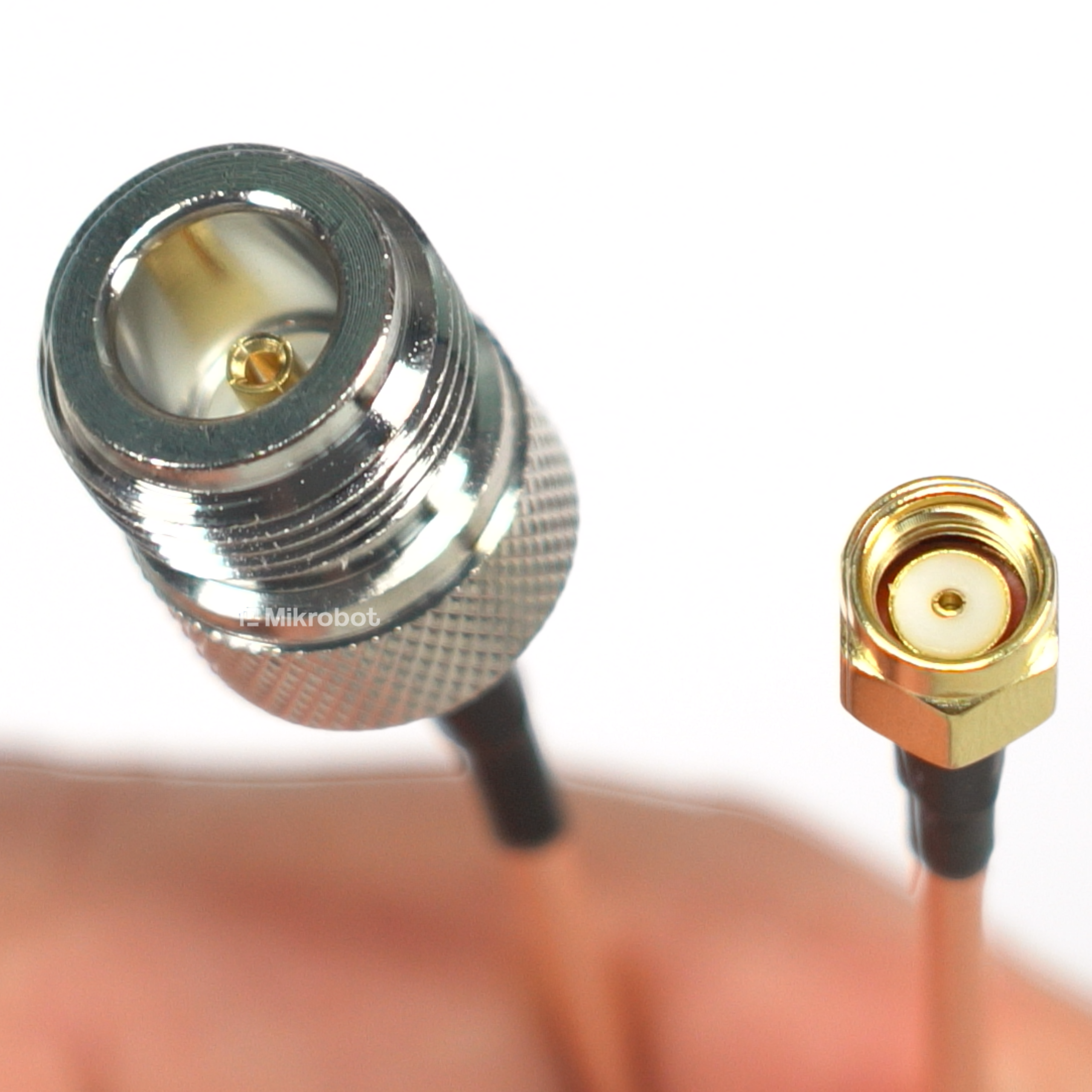

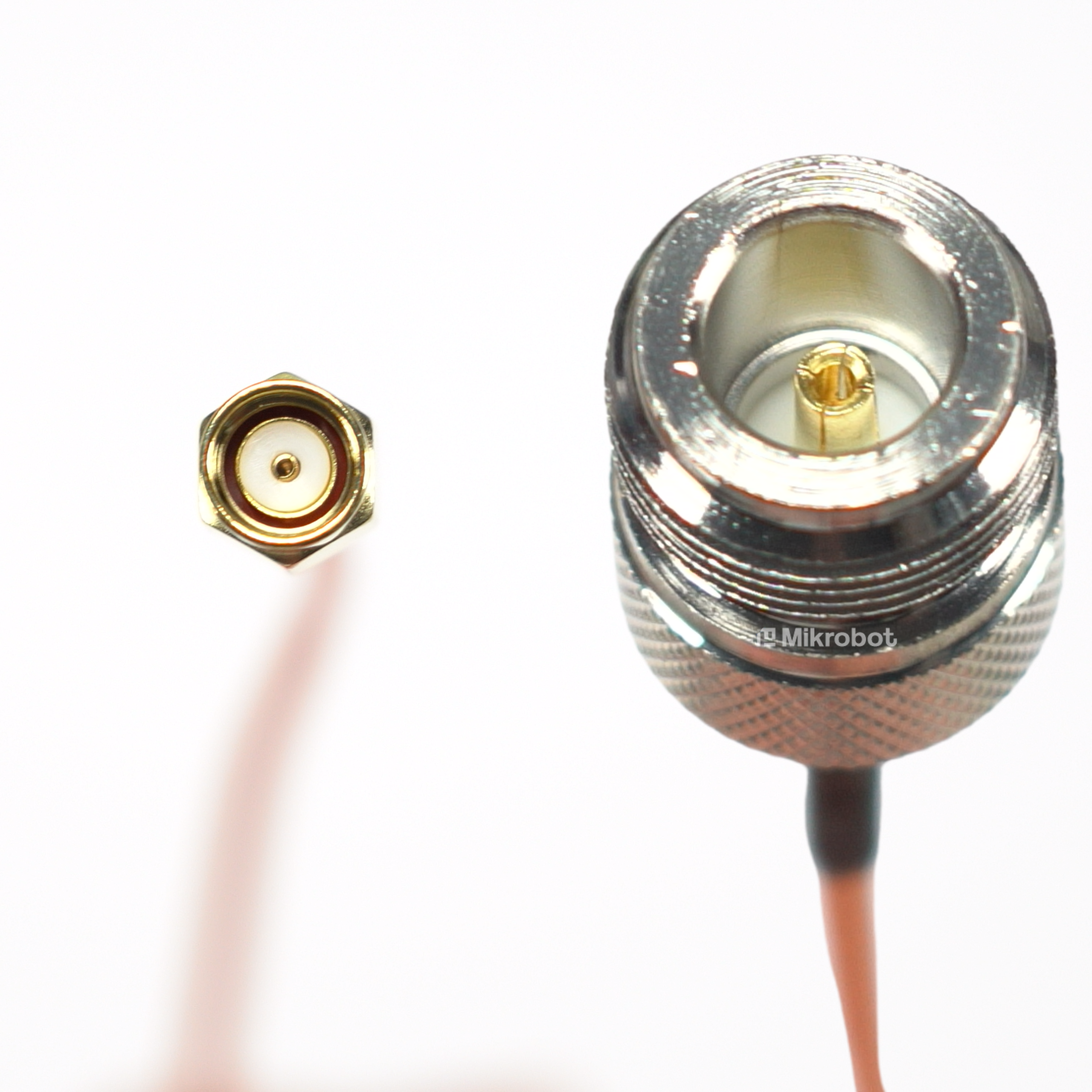

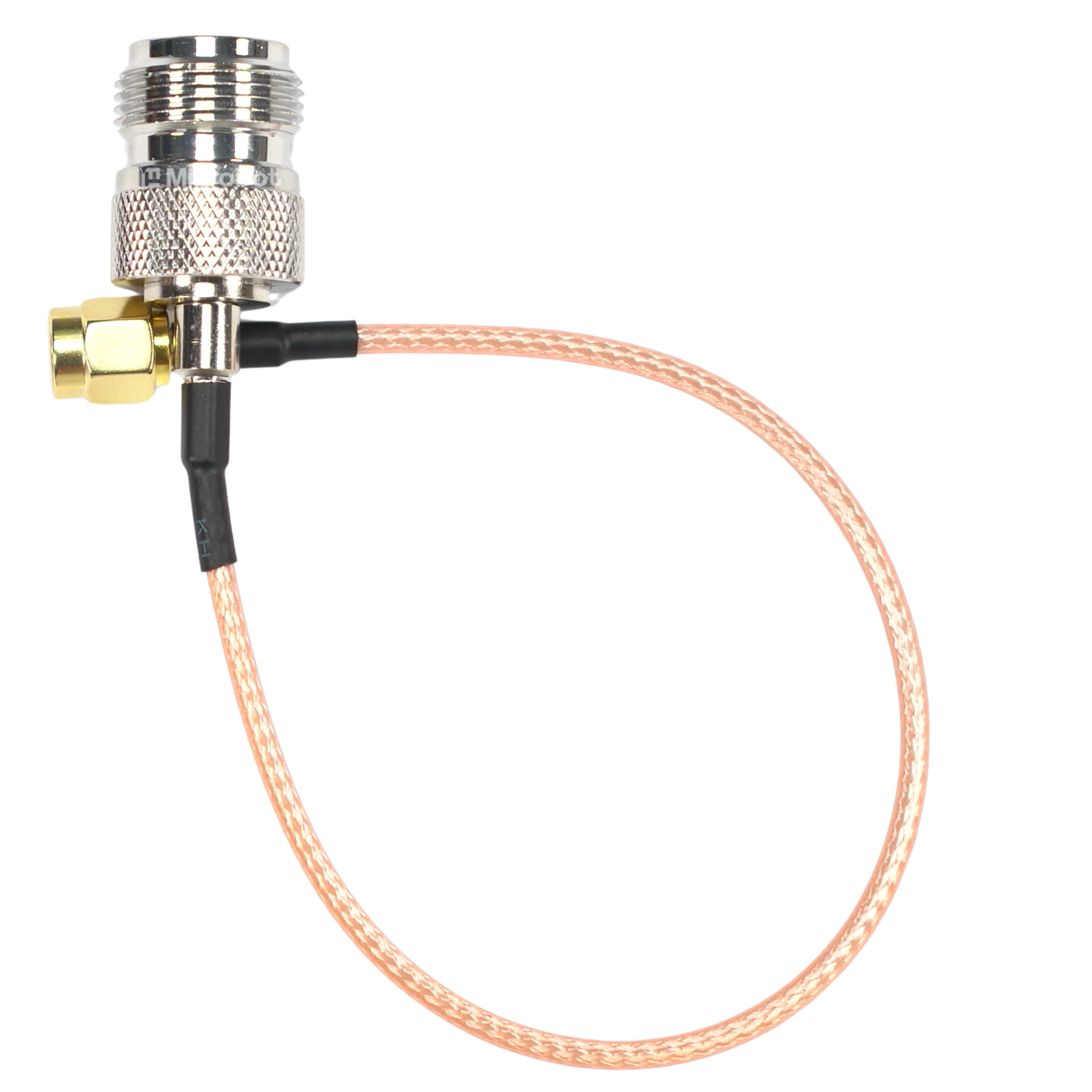

High-quality antenna adapter (pigtail) for transitioning between an N female connector and an SMA-RP male connector. Built with RG316 coaxial cable at 50 Ohm characteristic impedance. Total cable length is 20 cm. The product is used in radio communication modules, networking equipment, and electronic projects that need a reliable RF signal path.

Key technical specifications

• Connector 1: N female
• Connector 2: SMA-RP male
• Cable type: RG316
• Characteristic impedance: 50 Ohm
• Overall length: 20 cm
• Product type: RF pigtail (RF connector)

Example applications

• High-frequency (HF/RF) radio communication modules
• IoT applications based on radio modules for ESP8266, ESP32, Arduino, and Raspberry Pi
• Routers, access points, and Wi-Fi networking devices
• GPS receivers and navigation systems
• DVB-T tuners and amateur radio equipment
• External antennas and signal booster systems

Benefits

• High transmission quality - RG316 cable offers low attenuation and stable signal parameters
• Versatility - standard N and SMA-RP connectors allow easy integration with common radio gear
• Durability - robust connector construction ensures a reliable connection
• Compact size - 20 cm length makes routing inside enclosures and control cabinets straightforward
