Gniazdo RP-SMA żeńskie do druku boczne PCB 1,5-1,6 mm 50 Ohm złocony styk

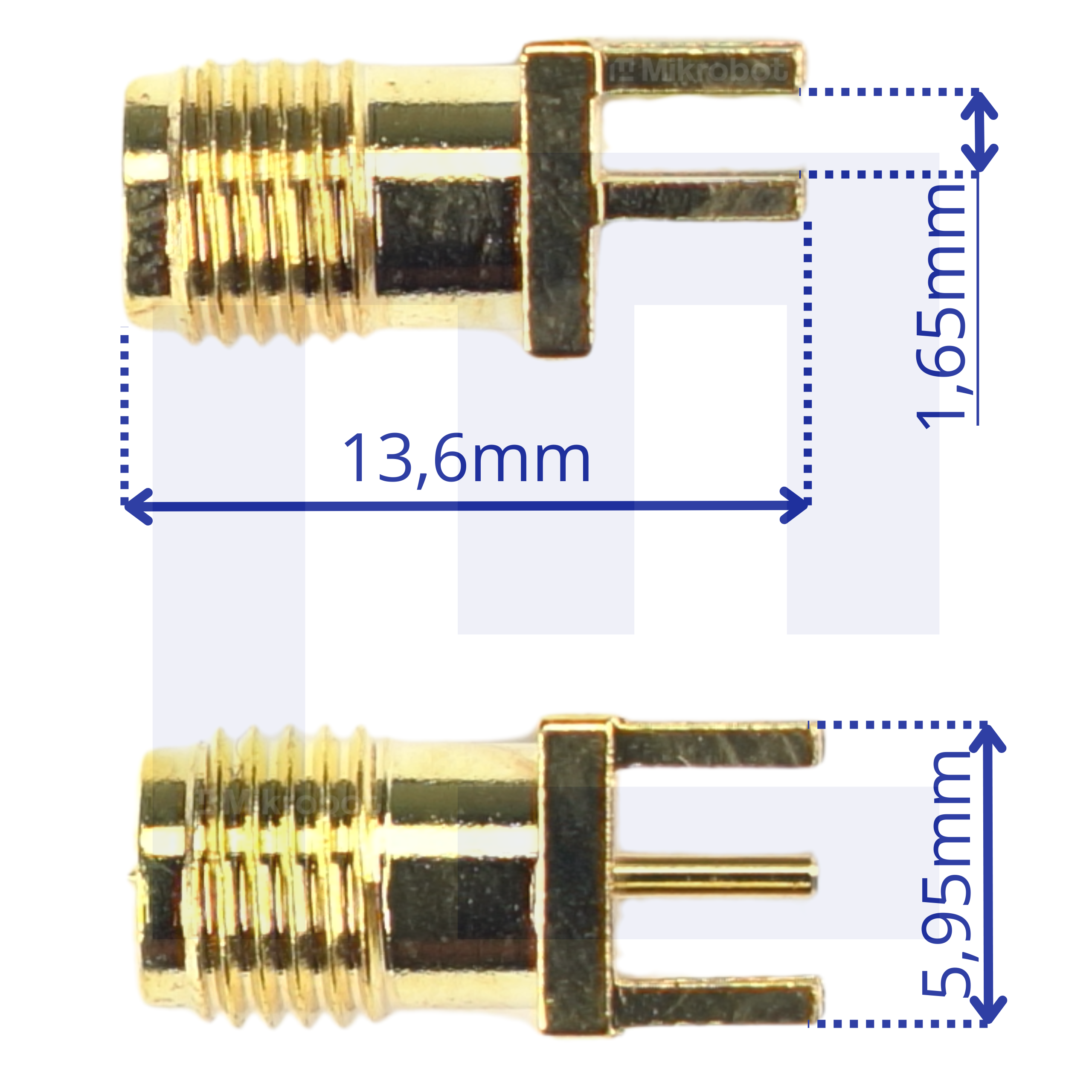

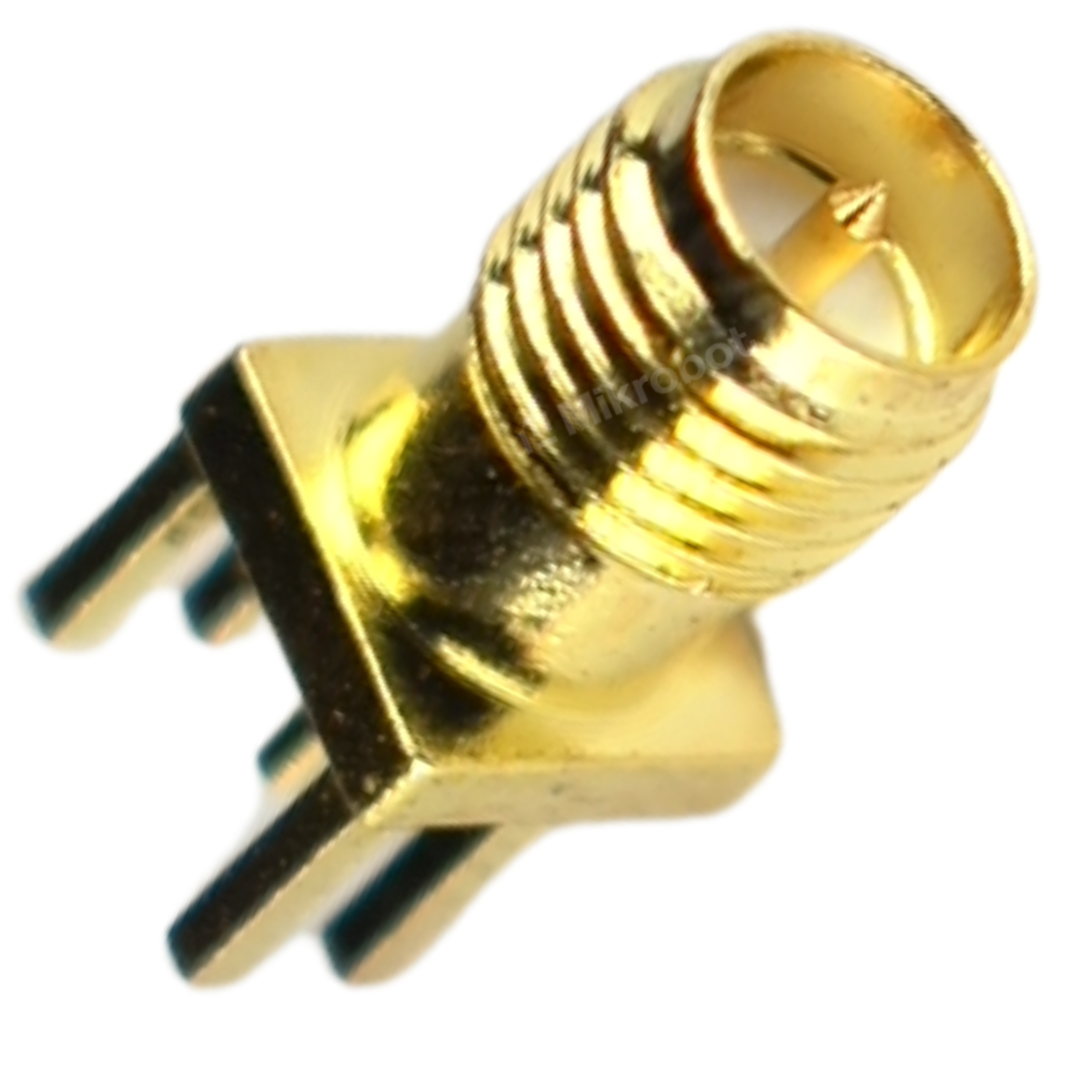

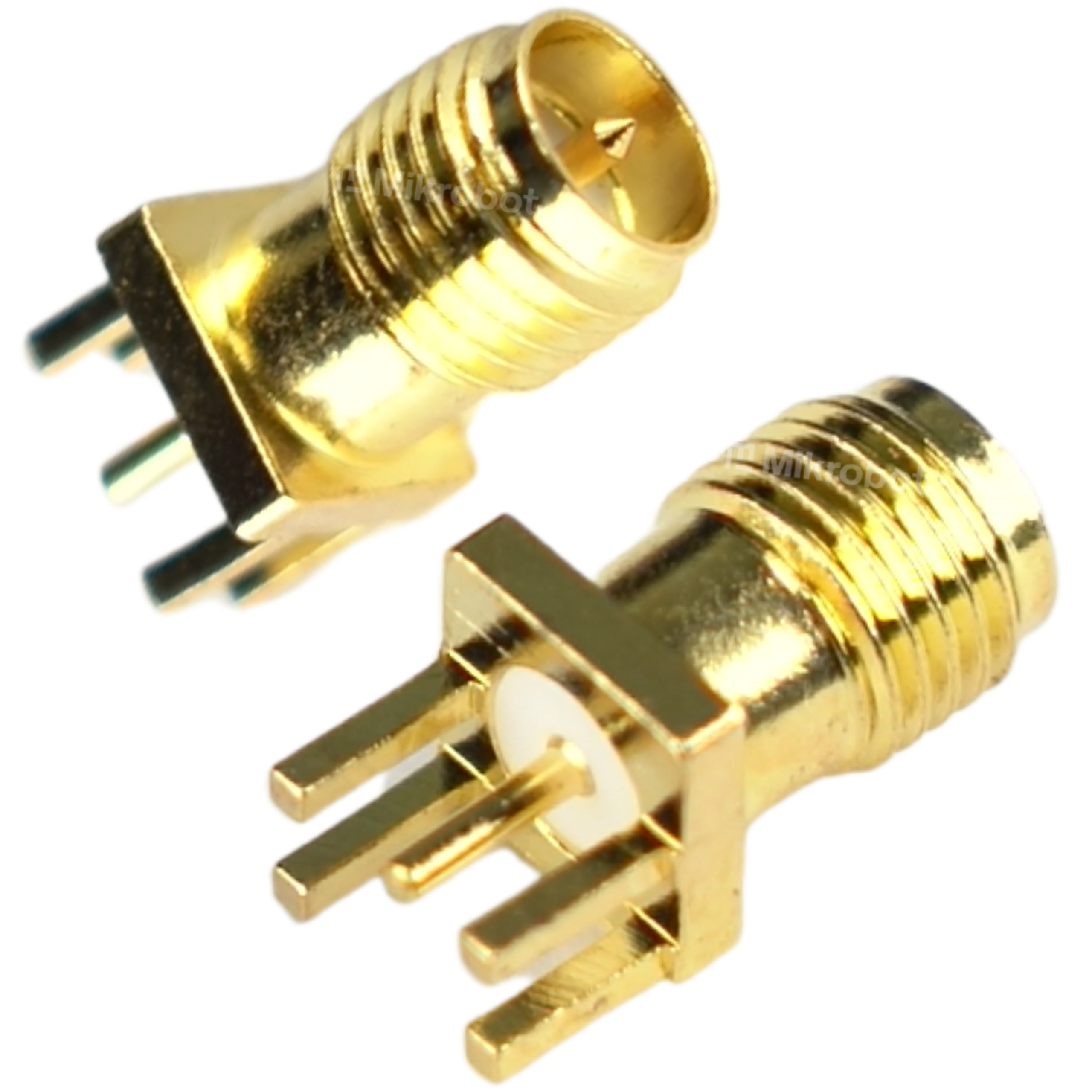

Product description: RP-SMA female jack for side-mount PCB

High-quality RP-SMA female jack designed for side mounting on printed circuit boards (PCB). The connector is designed for use with laminates of standard thickness 1.5 - 1.6 mm. It features a characteristic impedance of 50 Ohm and has a gold-plated contact, which ensures a stable connection and minimizes signal loss. The component is widely used in radio communication circuits and wireless modules for ESP8266, ESP32, Arduino, and Raspberry Pi.

Key technical features

• Connector type: RP-SMA female jack
• Mounting method: side mount on PCB
• Dedicated laminate thickness: 1.5 - 1.6 mm
• Characteristic impedance: 50 Ohm
• Contact type: gold-plated

Benefits

• Parameter stability - the gold-plated contact protects against oxidation and provides excellent conductivity.
• Durable mounting - the side-mount design allows solid soldering of the jack to the laminate edge.
• Standard impedance - the 50 Ohm value ensures compatibility with popular antennas and RF modules.
• Wide compatibility - suitable for use in projects based on popular microcontrollers.

Example applications

• Radio communication and WiFi modules for ESP8266 and ESP32.
• Transceiver circuits used with Arduino.
• IoT systems and network gateways based on Raspberry Pi.
• Amateur radio equipment and hobbyist radio communication devices.
• External antenna feedthroughs on custom PCB boards.
