Konwerter RS485 TTL UART moduł MAX485 5V do Arduino ESP32 Raspberry Pi

RS485 TTL UART Converter MAX485 5V Module for Arduino, for ESP8266, for ESP32, for Raspberry Pi

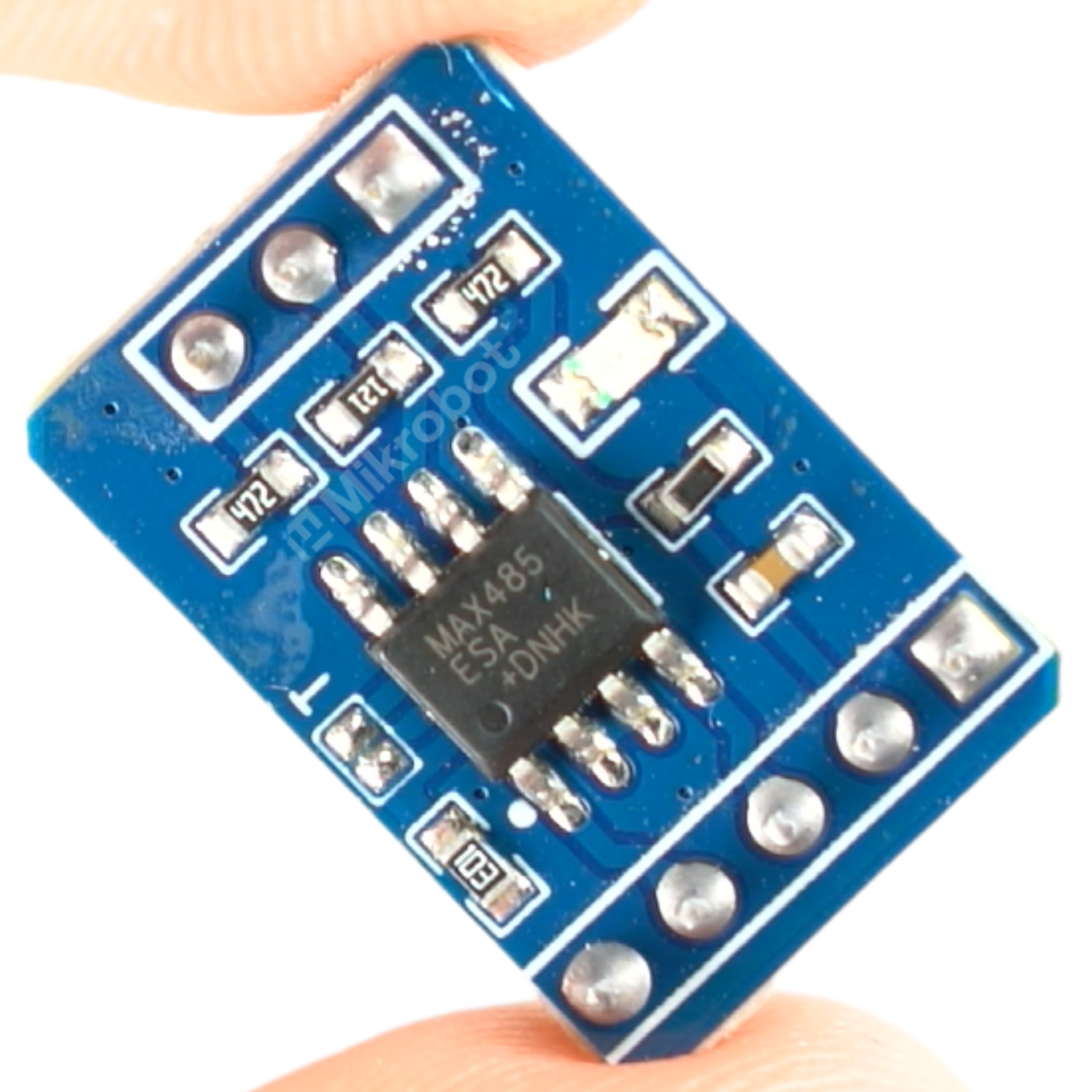

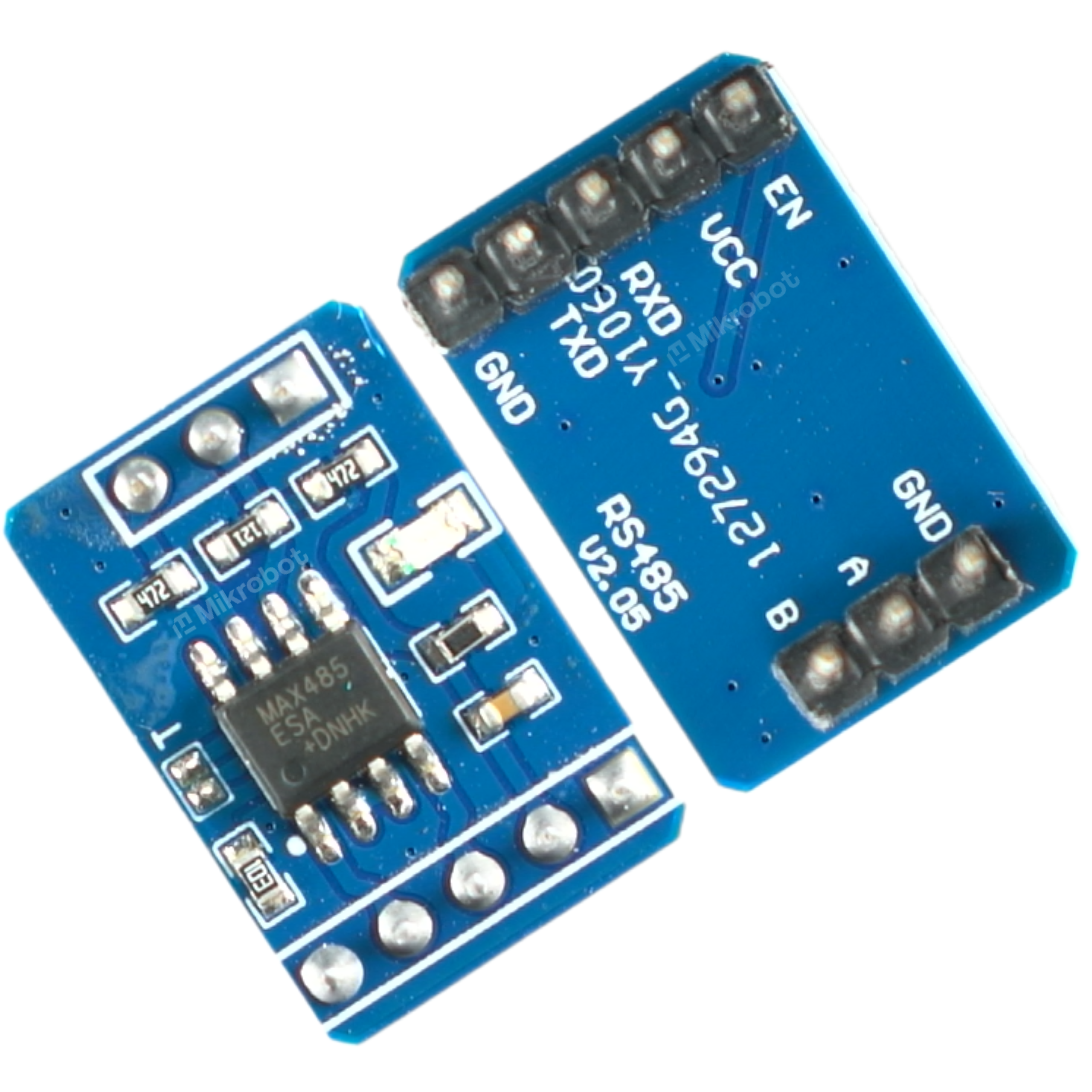

A module based on the MAX485 chip enables simple and effective conversion of signals from TTL level to the RS485 standard. Thanks to its low power consumption and ability to transmit data over distances of up to 1000 meters, the converter is an ideal solution for building extensive multi-device networks. It provides stable, interference-resistant communication, which is essential in industrial applications and automation systems.

Key technical features

• Chip: MAX485
• Supply voltage: 4.75 V - 5.25 V
• Communication standard: RS485
• Transmission speed: 2.5 Mb/s
• Interface: 2.54 mm goldpin pins
• Maximum range: up to 1000 m
• Dimensions: 19.4 mm x 13.4 mm x 11.2 mm
• Additional features: low power consumption, multi-device communication support

Example applications

• Distributed control systems and industrial automation
• Sensor networks and IoT devices requiring long-distance communication
• Building remote monitoring and data acquisition systems
• Integration with microcontrollers in smart building projects
• Creating reliable communication buses in robotics

Benefits

• High resistance to electromagnetic interference in industrial environments
• Ability to transmit data over long distances without loss of signal quality
• Easy integration with popular platforms thanks to a standard pin pitch
• Energy savings in battery-powered projects due to low current consumption
• Stable operation in extensive networks consisting of multiple devices
