Wtyk złącze N męski skręcany na kabel RF-5 H155 do 5,8mm teflon złocony pin

N-type screw-on connector for RF-5 and H155 cables

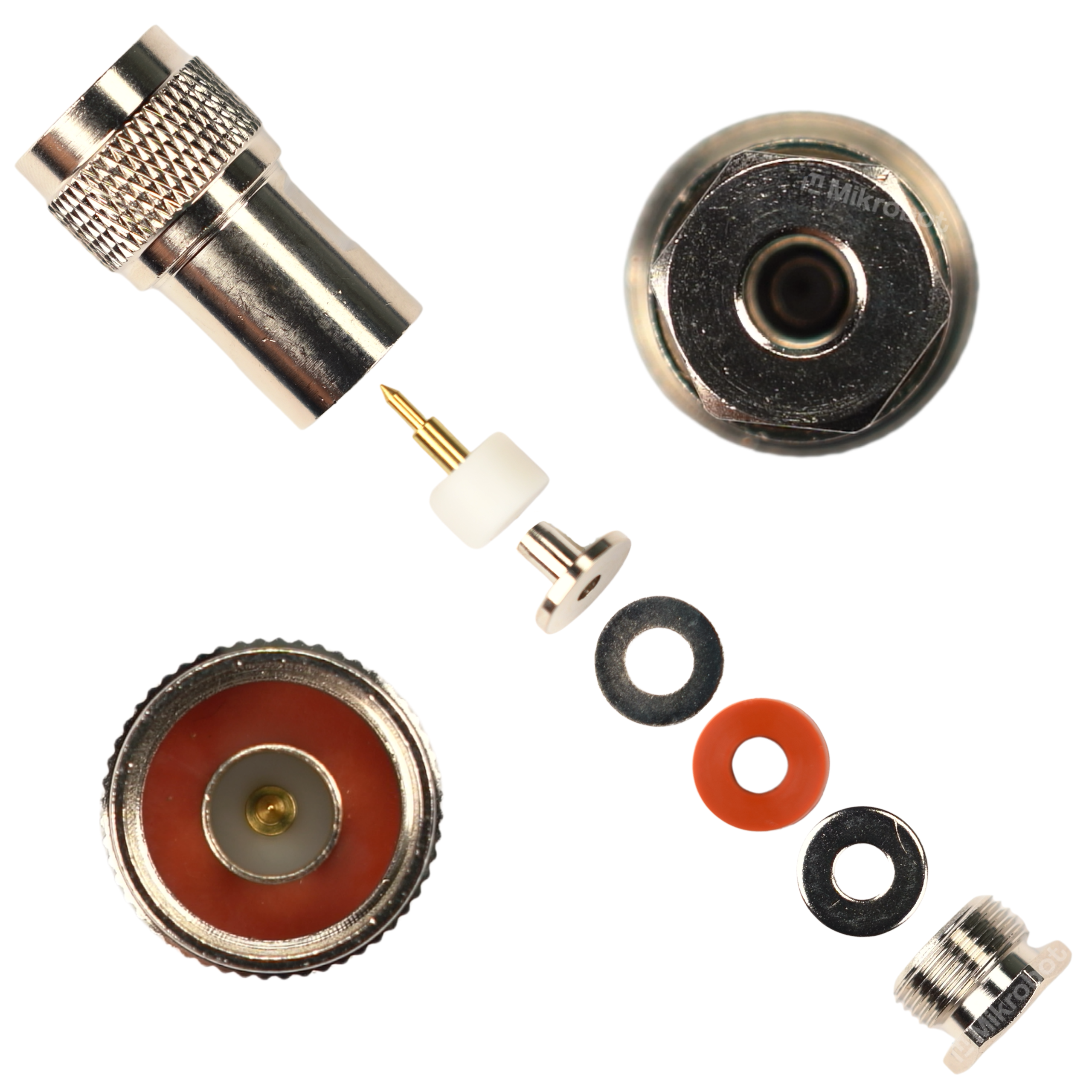

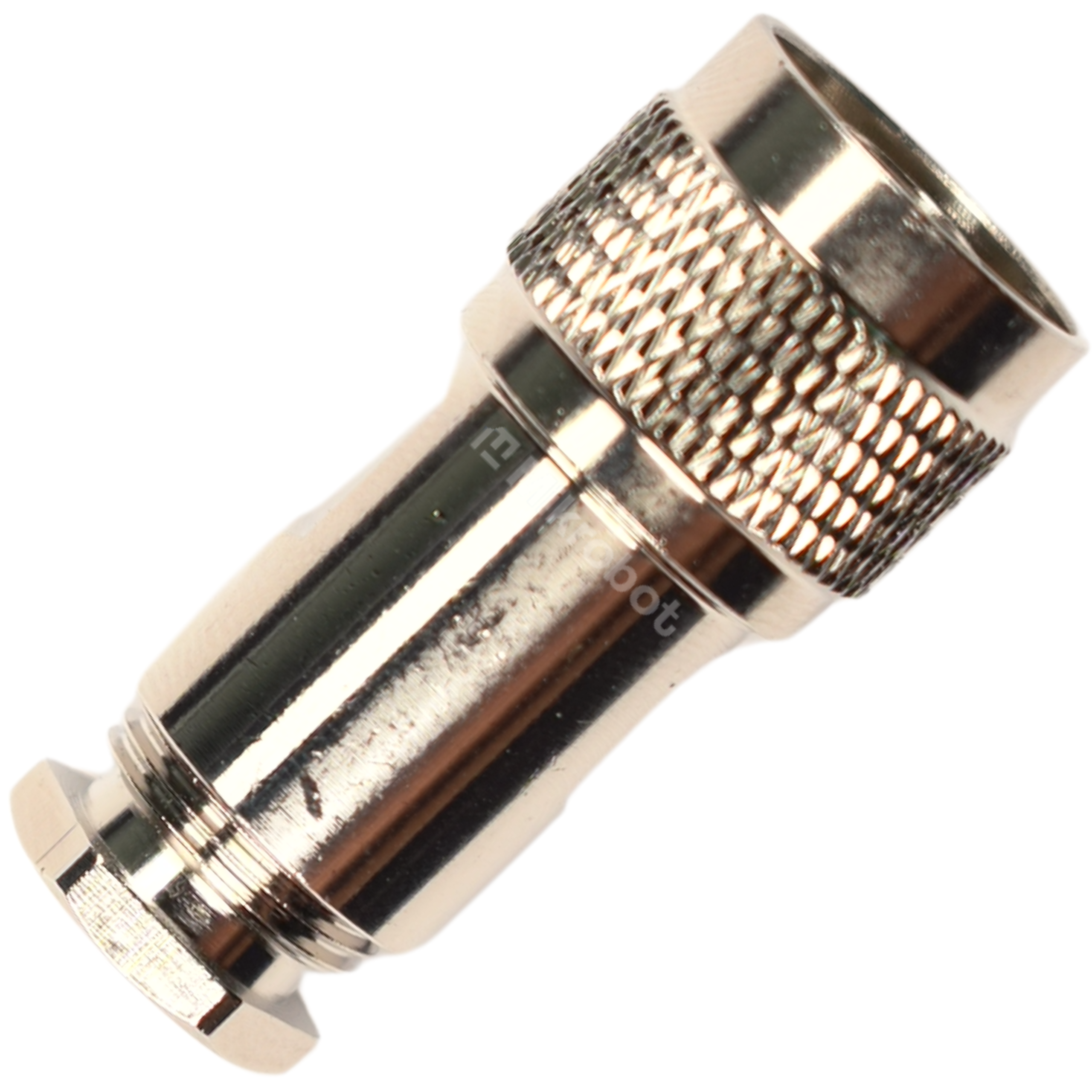

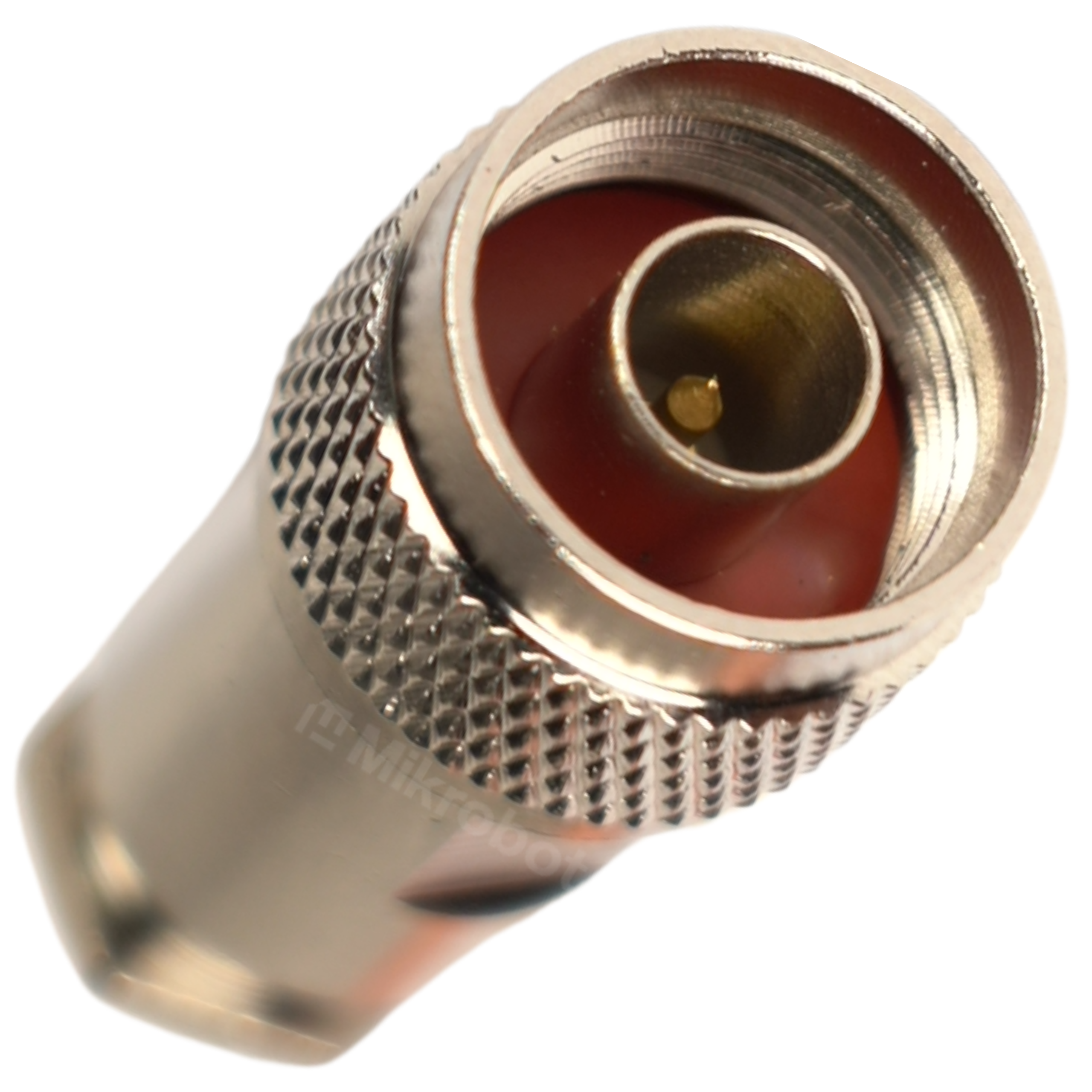

High-quality N-type screw-on connector (male) designed for installation on coaxial cables with an outer diameter ranging from 5.5 mm to 5.9 mm. The connector has an impedance of 50 Ω and is specifically designed for cables such as RF-5 and H155 Flex. The screw-on nut features a precision-machined 5.9 mm diameter hole, which ensures a secure fit for the cable and prevents the installation of thicker cables.

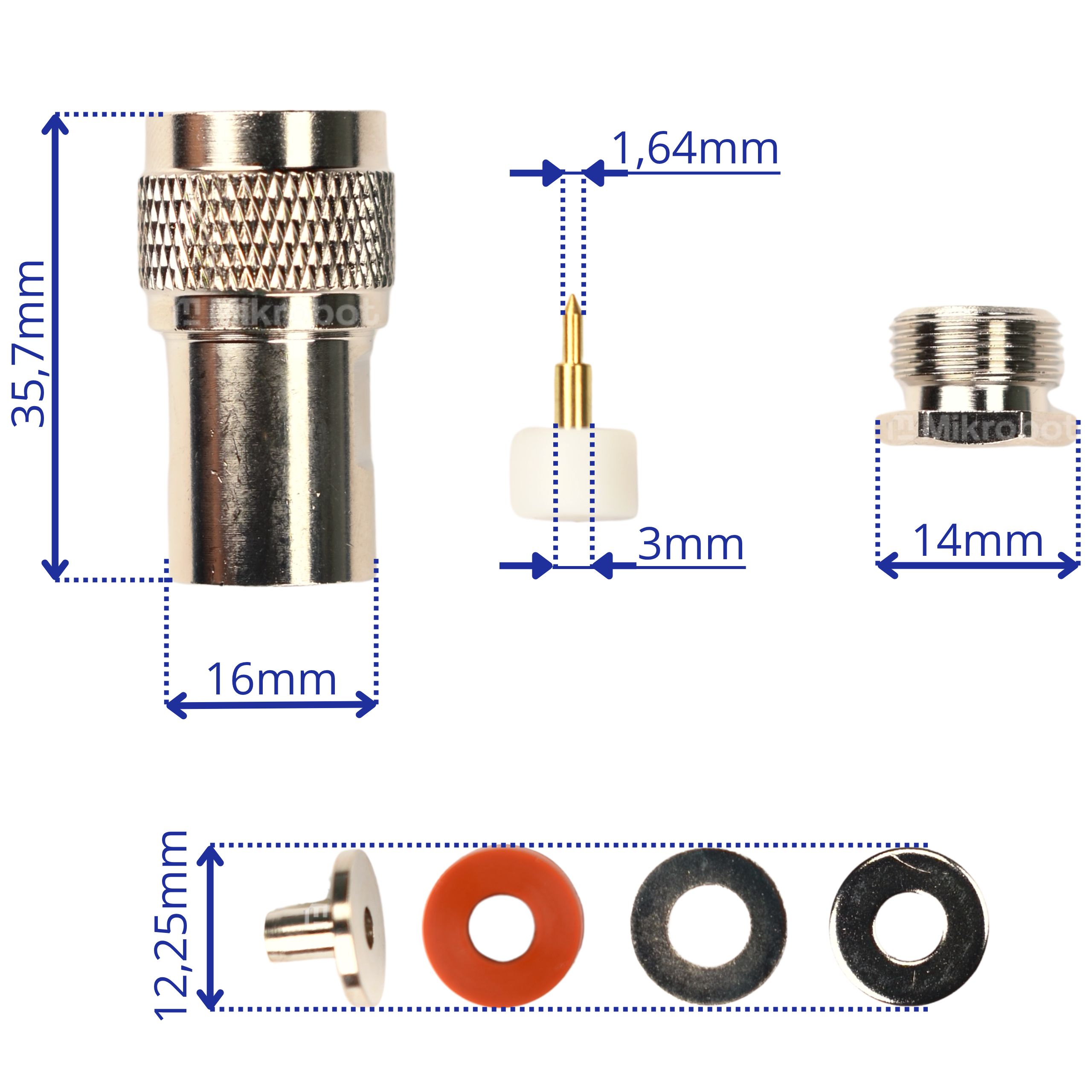

Key Technical Features

• Connector type: N-Male (male)
• Installation method: screw-on, soldered pin
• Compatible cable diameter: up to 5.8 mm
• Impedance: 50 Ω
• Body material: nickel-plated brass
• Pin material: gold-plated brass (1.4 mm hole)
• Insulator: Teflon
• Seal: silicone compression seal

Example Applications

The N-type connector is widely used in professional and amateur high-frequency installations. Its precision construction allows the connector to be used in demanding operating environments.

• Radio communication systems and amateur radio equipment
• Antenna systems requiring 50 Ω impedance
• Connections in wireless and telecommunications networks
• RF test equipment and laboratory equipment
• Installation on RF-5 and H155 Flex cables
• Construction of high-frequency transmission lines

Key benefits

The selection of a dedicated screw-on connector ensures connection reliability and minimizes signal loss in the transmission line. The materials used guarantee a long service life for the component.

• The robust nickel-plated brass construction ensures resistance to mechanical damage
• The gold-plated soldered pin ensures excellent signal conduction performance
• The use of a Teflon insulator increases thermal resistance during the soldering process
• A silicone compression seal protects the connection from contamination
