SMA TO UHF (UC-1) ADAPTER FOR BAOFENG

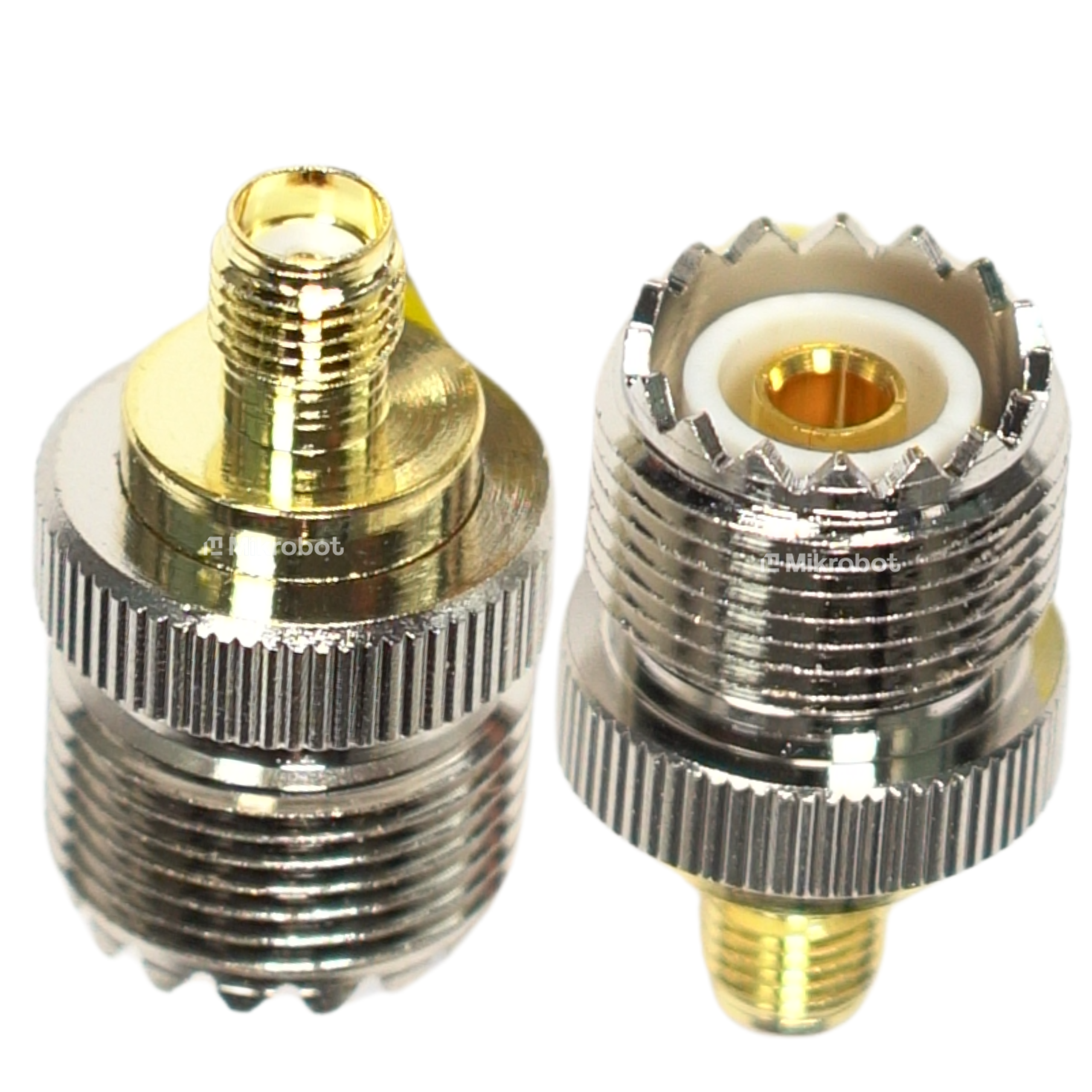

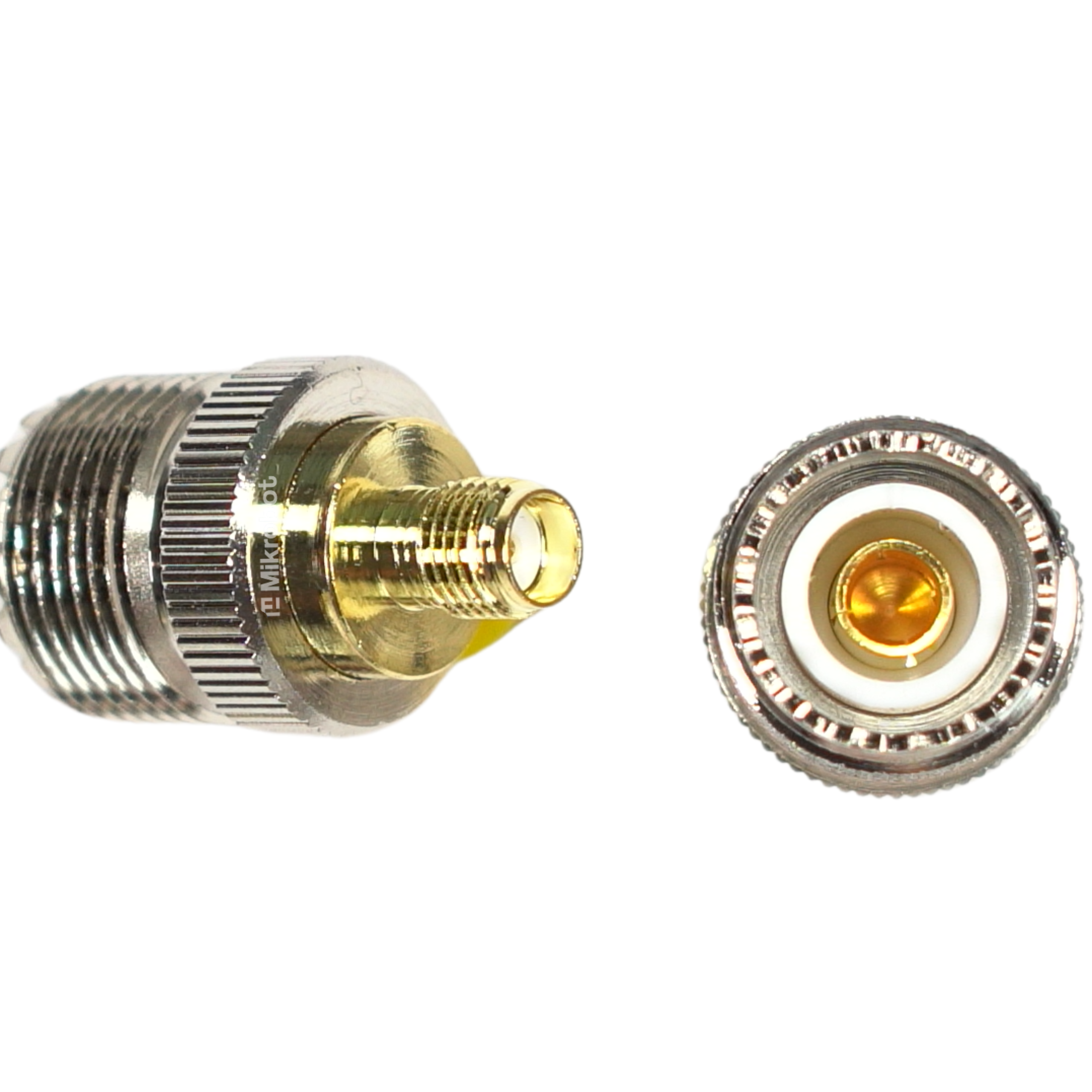

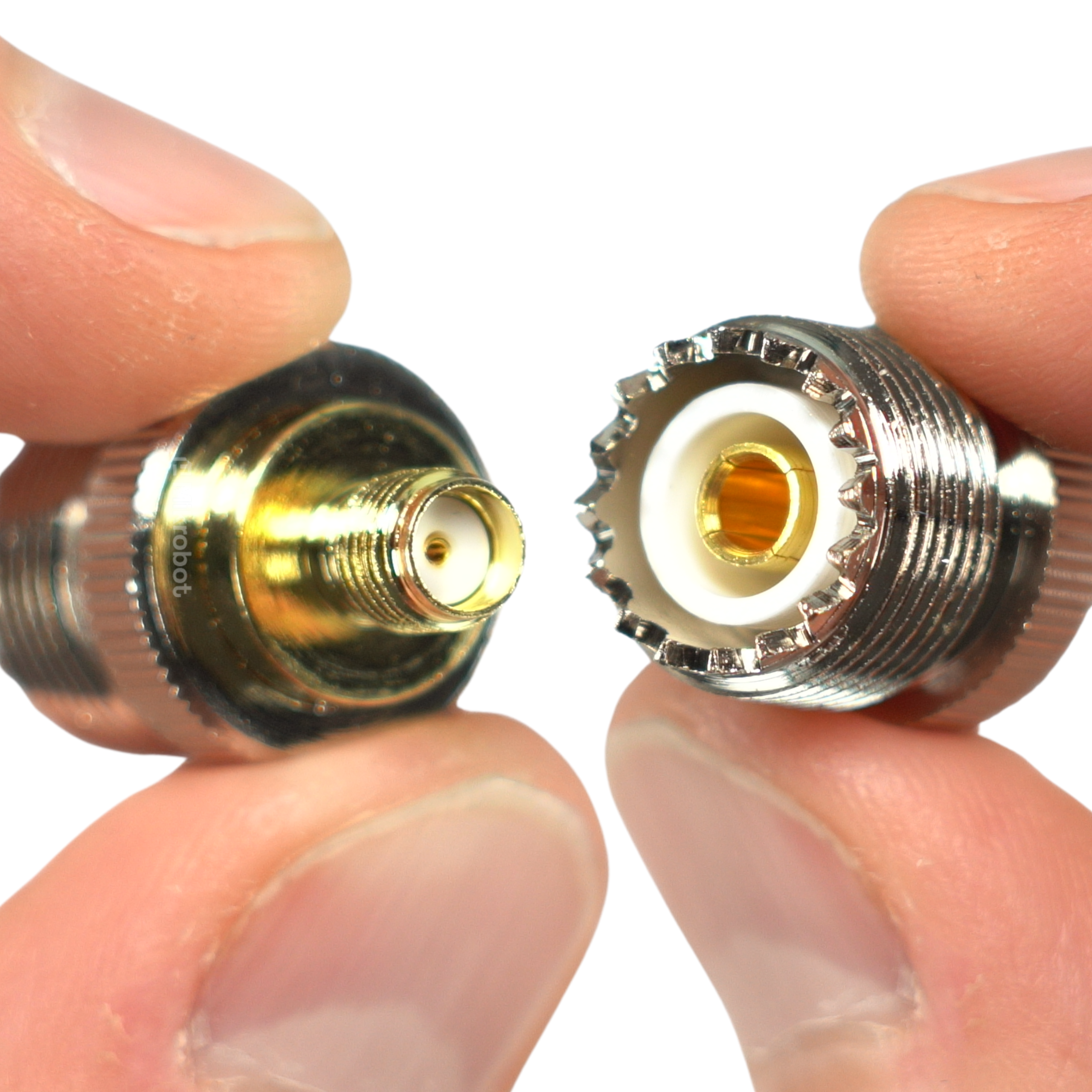

Adapter: SMA-F to UHF socket (UC-1)

High-quality adapter from SMA female (SMA-F) to a UHF socket, allowing external antennas terminated with a UC-1 (PL-259) plug to be connected to compact handheld radios. The part is precision-made and features a PTFE (Teflon) insulator and gold-plated contacts, for very good RF performance and easier building of advanced communication systems.

Key technical features

• Input connector: SMA female (SMA-F)
• Output connector: UHF socket (compatible with UC-1 and PL-259 plugs)
• Contact finish: gold plating for optimal conductivity
• Insulator type: PTFE (Teflon) - very good dielectric and thermal properties
• Construction type: straight adapter

Example applications

• Connecting a stationary base antenna operating on 2 m / 70 cm to a handheld dual-band radio.
• Pairing a frequency scanner with an external mobile antenna.
• Connecting test equipment such as antenna analyzers or SWR meters.
• Building portable, go-kit-style backup and monitoring communication setups.
• Testing coaxial cables terminated with common UHF plugs.

Benefits

• Minimal signal loss thanks to high-quality gold plating on contact surfaces.
• Temperature and wear resistance from a genuine PTFE insulator instead of cheaper plastic substitutes.
• Connection versatility, allowing easy use of standard feed lines in amateur radio systems.
• Solid metal construction suitable for use with heavier, thicker coaxial cables.

Device compatibility

The adapter works seamlessly with radios that have an SMA male antenna connector. Below is a list of popular models:

• Baofeng: UV-5R, UV-5R HP, UV-5R UP, UV-82, UV-82 HP, T-57, BF-A58, UV-8HX, UV-6R, UV-3R Plus, UV-B5, UV-B6, UV-6, BF-888-S
• Wouxun: KG-UV1D, KG-UV2D, KG-UV6D
• Intek: KT 960, KT 980 HP
• Other handheld radios, scanners, and receivers with a compatible antenna input.
