Przedwzmacniacz stereo equalizer NE5532 XH-M164 moduł audio RCA cinch

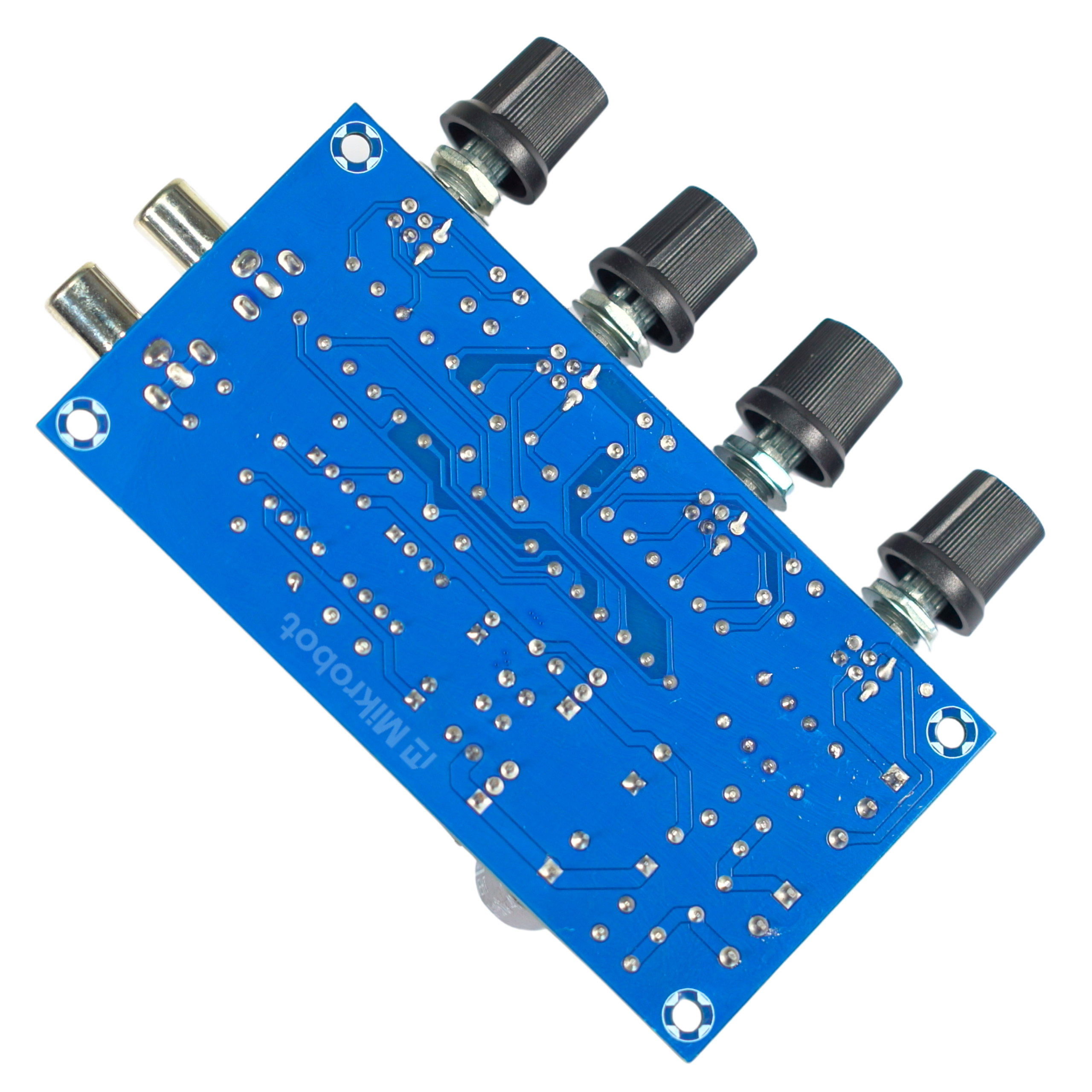

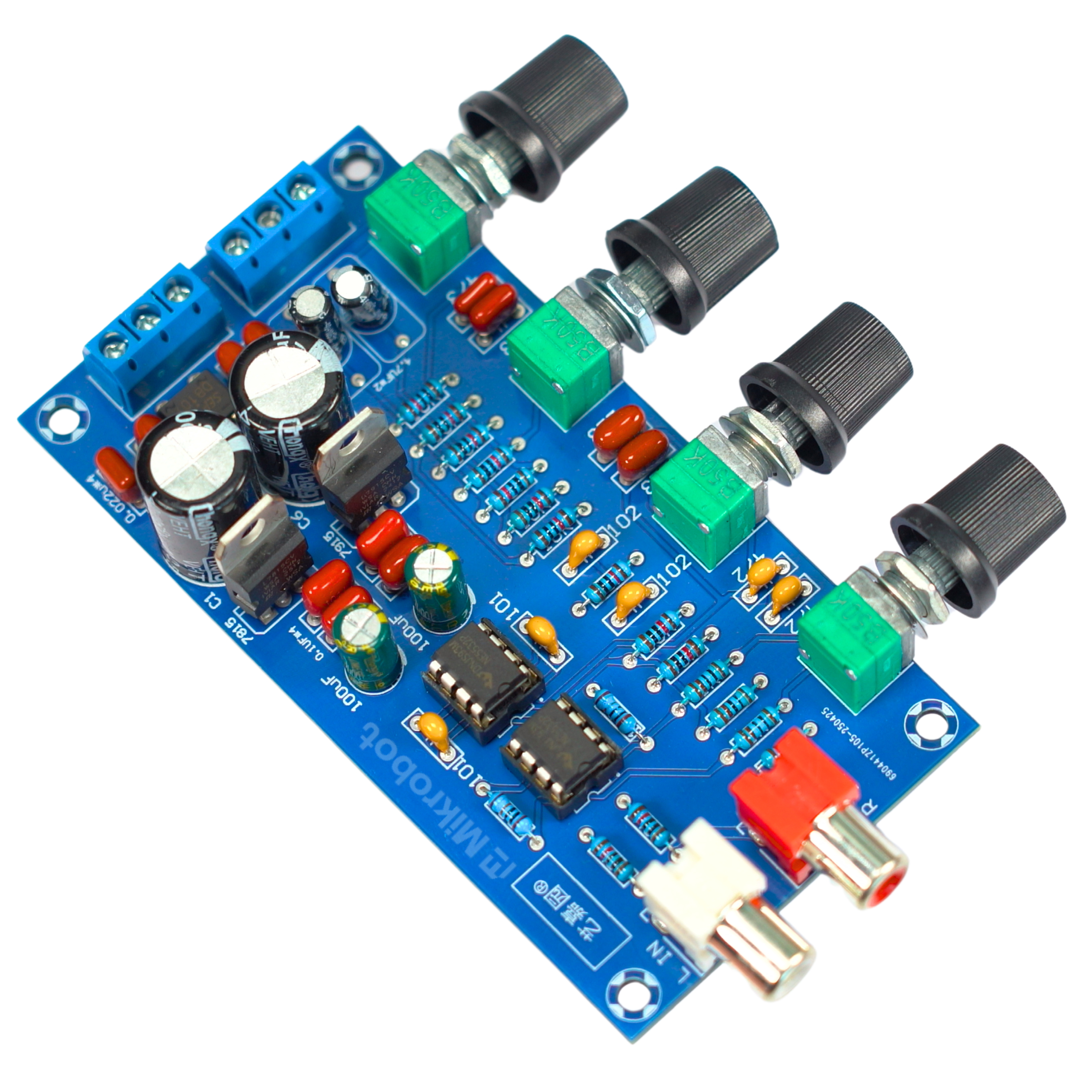

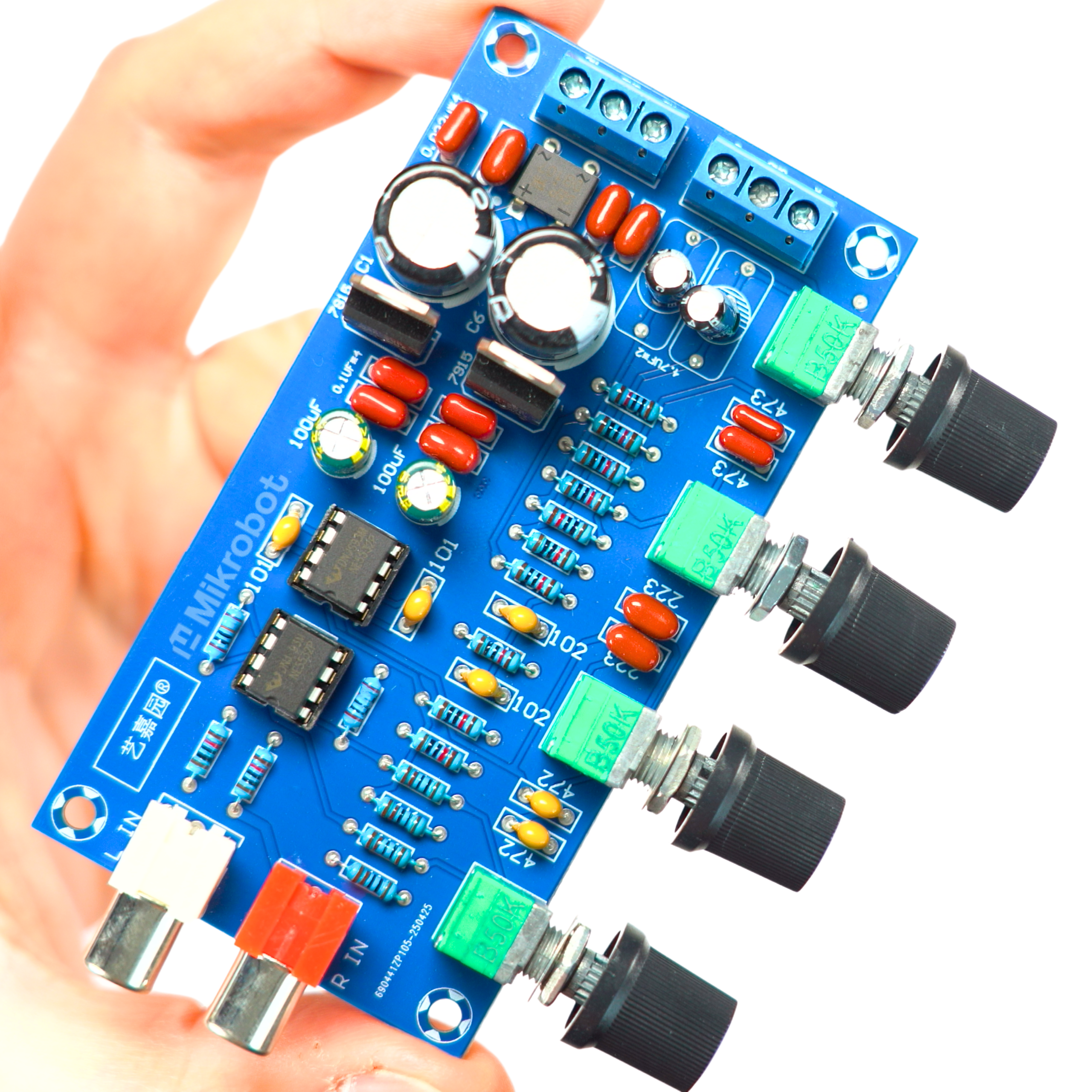

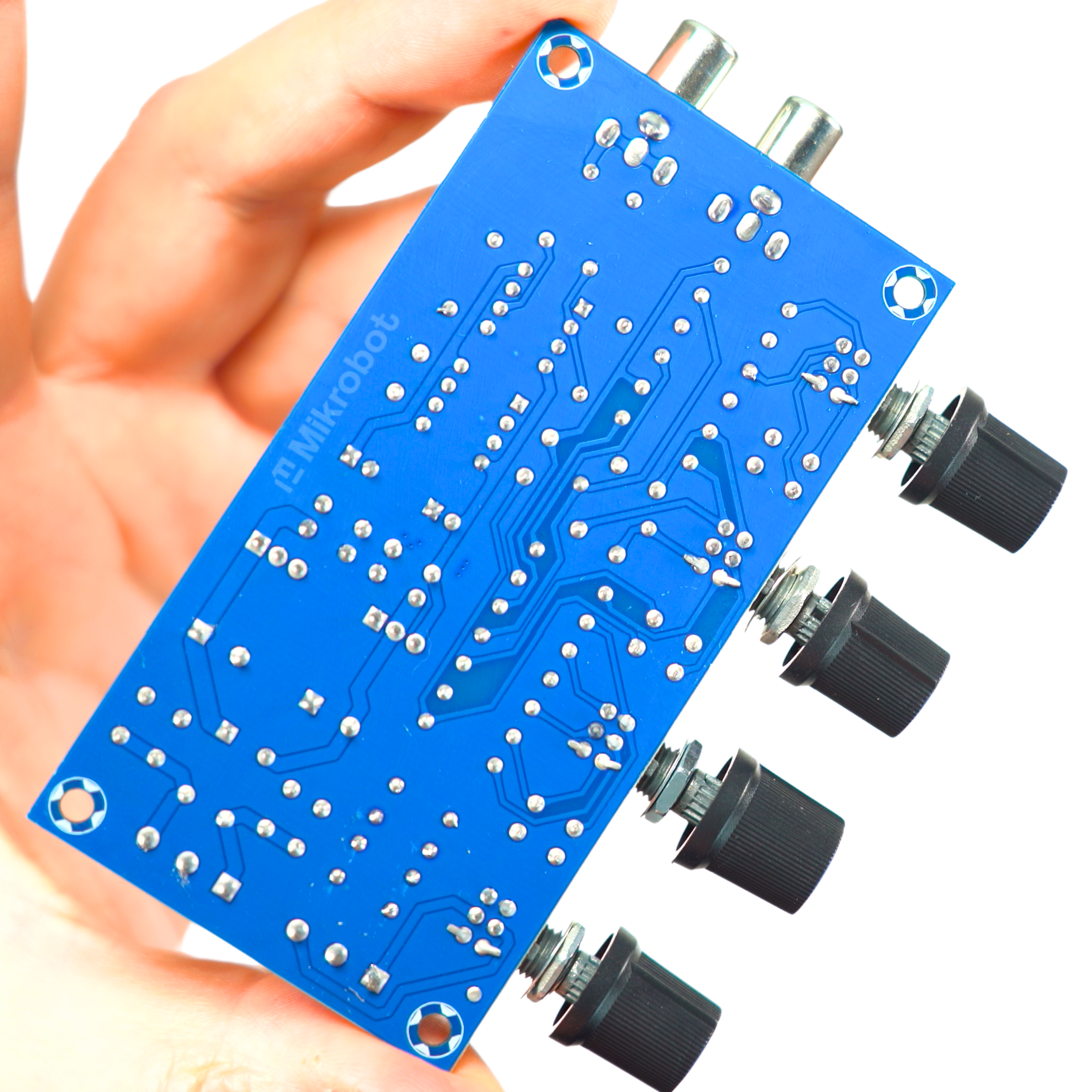

Stereo preamplifier with equalizer NE5532 XH-M164

High-quality stereo preamplifier equipped with an equalizer, enabling precise adjustment of tones and volume. The module is based on proven NE5532 integrated circuits, allowing up to 10x audio signal amplification. The input signal is connected via standard RCA (cinch) jacks, while the power input and audio outputs for the left and right channels are implemented with convenient screw terminals, eliminating the need to solder wires.

Key technical features

• Integrated circuit: NE5532
• Supply voltage: allowable 12-18V AC (symmetrical 15V AC recommended)
• Tone control: bass, midrange, treble, and overall volume
• Signal gain: up to x10
• Audio input: 2x RCA (cinch)
• Connections: screw terminals for power and audio output
• Dimensions: 105 mm x 54 mm

Example applications

• Building home hi-fi audio systems
• Upgrading older amplifiers and receivers
• Constructing active speaker enclosures
• DIY projects related to audio signal processing
• Sound reinforcement systems requiring tone correction

Benefits

• Precise sound tone adjustment to meet acoustic requirements
• Quick and hassle-free installation thanks to screw terminals
• High-quality signal processing thanks to NE5532 integrated circuits
• Complete kit including dedicated knobs for potentiometers
