Termopara Typu K Moduł MAX6675 czujnik temperatury do 800°C SPI do Arduino

MAX6675 Module with Type K Thermocouple up to 800°C

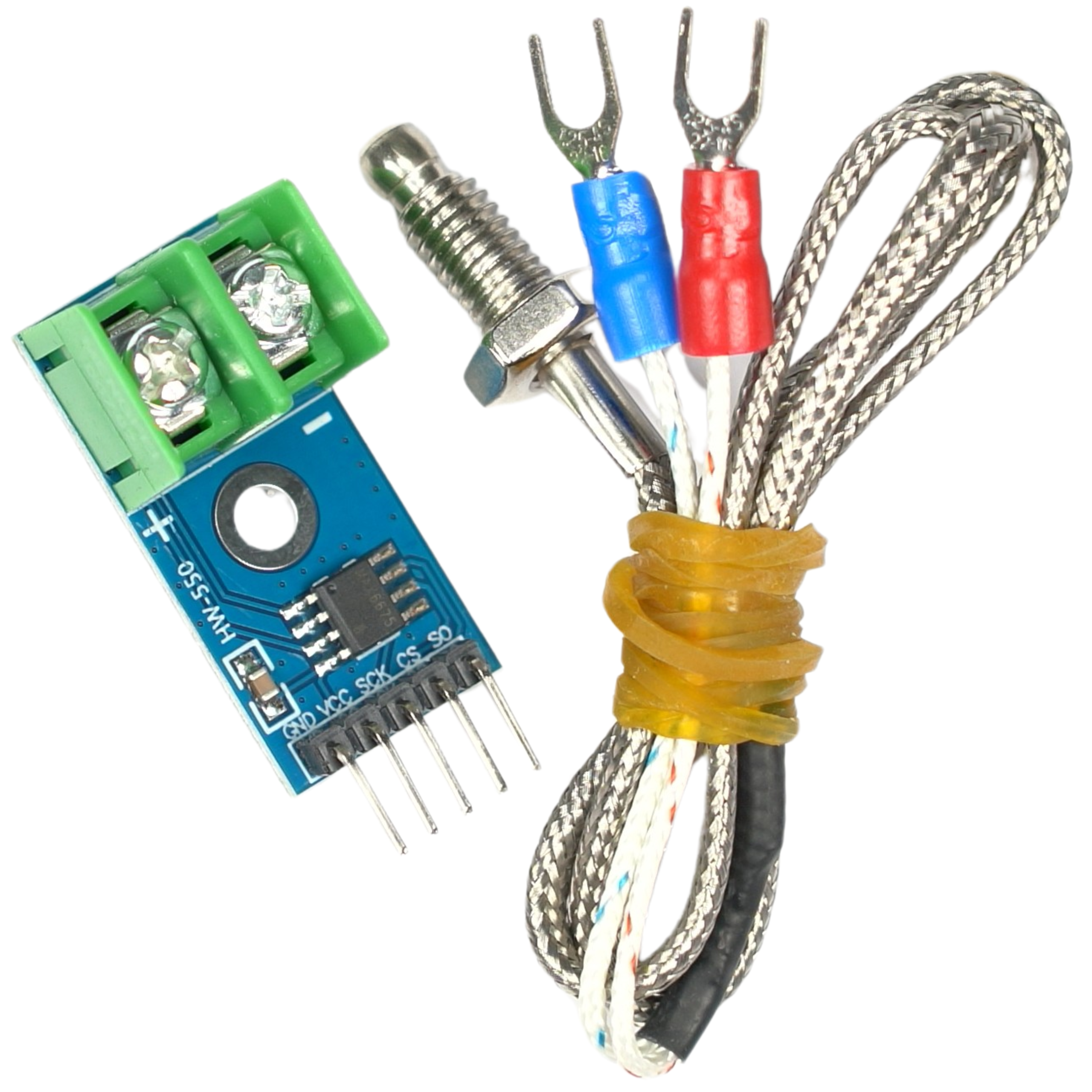

The kit includes a type K thermocouple probe and a dedicated module with the MAX6675 chip. Thermocouples generate very low analog voltages on the order of microvolts, so an analog-to-digital converter is required for precise reading by a microcontroller. The chip converts the signal to digital form, enabling accurate temperature measurement.

Key Technical Features

• Converter chip: MAX6675
• Module supply voltage: 3.3 V - 5 V
• ADC converter: 12-bit (reading resolution 0.25°C)
• Communication interface: SPI
• MAX6675 chip measurement range: from 0°C to 1024°C
• Maximum probe operating temperature: 800°C
• Module operating temperature range: from -20°C to 85°C
• Cold junction compensation: built-in
• Module dimensions: 32 x 16 mm
• Thermocouple type included in the kit: Type K
• Probe wire length: 48 cm
• Probe thread: M6

Important Limitations

• The MAX6675 chip measures positive temperatures only (from 0°C). Measurement below zero is not possible.
• The actual upper limit of the kit is determined by the probe (800°C), not the converter chip (1024°C).

Compatibility and Connection

Thanks to the standard SPI interface, the module is easy to integrate with popular microcontroller platforms. Data reading is fast and reliable. The product is compatible with, among others:

• Arduino
• ESP8266
• ESP32
• Raspberry Pi
• STM32

Example Applications

• Temperature measurement in soldering and heating ovens
• Temperature control in industrial processes
• Monitoring of exhaust systems and internal combustion engines
• Building BGA soldering stations and precision soldering irons
• Measurements in smoking chambers and drying rooms
• HVAC systems and heating installations (positive range)

Benefits

• High precision thanks to the dedicated MAX6675 chip with a 12-bit ADC converter
• Wide measurement range enabling operation at high temperatures up to 800°C
• Built-in cold junction compensation - no need for an additional reference sensor
• Ready-to-use kit including the module, probe, and connection wires
• Easy mechanical mounting of the probe thanks to a universal connector with M6 thread
• Seamless integration with systems operating at 3.3 V and 5 V logic voltages

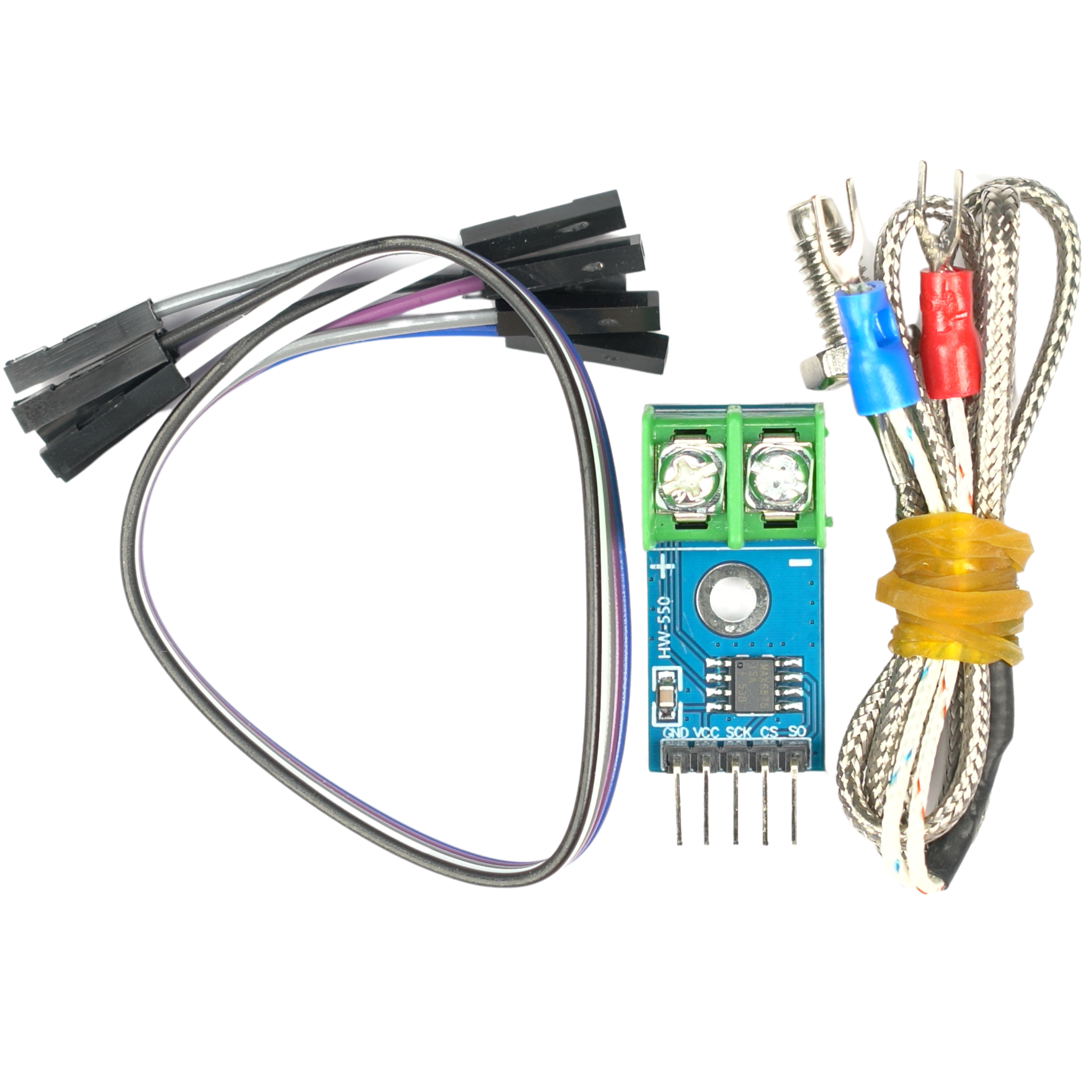

Kit Contents

The package includes all elements necessary to start measurements immediately:

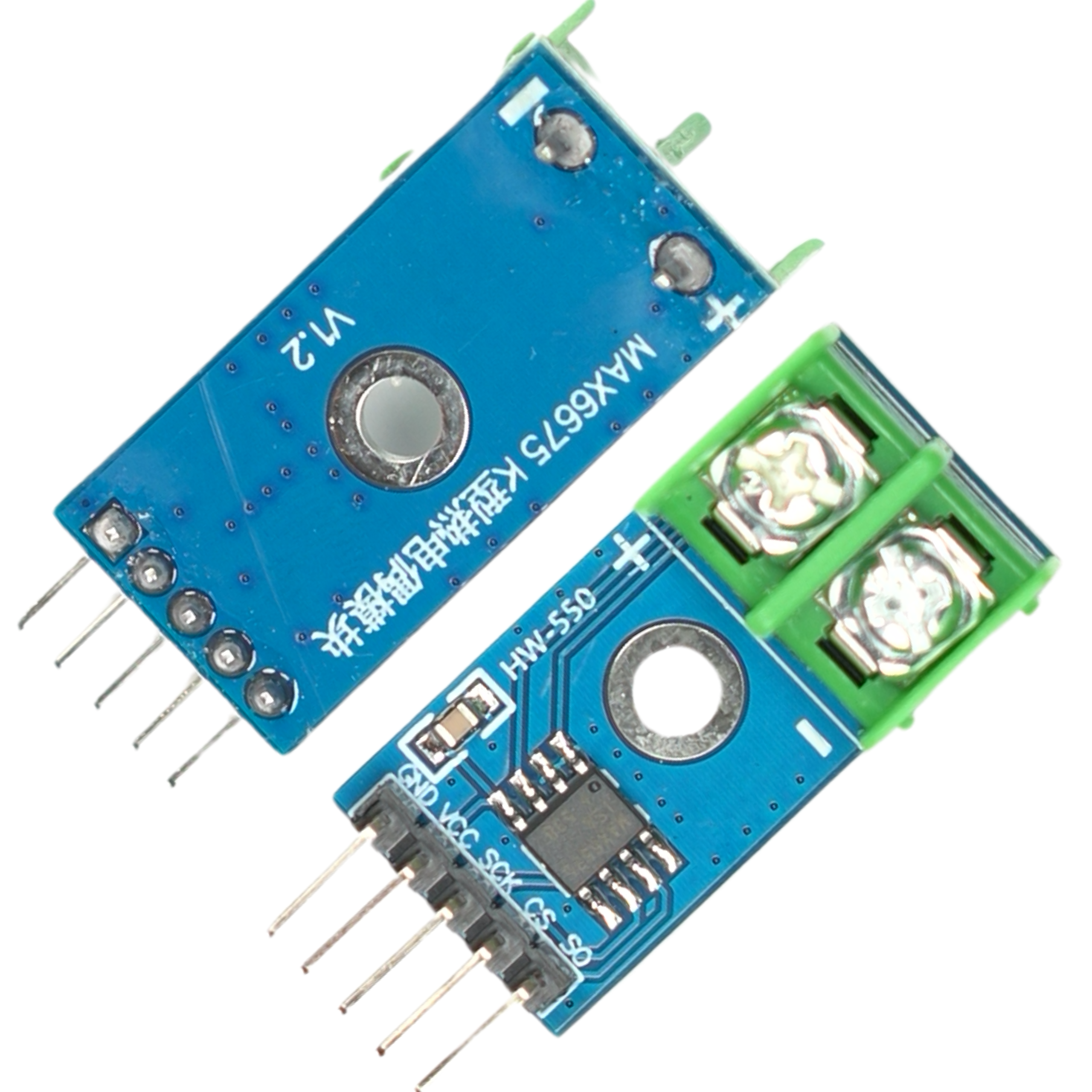

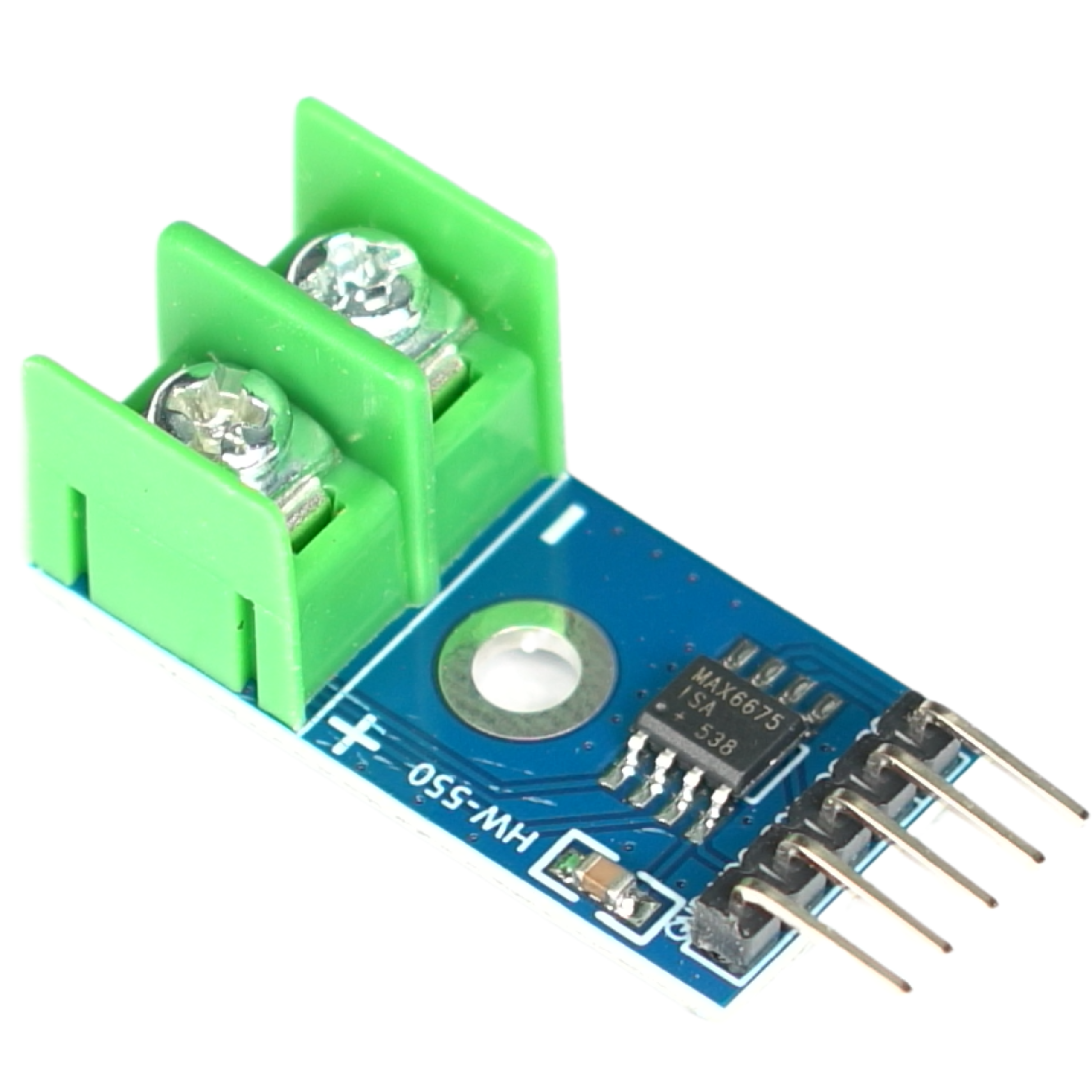

• Converter module with the MAX6675 chip

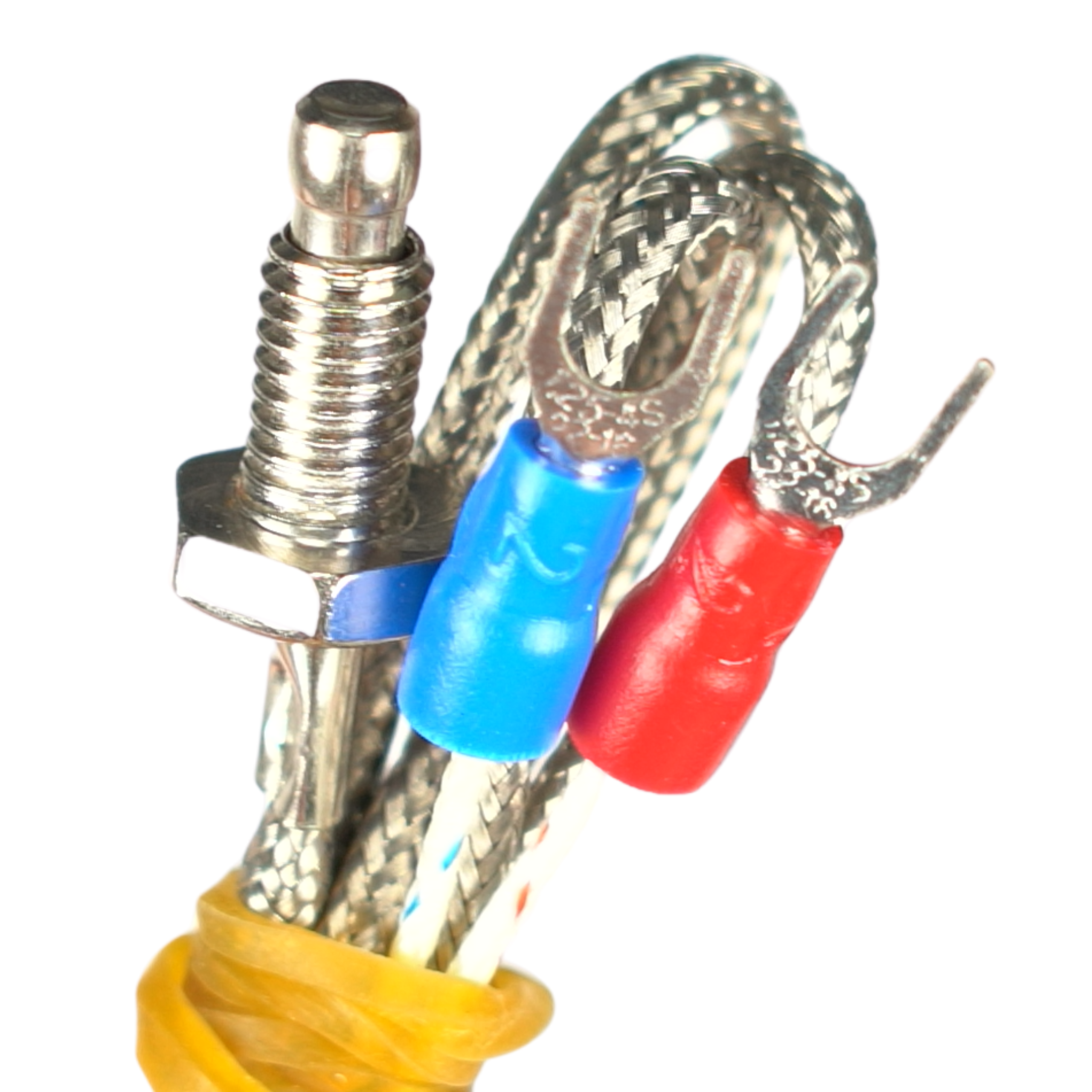

• Type K thermocouple measurement probe with fork terminals
• Female-to-female connection wires - 5 pcs
