Wtyk złącze UC-1 UHF męski nakręcany lutowany kabel RG-11 pozłacany PL-259

UHF UC-1 Screw-On Plug for RG-11 Cable

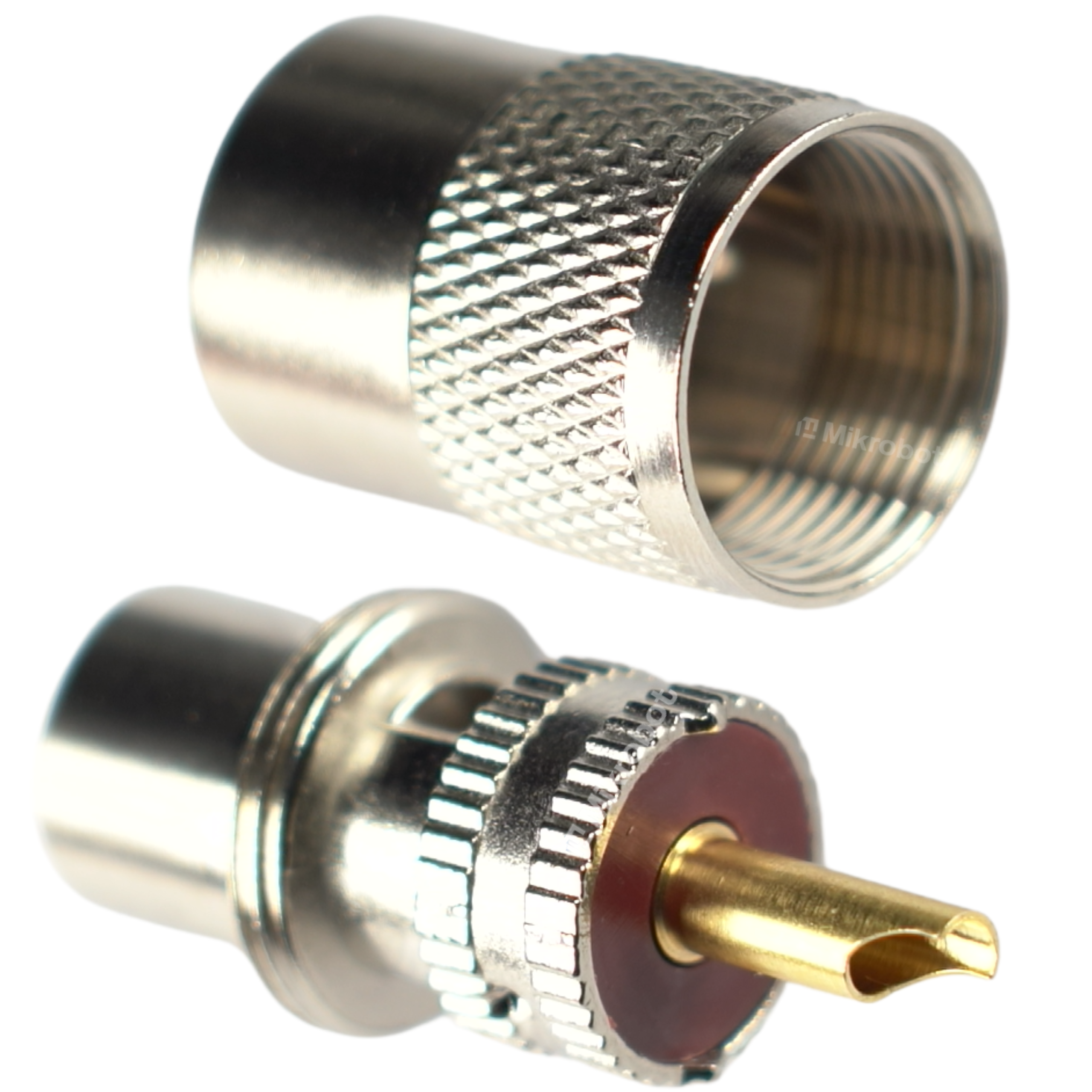

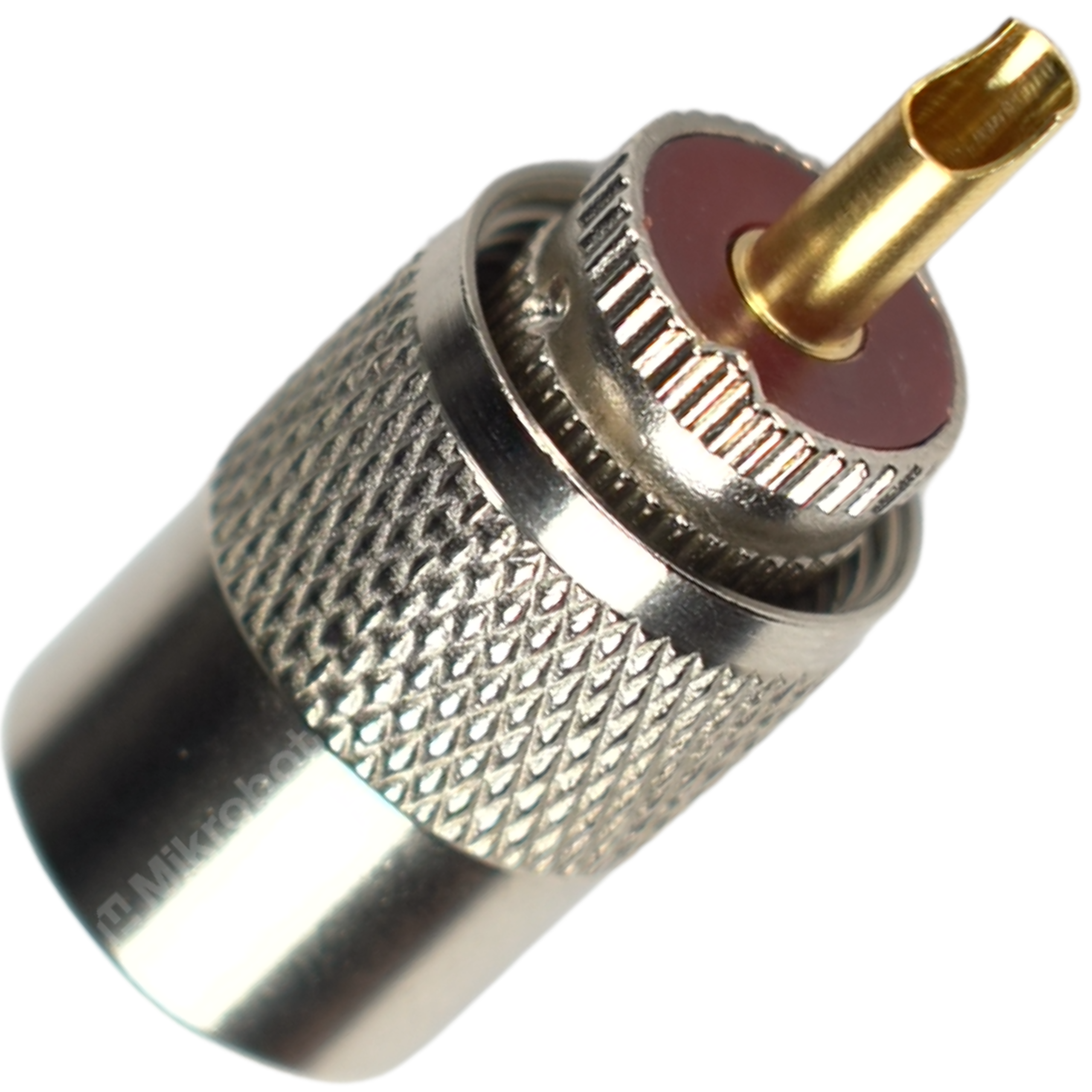

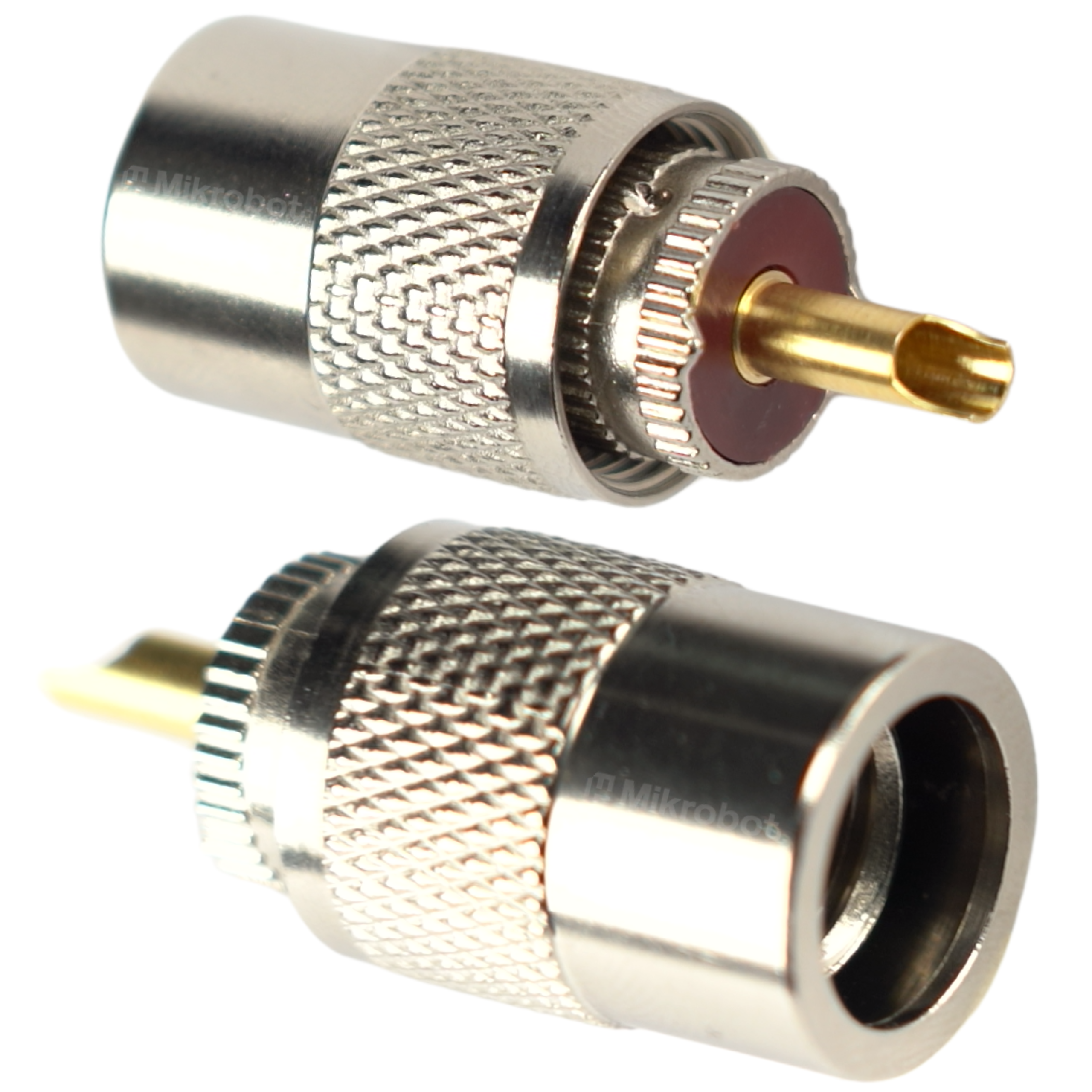

Short, screw-on and soldered UHF-014 plug, designed for installation on RG-11 coaxial cables with an outer diameter of 10 - 10.3 mm. The connector is equipped with high-quality insulation and a gold-plated pin, which ensures stable electrical parameters and a durable mechanical connection.

Key Technical Features

• Connector type: UHF-014 (UHF male, PL-259/UC1)
• Shield mounting method: screw-on
• Center conductor mounting method: soldered
• Compatible cable: RG-11

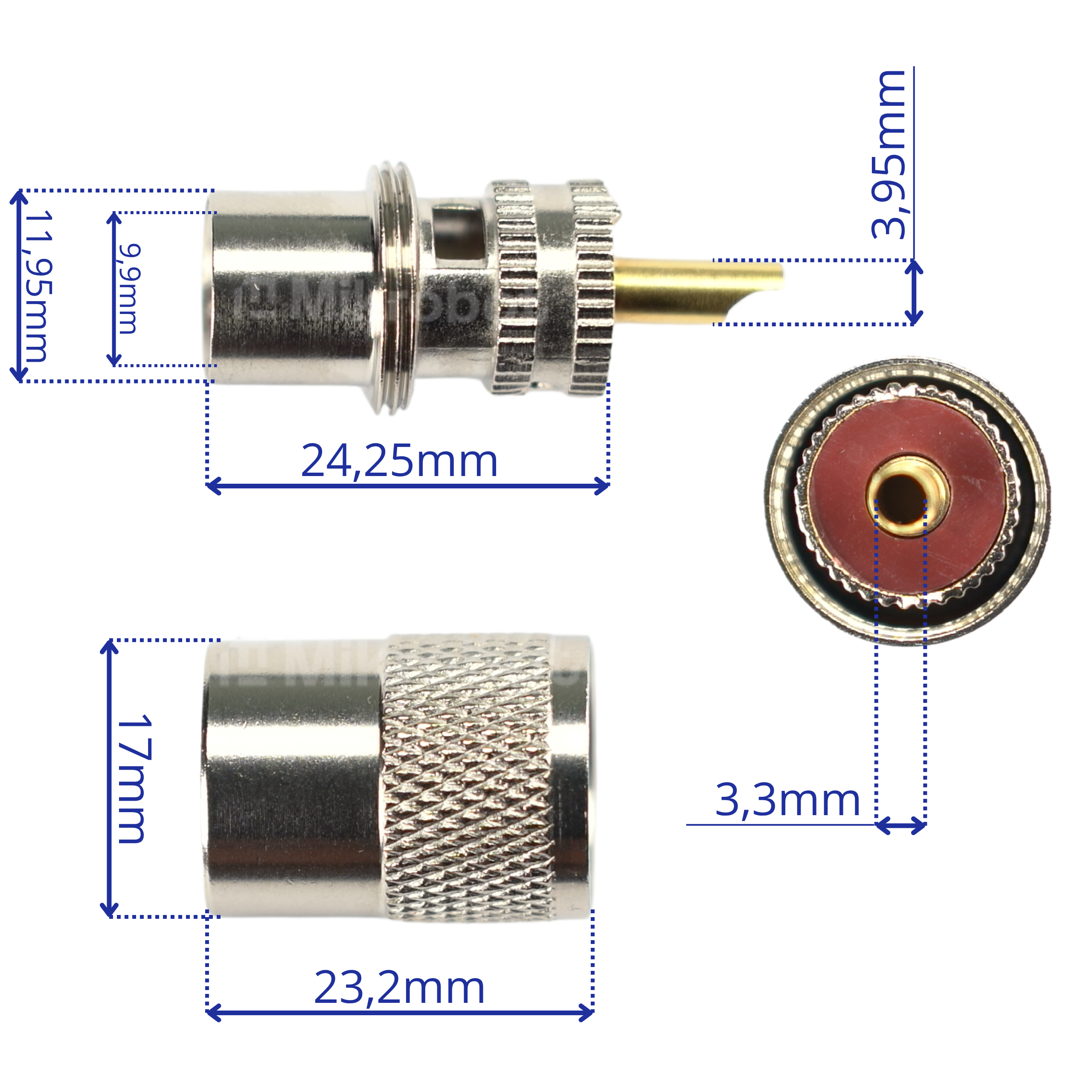

• Permissible cable outer diameter: 10 - 10.3 mm

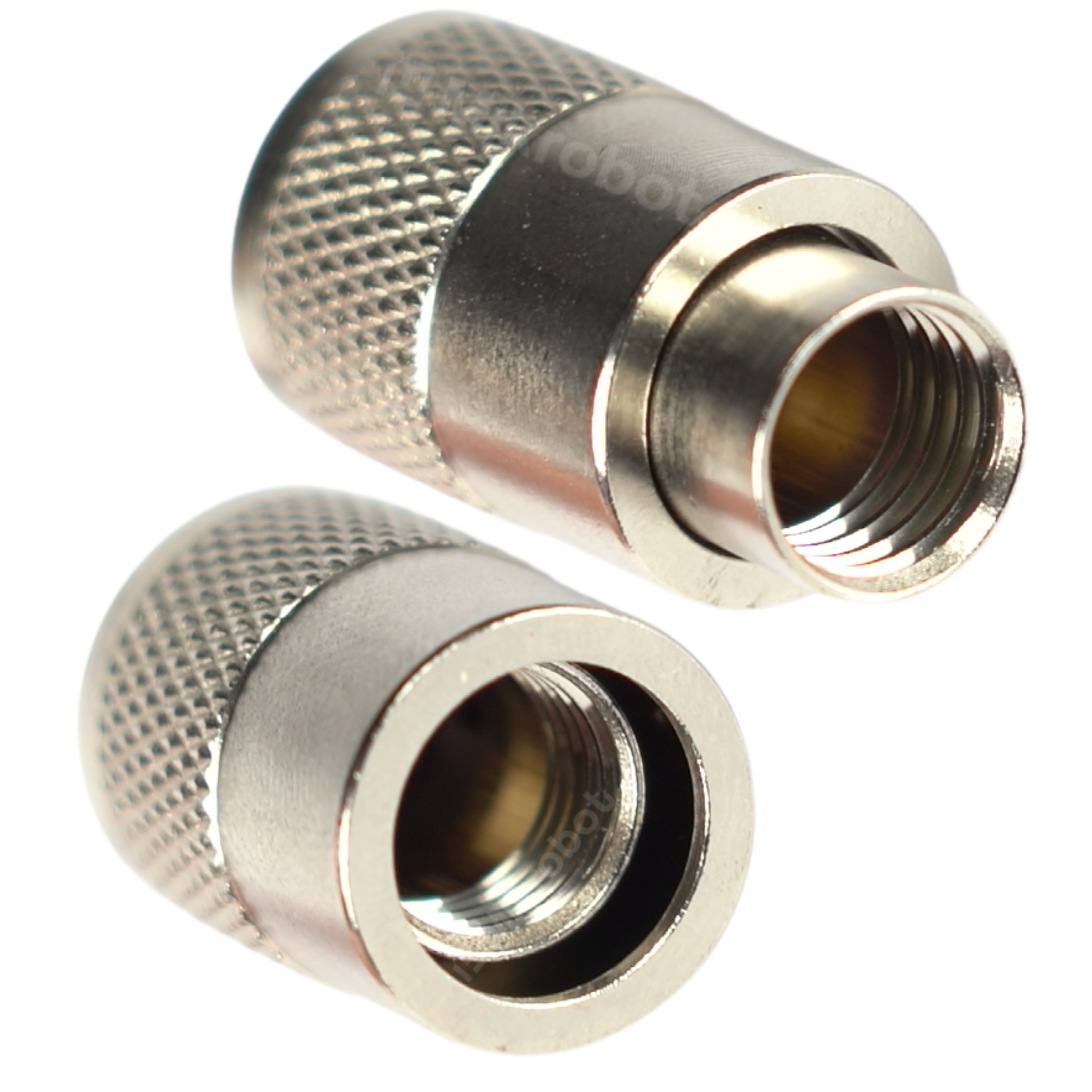

• Internal thread diameter: 9.9 mm
• Assembly: soldering, screwing

Benefits

• Good electrical conductivity and signal stability provided by the gold-plated pin
• Easy installation via screwing onto the cable - no need for specialized crimping tools
• Secure grip on thicker RG-11 cable, resulting in lower signal loss at the connector
• High connection durability, ideal for stationary and mobile installations

Example Applications

• Creating connections in base CB antenna installations on longer cable runs
• Terminating cables in amateur radio equipment
• Building patch cables for radio communication devices requiring low attenuation
• Service work and repair of damaged RG-11 antenna cable ends
• Building measurement paths operating in lower radio frequency ranges
