Wtyk złącze UC1 UHF nakręcany kabel RF5 H155 RG59 50 Ohm teflonowy mosiądz

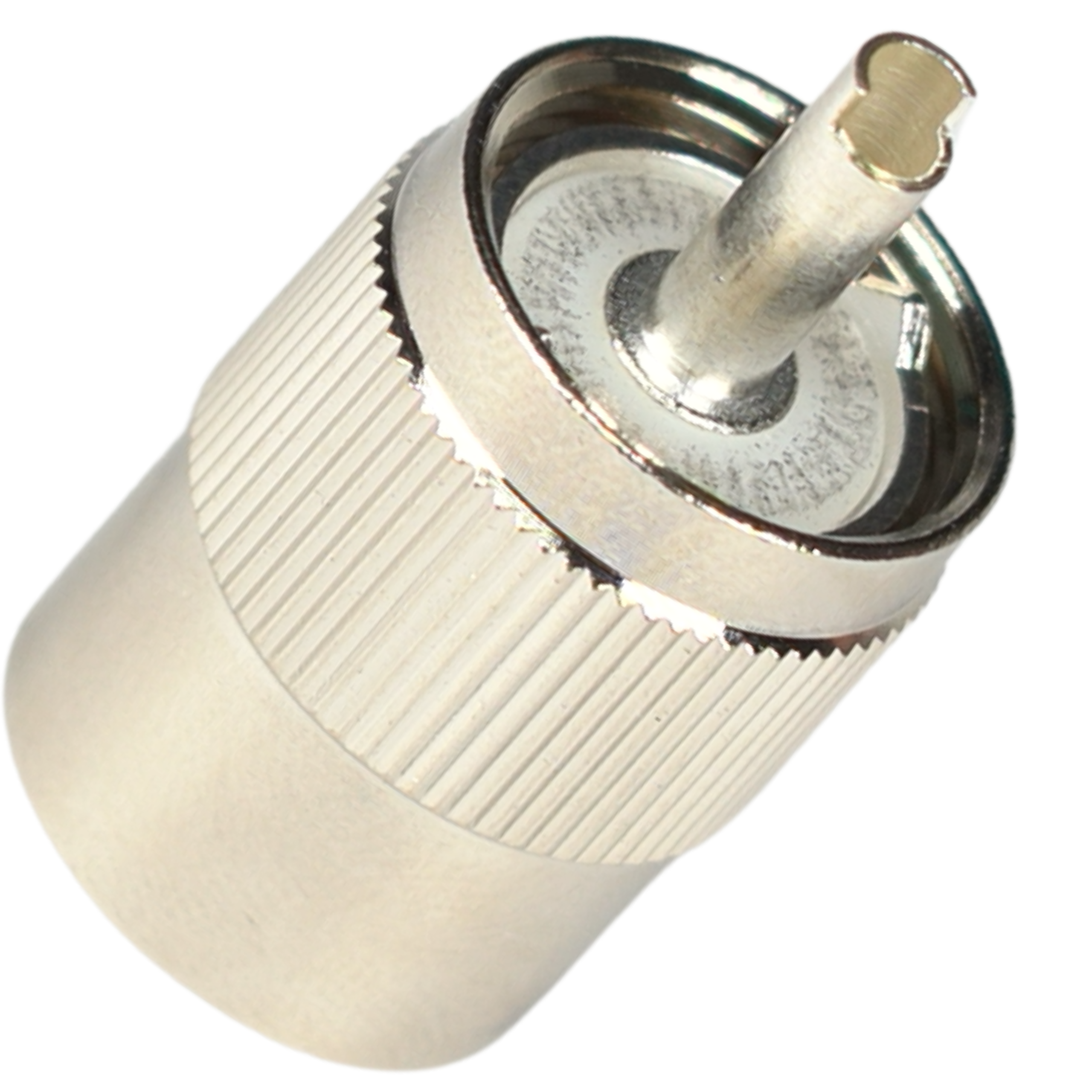

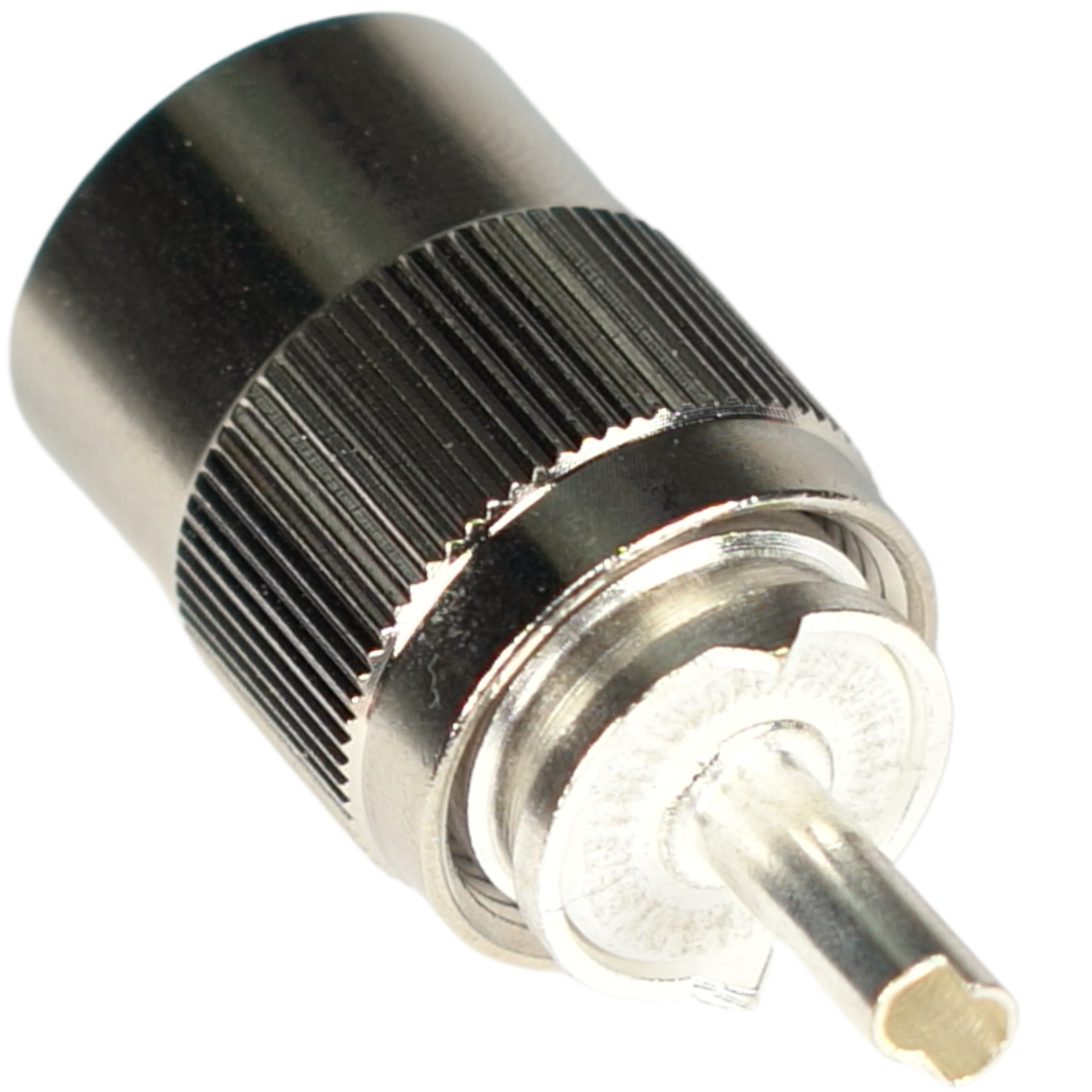

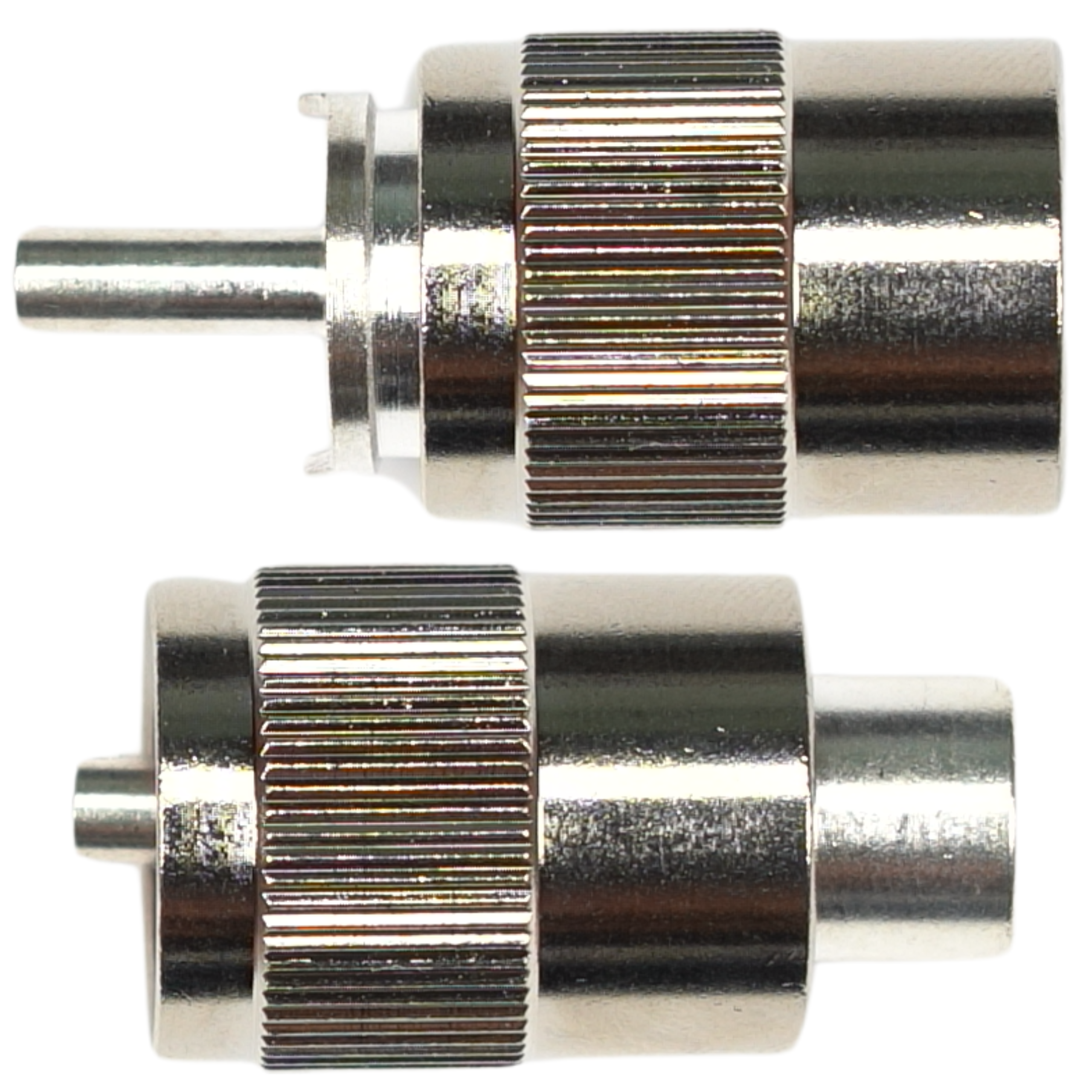

UC1 Screw-On Connector for RF5, H155, and RG59 Cables

High-quality UC1 (UHF) connector designed for screw-on installation on RG59, RF5, and H155 cables. The product is precision-manufactured to fit these specific cables, eliminating fit issues with the outer braid. The design, based on brass components and a Teflon insulator, ensures a reliable connection in radio communication installations.

Key Technical Features

• Connector type: UC1 plug (UHF)
• Installation method: screw-on
• Compatible cables: RG59, RF5, H155

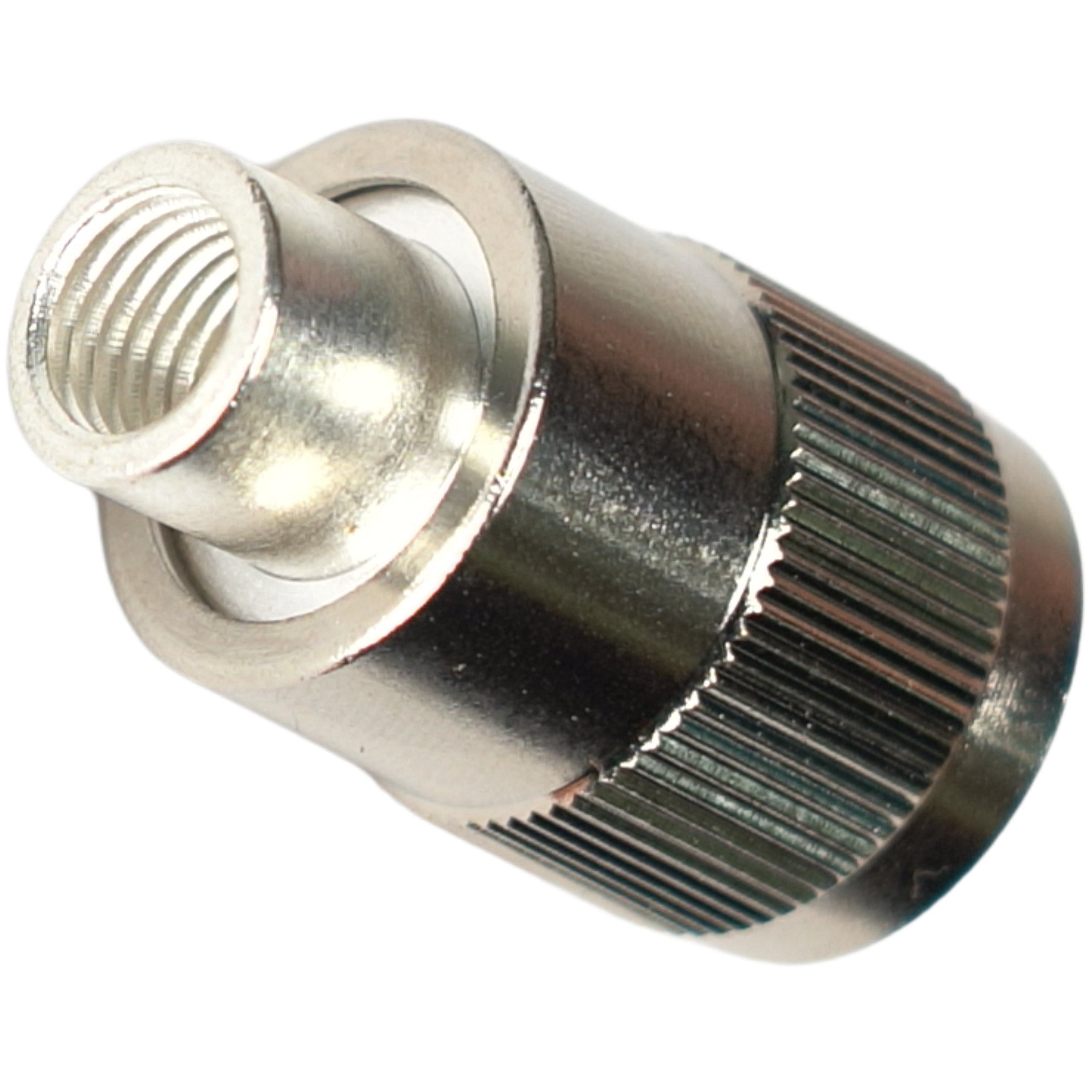

• Internal thread diameter: 7.3 mm
• Material: nickel-plated brass
• Insulator type: Teflon

Benefits

• Precise fit: The carefully selected thread diameter allows for trouble-free screwing onto a 7 mm diameter cable and its braid (which can be a problem with smaller connectors for RG58)
• Excellent conductivity: the use of a brass pin reduces signal loss and ensures a high-quality electrical connection
• Mechanical durability: The solid body and nickel-plated brass nut protect the connector from damage in harsh conditions
• High thermal resistance: the Teflon insulator ensures the stability of the connector’s parameters and facilitates safe installation
• System reliability: the connector maintains dimensions identical to those specified in the technical documentation for the supported cables

Example applications

• Construction of outdoor and indoor antenna systems with UHF connectors
• Installation in amateur and professional ham radio equipment
• Installation and maintenance work on complex radio communication systems
• Manufacturing high-quality 50-ohm transmission cables for base stations
• Establishing durable connections between transceiver equipment and antenna tuning components
