Moduł ultradźwiękowy atomizer rozpylacz cieczy 5V 2W micro USB do Arduino

Product description

A compact ultrasonic atomizer module designed for creating mist from liquids. The device is powered by 5V via a standard micro USB connector, making it extremely easy to use. The module is an excellent choice for projects and is compatible with popular platforms such as Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Supply voltage: 5V
• Current consumption: 300mA
• Power: 2W
• Operating frequency: 108.0 ±5kHz
• Output: 30 - 60ml/h
• Atomizer disc diameter: 16mm (20mm with external silicone ring)
• Cable length: 112mm
• Module dimensions: 35 x 18 x 13 mm
• Operating temperature: from -30°C to 80°C
• Power connector: micro USB
• Status indication: built-in LED

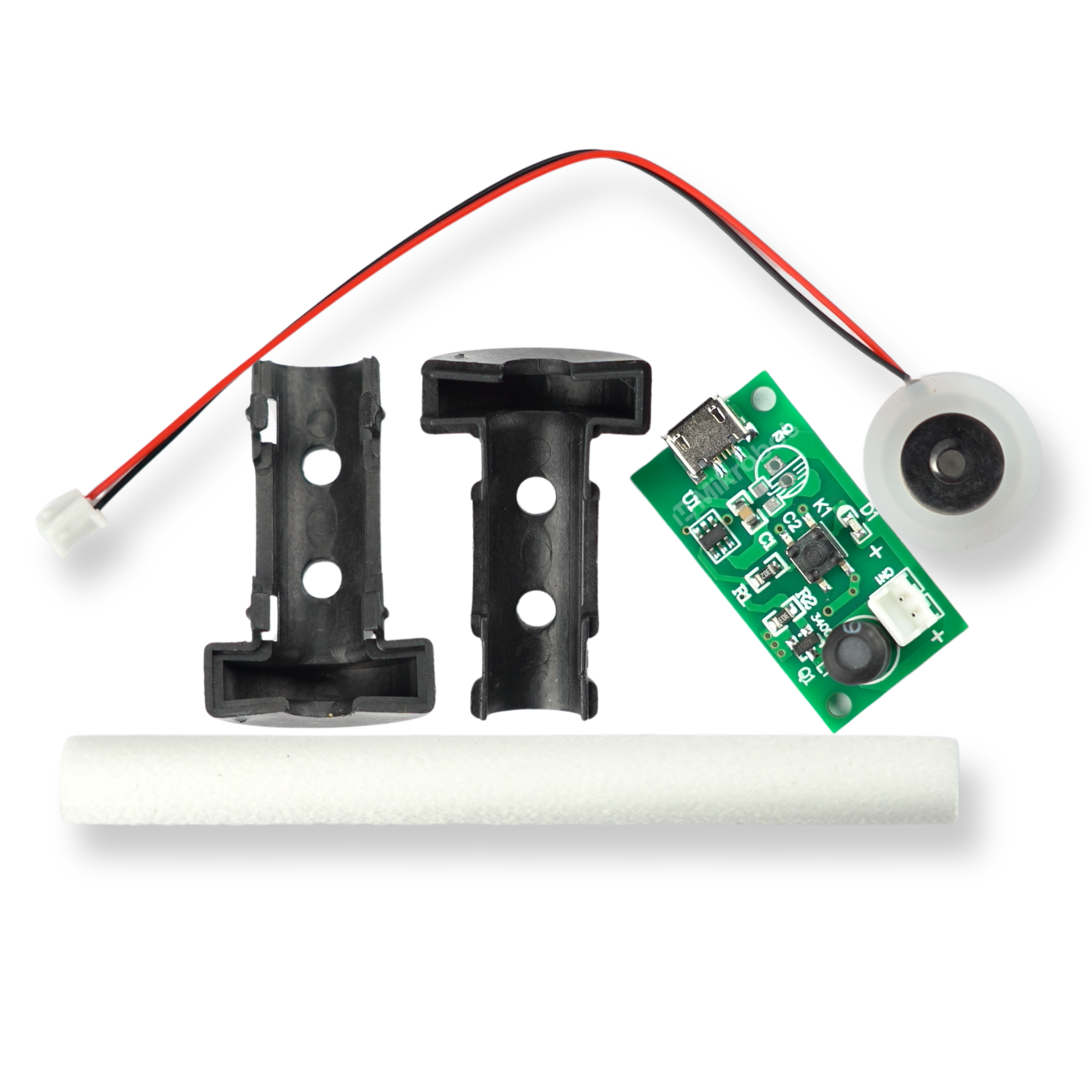

Package contents

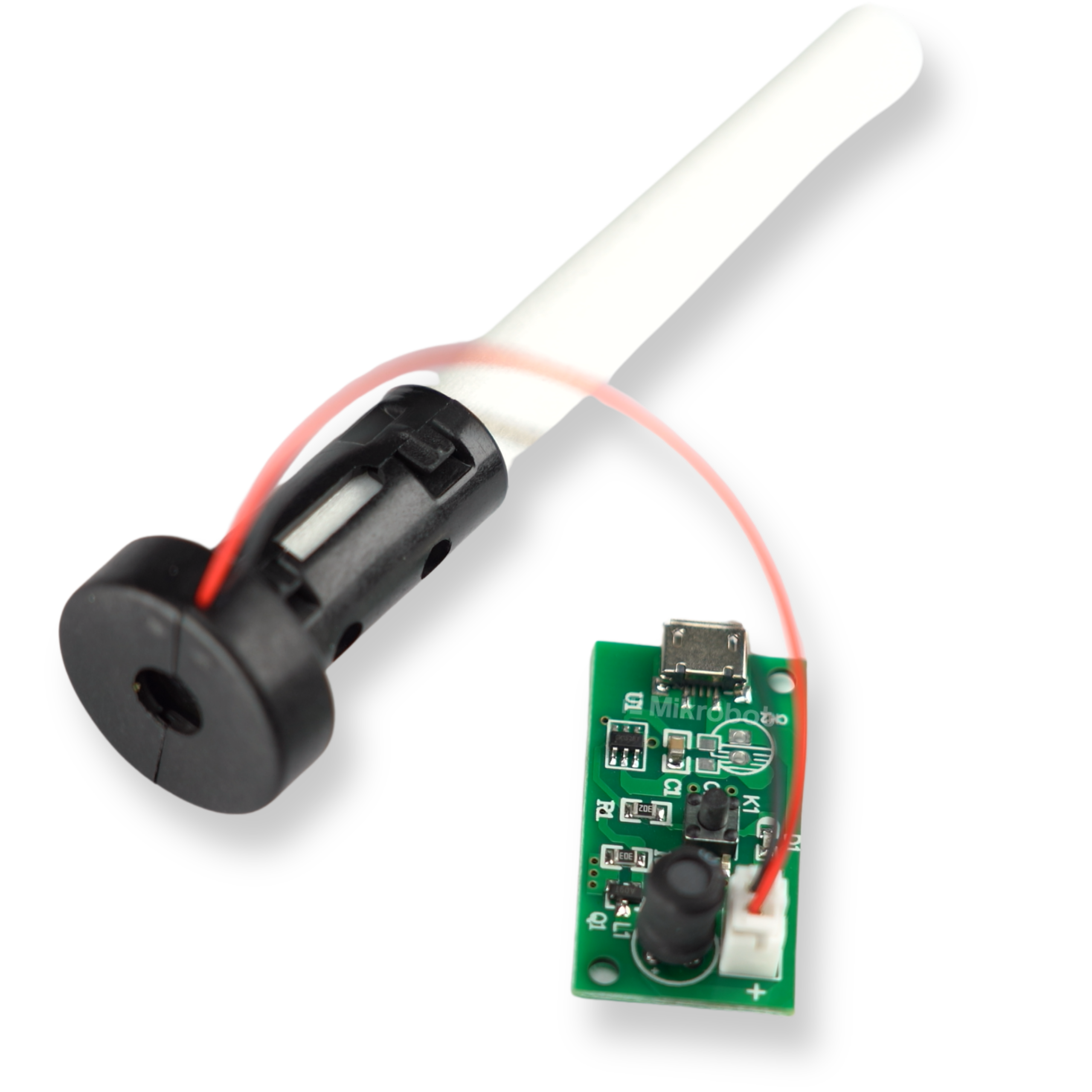

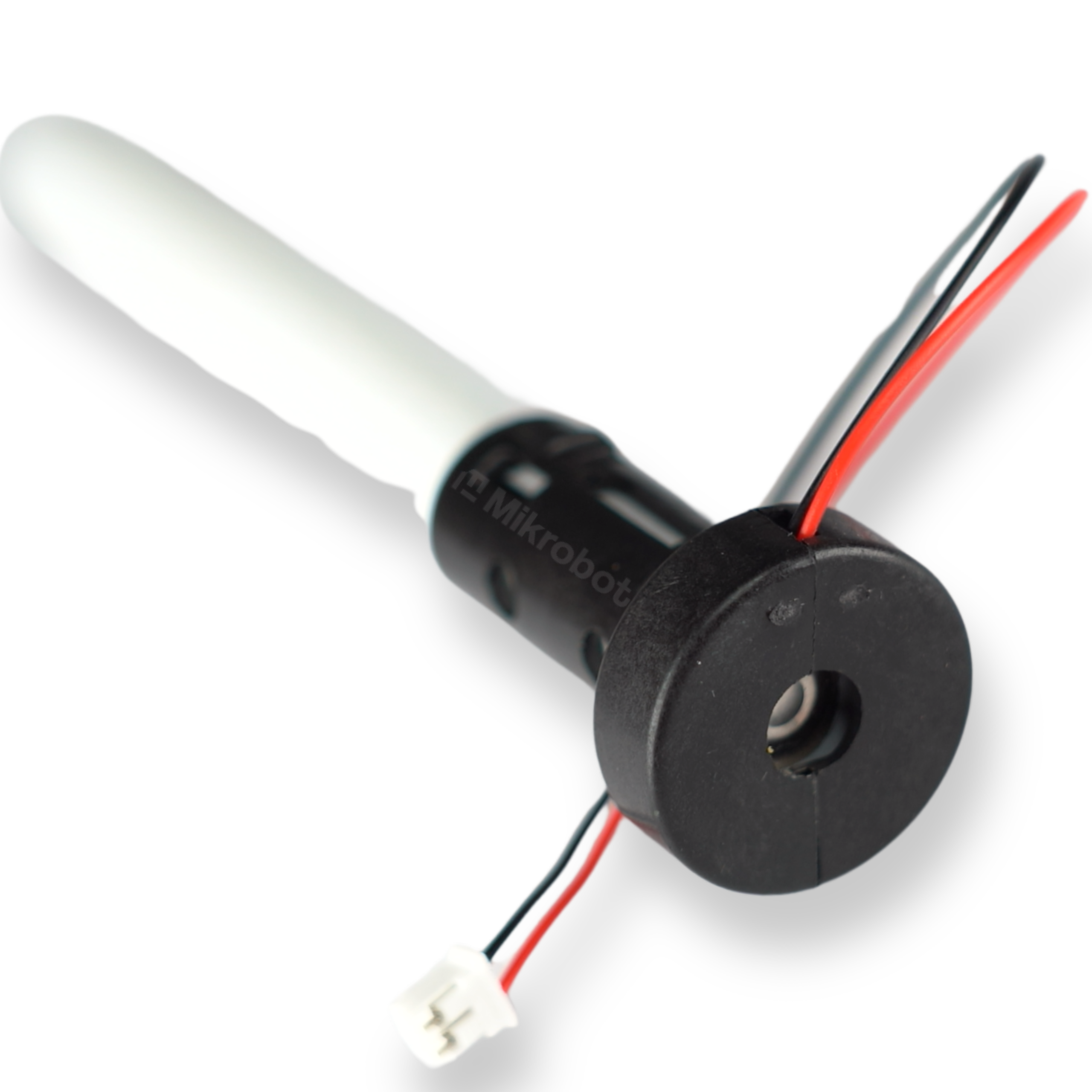

• Head housing (2 parts)

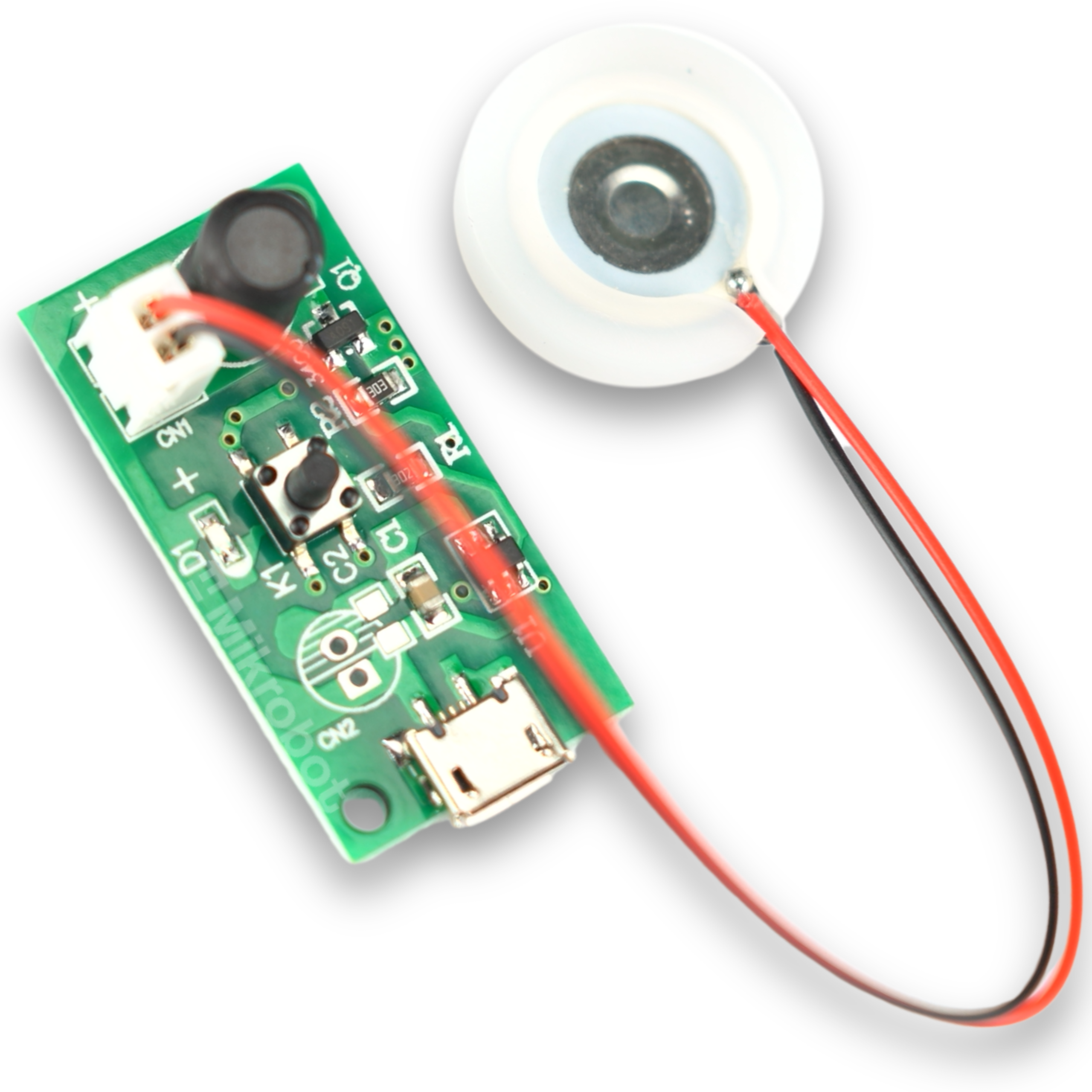

• Piezoelectric transducer with silicone ring and cable
• Sponge

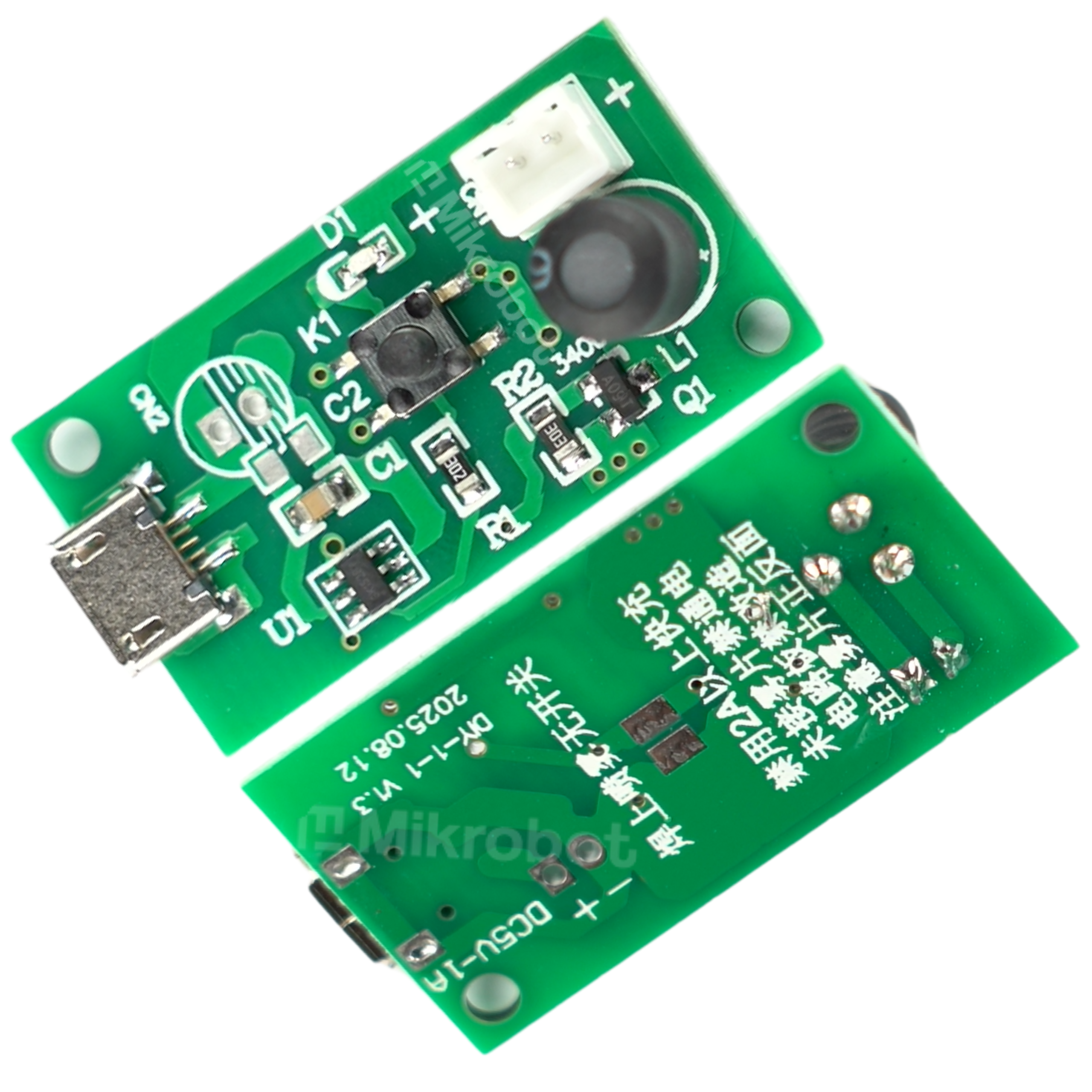

• Control board with micro USB input

Example applications

The module is widely used in various electronic systems and prototype constructions. Main uses include:

• Building air humidifiers for small rooms
• Herpetology projects requiring humidity level control
• Plant misting systems in miniature greenhouses
• Aromatherapy devices using dedicated liquids
• Educational microcontroller projects demonstrating liquid atomization

Benefits of choosing this module

This component is an efficient and reliable part of electronic systems. This solution offers a range of design advantages:

• Convenient power via micro USB connector, making it easy to start the module without soldering
• Low power consumption of 2W while maintaining optimal spraying performance
• Compact dimensions allowing easy integration in enclosures with very limited space
• Clear operating status indication via integrated LED
• Wide operating temperature range allowing use in more demanding environmental conditions
