Moduł emulatora Power Delivery PD USB-C 5V 9V 12V 15V 20V 5A 100W + zaciski

USB-C Power Delivery Emulator Module

The USB-C Power Delivery Emulator is a professional test device designed to analyze and simulate the power negotiation process in the USB-C Power Delivery standard. The module operates in receiver mode (PD Sink), which allows for the enforcement of specific voltage and current profiles without the need to connect an actual end device. It communicates with the power source via dedicated CC lines, ensuring stable and repeatable control of parameters. This product is an excellent power solution for many systems; the module is suitable for Arduino, Raspberry Pi, ESP8266, and ESP32 in advanced prototyping projects.

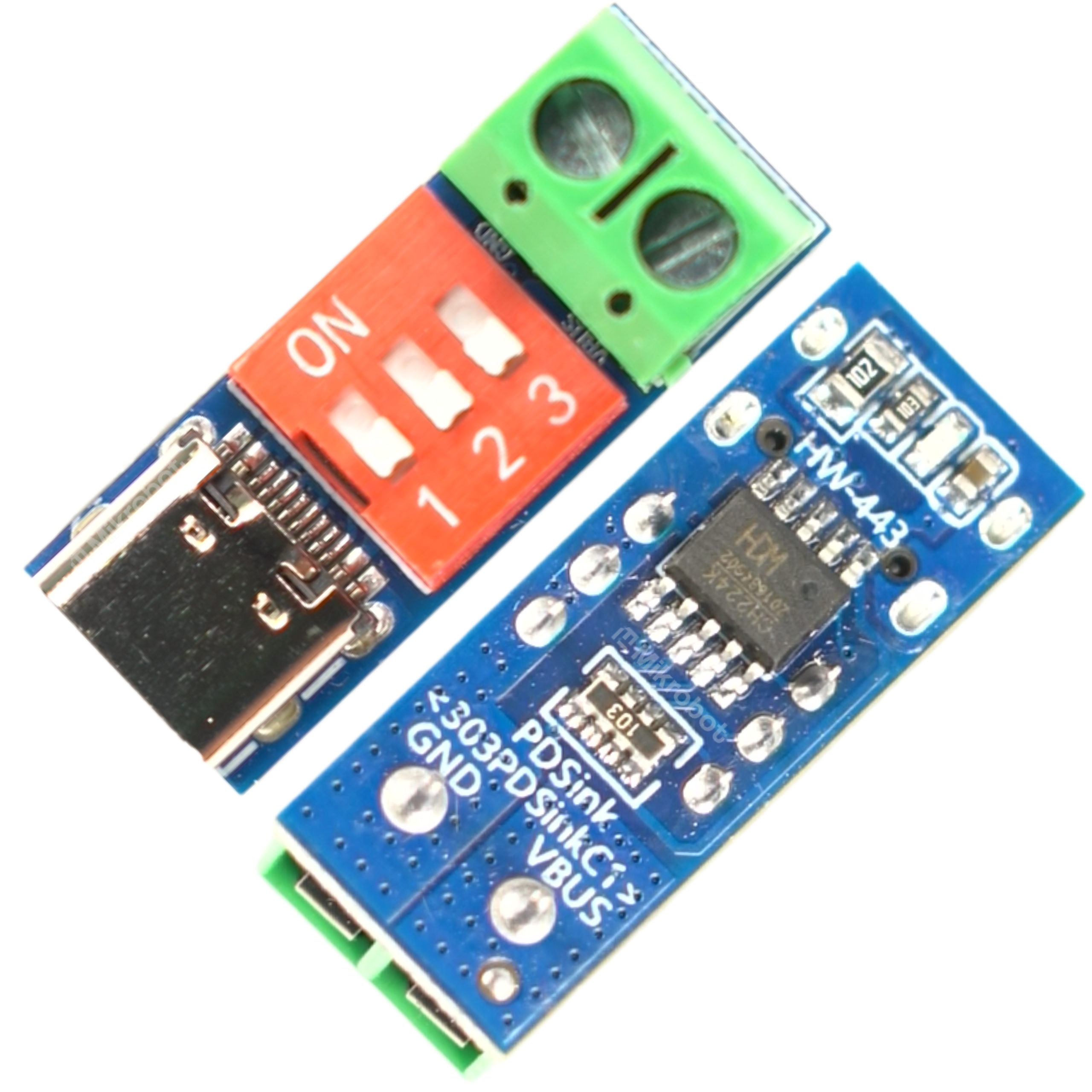

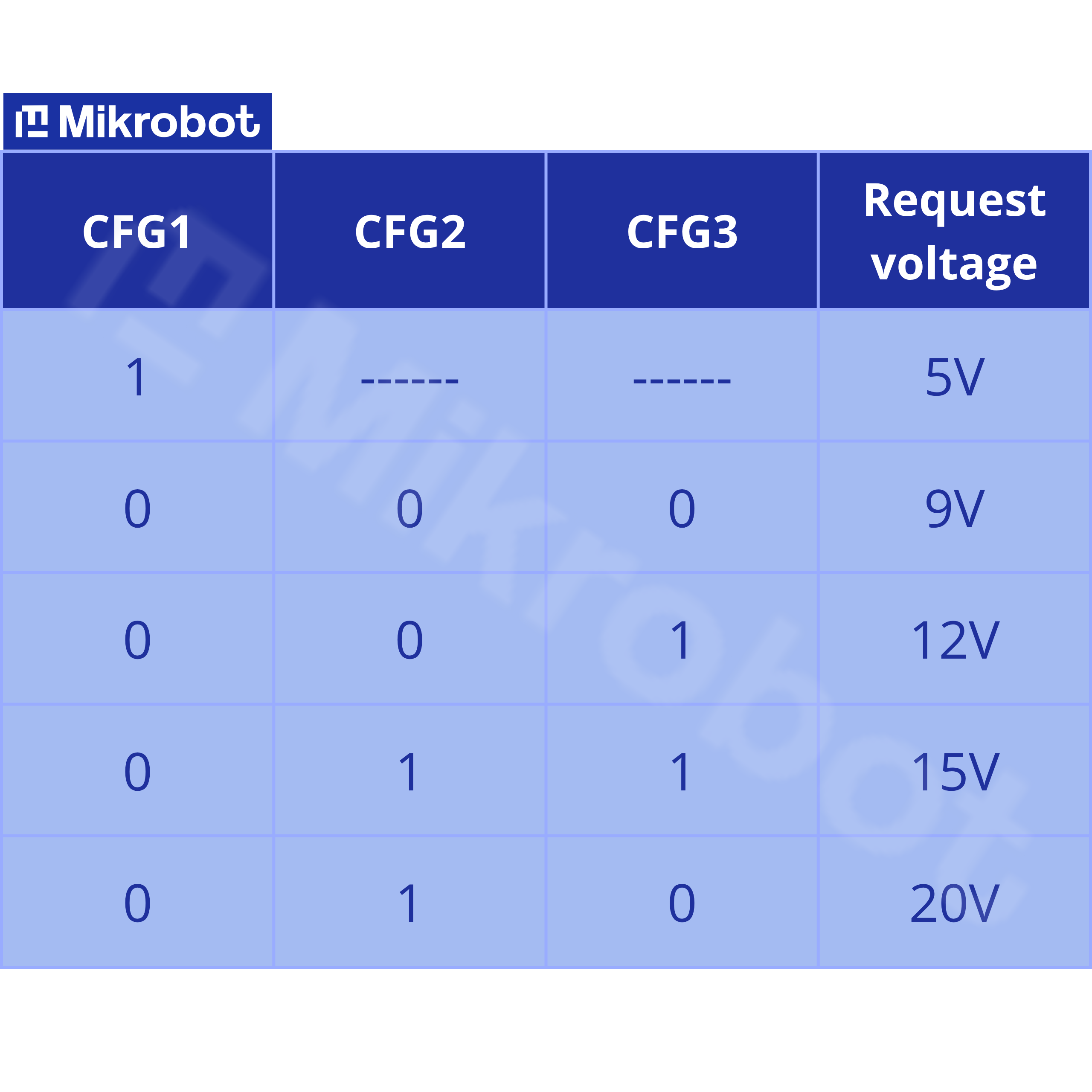

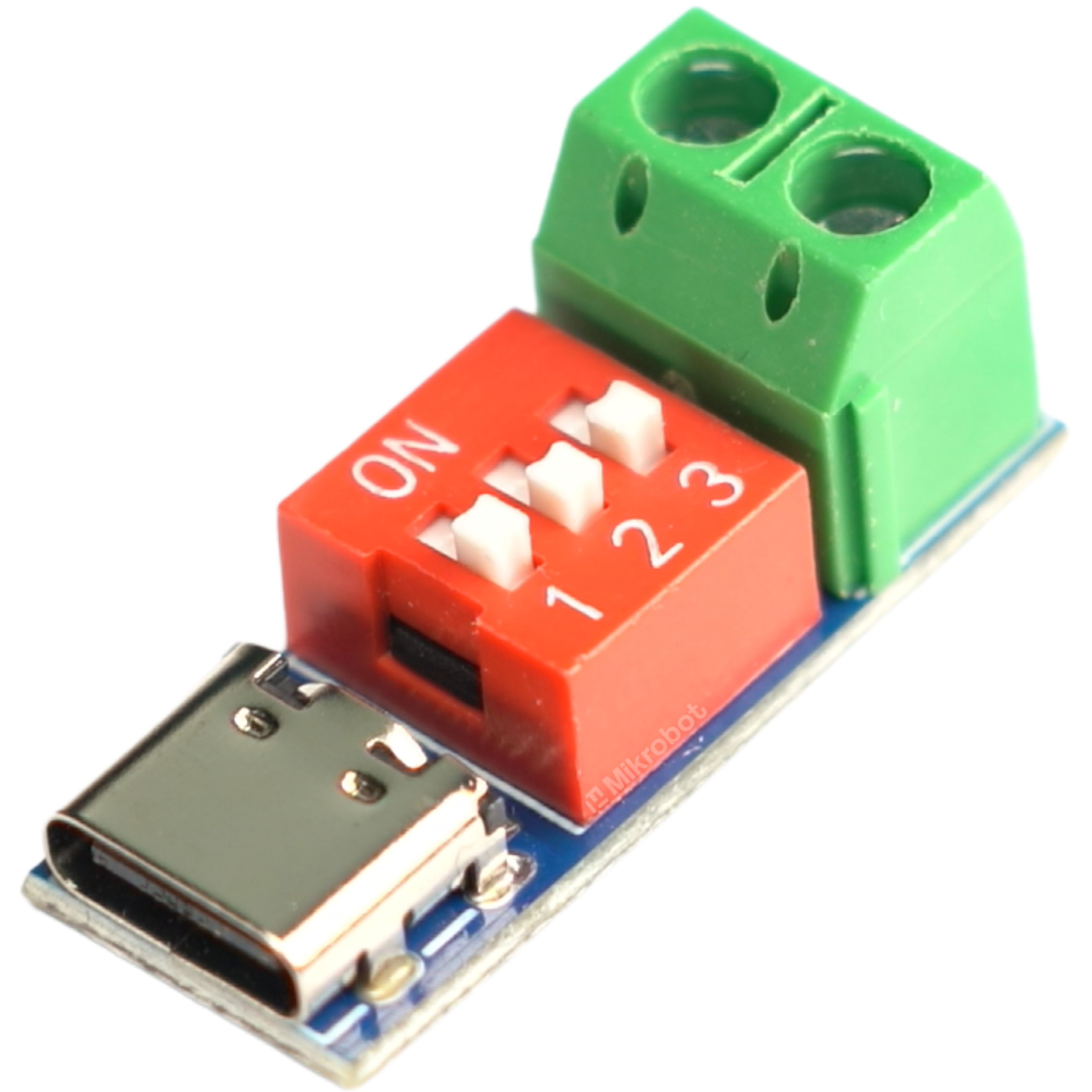

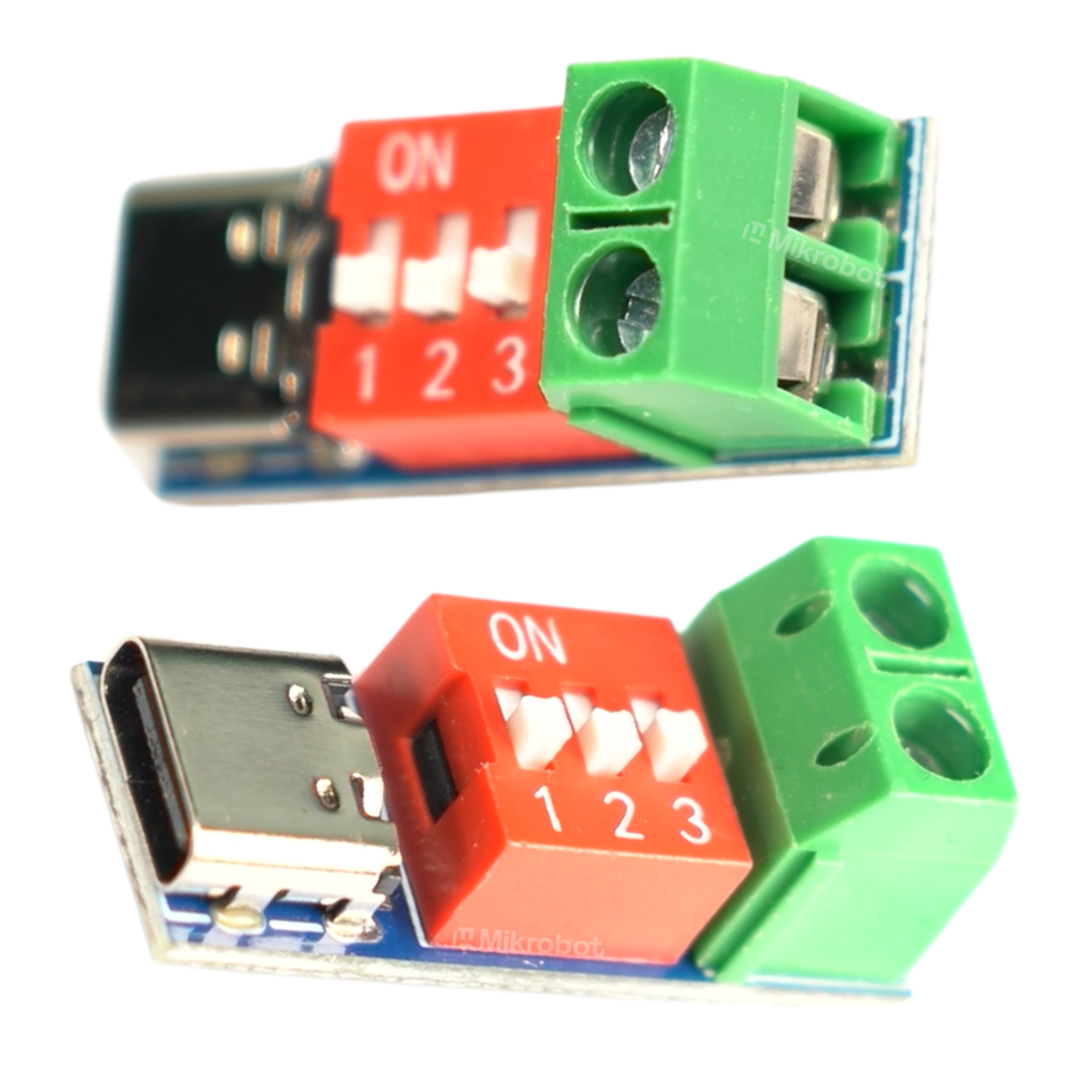

Thanks to the built-in DIP switches, the user can quickly and easily configure the desired output voltage to 5 V, 9 V, 12 V, 15 V, or 20 V. The device supports an output current of up to 5 A and a power output of up to 100 W, allowing it to power even more demanding projects. An additional advantage is the convenient power output based on sturdy screw terminals.

Key Technical Features

• Power standard: USB-C Power Delivery
• Operating mode: PD Sink (load emulator)
• Voltage configuration: hardware-based—using built-in DIP switches
• Configurable voltage requests: 5 V, 9 V, 12 V, 15 V, 20 V (the actual available voltage depends on the profiles supported by the connected charger/power bank)
• Maximum output current: 5 A
• Maximum power: 100 W
• Power input connector: USB-C port
• Power output connector: screw terminals
• Module dimensions: 11 x 28 x 13 mm

Example applications

• Testing the performance and stability of USB-C wall chargers
• Verification of current and performance parameters of power banks
• Powering custom electronic projects requiring higher voltage
• Diagnosing power supply circuits in laptops, monitors, and mobile devices
• Simulating loads during the design and testing of embedded devices
• Analysis of USB-C cable quality in terms of their maximum current carrying capacity

Benefits of using the module

• Versatility: full support for the most popular PD voltage profiles in a single device
• Quick configuration: instant adjustment of the output voltage without the need for additional programming
• Reliability: precise communication with the power supply device, ensuring stable operation of the entire system
• Convenient connection: the use of screw terminals eliminates the need to solder wires
• Compact dimensions: the small form factor facilitates seamless integration into enclosures and larger test stations

ℹ Note

• The specified parameters of 5 A / 100 W represent the module’s maximum capabilities—the actual current and power depend on the profiles actually provided by the connected charger or power bank
