Moduł gniazdo zasilania USB-C na panel czarne z przewodem 10 cm do obudowy

USB-C Panel Socket Module with Cable - Black

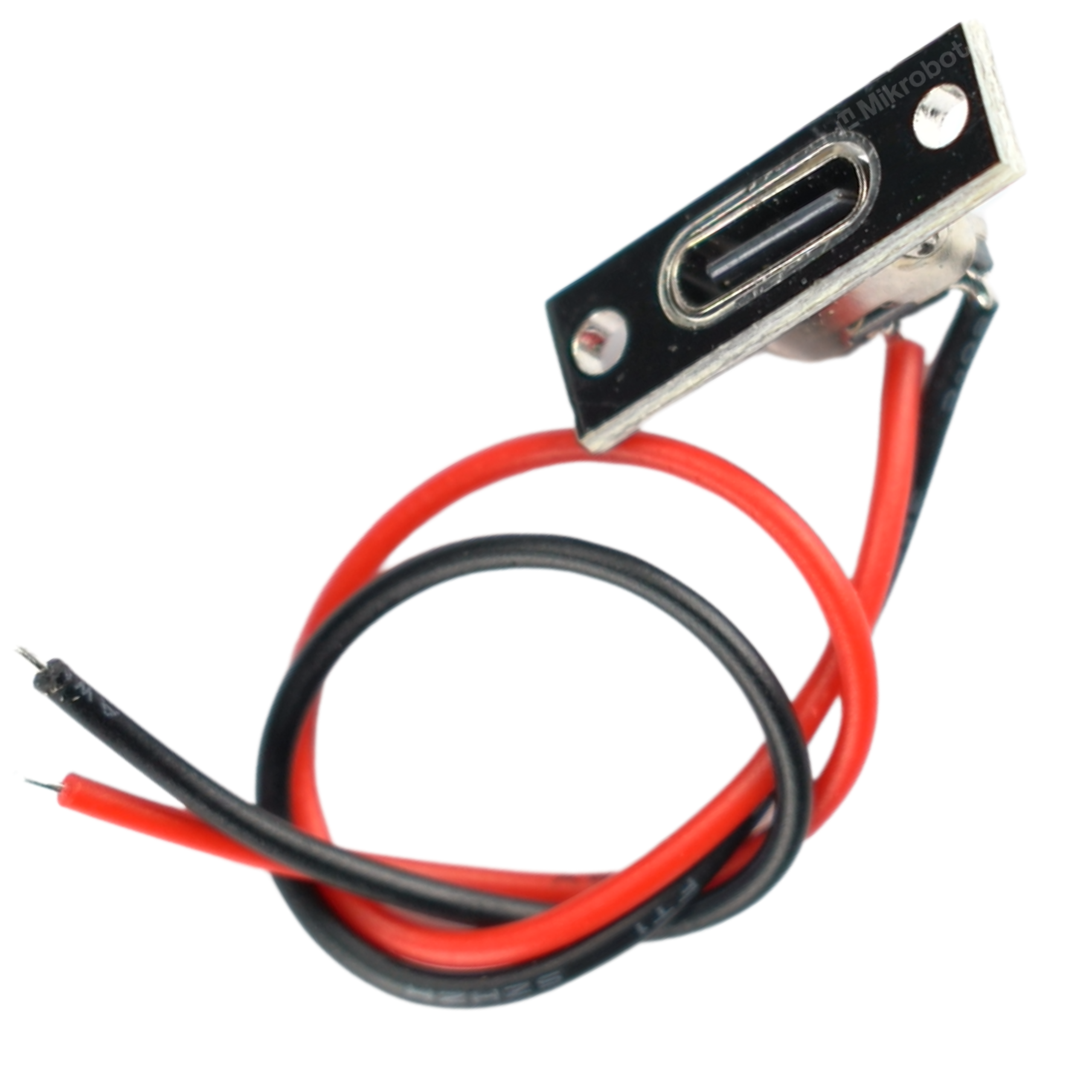

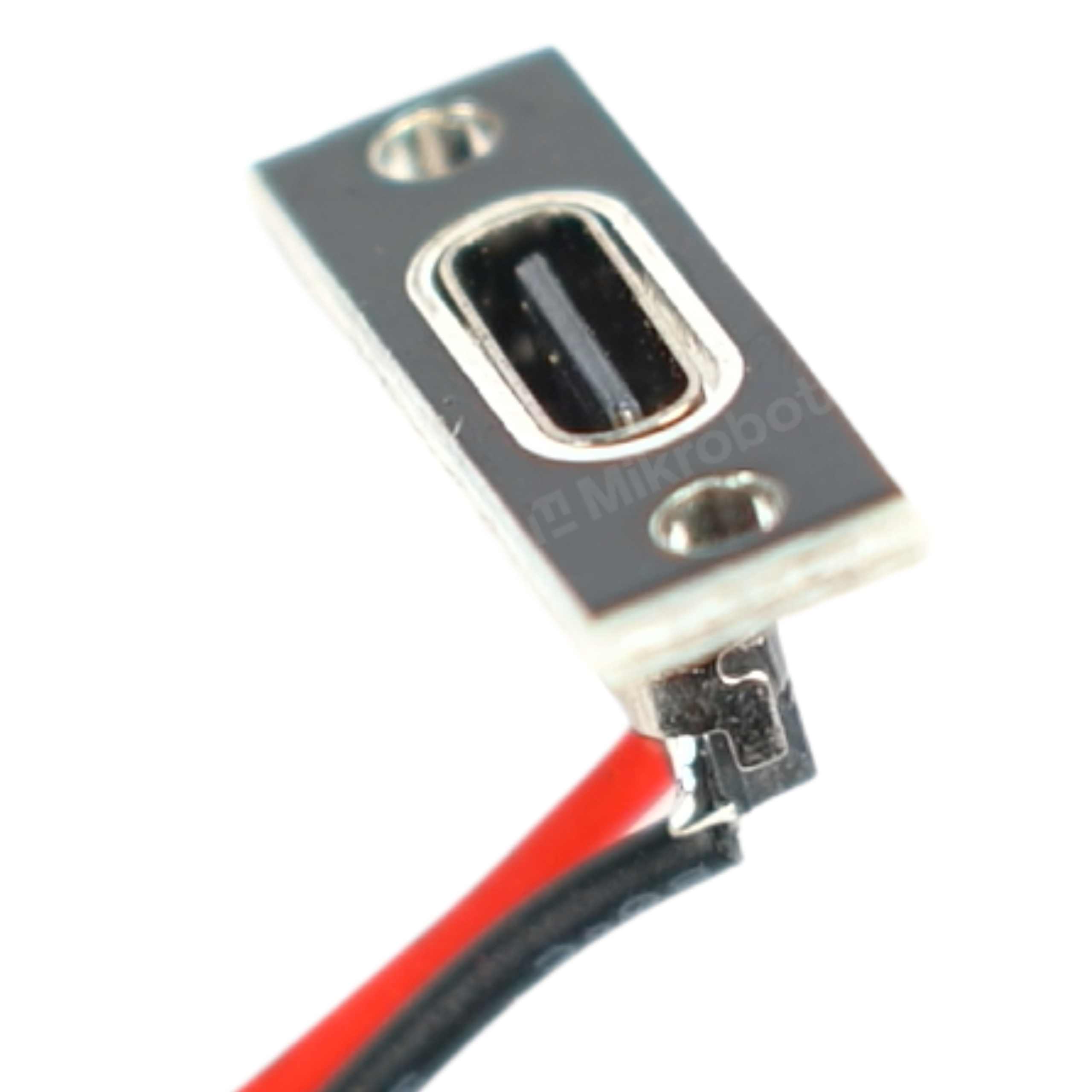

Black USB-C socket module designed for panel mounting. The module is equipped with factory-soldered wires with a length of 10 cm, which greatly simplifies and speeds up the installation process in electronic device enclosures. The connector outputs power only, with no access to signal lines.

Key Technical Specifications

• Connector type: USB-C
• Socket color: black
• Wire length: 10 cm
• Connections: VCC (red wire), GND (black wire)

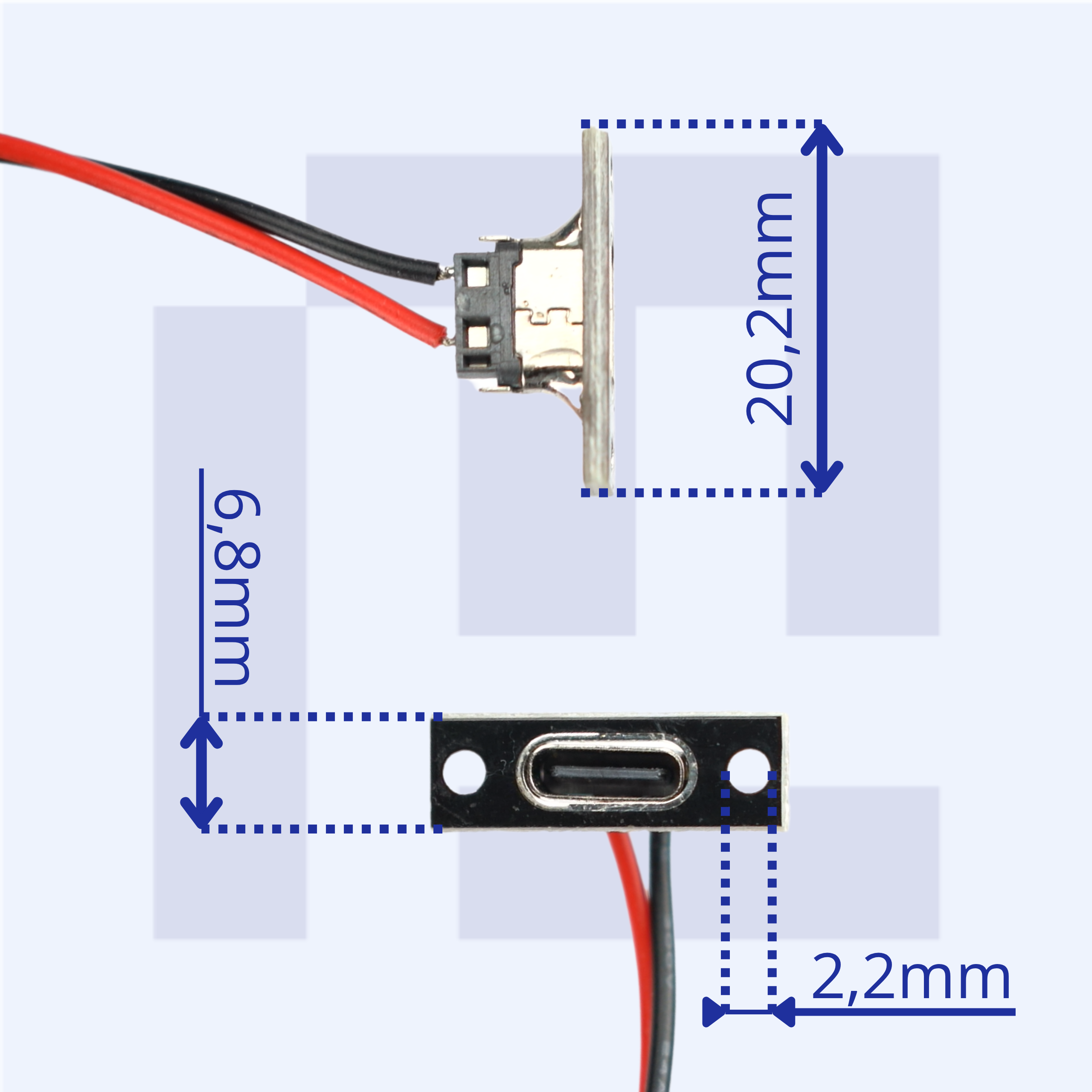

• Mounting hole pitch: 16 mm
• Frame dimensions: 7 x 20 mm
• Quantity: 1 piece

Example Applications

• Powering projects based on microcontrollers for Arduino, ESP8266, ESP32, and Raspberry Pi
• Upgrading older devices by replacing power sockets with the USB-C standard
• Building custom power supplies in 3D-printed enclosures
• Routing power outside the enclosure in DIY projects
• Powering LED lighting and small electronic modules

Benefits of Using the Module

• Ready to use: factory-soldered wires eliminate the need for precise soldering of the USB-C connector's fine contacts
• Easy mounting: mounting holes allow secure screw fastening of the socket to a panel or enclosure
• Versatility: the popular USB-C standard makes it easy to choose the right power supply or cable
• Compact size: compact frame and shallow mounting depth enable installation in tight spaces
• Time savings: ready-to-use module significantly speeds up project completion
