Przełącznik monostabilny wandaloodporny 16mm LED czerwony 12-24V + gniazdo

Momentary switch 12V-24V LED Ring 16mm red

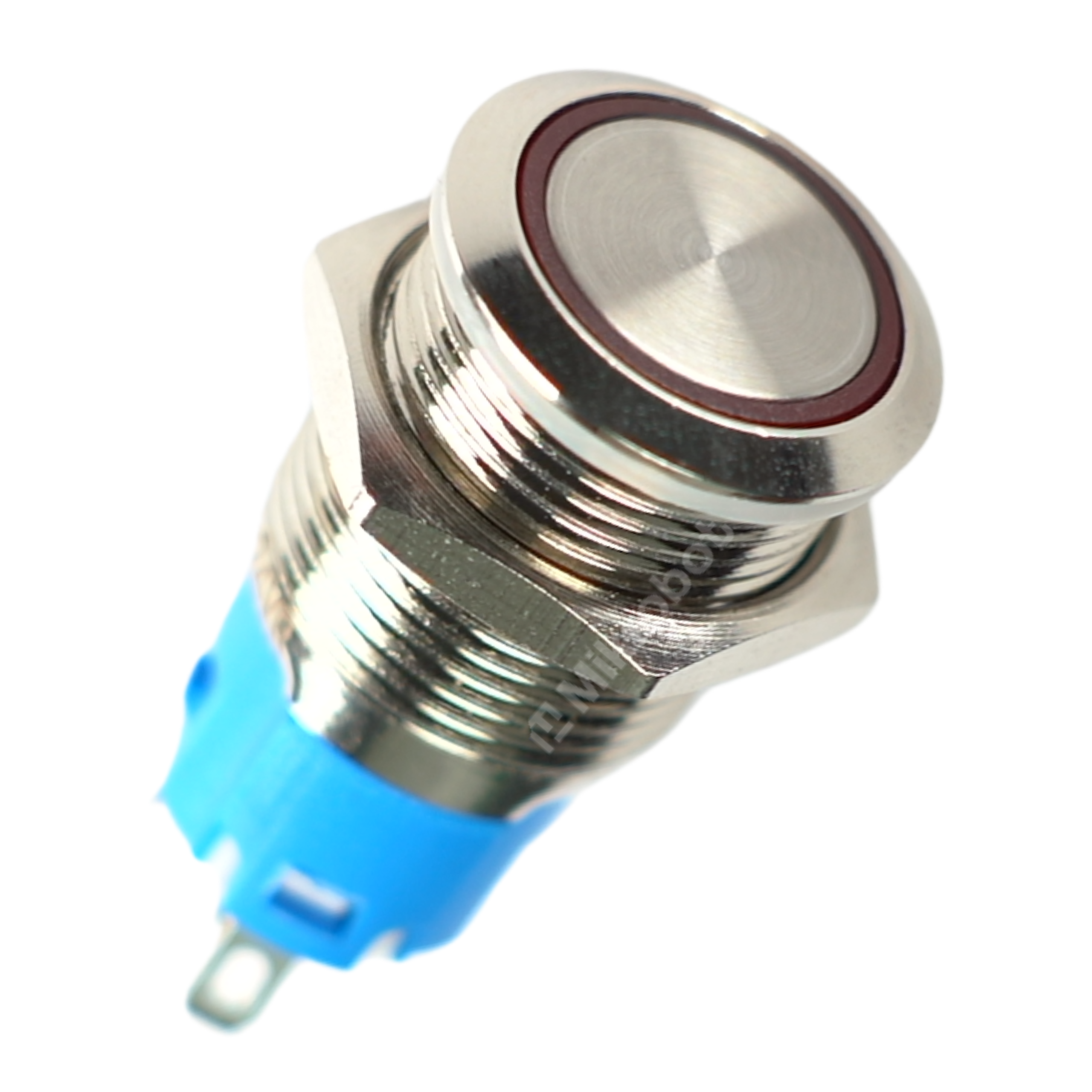

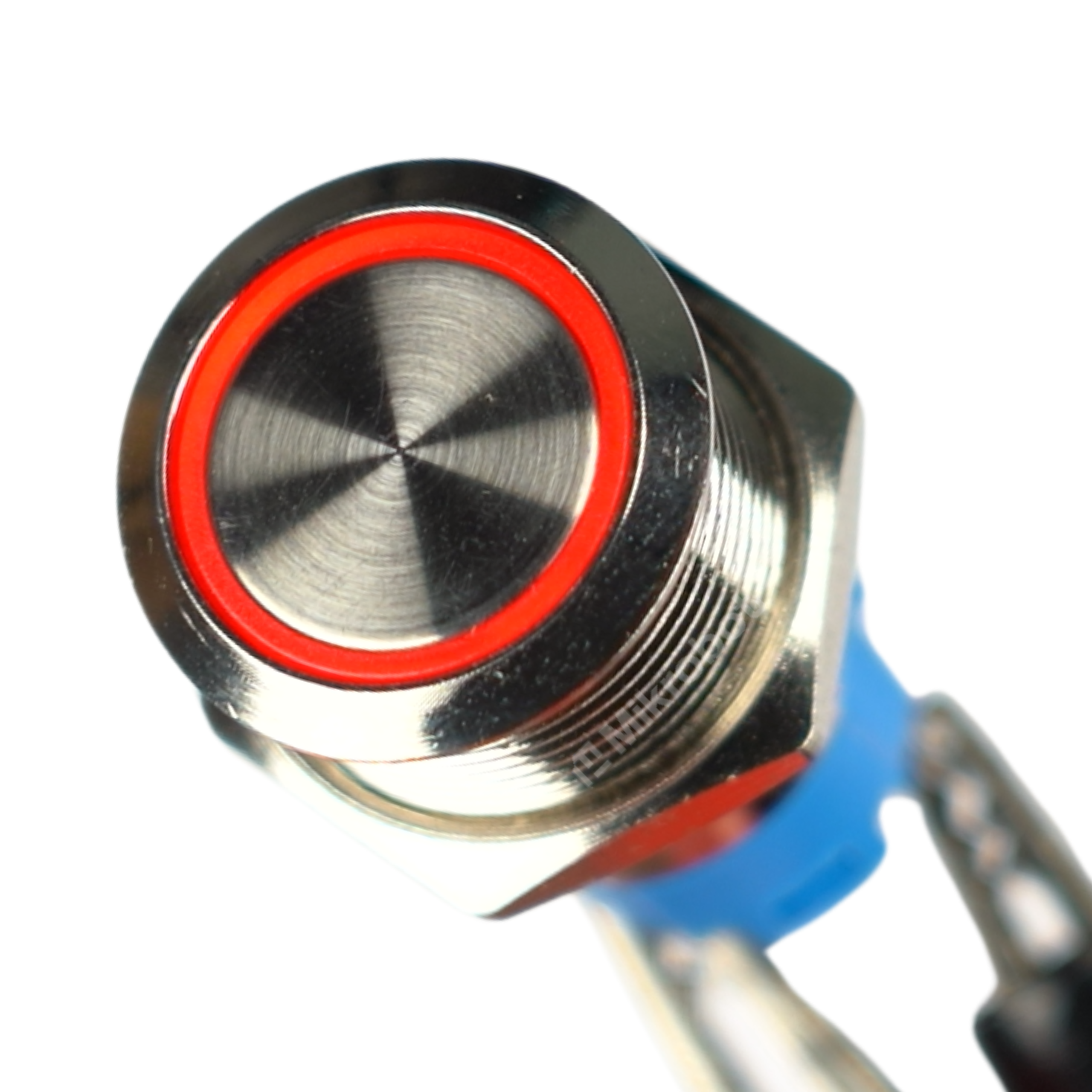

High-quality vandal-resistant momentary switch (ON-OFF) with red LED ring illumination. Made of brushed stainless steel, it features high resistance to mechanical damage and corrosion. Designed for mounting in a 16 mm diameter hole. The set includes a rubber gasket. The switch comes with a dedicated socket with wires, which greatly simplifies quick installation without the need to solder directly to the pins. Ideal for professional electronics projects and devices requiring a robust user interface.

Key technical features

• Switch type: momentary (self-resetting)
• Illumination supply voltage: 12V - 24V
• Illumination color: red (ring)
• Mounting thread diameter: 16 mm
• Button diameter: 14 mm
• Connection: soldering / dedicated socket with wires approx. 145 mm (14.5 cm) long

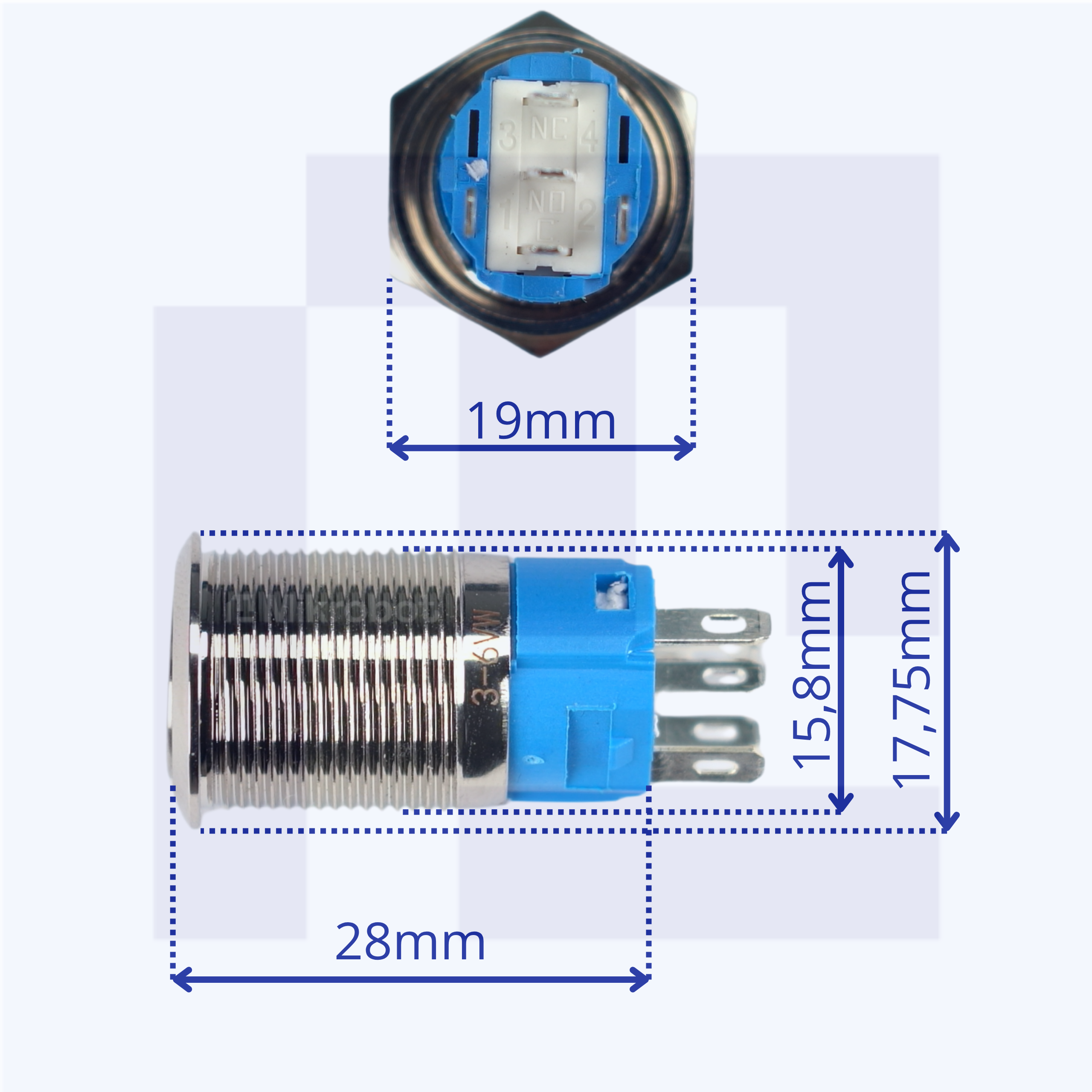

• Overall dimensions: 18 x 28 mm
• Terminals: 5 pins (2.8 x 7 mm)
• Housing material: brushed stainless steel
• Operating temperature: from -20°C to +55°C

Example applications

• Control panels in industrial machines and automation equipment
• Electronics projects using microcontrollers (for Arduino, for ESP8266, for ESP32, for Raspberry Pi)
• Modifications of electrical installations in vehicles and agricultural machinery
• Car audio system installations and auxiliary lighting
• Control consoles in smart building systems

Benefits

• High durability - vandal-resistant stainless steel construction provides resistance to damage and harsh operating conditions.
• Fast and convenient installation - the included socket with wires eliminates the need to manually solder wires to the switch pins
• Reliability - long mechanical and electrical lifespan guarantees trouble-free operation for many years.
• Clear indication - integrated LED illumination makes it easy to locate and read the button status, even in complete darkness.
• Safety - the gasket included in the set protects the interior of the panel from moisture and contaminants.
• Versatility - a wide voltage range (12V - 24V) and NO and NC contacts allow flexible adaptation to circuit requirements.

Wiring instructions

The switch has C (common), NO (normally open), and NC (normally closed) contacts. Various circuit and illumination configurations are possible:

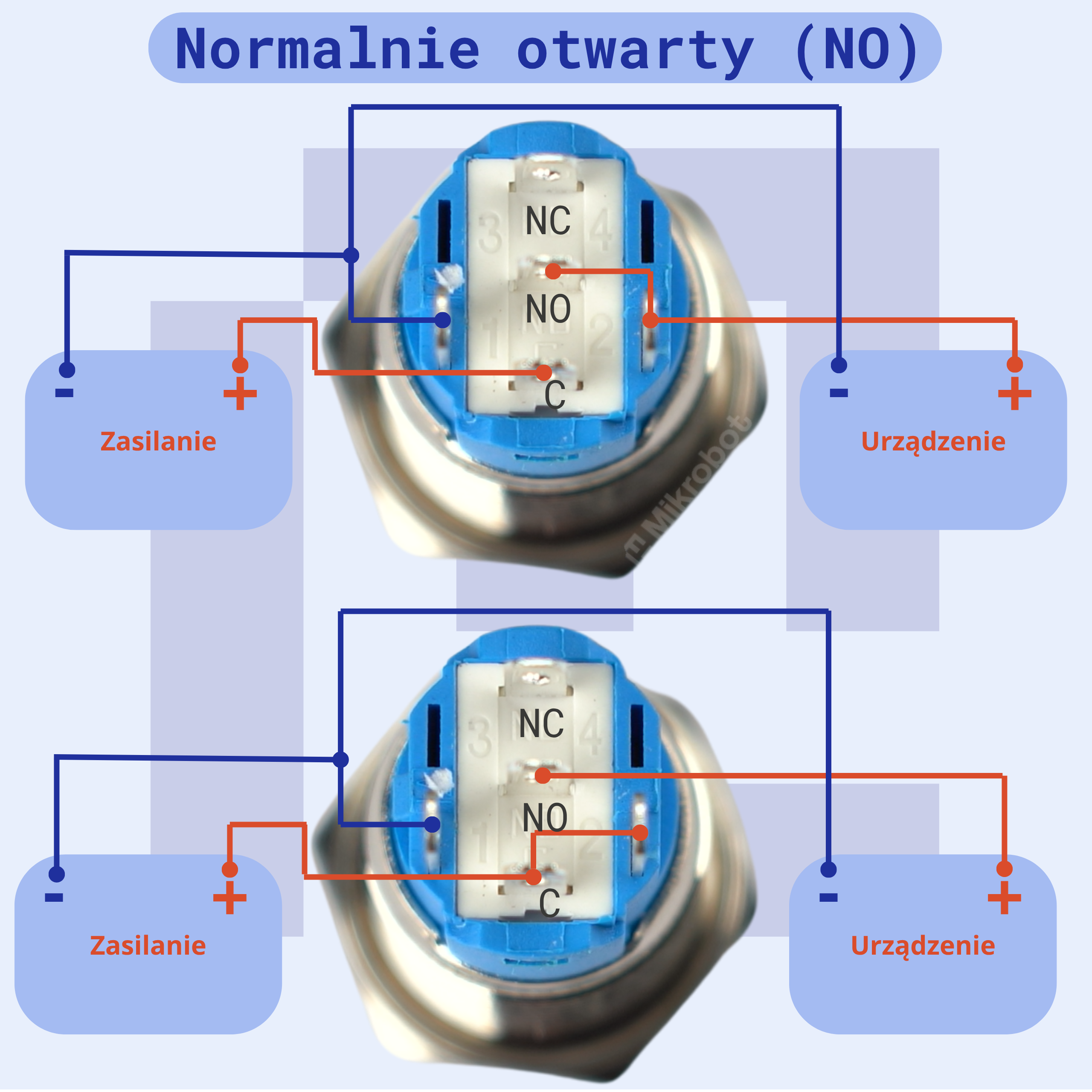

• Connecting NO and C - the circuit is open; pressing the button closes the circuit. Illumination can operate only when pressed or continuously, regardless of position.

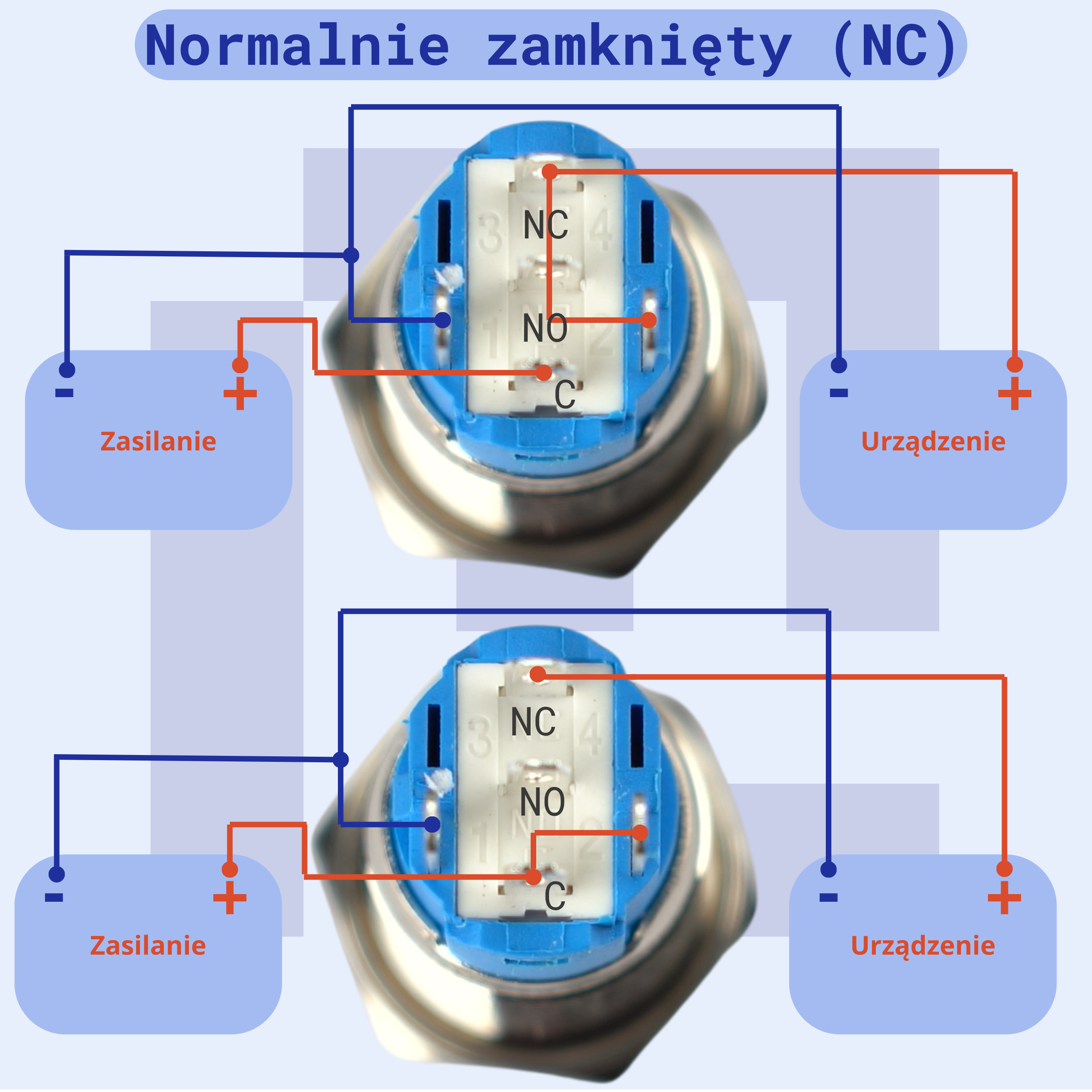

• Connecting NC and C - the circuit is closed; pressing the button opens the circuit. Illumination can operate in the idle state (turn off when pressed) or stay on continuously.

In the set

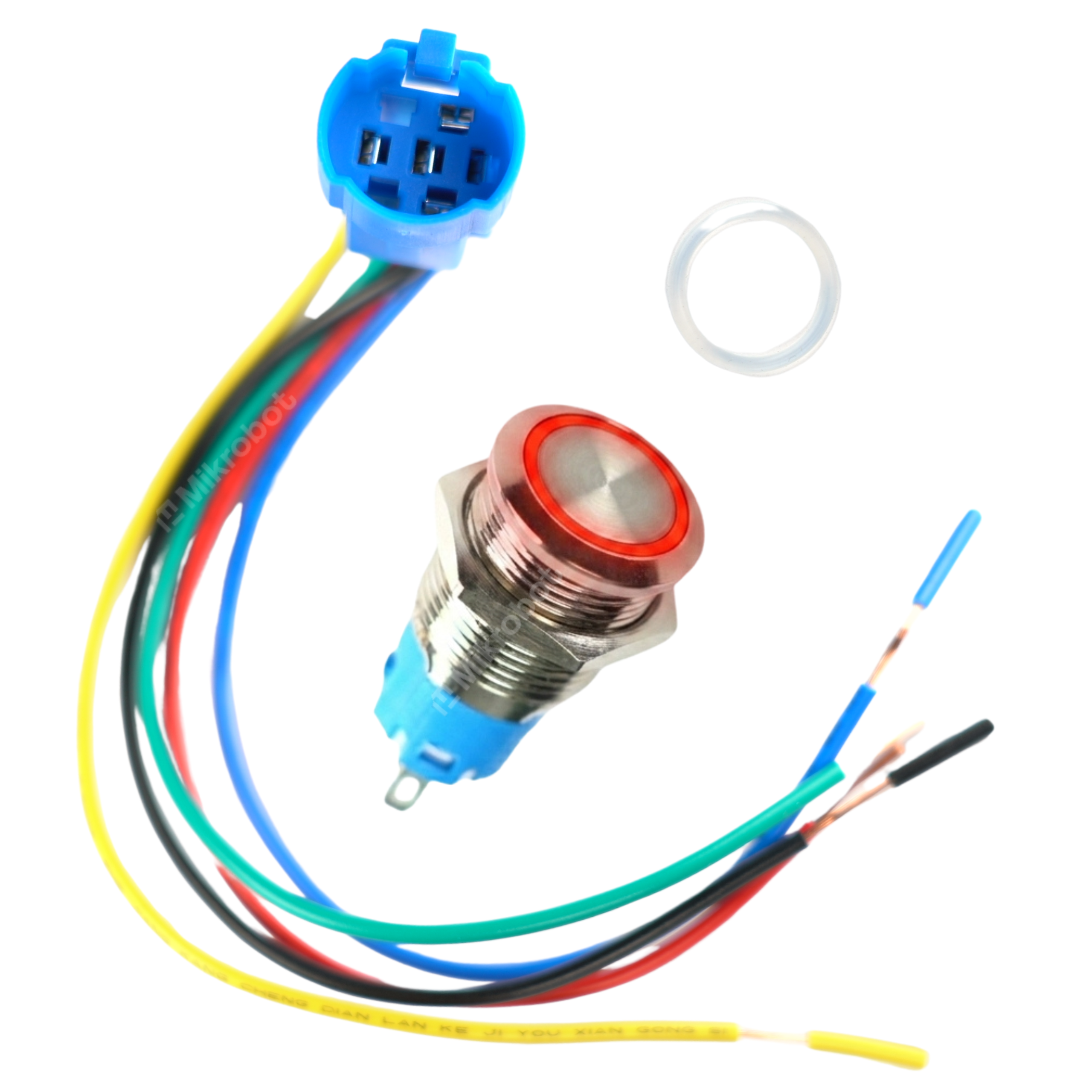

• Momentary switch
• Transparent O-ring

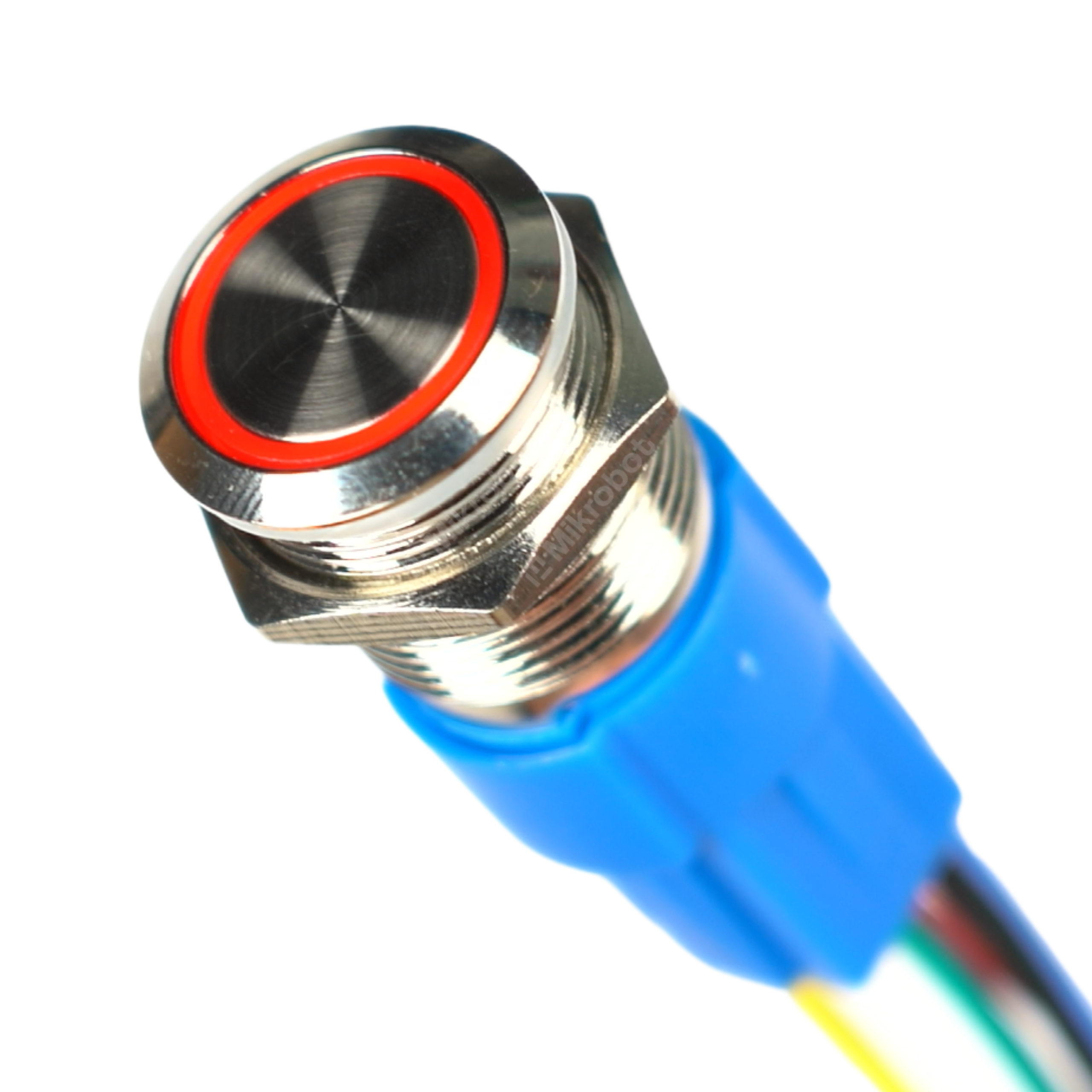

• Dedicated socket with wires (14.5 cm)
• Nut
