Przełącznik monostabilny wandaloodporny 16mm niebieski LED 12V-24V 5 pin

Product description: Vandal-resistant 16mm monostable switch

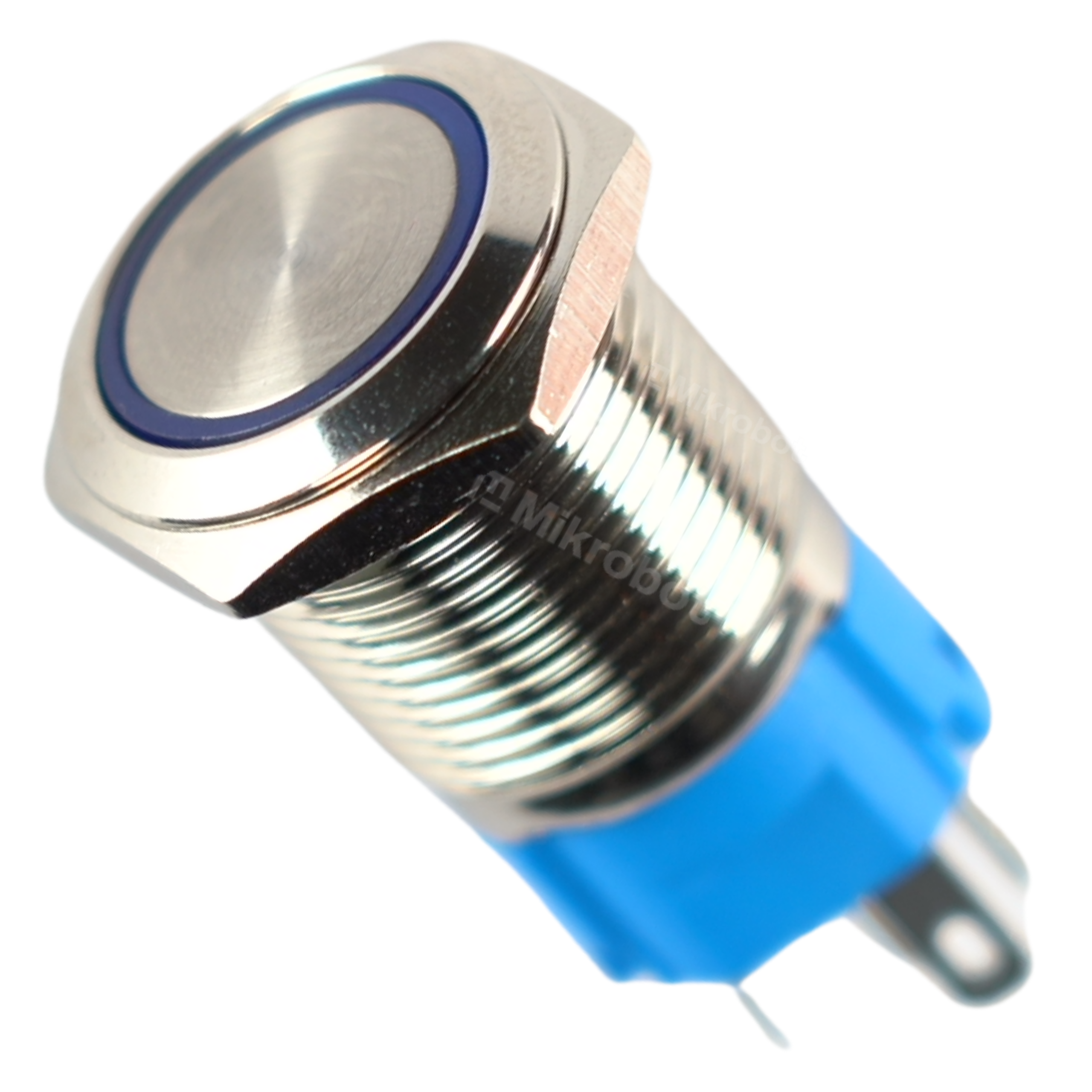

High-quality monostable switch (ON-OFF) made of brushed stainless steel. It features an illuminated LED bezel in blue and a vandal-resistant design. The product is intended for mounting in a hole with a diameter of 16 mm. The set includes a rubber gasket to facilitate installation. The switch comes with a dedicated socket with wires, which greatly simplifies quick mounting without the need to solder directly to the pins.

Key technical features

• Switch type: monostable (self-resetting)
• Operating voltage: 12V - 24V
• Connectors: 5 pins measuring 2.8 x 7 mm
• Mounting thread diameter: 16 mm
• Button diameter: 14 mm

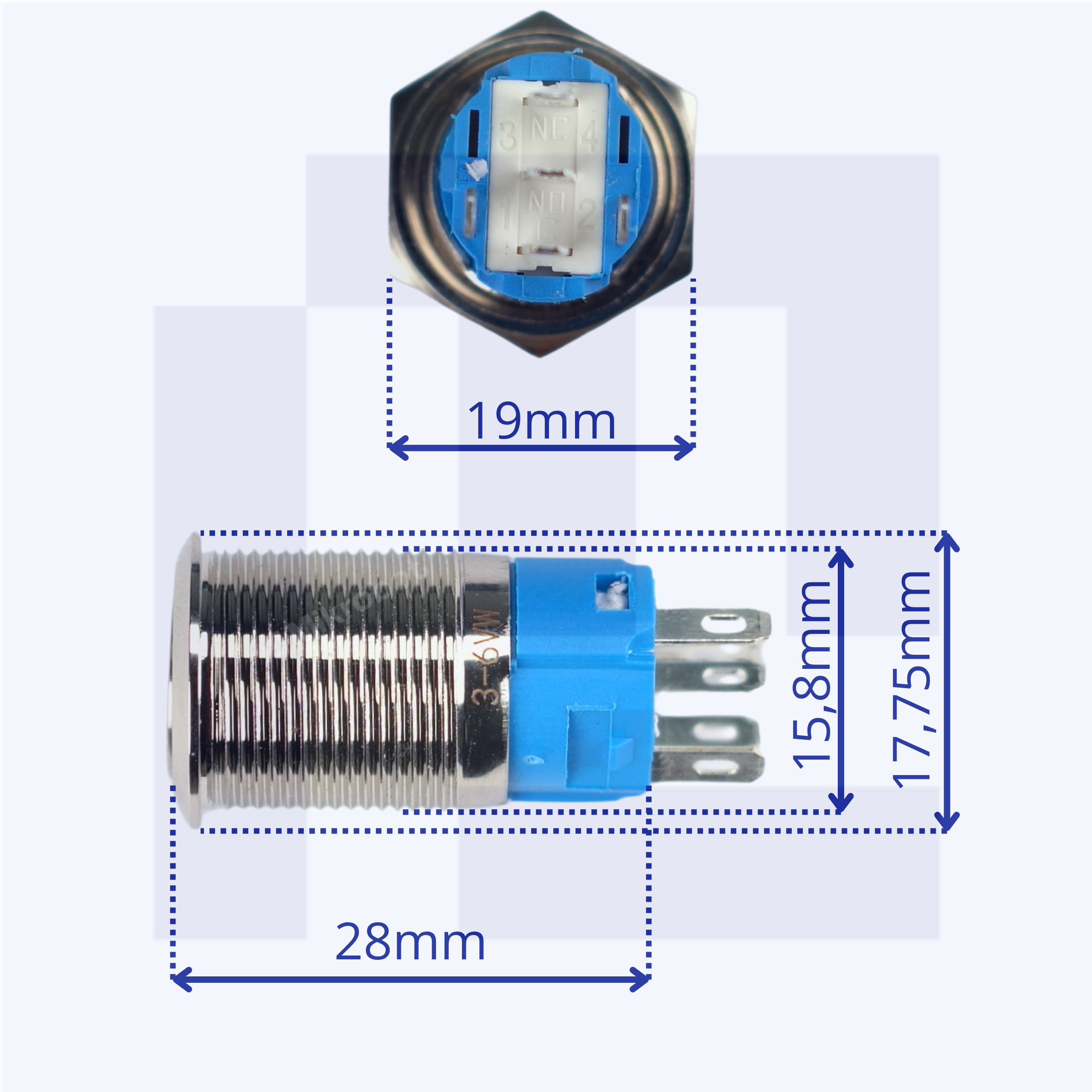

• Overall dimensions: 18 x 28 mm
• Connection: soldering / dedicated socket with wires approx. 145 mm long (14.5 cm)

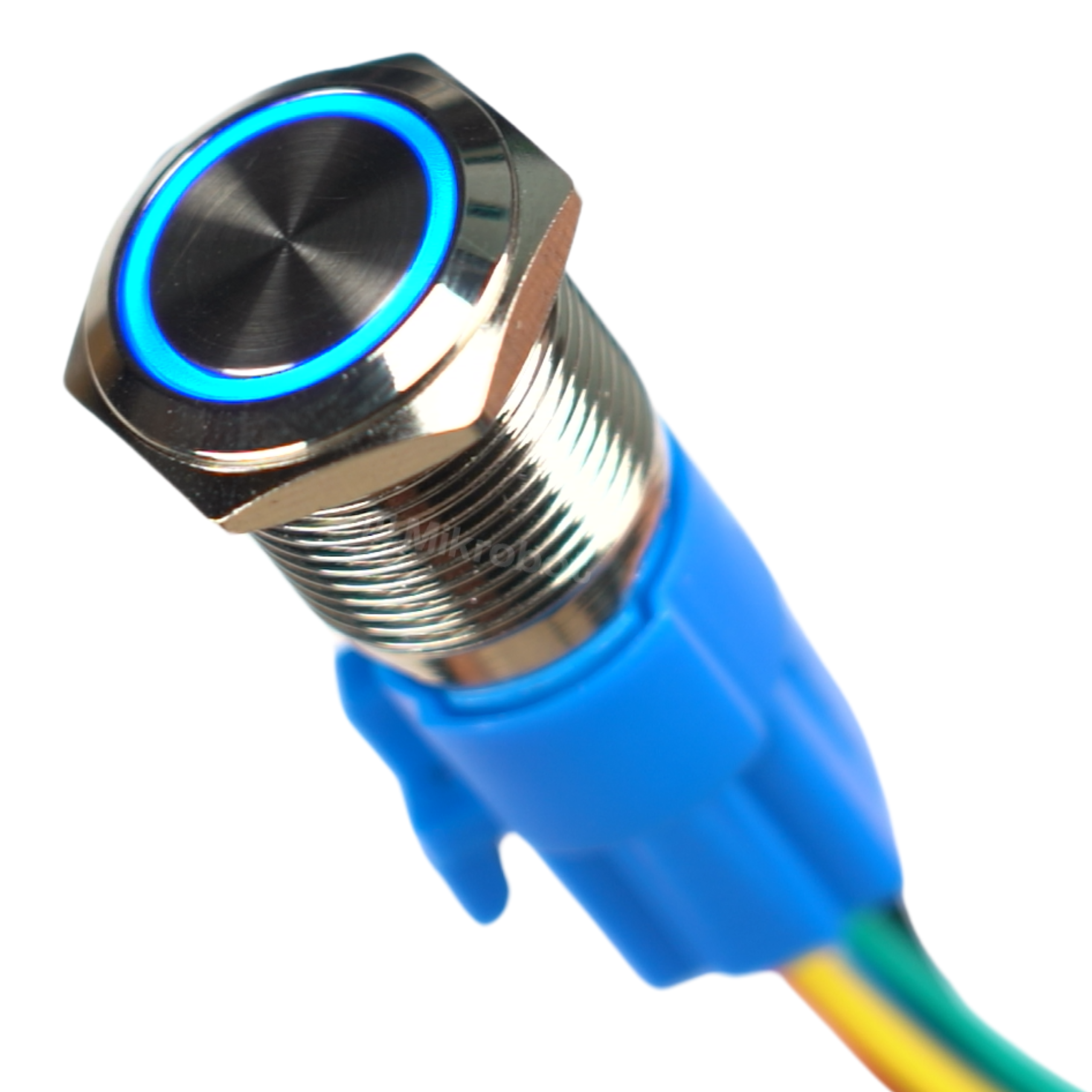

• Illumination color: blue (ring)
• Electrical lifespan: 50,000 cycles
• Mechanical lifespan: 500,000 cycles
• Operating temperature: from -20ºC to +55ºC

Example applications

• Control panels in industrial machines
• Operator consoles and electrical distribution boards
• Power installations in agricultural machines and vehicles
• Access control systems, intercoms, and alarm devices
• DIY projects requiring solid and durable switching components

Benefits

• High corrosion resistance thanks to brushed stainless steel
• Vandal-resistant design ensuring safety and reliable operation
• Clear blue LED illumination making it easier to locate the switch and read its status
• Long-lasting reliability guaranteed by excellent mechanical and electrical lifespan
• Hassle-free mounting thanks to the included rubber gasket and standard dimensions

Wiring instructions

The switch offers different operating modes thanks to the NO (Normally Open), NC (Normally Closed), and C (Common) terminals. Connection is made via a dedicated terminal block with a socket and wires (or by soldering directly to the switch pins). The LED illumination has separate power pins, which allows a wide range of configuration options.

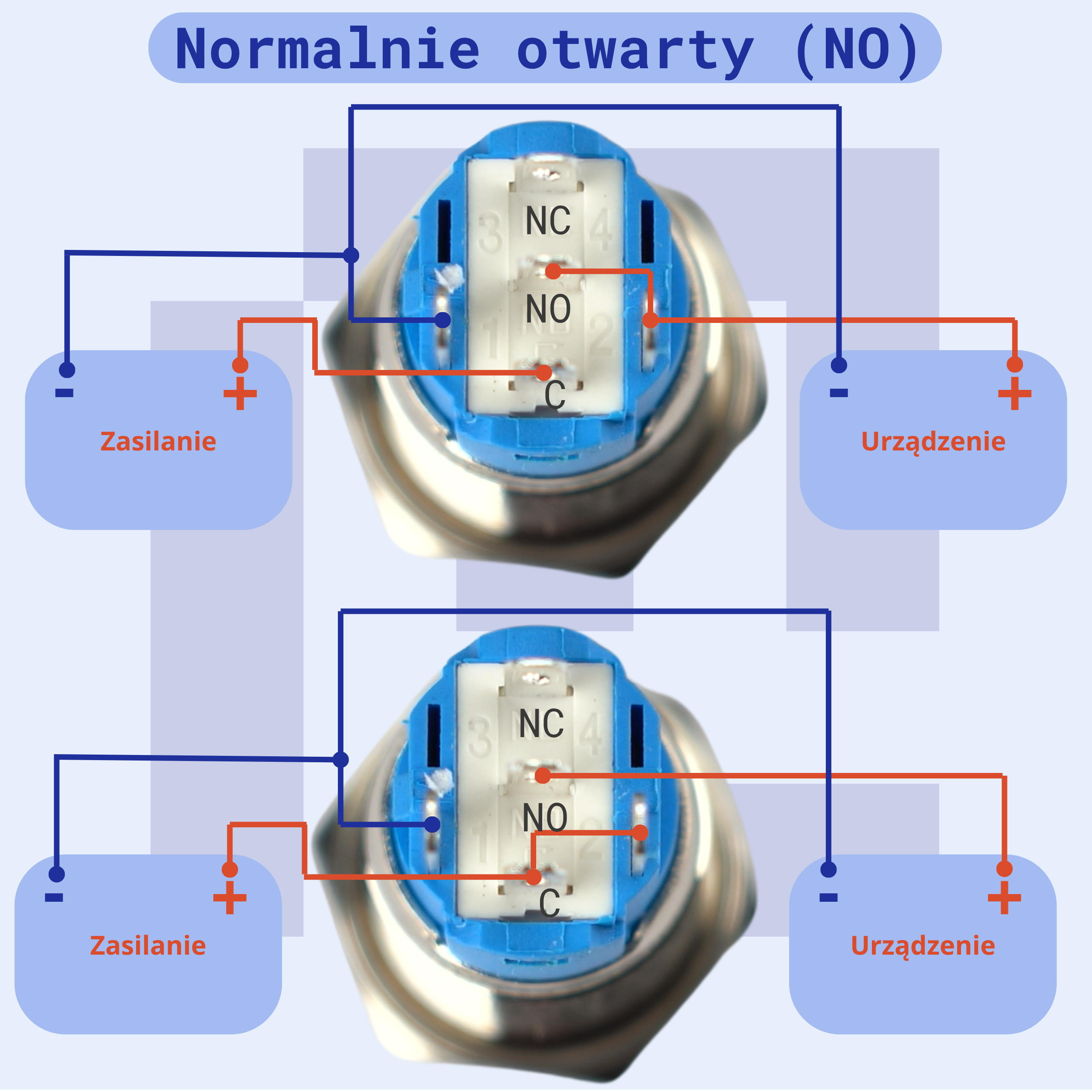

• NO and C connection - the circuit remains open until the button is pressed.

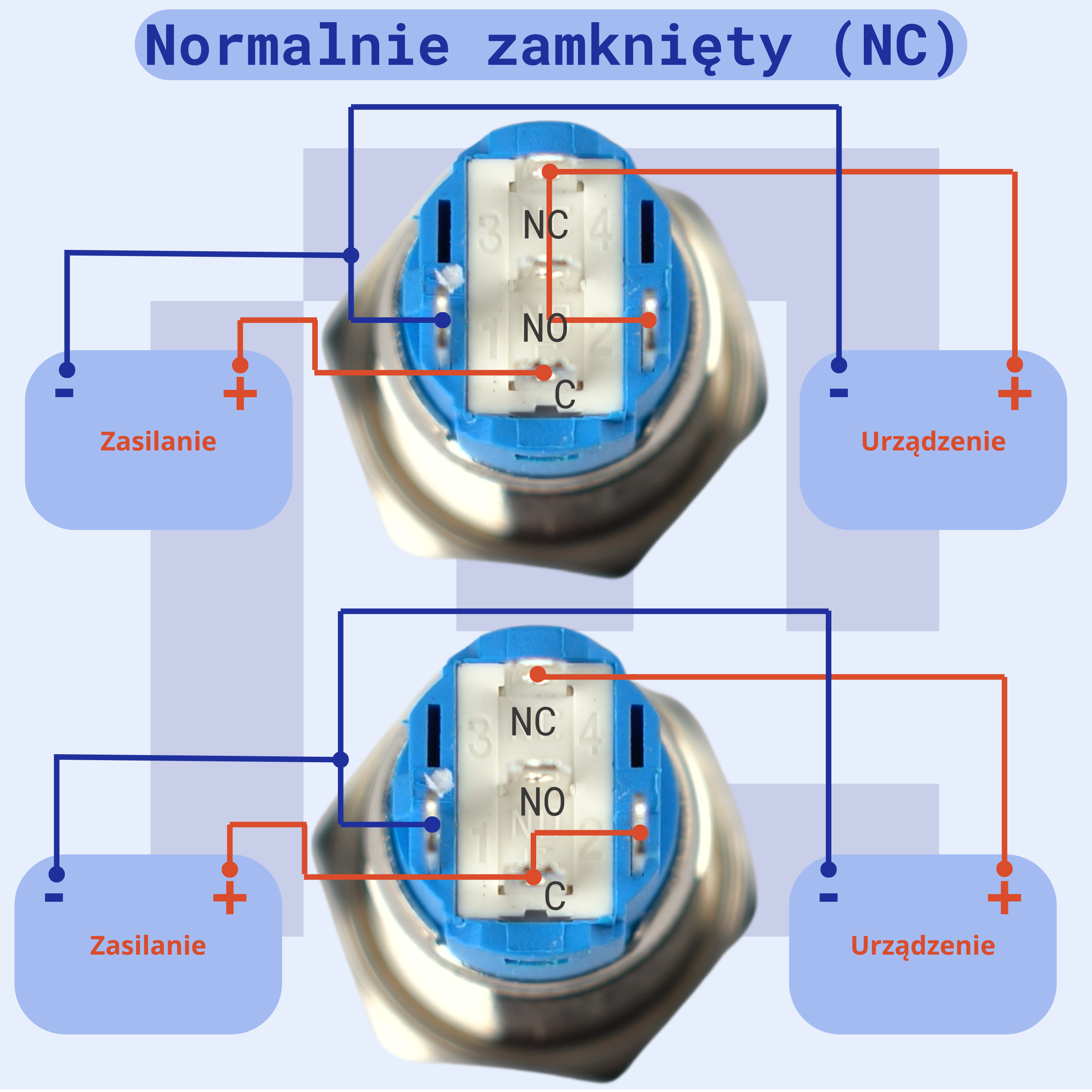

• NC and C connection - the circuit remains closed until the button is pressed.

The LED can be wired so that it stays on continuously, lights only when the button is pressed, or turns off when the button is pressed - depending on the chosen power supply scheme in the circuit being built.

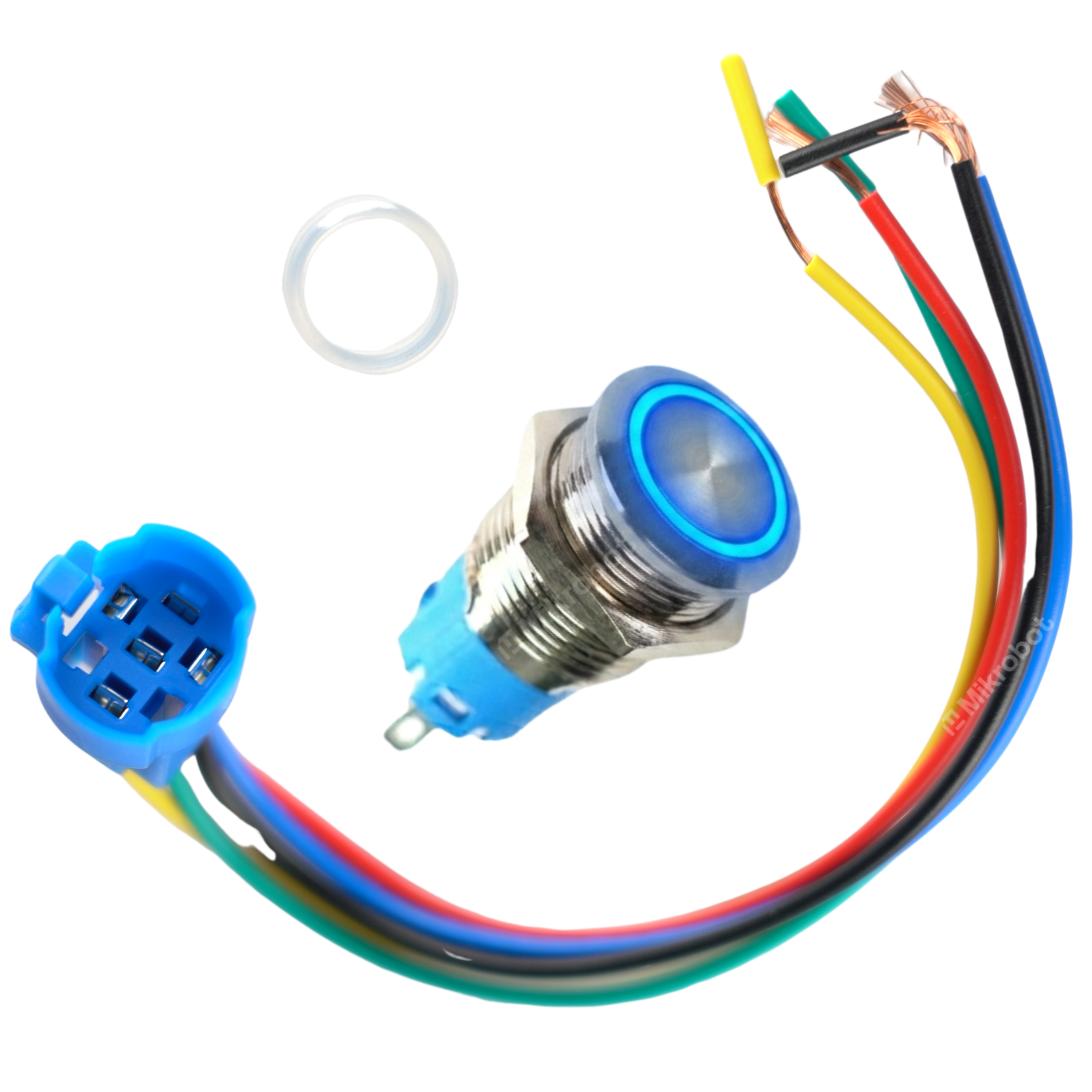

In the set

• Monostable switch
• Transparent O-ring
• Dedicated socket with wires (14.5 cm)
• Nut
