Moduł komunikacyjny CAN SN65HVD230 3.3V WaveShare do Arduino ESP32 ESP8266

WaveShare CAN SN65HVD230 Module for Arduino, ESP32, ESP8266, and Raspberry Pi

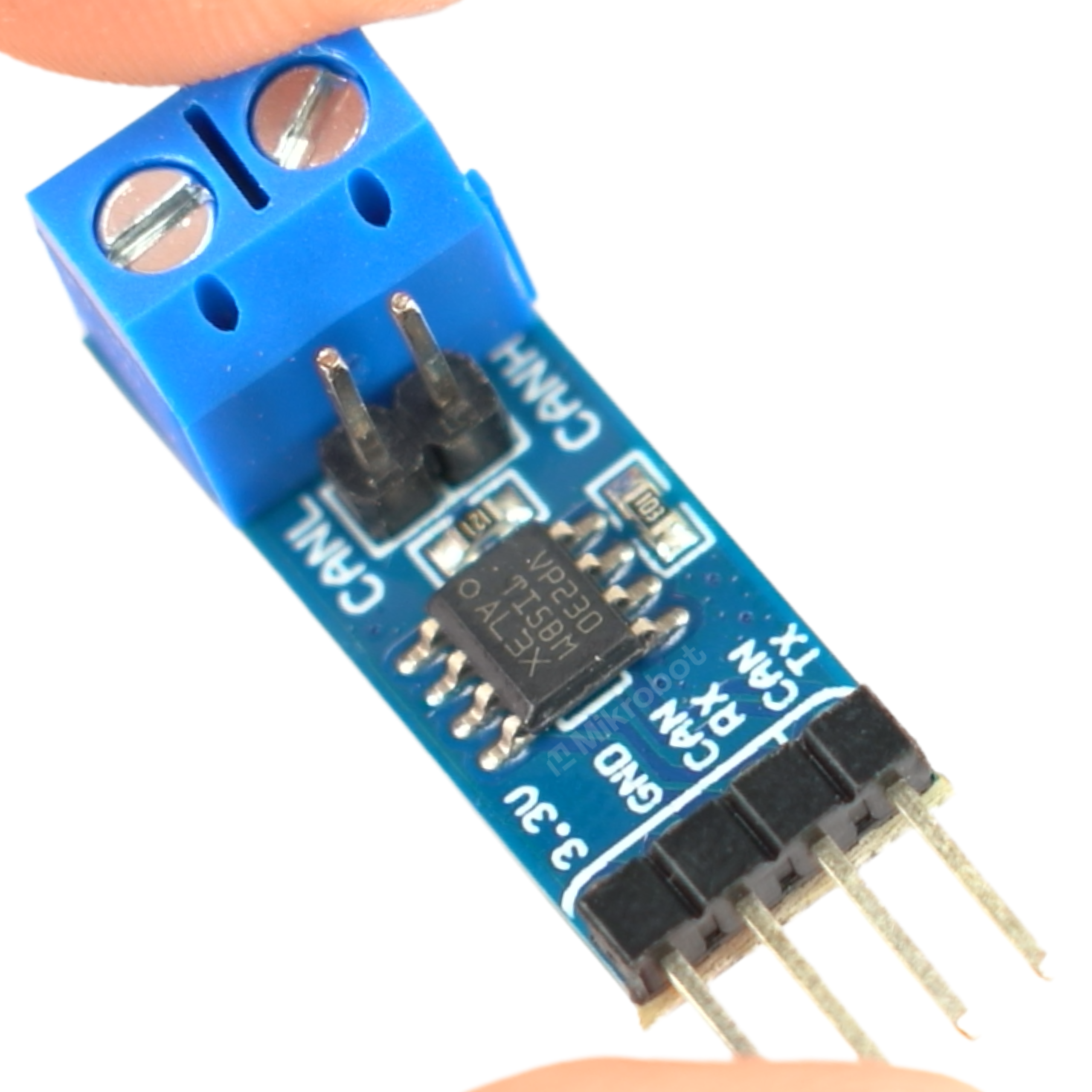

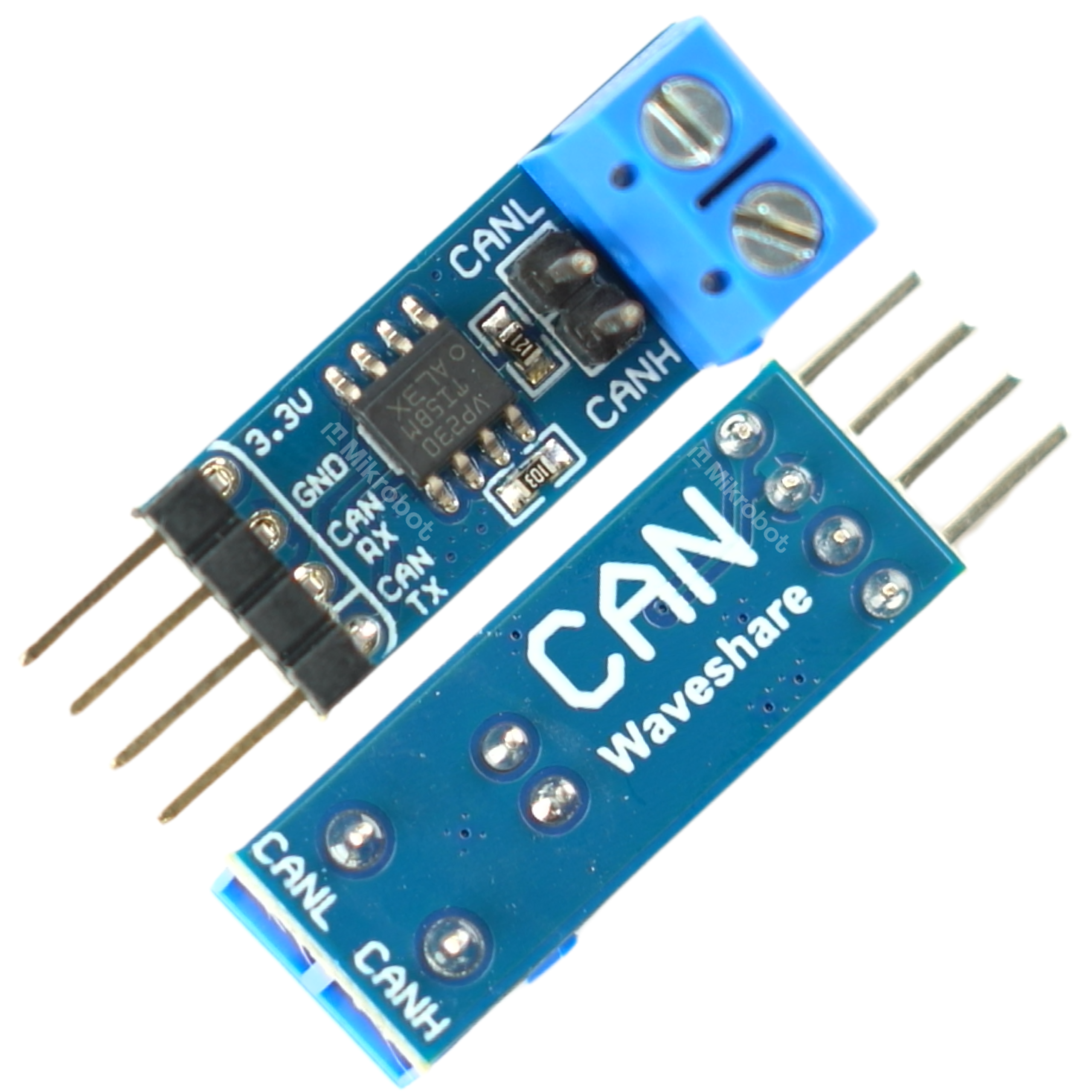

A compact SN65HVD230 communication module from WaveShare that allows you to easily connect a microcontroller to a CAN bus network. The board is based on the reliable SN65HVD230 transceiver, whose pins are fully compatible with the popular PCA82C250 chip. The device is powered by 3.3 V and features built-in ESD protection (against electrostatic discharge).

Key Technical Features

• Chip supply voltage: 3.3 V
• IC used: SN65HVD230 (compatible with the PCA82C250)
• Supported communication interface: CAN bus
• Built-in protection: ESD protection
• Module manufacturer: WaveShare

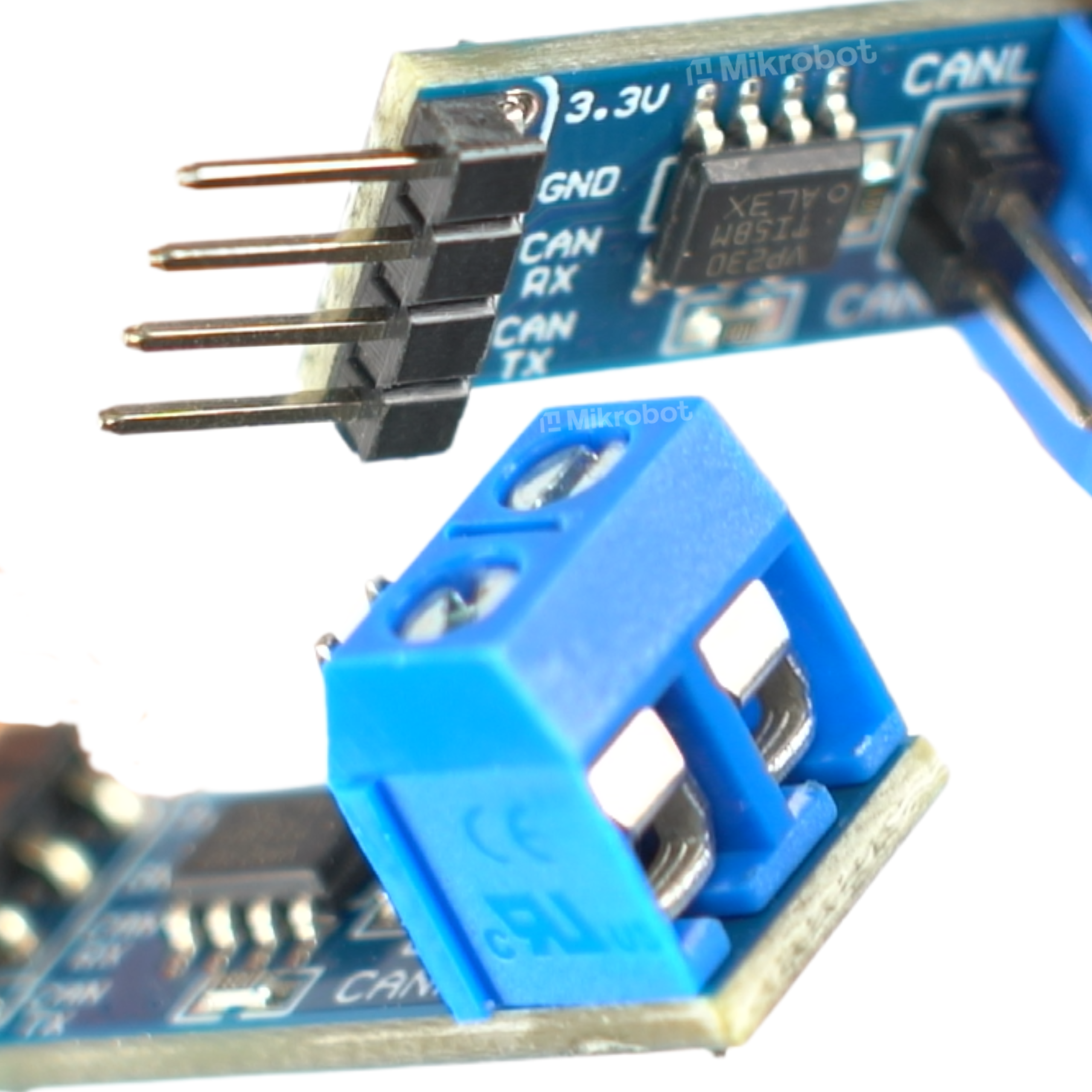

Pin description

• 3.3V - 3.3 V power supply.
• GND - Chip ground.
• CAN RX - Receiver data line of the serial interface.
• CAN TX - Transmitter line of the serial interface.
• CANL - CAN Low signal line.
• CANH - CAN bus High signal line.

Example Applications

• Long-distance communication between multiple microcontrollers in industrial environments.
• Building automation systems based on a reliable wired network.
• Reading and analyzing data from sensors and modules in vehicles equipped with a CAN bus.
• Creating distributed measurement networks with high resistance to electromagnetic interference.
• Integrated control and communication systems in advanced robotics.

Benefits of choosing this module

• Quick implementation with popular hardware platforms—the product is compatible with platforms such as Arduino, ESP32, ESP8266, and Raspberry Pi.
• High data transmission reliability thanks to the use of the CAN industrial standard.
• Protection for other project components thanks to integrated protection against unexpected ESD discharges.
• Seamless integration with modern systems thanks to compatibility with 3.3 V logic.
• Convenient setup and testing of circuits using soldered and labeled goldpin connectors.

ℹ Important information regarding compatibility

Please note that this module is a transceiver and requires a CAN controller to function properly. The ESP32 microcontroller has a built-in CAN controller, while other boards (such as Arduino, ESP8266, or Raspberry Pi) do not and require an additional, external CAN controller (e.g., MCP2515).
