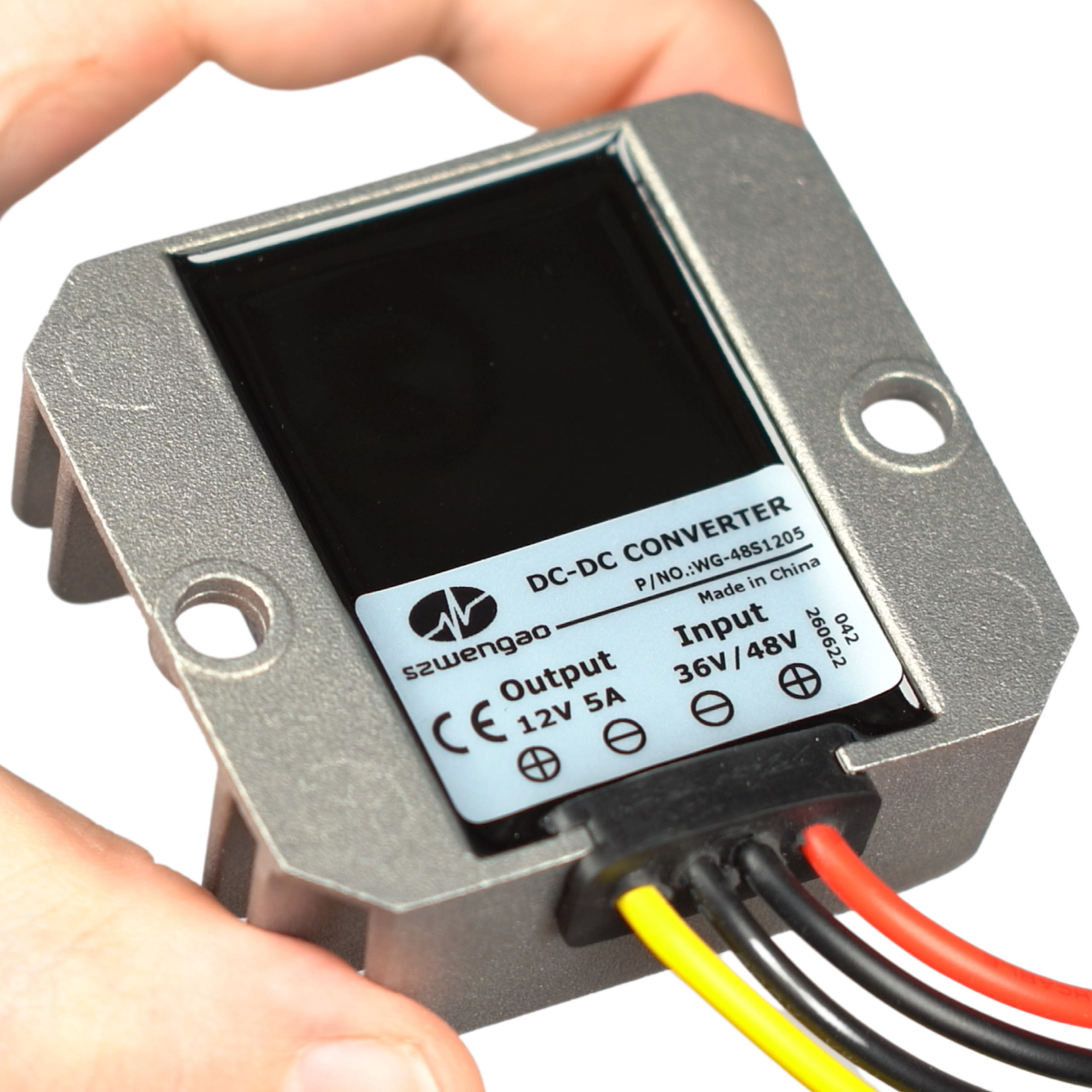

Przetwornica WG48S1205 DC-DC Step-Down 12-60V 5A 60W obniżająca napięcie

DC-DC Step-Down Voltage Converter 30V-60V to 12V 5A

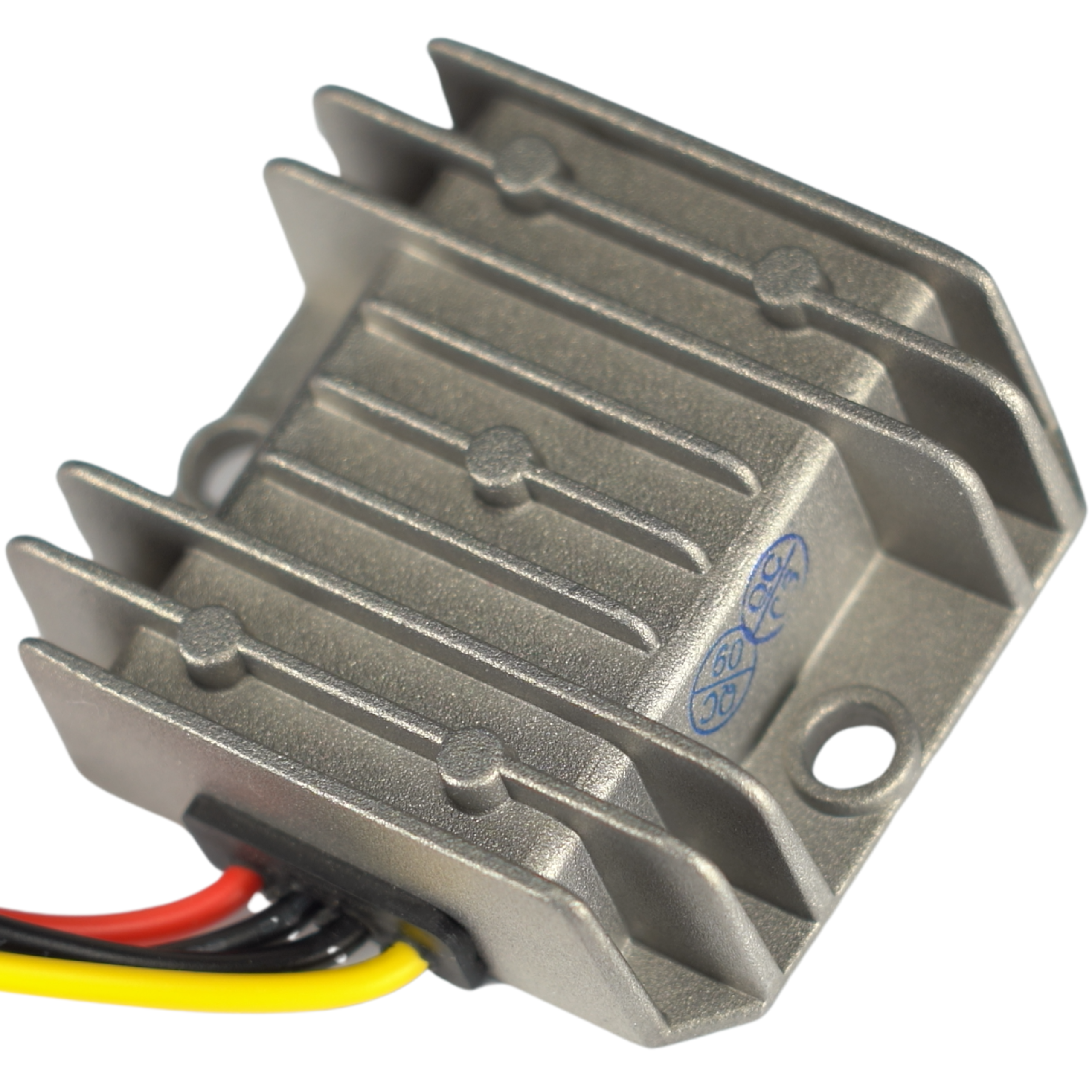

A universal DC-DC step-down converter designed to reduce voltage from the 30V - 60V DC range (including typical 48V DC) to a stable 12V DC level. The device features high energy efficiency of 92.8% and a maximum load power of 60W. The sealed aluminum enclosure with IP68 protection rating acts as a heatsink, ensuring optimal cooling of the circuit.

Note: Incorrect input polarity may damage the converter.

Example Applications

• Powering electronics in forklifts and electric vehicles with 48V batteries.
• Powering 12V devices in golf carts.
• Emergency power systems and photovoltaic installations (alternative energy sources) requiring voltage reduction to 12V.
• Powering 12V LED lighting, controllers, and industrial modules.
• Applications in telecommunications, on boats and yachts, and in electronic projects requiring stable 12V voltage when powered from higher DC voltages.

Key Technical Specifications

• Input voltage: 30V - 60V DC
• Output voltage: 12V DC (accuracy ±2%)
• Maximum output current: 5A
• Maximum load power: 60W
• Energy efficiency: up to 92.8%
• Output voltage ripple: 115mV p-p (typ.)
• Protection rating: IP68
• Switching frequency: 230 kHz
• Dimensions: 64 mm x 57 mm x 22 mm
• Protections: thermal, overload, output short-circuit, input undervoltage

Benefits

• High reliability thanks to a robust aluminum enclosure that acts as a heatsink (MTBF ≥200,000 h).
• Environmental resistance - IP68 protection rating and operation in temperature range down to -40°C allow safe use in harsh conditions.
• Wide input voltage range ensures versatility and compatibility with 48V power systems.
• High efficiency minimizes energy losses and heat dissipation during operation.

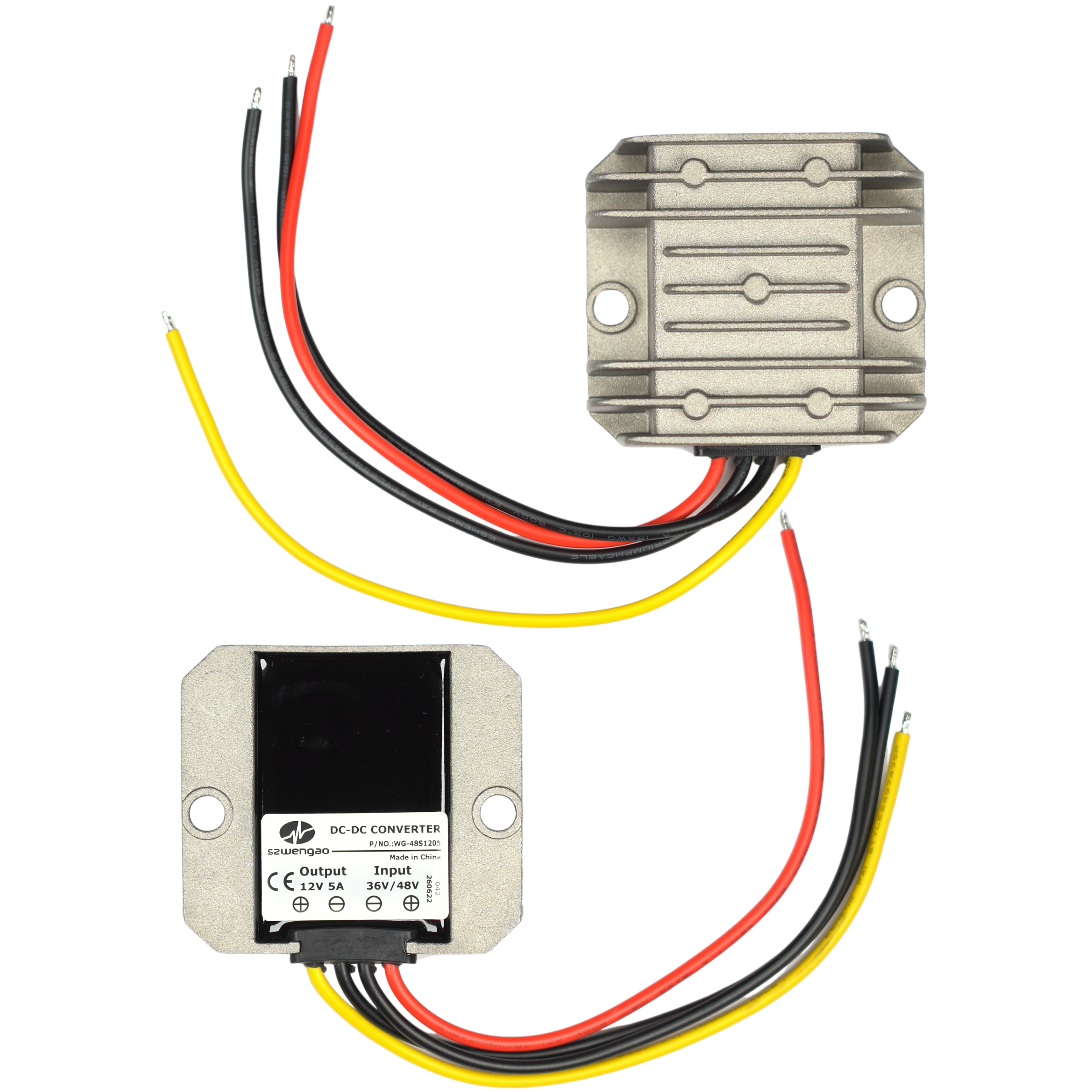

• Easy installation with integrated 17 cm wires and pre-drilled mounting holes.
