LED Module 16 WS2812 5050 LEDs Glowing RING - 5V 68mm for Arduino

LED Module 16 WS2812 5050 LEDs Glowing RING

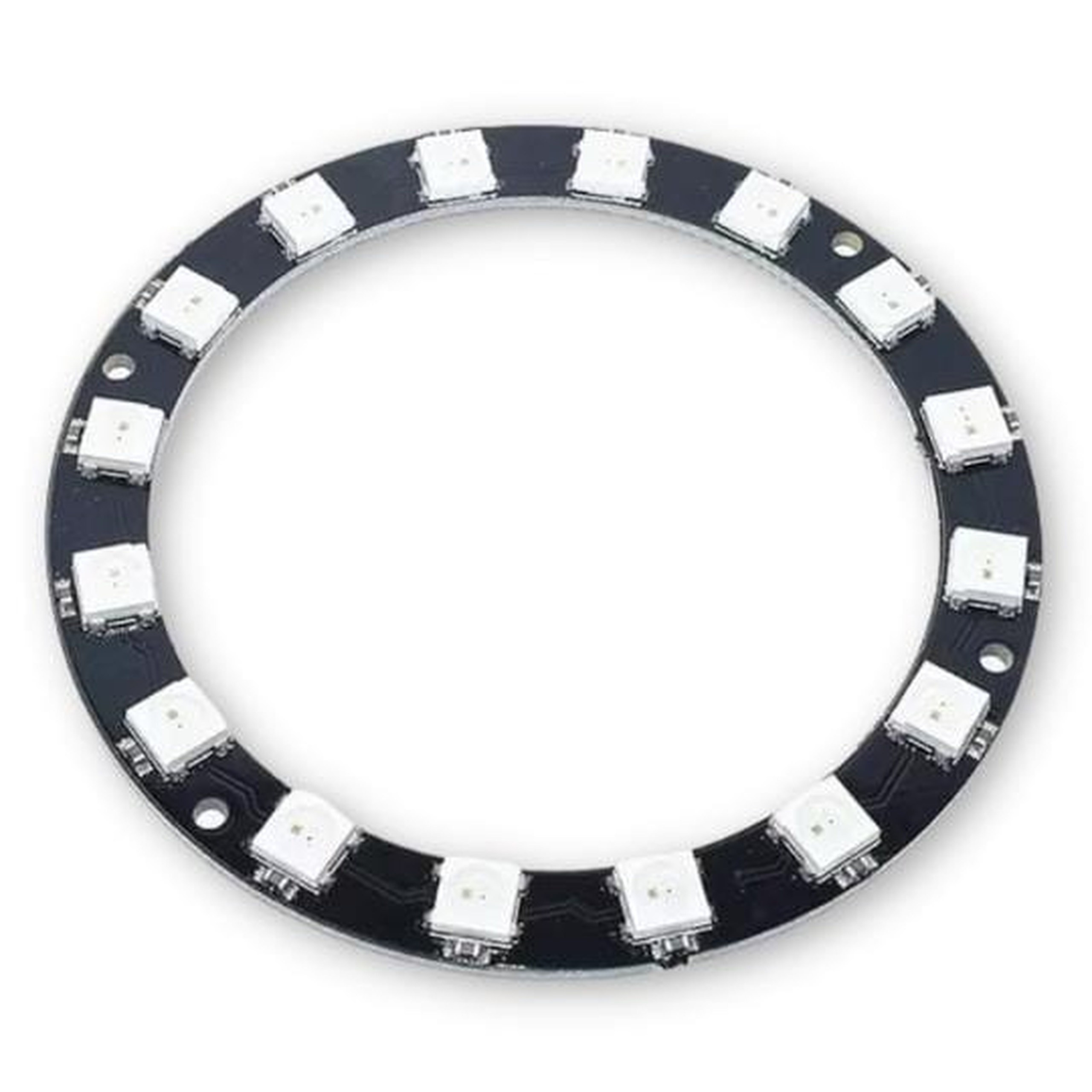

16 LED RING is a module with LEDs arranged in a circle with a diameter of 68mm. Each of the 16 RGB LEDs in a 5050 (PLLC-4) package is controlled by a built-in WS2812 driver. The module is fully compatible and designed to work with popular platforms such as: Arduino, ESP8266, ESP32 and Raspberry Pi.

The circuit features a supply voltage from 4V to 7V and current consumption of up to 60mA per LED. Each color (R, G, B) offers 256 brightness levels. The ring PCB is black, with built-in soldering pads. Dimensions are 68mm diameter, 6mm board width and 3.1mm thickness, making it ideal for a variety of lighting projects.

Key technical features

• Supply voltage: from 4V to 7V
• Current consumption: maximum 60mA per LED
• Number and type of LEDs: 16 RGB WS2812 LEDs
• Package: 5050 (PLLC-4)
• Brightness levels: 256 for each primary color (R, G, B)
• PCB color: black

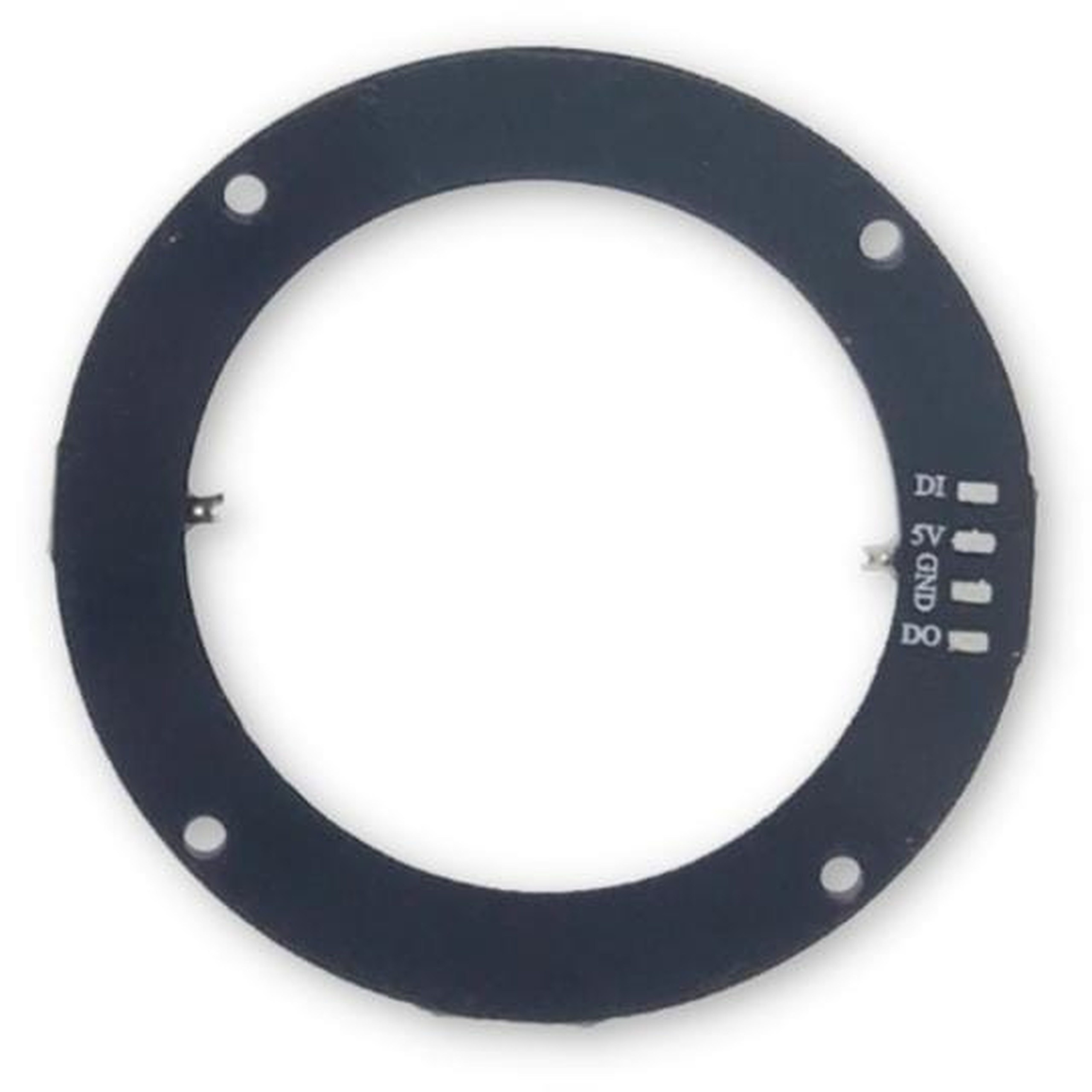

• Connectors: built-in soldering pads
• Dimensions: 68mm (diameter), 6mm (board width), 3.1mm (thickness)

Example applications

• Creating striking lighting and decorative installations
• Building POV clocks and visual indicators
• Lighting in robotics and modeling projects
• Status indication for electronic devices
• Lighting elements in wearable and cosplay projects

Benefits

• Convenient control of all LEDs using only one digital pin
• Wide compatibility with popular microcontrollers and libraries
• Ability to daisy-chain multiple modules into longer chains
• High brightness and smooth color transitions thanks to a 24-bit color palette
• Compact dimensions for easy installation in confined spaces
