Czujnik odległości laserowy VL53L1X ToF TOF400C - 400cm I2C do Arduino 3-5V

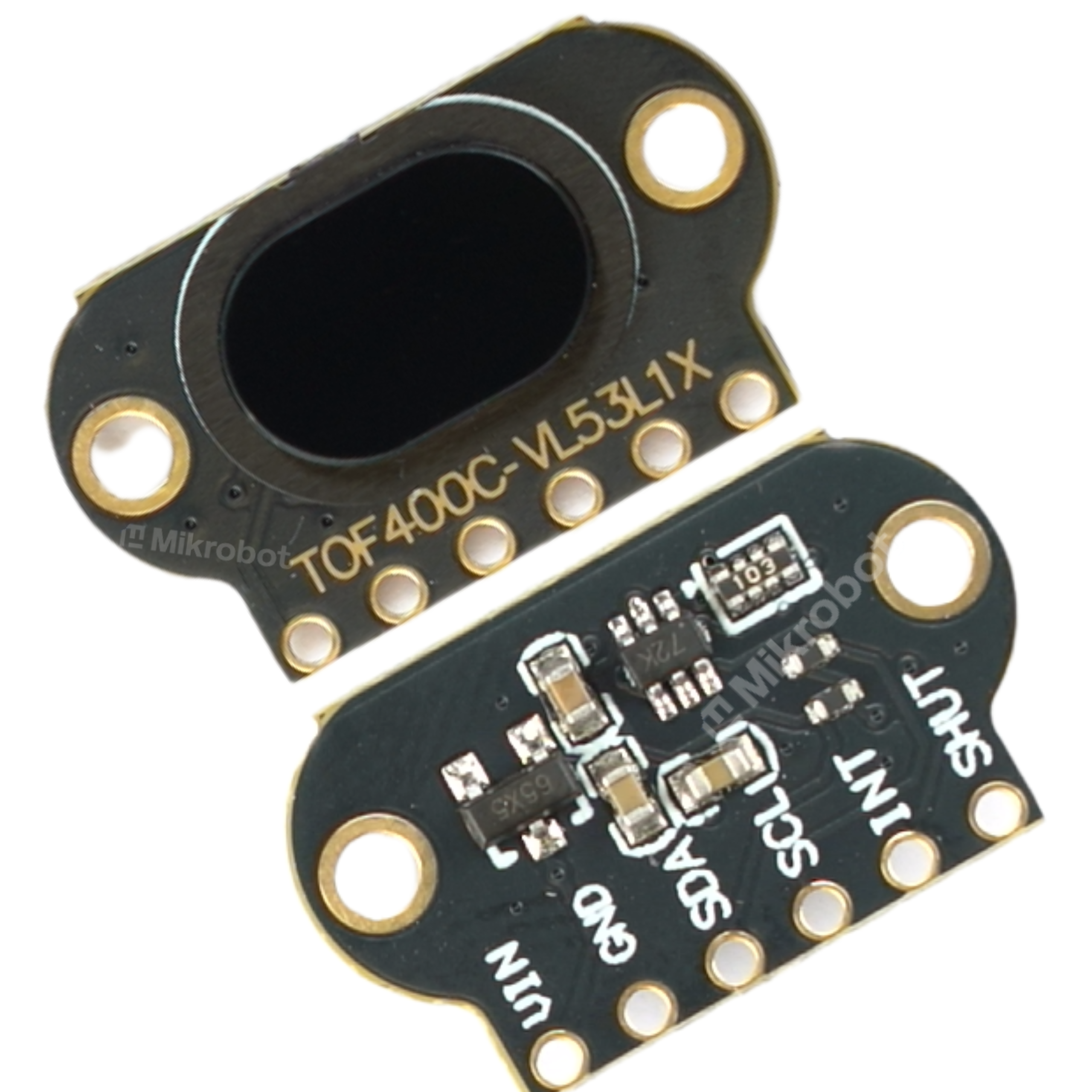

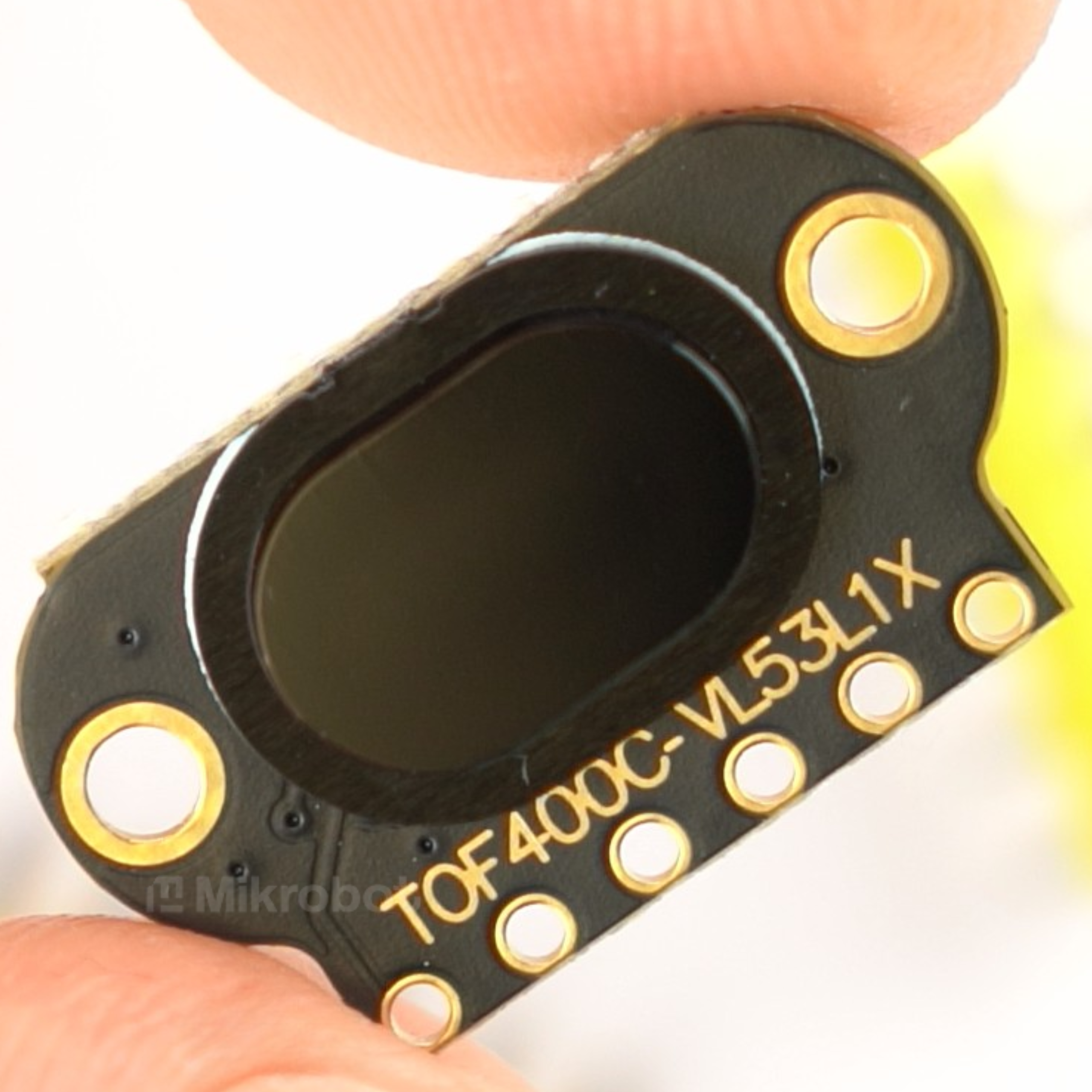

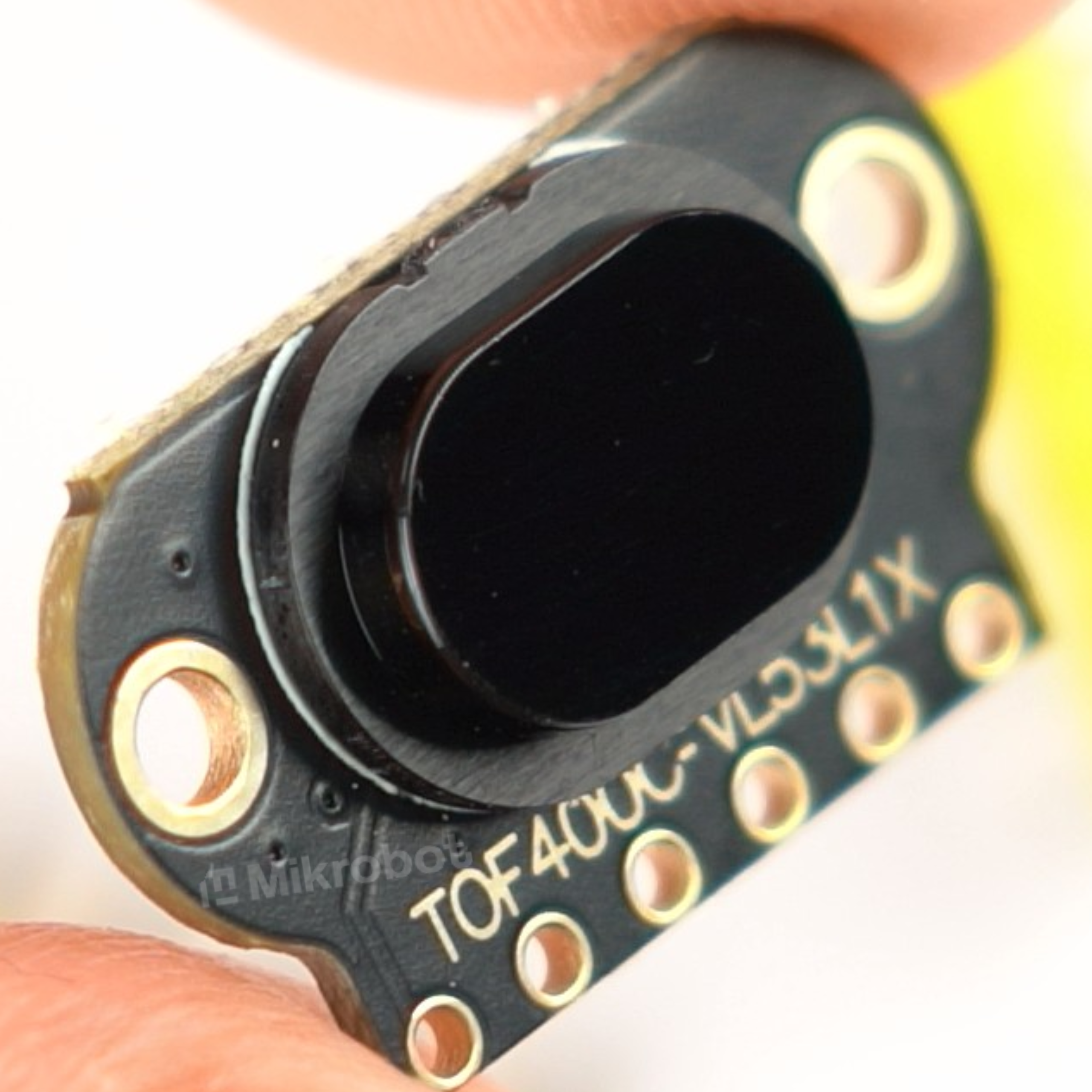

VL53L1X ToF Laser Distance Sensor TOF400C

Distance sensor module based on the VL53L1X chip. It uses advanced Time-of-Flight (ToF) technology, which measures the flight time of a laser beam rather than the intensity of reflected light. This ensures stable and precise readings regardless of the color and type of the measured surface. The module makes it easy to build advanced measurement systems and is an excellent choice for Arduino, ESP32, ESP8266, STM32, and Raspberry Pi.

Key technical features

• Sensor model: VL53L1X (module version: TOF400C)
• Measurement technology: Time-of-Flight (ToF)
• Supply voltage: 3 V - 5 V
• Measurement range: from 4 cm to 400 cm
• Dead zone: approximately 4 cm
• Measurement resolution: 1 mm
• Refresh rate: up to 50 Hz
• Communication interface: I2C bus (default address: 0x29)
• Light source: VCSEL 940 nm laser (safe Class 1)
• Field of view: approximately 27 degrees (with programmable ROI area)
• Dimensions: approximately 20 x 12 mm

Benefits

Using a sensor from the VL53L1X series brings a number of advantages in electronics projects. The most important strengths of this solution are listed below:

• High reading reliability thanks to the ToF architecture, completely independent of the reflectivity and color of the detected object.
• Hassle-free hardware integration due to the wide accepted supply voltage range of 3 V - 5 V.
• Easy configuration and communication via the two-wire I2C bus, supported by most popular microcontrollers.
• Option to modify the programmable measurement area (ROI), enabling precise adjustment of the chip’s field of view to the target operating environment.
• Very large operating range of up to 400 cm while maintaining the module’s compact physical dimensions.

Example applications

Thanks to high precision and flexible power supply, the module is used in many areas of electronics and automation:

• Mobile robotics - obstacle avoidance systems, navigation, and basic spatial mapping.
• Drones and miniature unmanned vehicles - flight altitude control and ground distance measurement.
• Smart devices in the IoT segment, alarm systems, and home automation solutions.
• Contactless interface control systems using gestures.
• Industrial object counting applications and distance control on production lines.
• Smart lighting systems and precise presence detection in defined architectural zones.

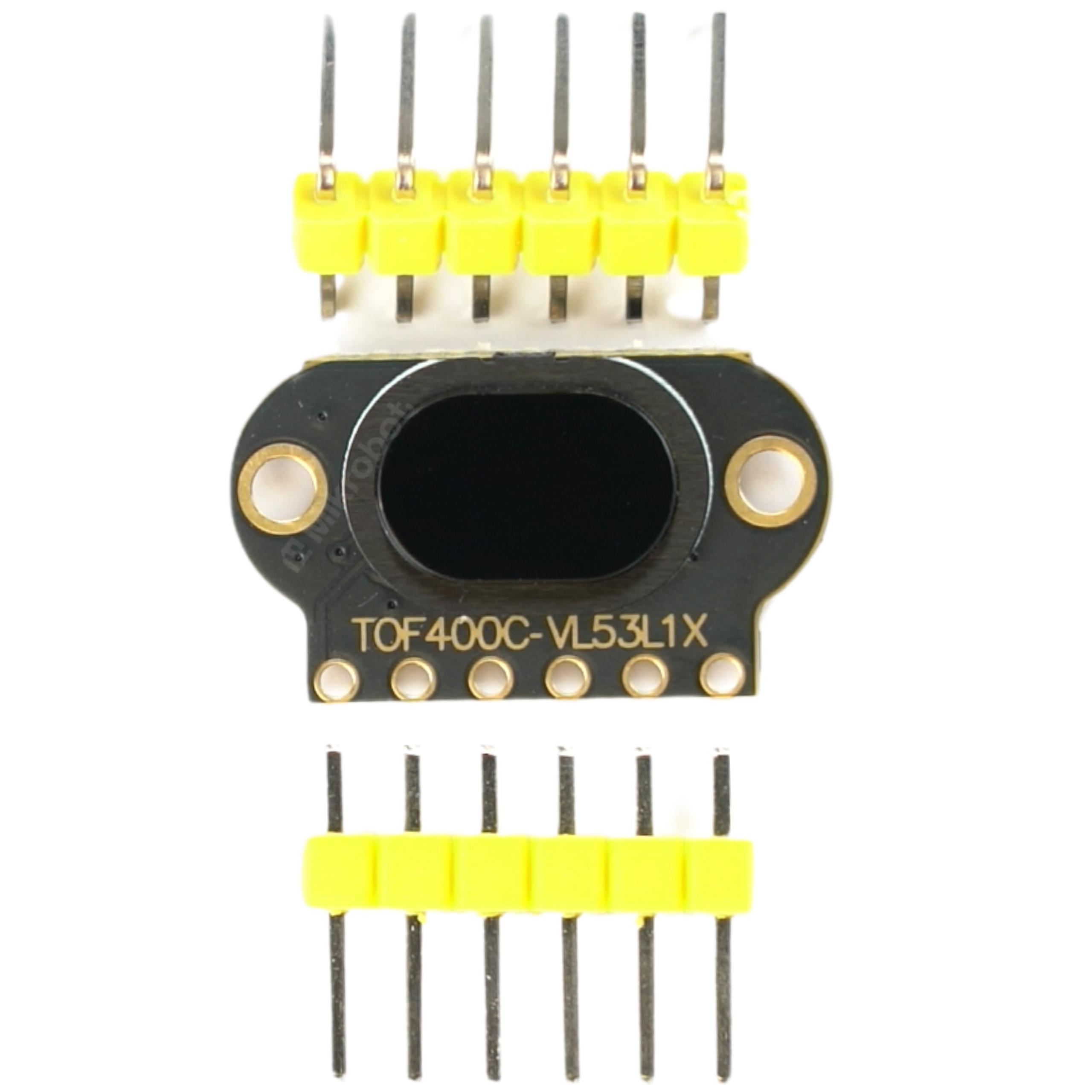

Package contents

• VL53L1X TOF400C distance sensor module
• Straight header pins for soldering
• Right-angle header pins for soldering
